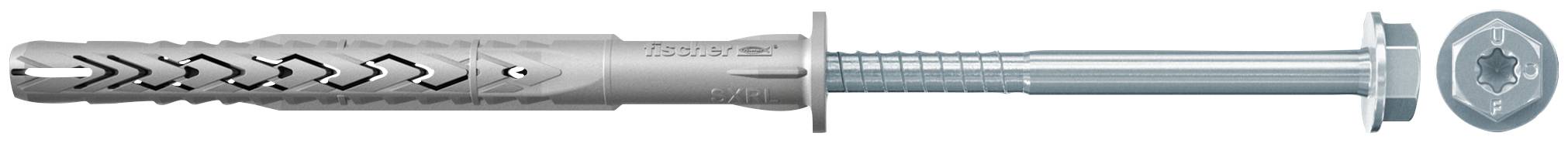

Fischer 522727 SXRL 10x230 FUS Plug (long) 230 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 160 mm
- Usable length for anchoring depth 50 mm: 180 mm
- Usable length for anchoring depth 90 mm: 140 mm
- Min. Drill hole depth for through-hole mounting: 240 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
230 mm
- Screw diameter
10 mm
- Dim
(Ø x H) 10 mm x 230 mm
- Suitable for
Foamed concrete wall
Concrete
Brickwork
Hollow bricks
Solid stone
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. hex screw
- Material properties
zinc galvanized
- Height
230 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877464 Fischer 522727 SXRL 10x230 FUS Plug (long) 230 mm 10 mm 50 pc(s)
Description

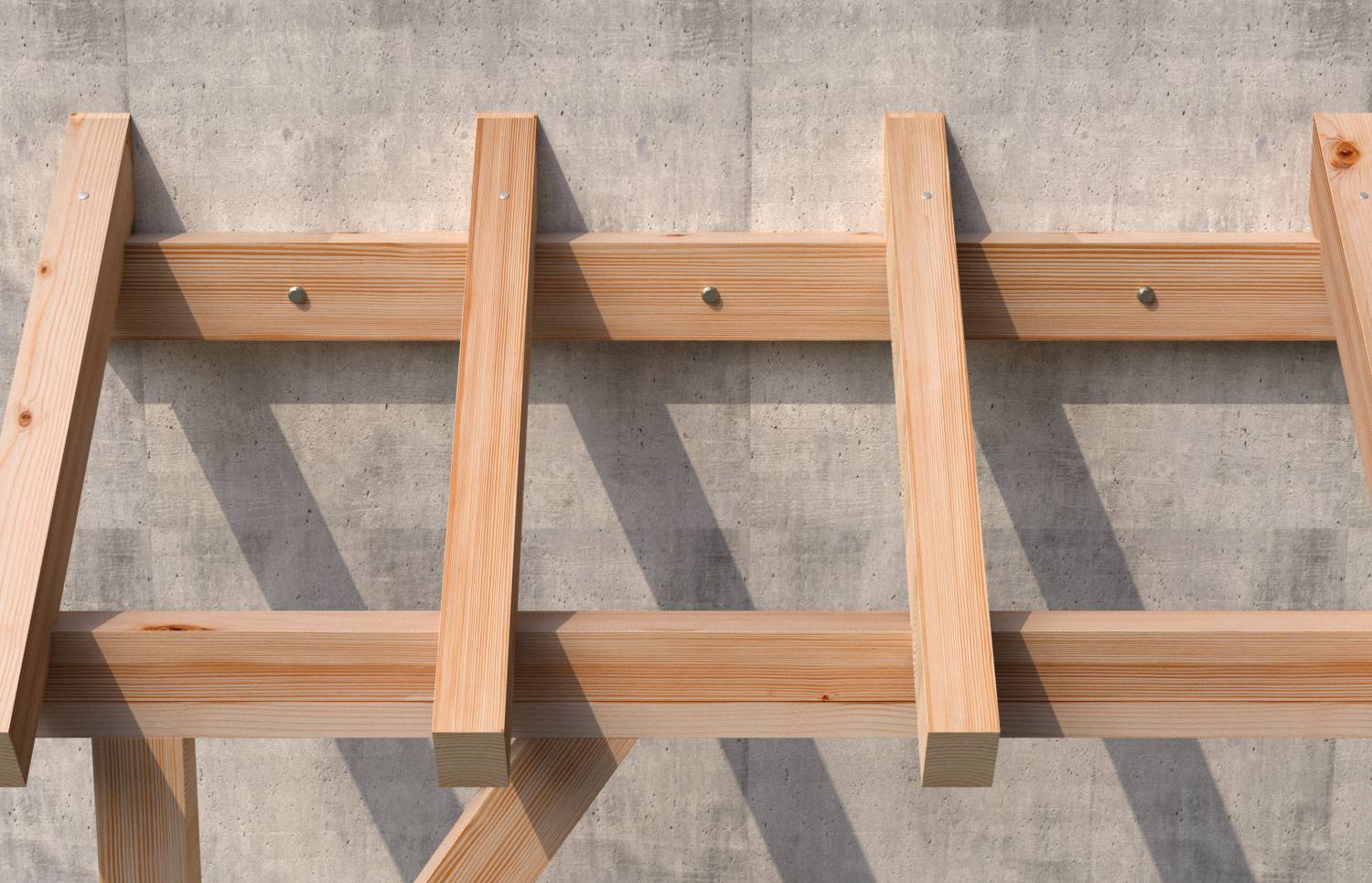

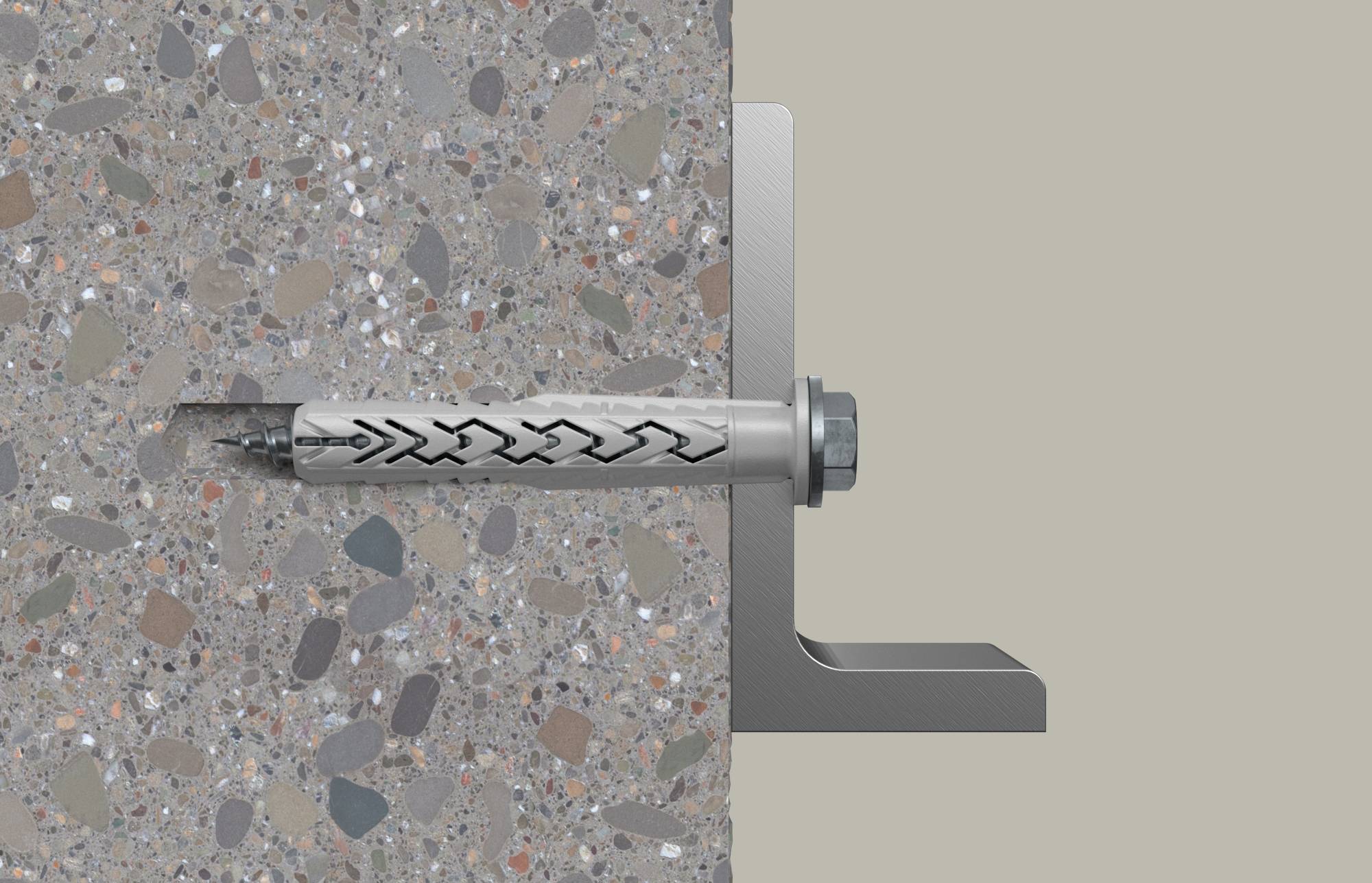

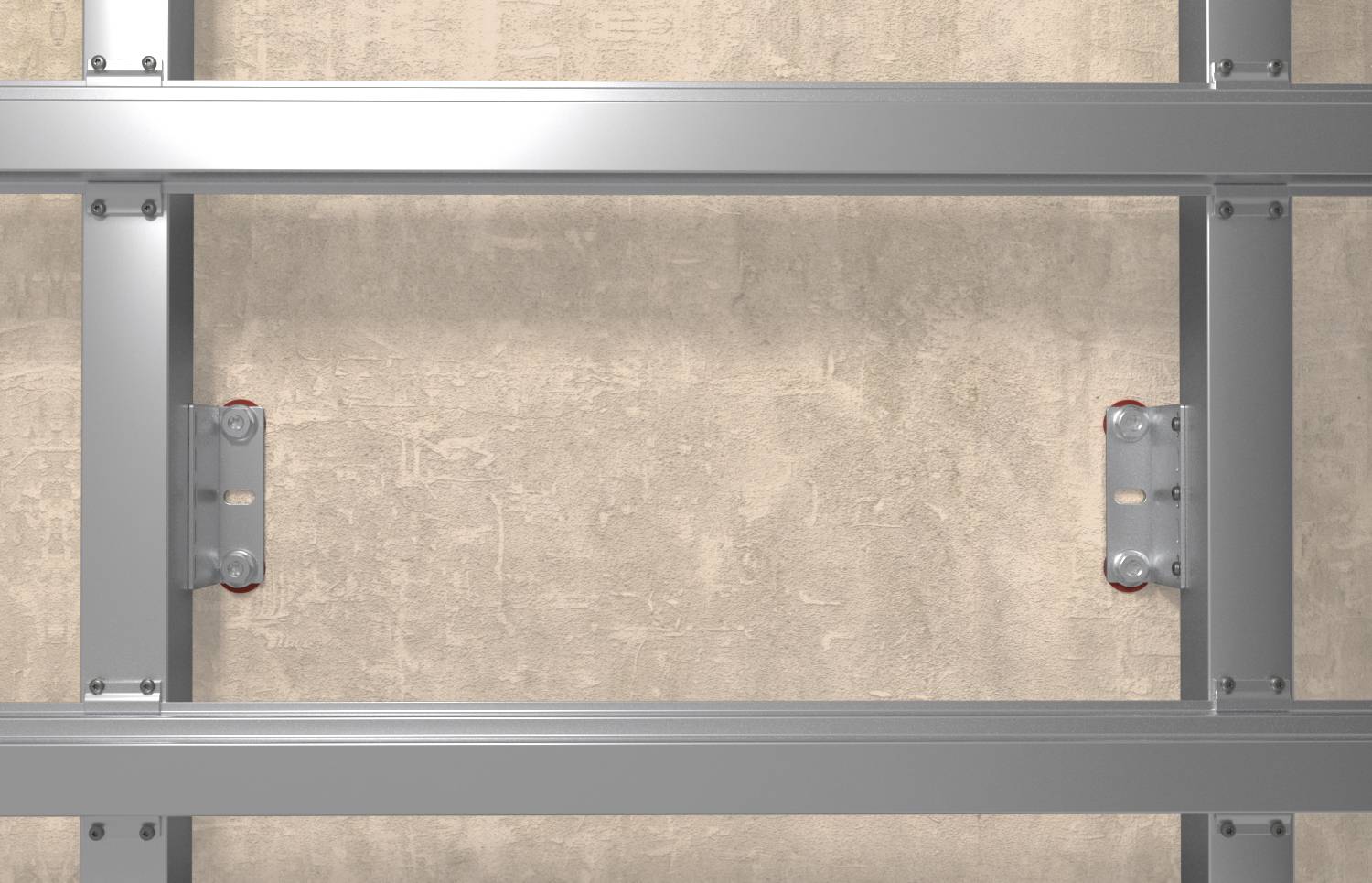

The SXRL-FUS is Fischer Long shaft bolt with the fishermen cap screw with keel disc and integrated bit holder T40 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. The security screw from electro-galvanised is the Long shaft anchor for attachments of the facades, ceiling and roof substructures made of metal.
