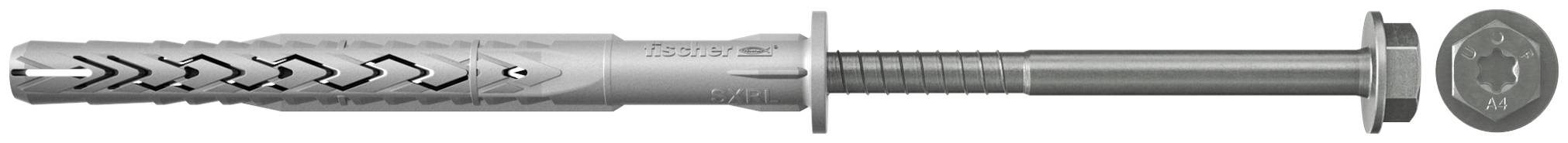

Fischer 522732 SXRL 10x120 FUS A4 Plug (long) 120 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 50 mm
- Usable length for anchoring depth 50 mm: 70 mm
- Usable length for anchoring depth 90 mm: 30 mm
- Min. Drill hole depth for through-hole mounting: 130 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
120 mm
- Screw diameter
10 mm
- Dim
(Ø x H) 10 mm x 120 mm
- Suitable for
Foamed concrete wall
Hollow bricks
Brickwork
Solid stone
Concrete
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. safety screw
incl. hex screw
- Material properties
rust-proof
- Height
120 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877298 Fischer 522732 SXRL 10x120 FUS A4 Plug (long) 120 mm 10 mm 50 pc(s)
Description
The fischer Long shaft anchor SXRL-FUS A4 is with the fishermen cap screw with keel disc and integrated bit holder T40 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
