Fischer 522733 SXRL 10x140 FUS A4 Plug (long) 140 mm 10 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 70 mm
- Usable length for anchoring depth 50 mm: 90 mm
- Usable length for anchoring depth 90 mm: 50 mm
- Min. Drill hole depth for through-hole mounting: 150 mm
- (Ø)
10 mm
- Product type
Plug (long)
- Material
Steel
- Length
140 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 10 mm x 140 mm
- Suitable for
Solid stone
Hollow bricks
Foamed concrete wall
Brickwork
Concrete
- Content
50 pc(s)
- Outside Ø
10 mm
- Features
incl. safety screw
incl. hex screw
- Material properties
rust-proof
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877860 Fischer 522733 SXRL 10x140 FUS A4 Plug (long) 140 mm 10 mm 50 pc(s)
Description

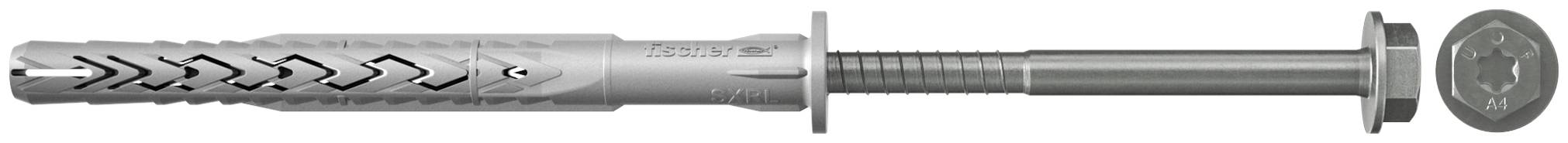

The fischer Long shaft anchor SXRL-FUS A4 is with the fishermen cap screw with keel disc and integrated bit holder T40 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
