Buy Fischer 522835 FPX M10 I K NV Foamed concrete anchor 1 Set

Package of two Fischer FFX M10 I metal anchors, labeled M10, 43 kg load, 75 mm long, for 10 mm holes.

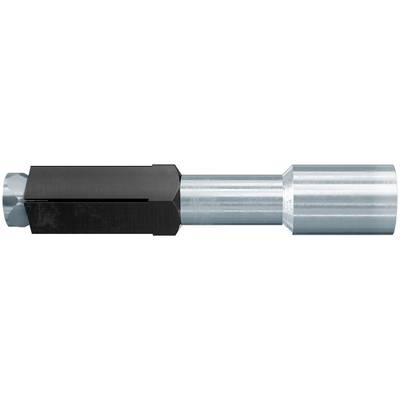

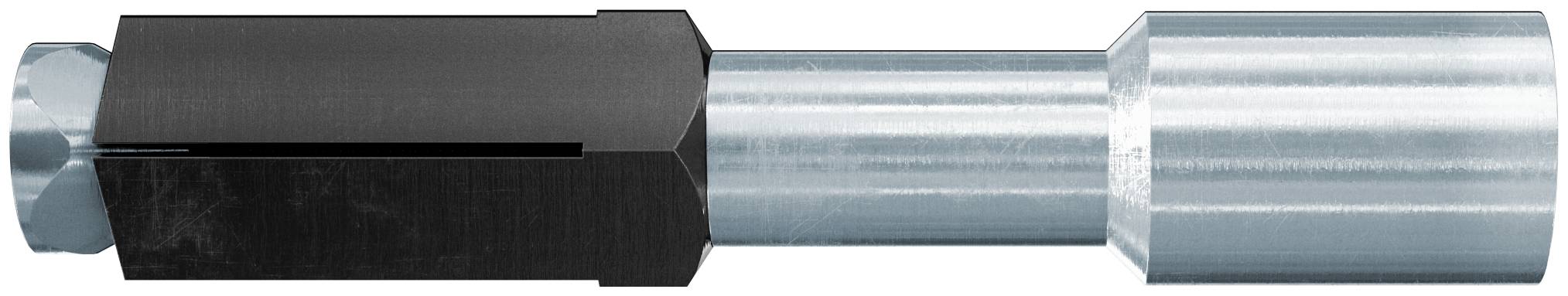

Metal tool adapter with a black hex body connected to a silver cylindrical shaft and larger polished end cap, shown on a white background

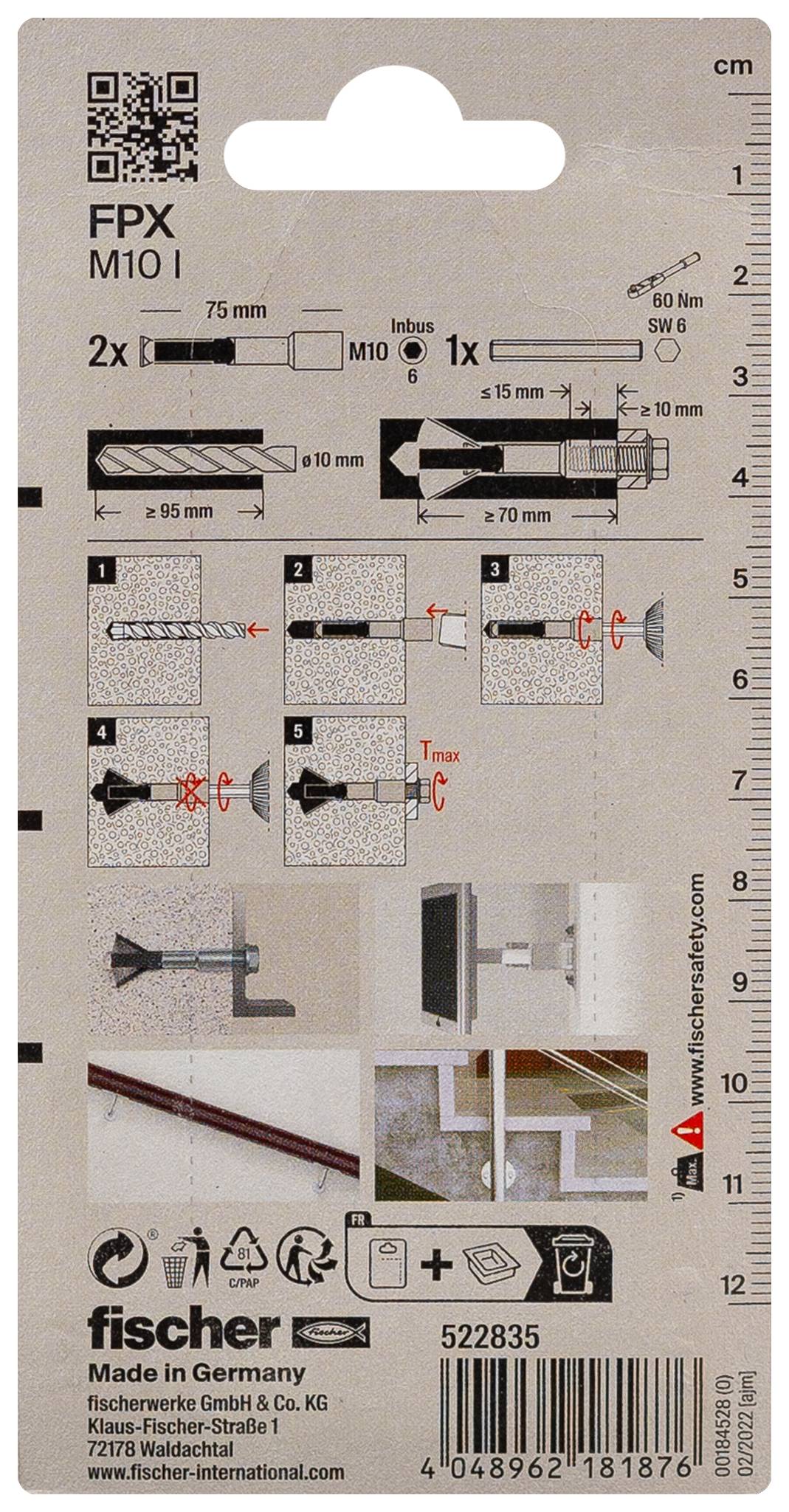

Package front showing Fischer FPX M10 I fastener set with QR code, size markings, and step-by-step installation diagrams for anchoring into concrete or masonry.

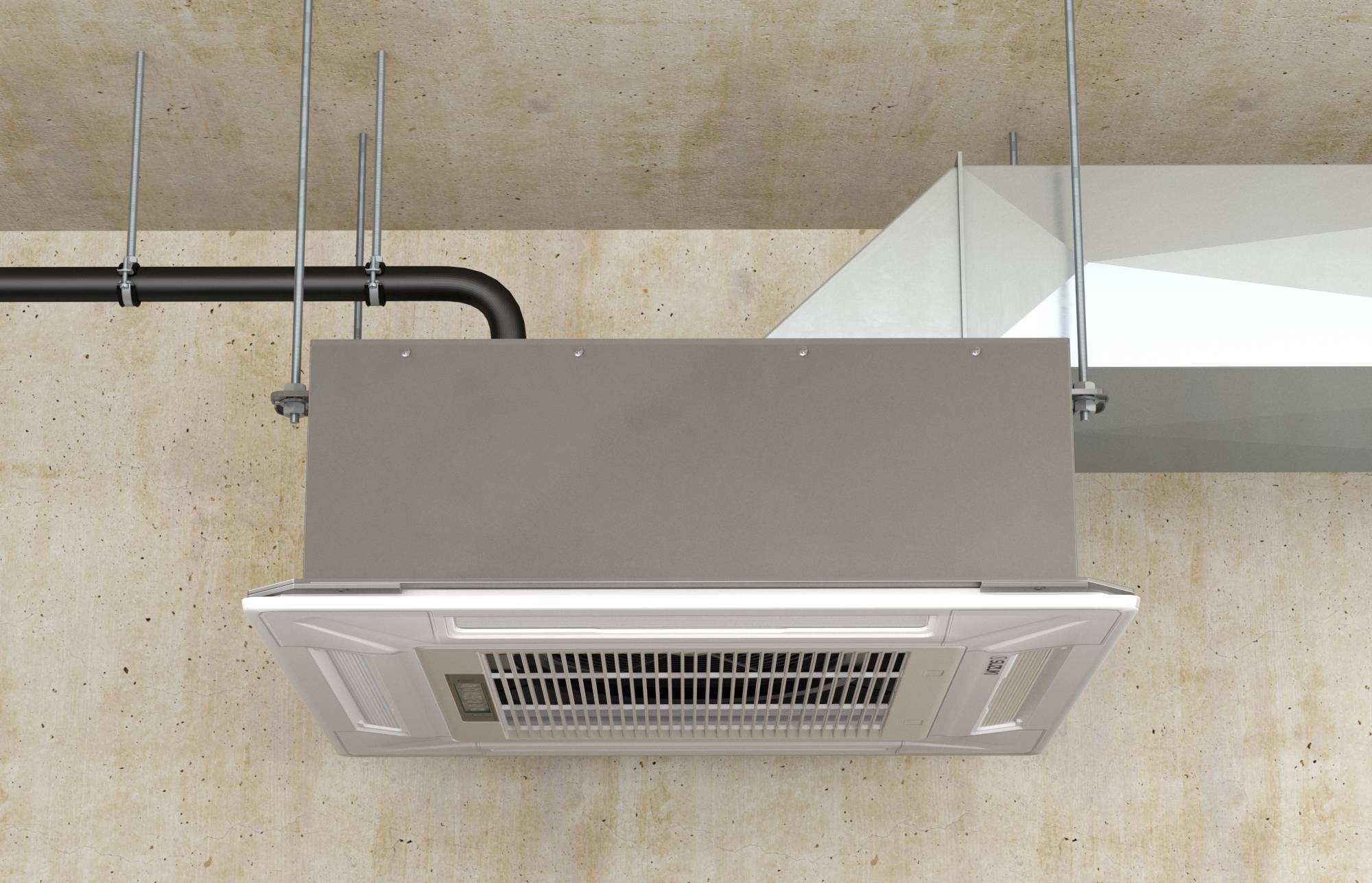

Ceiling-mounted kitchen range hood beneath exposed ducting and pipes against a concrete wall.

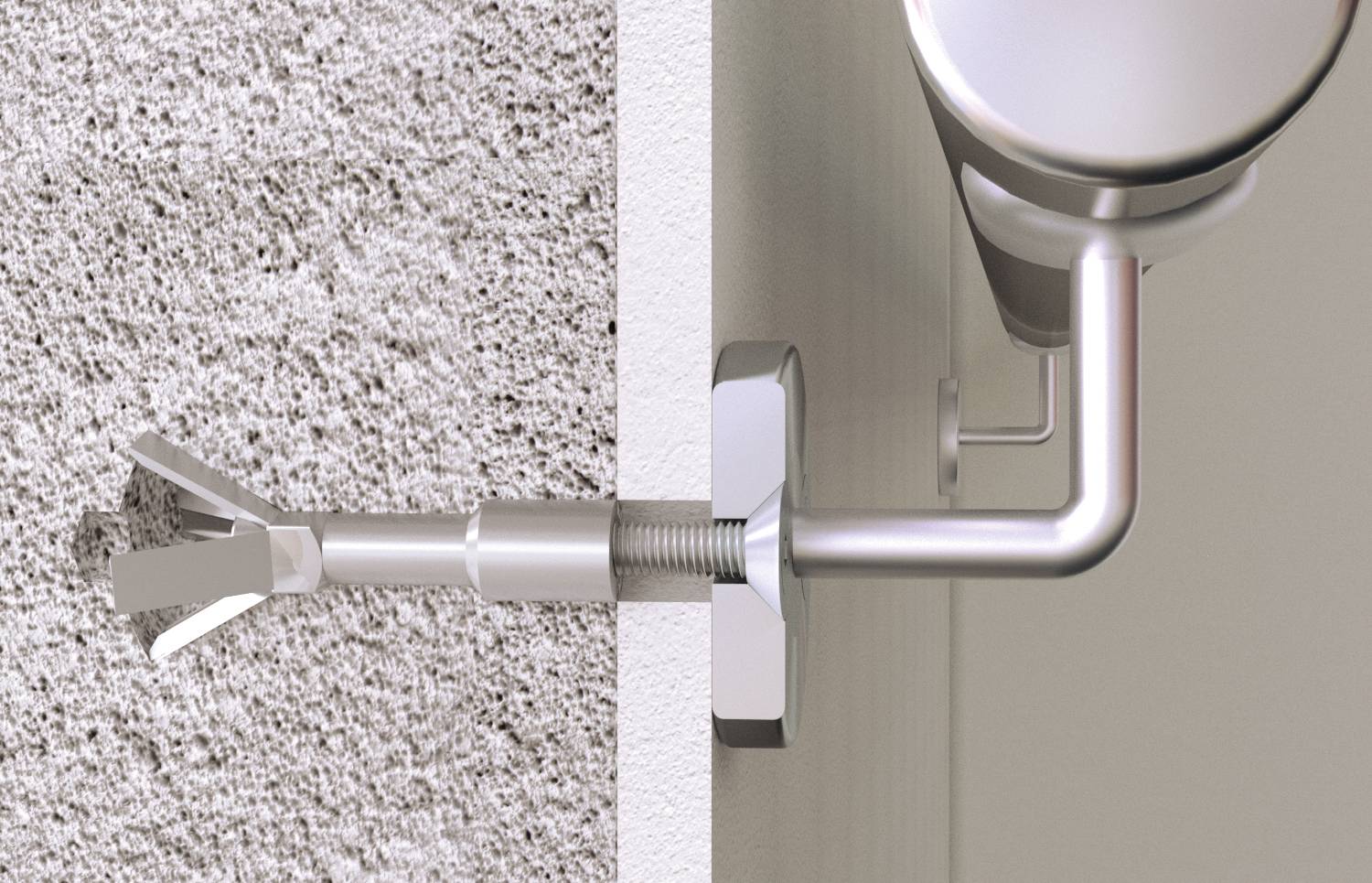

Close-up diagram of a wall anchor expanding behind drywall to fasten a bracket and support a fixture.

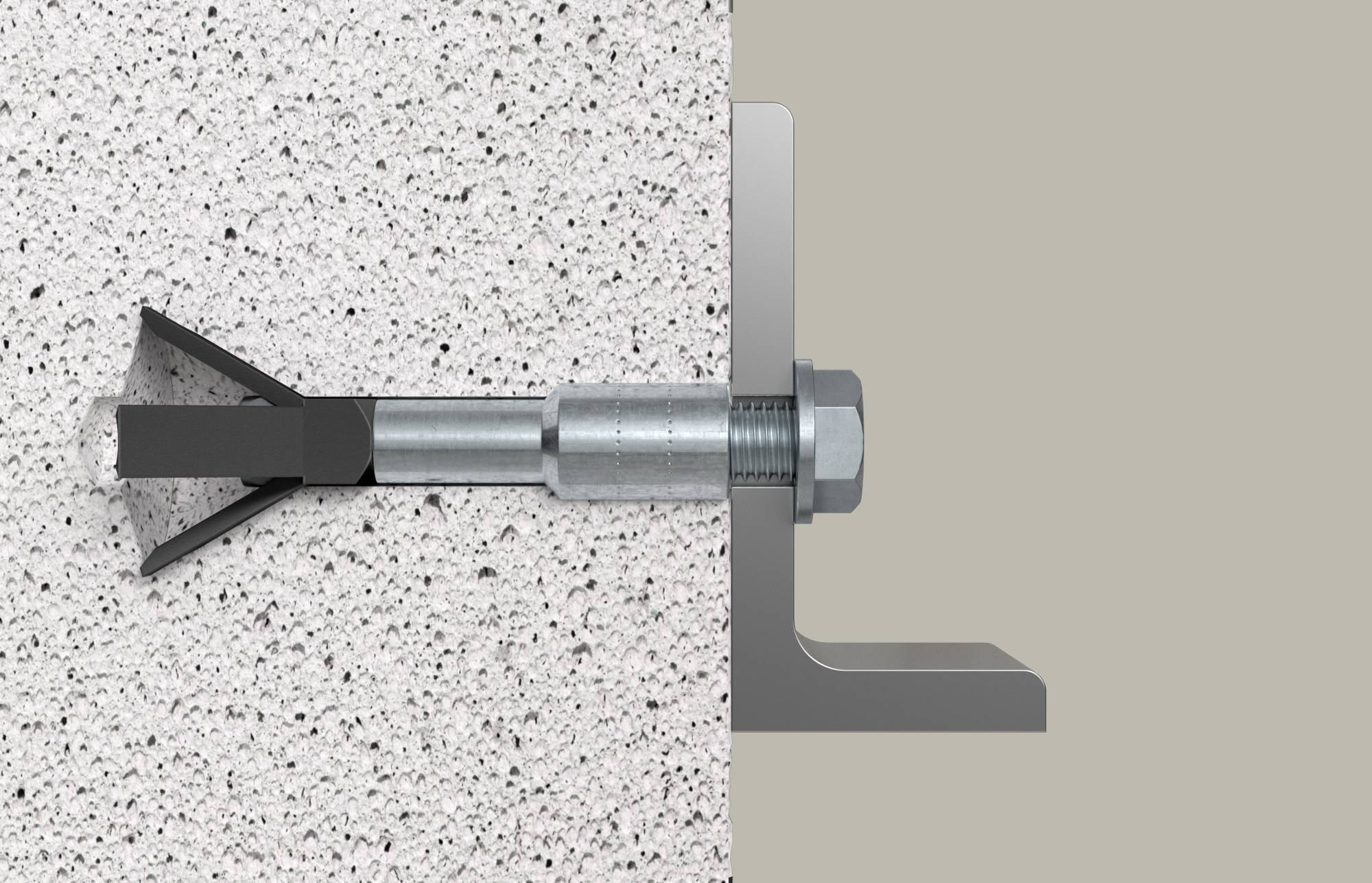

Cross-section of a wall anchor bolt: a metal expanding anchor with tapered tip inserted through a concrete wall into a bracket and tightened with a hex nut.

1/6

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

69 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 8.39 / piece)

€ 8.39

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fischer FPX – I M 10 porous concrete anchor

The first approved metal anchor for aerated concrete.
High load capacity: Spreader wings create trailing cut. This saves fixing points.
Simple and strong mounting without additional setting tool.
No rotation of the anchor.
Automatic setting control guarantees maximum safety.

Technical specifications

Product type: Foamed concrete anchor

Material: Steel

Screw diameter: 10 mm

Suitable for: Foamed concrete wall

Content: 1 Set

Outside Ø: 10 mm

Material properties: zinc galvanized

Documents & Downloads

Datasheet

Datasheet 3065975 Fischer 522835 FPX M10 I K NV Foamed concrete anchor 1 Set

User & Safety Instructions

User & Safety Instructions 3065975 Fischer 522835 FPX M10 I K NV Foamed concrete anchor 1 Set

Information

Information 3065975 Fischer 522835 FPX M10 I K NV Foamed concrete anchor 1 Set

Description

The Fischer FPX-I aerated concrete armature is made from galvanized steel. After pre-drilling, the FPX-I is only knocked with a hammer. There is no need to clean the drill hole. The Fischer aerated concrete anchor is tightened with a hexagonal wrench using a cordless screwdriver or ratchet. Through this, the cone is pulled in the expanding sleeve. The four wings create an undercut in the drill hole. After the spreading, the hexagon wrench is automatically released. The Fischer FPX-I porous concrete anchor is Ideal suitable for mounting suspended ceilings, railings or kitchen cabinets in porous concrete.

This text is machine translated.
