Buy Fischer 522836 FIS H 20 x 85 K K NV Anchor plug 85 mm 20 mm 1 Set

Packaging for Fischer wall plugs, showing two white perforated plastic anchors in a clear blister pack.

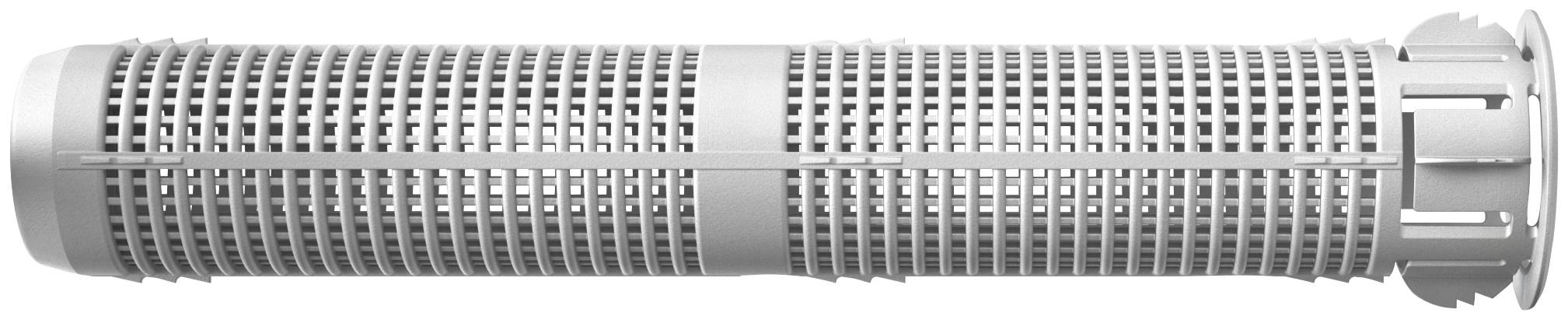

Cylindrical metal mesh filter cartridge with end cap, shown horizontally on a white background.

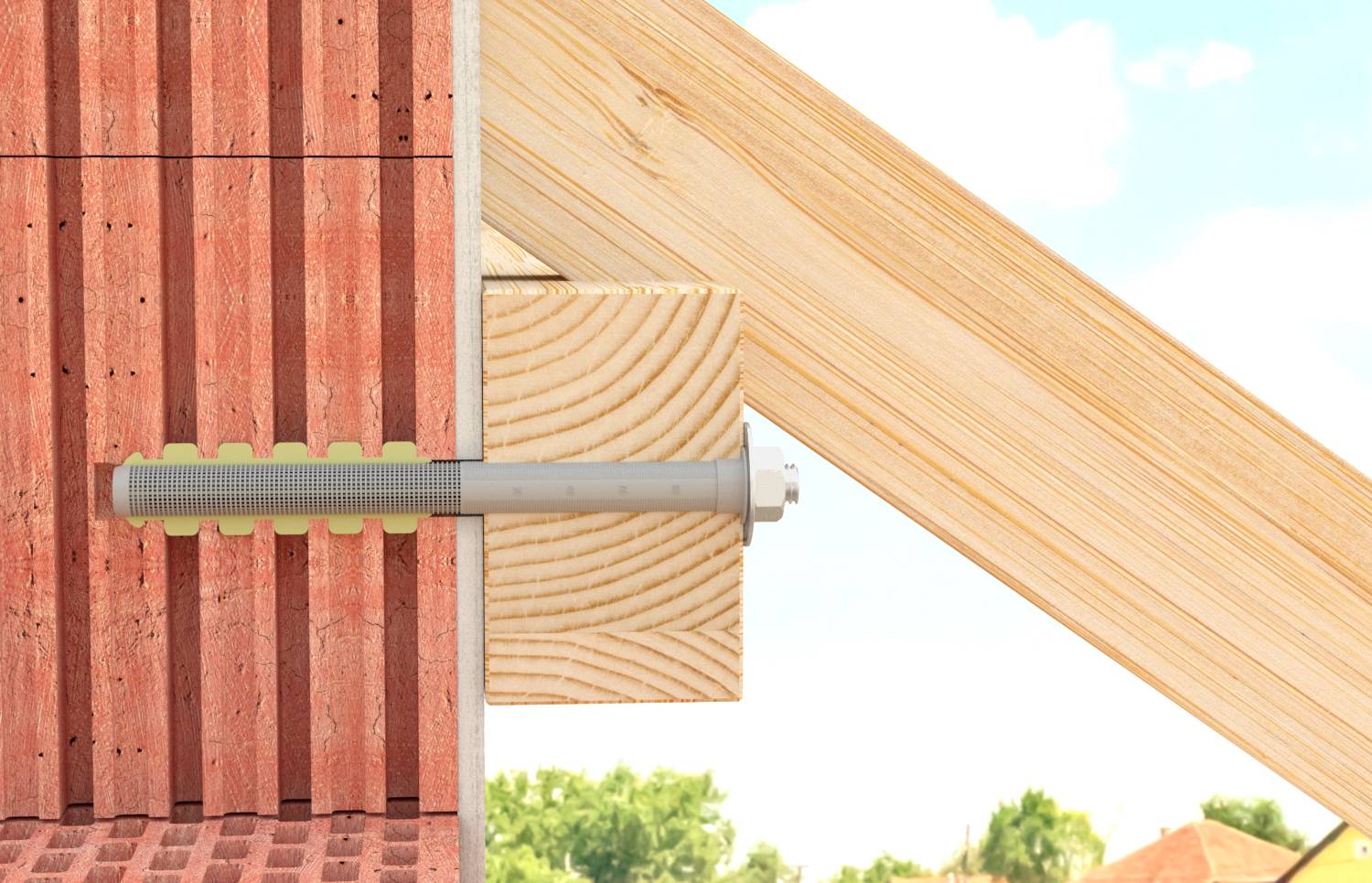

Close-up of a metal bolt fastening a wooden beam to a brick wall, illustrating structural joinery or construction support.

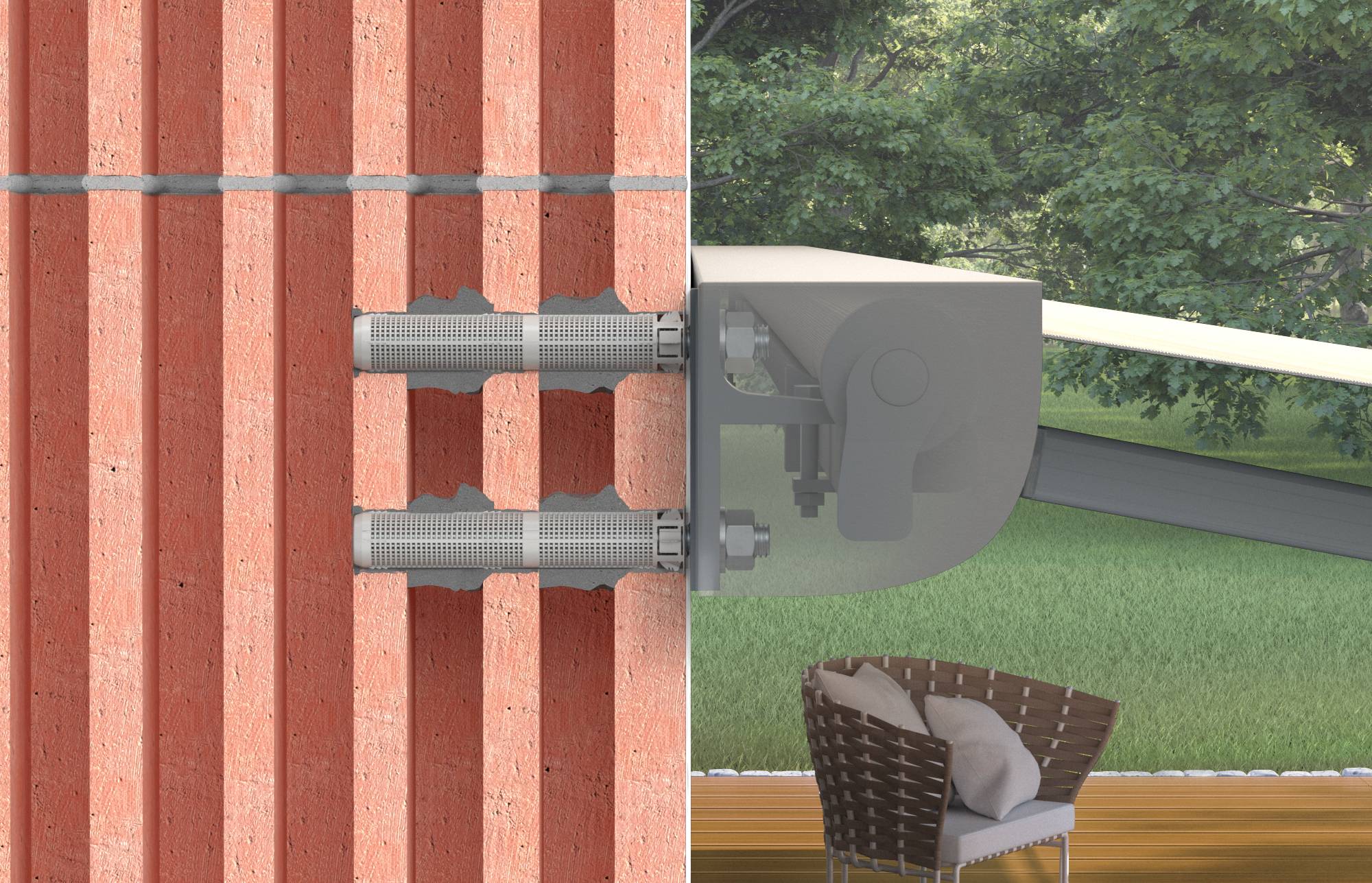

Close-up of wall-mounted metal anchors bolting a gray bracket to a brick wall, likely for securing a canopy or awning structure outdoors.

Wooden porch canopy with posts and diagonal braces attached to a white wall, casting shadows on the exterior.

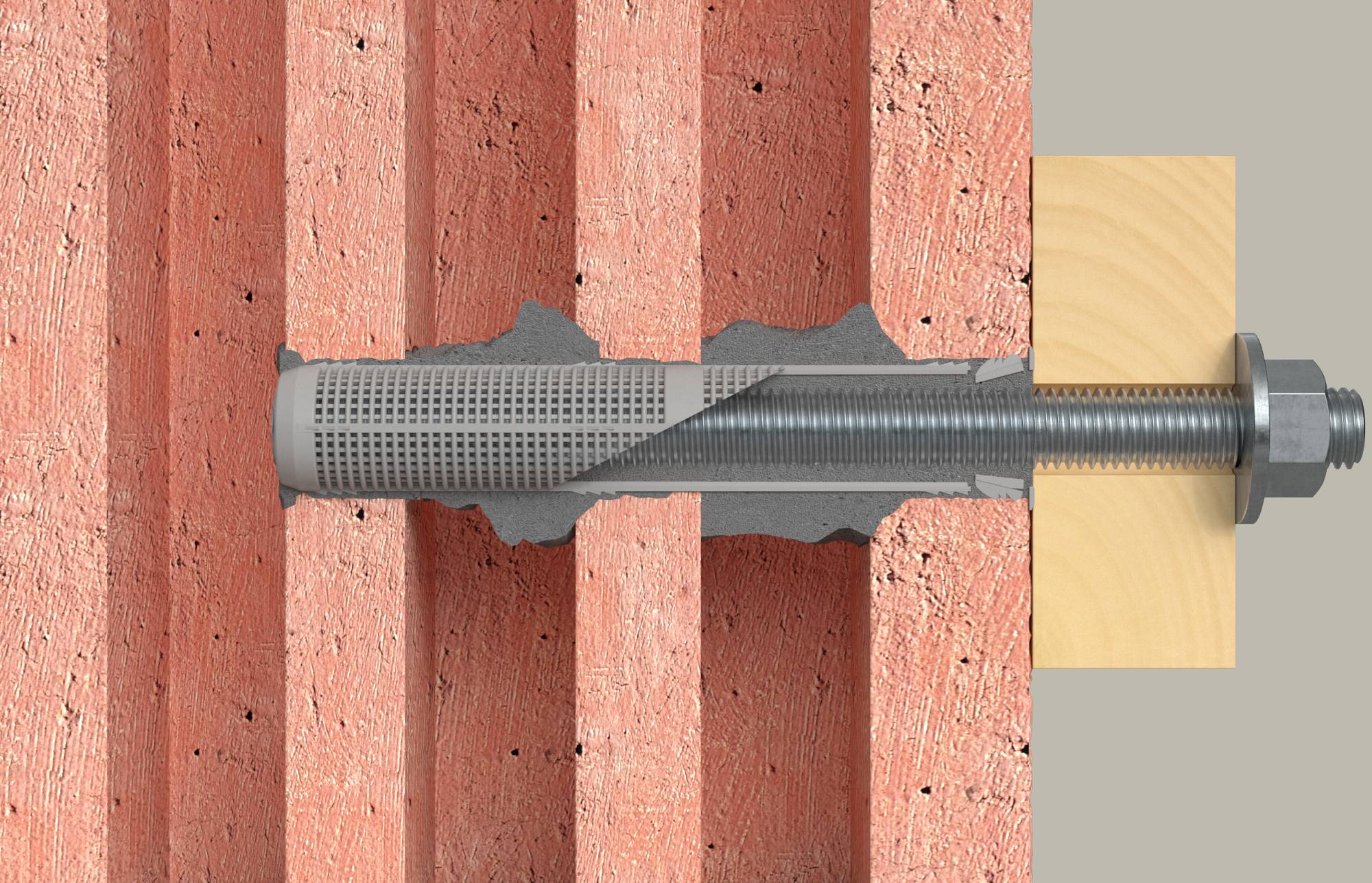

Cross-section of a masonry anchor bolt fixed through brick into a wooden block, showing the expansion sleeve gripping the wall.<br>

Cross-section of a metal expansion anchor embedded in a masonry wall, showing the bolt and sleeve securing a bracket on the right.

1/7

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

6 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Set(s)

Total (€ 4.03 / piece)

€ 4.03

plus VAT.

Only 6 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer FIS H 20 x 85 K injection anchor sleeve, plastic

Grid structure of the anchor sleeve reduces mortar consumption.
Anchor plug enables optimum fit in perforated brick.
Centering wings fix anchor rods with different diameters. This reduces complexity and storage.
Hooks: No falling out when overhead mounting.
ETA-approval.

Technical specifications

(Ø): 20 mm

Product type: Anchor plug

Material: Plastic

Length: 85 mm

Dim: (Ø x L) 20 mm x 85 mm

Suitable for: Cored bricks
Structural lightweight concrete
Concrete
Flintlime hollow bricks
Flintlime bricks
Solid brick
Hollow pumice slabs
Hollow ceiling panels
Pumice

Content: 1 Set

Outside Ø: 20 mm

Documents & Downloads

Datasheet

Datasheet 3065976 Fischer 522836 FIS H 20 x 85 K K NV Anchor plug 85 mm 20 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065976 Fischer 522836 FIS H 20 x 85 K K NV Anchor plug 85 mm 20 mm 1 Set

Description

The Fischer FIS H K injection armature sleeve is the system component for a professional and mortar-saving assembly of the FIS A anchor rod or the FIS E internal thread anchor in the brickwork. The Fischer FIS V, FIS VW HIGH SPEED injection mortar, multi-function mortar, assembly mortar and Green assembly mortar can be used for this purpose. The optimized grid structure reduces the consumption of the injection mortar. When setting the anchor rod and the internal thread anchor, the mortar is pressed through the grid structure and connects to the perforated stone in the form closure. This will route the load into the building material. It is placed in the pre-plug mounting. Non-load-bearing layers can be bridged with the injection anchor sleeve. The approvals for the injection mortar must be observed.

This text is machine translated.
