Fischer 524170 Anchor rod 130 mm 12 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

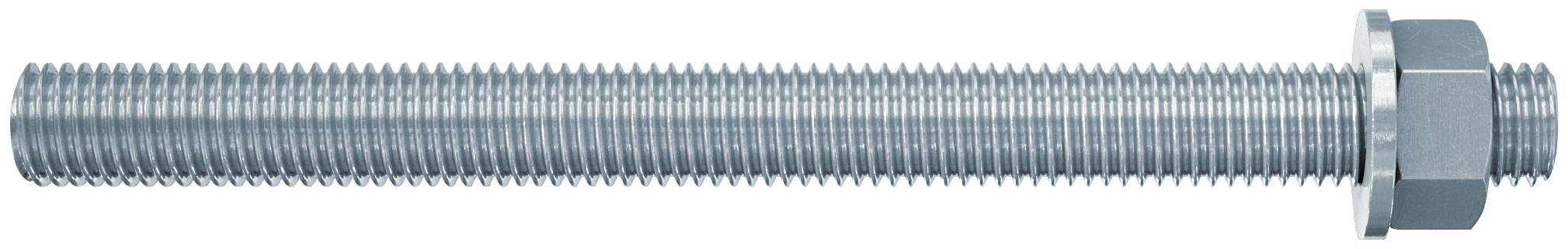

fischer FIS A M 10 x 130 gvz galvanized steel rod 8.8
- The universal solution for various fischer injection mortar
- In combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concrete
- Optimum load adjustment through variable anchoring depth, this reduces assembly and material costs
Technical specifications
- Application conditions: Fire protection classification, mainly resting loads, indoor area
- Thread: M10
- Max. Thickness of the attachment part: 35 / 25 / 5 mm
- Min Anchoring depth 80 mm
- (Ø)
12 mm
- Product type
Anchor rod
- Material
Steel
- Length
130 mm
- Screw diameter
10 mm
- Dim
(Ø x H) 12 mm x 130 mm
- Suitable for
Hollow bricks
Solid stone
Foamed concrete wall
Brickwork
Concrete
- Content
10 pc(s)
- Outside Ø
12 mm
- Material properties
zinc galvanized
- Height
130 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472283 Fischer 524170 Anchor rod 130 mm 12 mm 10 pc(s)
Description
the fischer FIS A anchor rod is made of galvanized steel of steel quality 8.8. The anchor rod is a system component for the various fischer injection mortar. In combination with the injection mortars, the fischer anchor rod is suitable for all surfaces or approved. For the maximum load capacity of the system, thorough hole cleaning is recommended. The system is made of galvanized anchor rod in combination with fischer injection mortar and is suitable or approved for fasteners in dry indoor locations.
This text is machine translated.
This text is machine translated.
Features
- The FIS A anchor rod can be used with almost all fischer injection mortars (not with special Highbond FIS HB mortar) and can be selected individually according to requirements
- This enables a wide range of applications
- the wide range of approved tie rods FIS A from M6 to M30 opens up a variety of applications
- Please observe the approvals of the respective mortar
