Fischer 530798 Nail plug 68 mm 6 mm 200 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Anchoring depth: 30 mm
- Min. Drill hole depth with pre-mounted installation: 36 mm
- Min. Drill hole depth for through-hole mounting: 66 mm
- (Ø)
6 mm
- Product type
Nail plug
- Material
Stainless steel
- Length
68 mm
- Dim
(Ø x H) 6 mm x 68 mm
- Content
200 pc(s)
- Outside Ø
6 mm
- Features
incl. washer
- Material properties
A4
- Height
68 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878447 Fischer 530798 Nail plug 68 mm 6 mm 200 pc(s)
Description

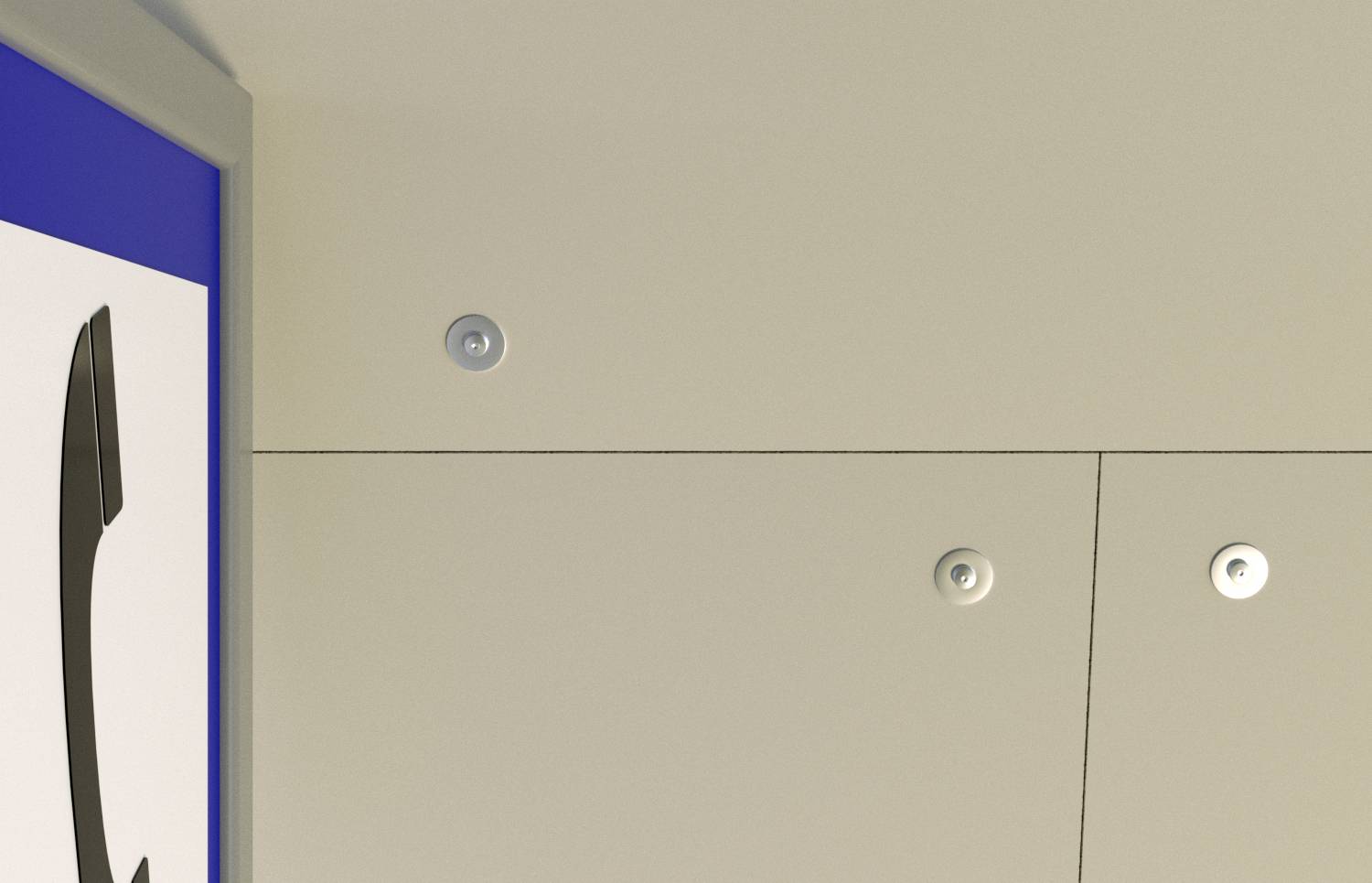

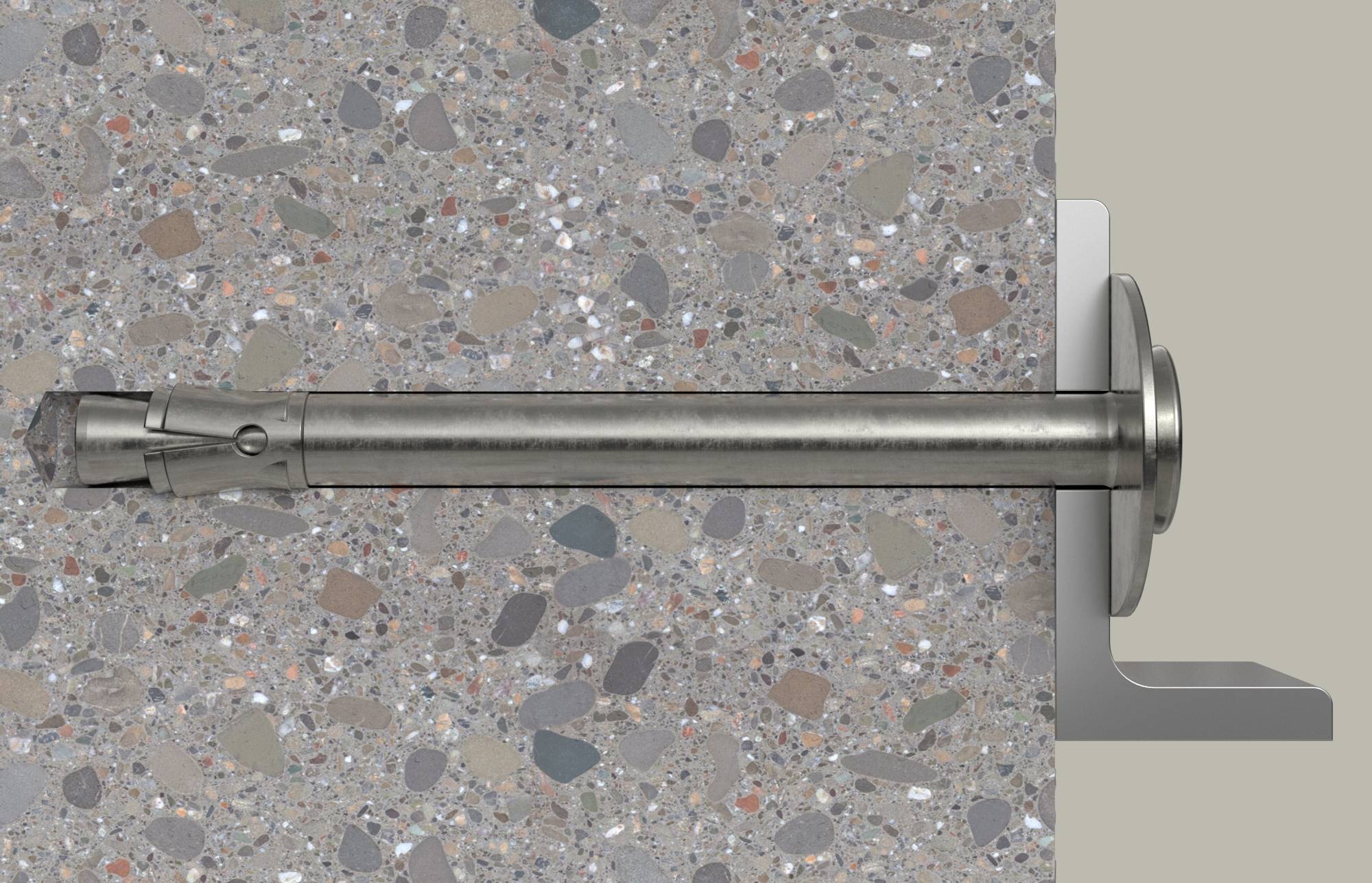

The fischer nail plug FNA II RB is a mounting element made of stainless steel A4 for the attachment of fire protection plates and the multiple mounting of other non-load-bearing systems. The nail anchor in the time-saving through-hole mounting. After the creation of the borehole, the nail plug with a few hammer blows knocked or with a compressed air setting device. The pre-assembled large washer increases the passage forces significantly and prevents damage to the disk during disassembly. For dismantling is the nail head with special pliers.
