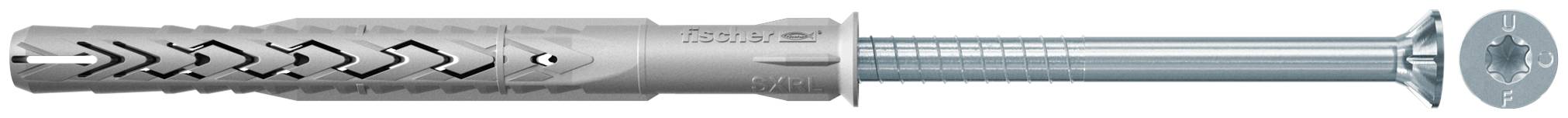

Fischer 530923 SXRL 14X140 T Plug (long) 140 mm 14 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 70 mm
- Usable length for anchoring depth 90 mm: 50 mm
- Min. Drill hole depth for through-hole mounting: 155 mm
- (Ø)
14 mm
- Product type
Plug (long)
- Material
Steel
- Length
140 mm
- Dim
(Ø x L) 14 mm x 140 mm
- Suitable for
Solid stone
Hollow bricks
Timber
Brickwork
- Content
50 pc(s)
- Outside Ø
14 mm
- Features
incl. countersunk screw
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1879048 Fischer 530923 SXRL 14X140 T Plug (long) 140 mm 14 mm 50 pc(s)
Description

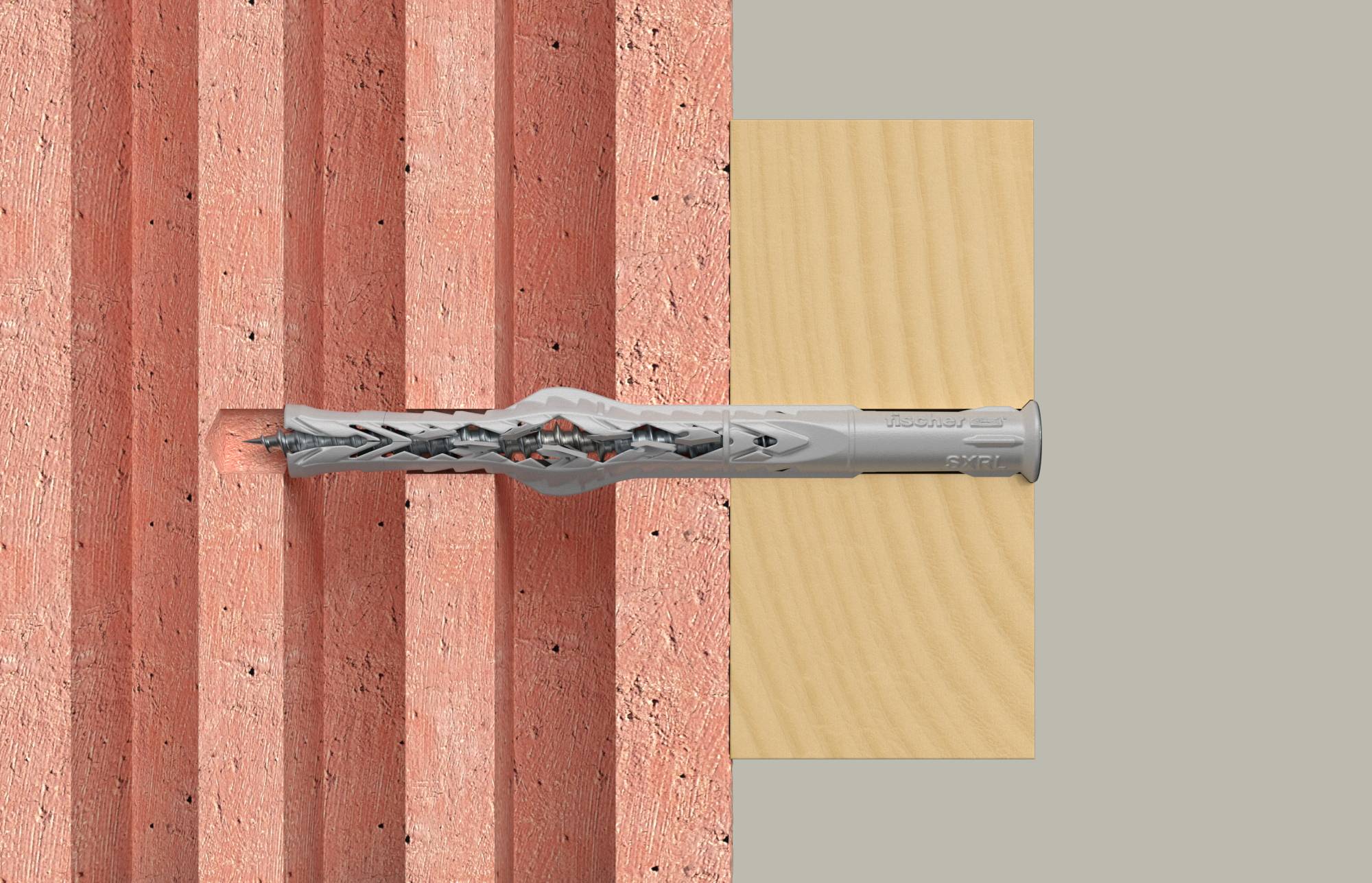

The fischer Long shaft anchor SXRL-T is with the fishermen countersunk screw with T50-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. The security screw from electro-galvanised is the Long shaft anchor for attachments of the facades, ceiling and roof substructures made of wood.
