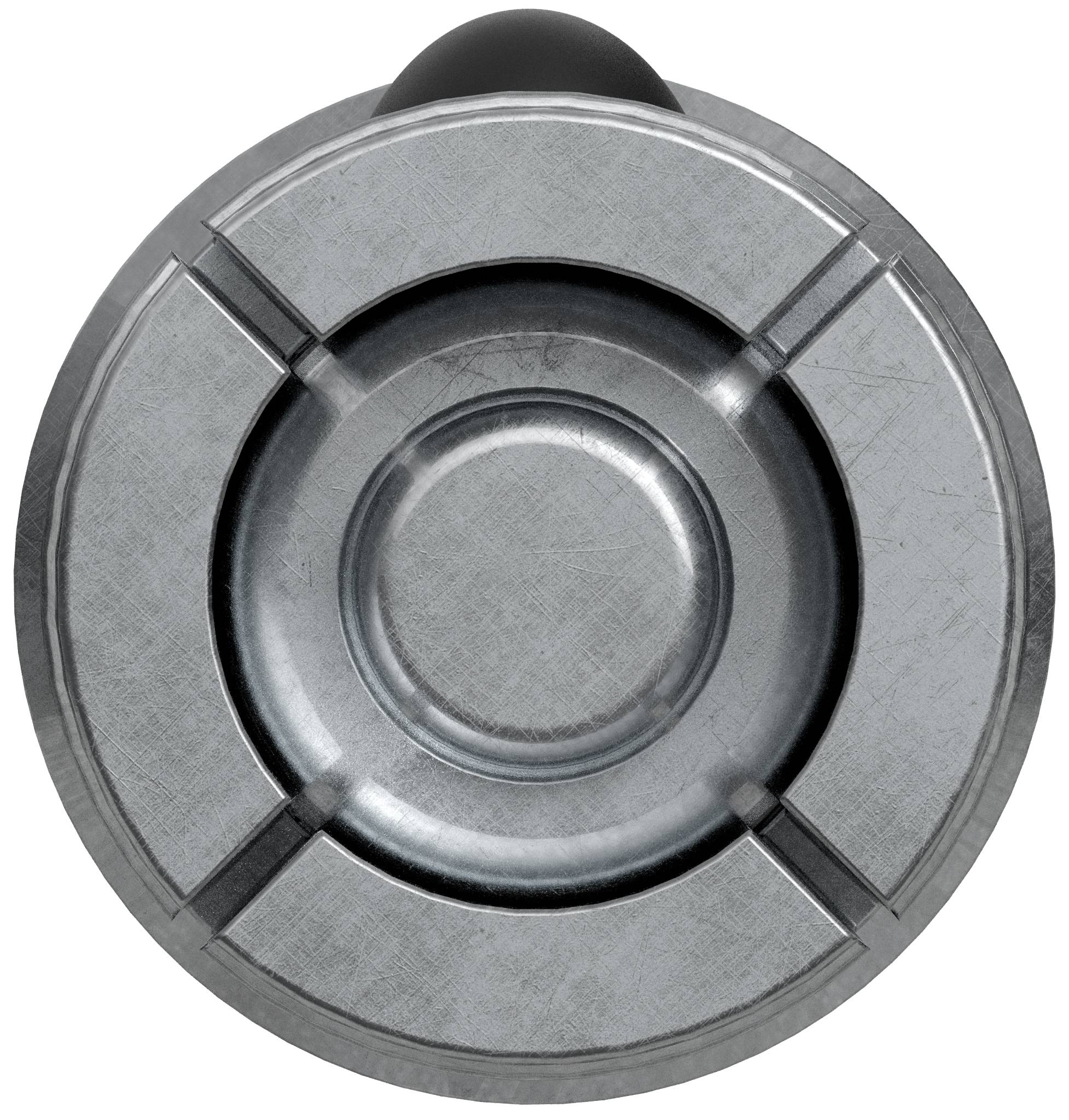

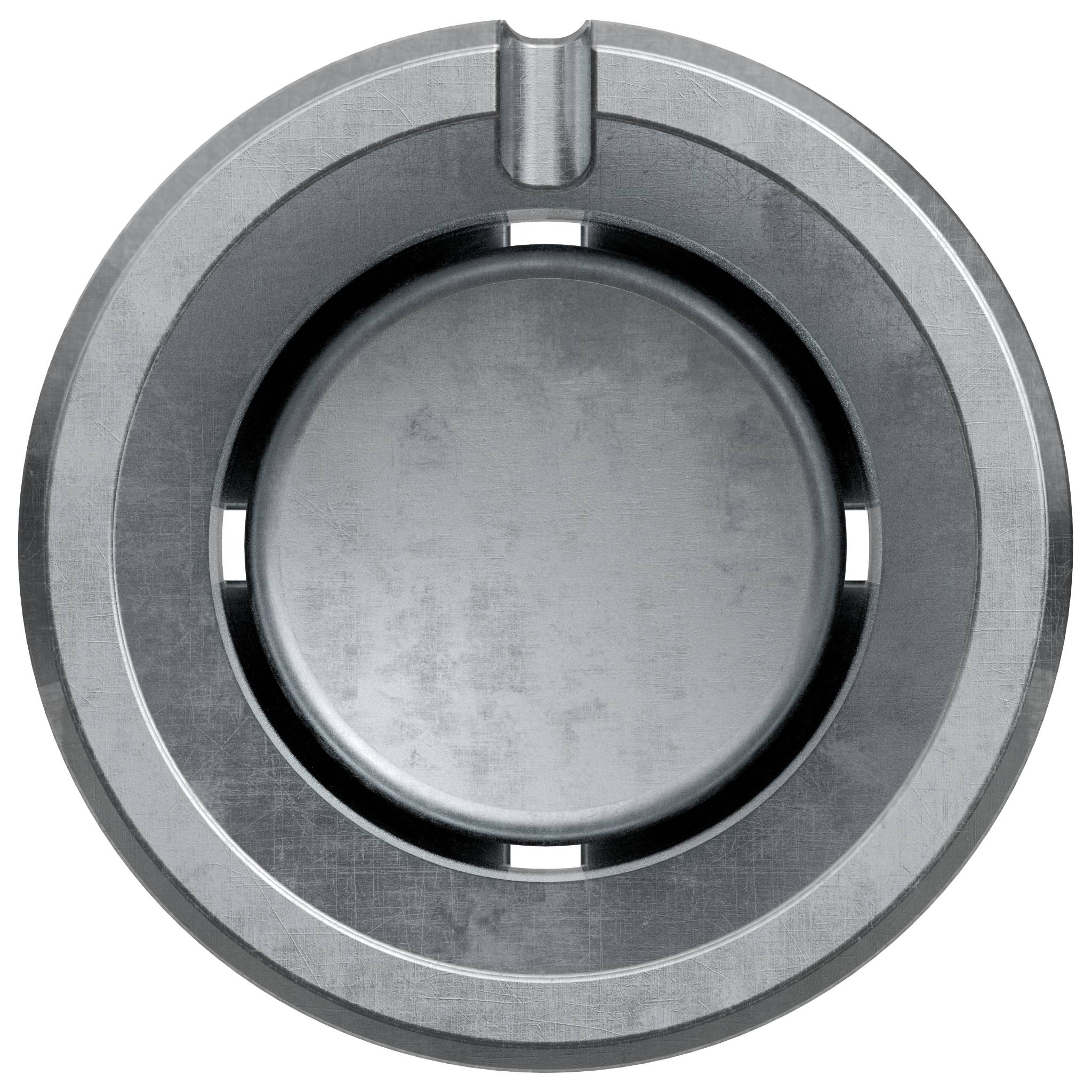

Fischer 532231 Steel plug 25 mm 10 mm 100 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Min. Screw-in depth: 8 mm
- Max. Screw-in depth: 14 mm
- Min. Drill hole depth with pre-mounted installation: 27 mm
- M8 internal thread
- (Ø)
10 mm
- Product type
Steel plug
- Material
Steel
- Length
25 mm
- Screw diameter
8 mm
- Dim
(Ø x L) 10 mm x 25 mm
- Content
100 pc(s)
- Outside Ø
10 mm
- Material properties
zinc galvanized
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878670 Fischer 532231 Steel plug 25 mm 10 mm 100 pc(s)
Description

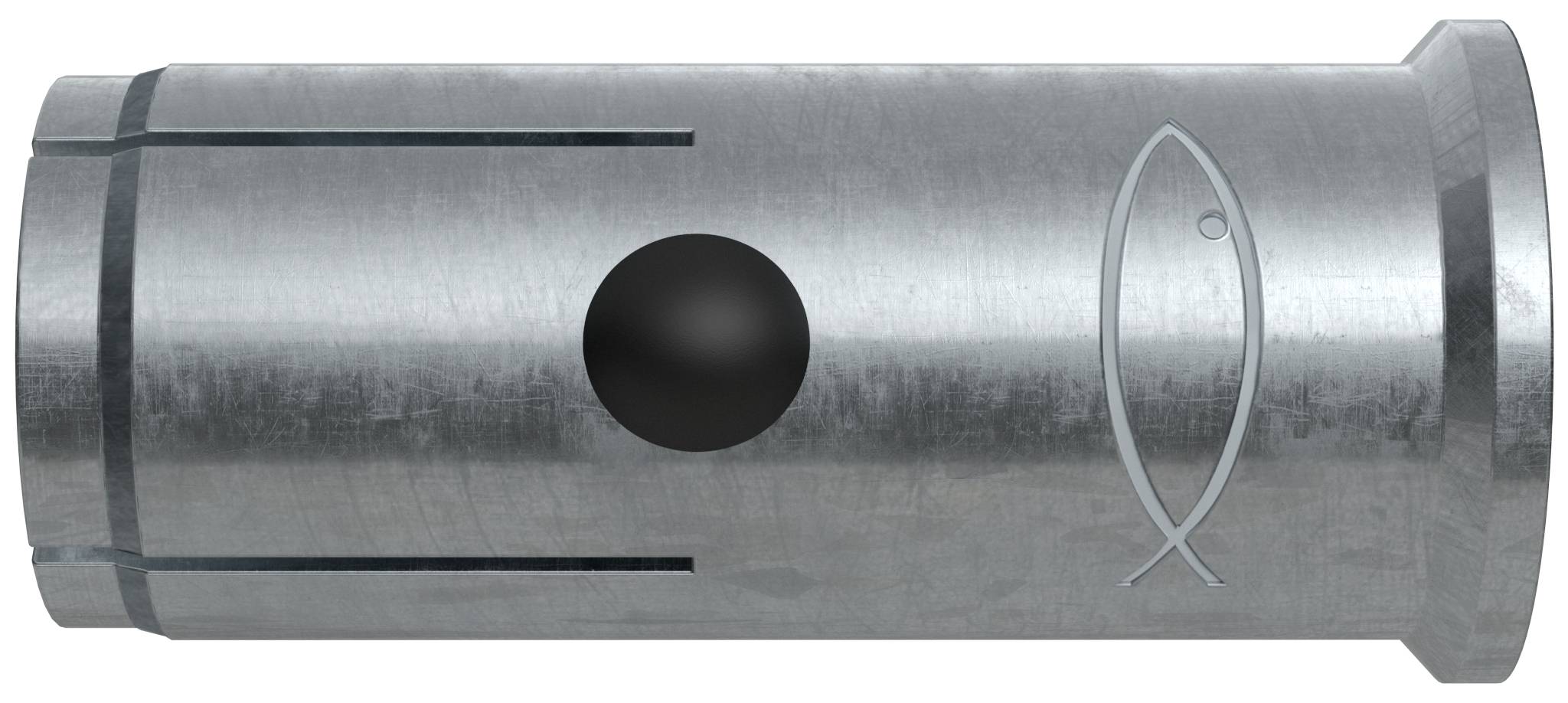

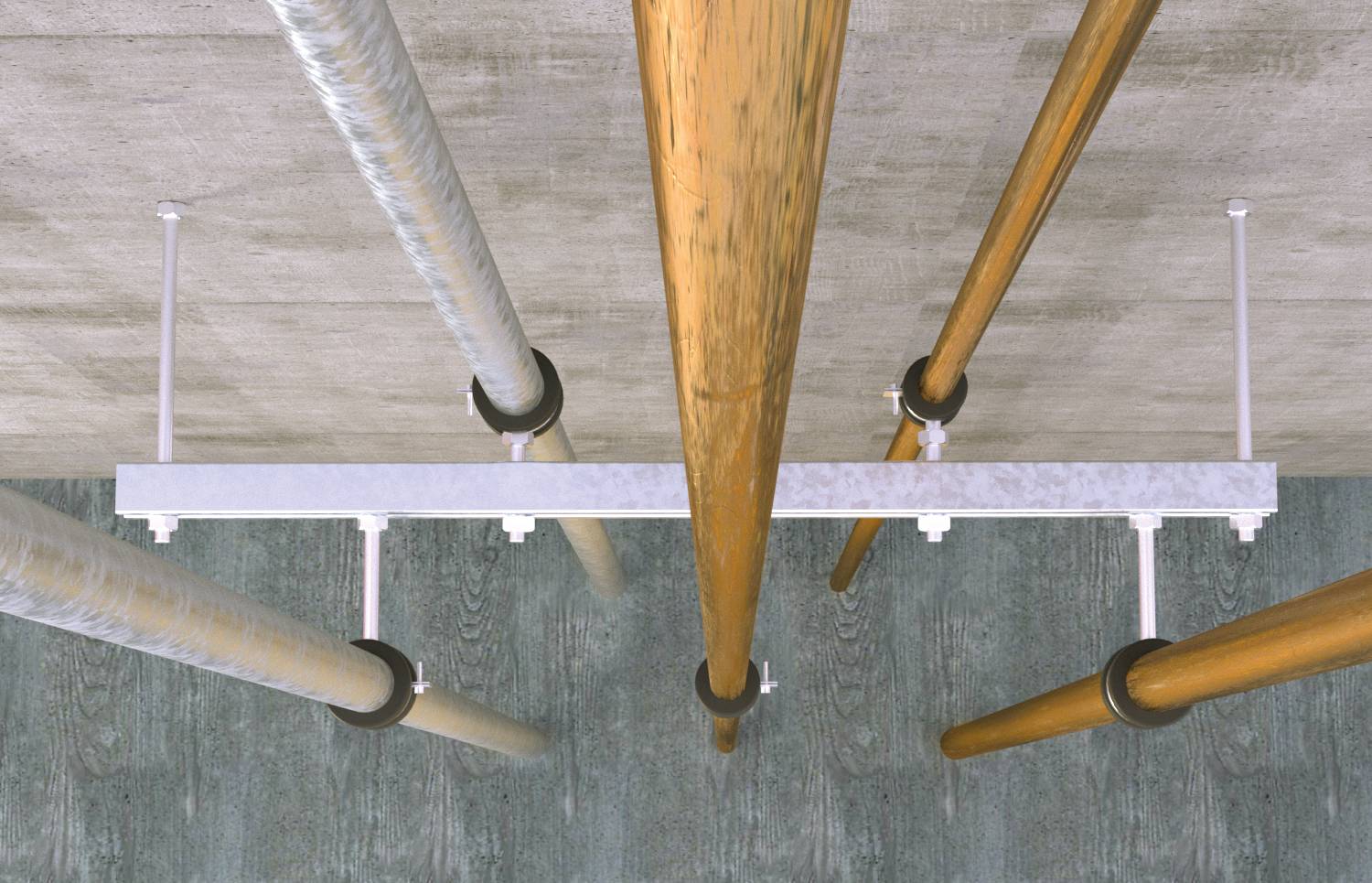

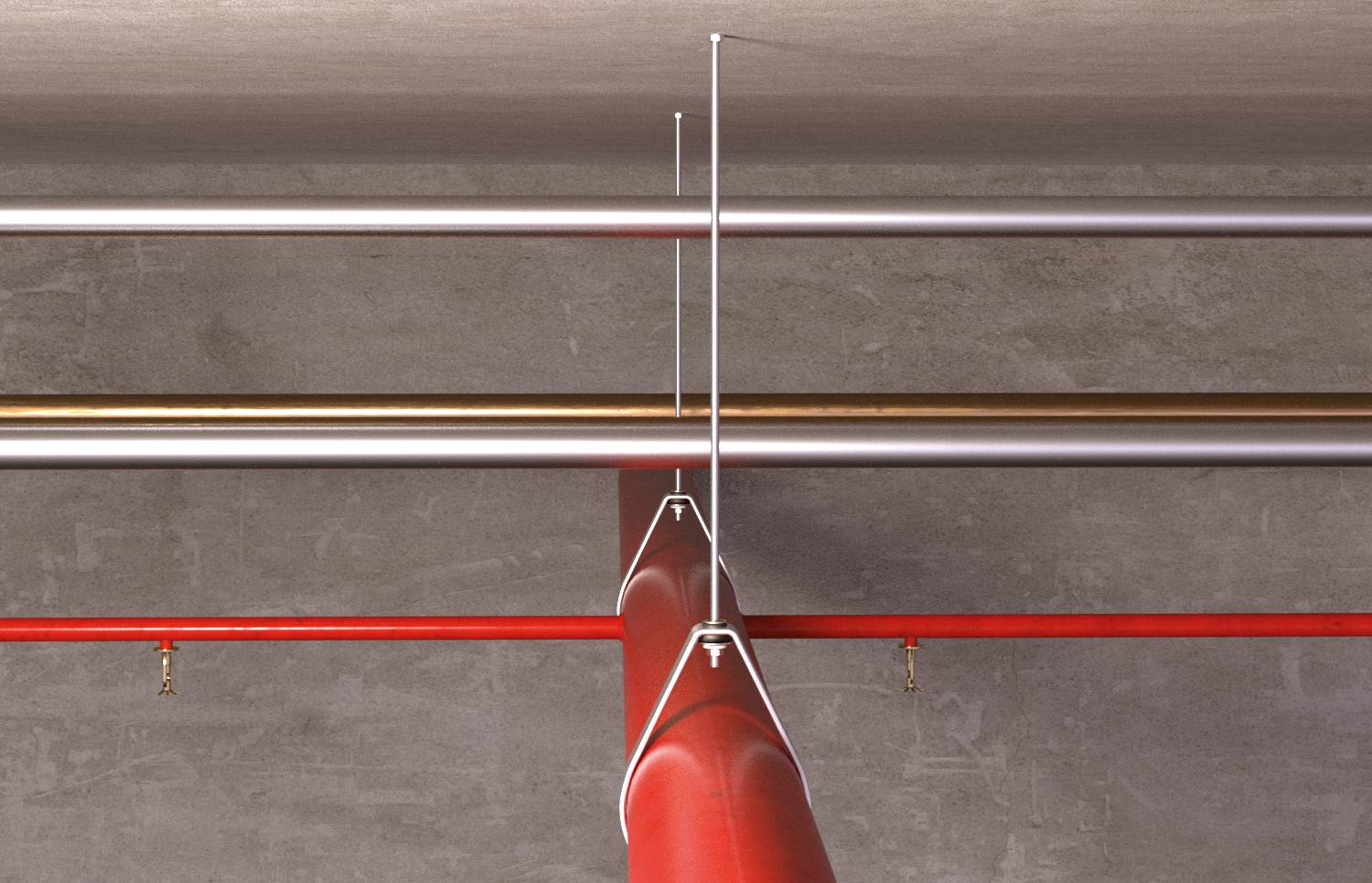

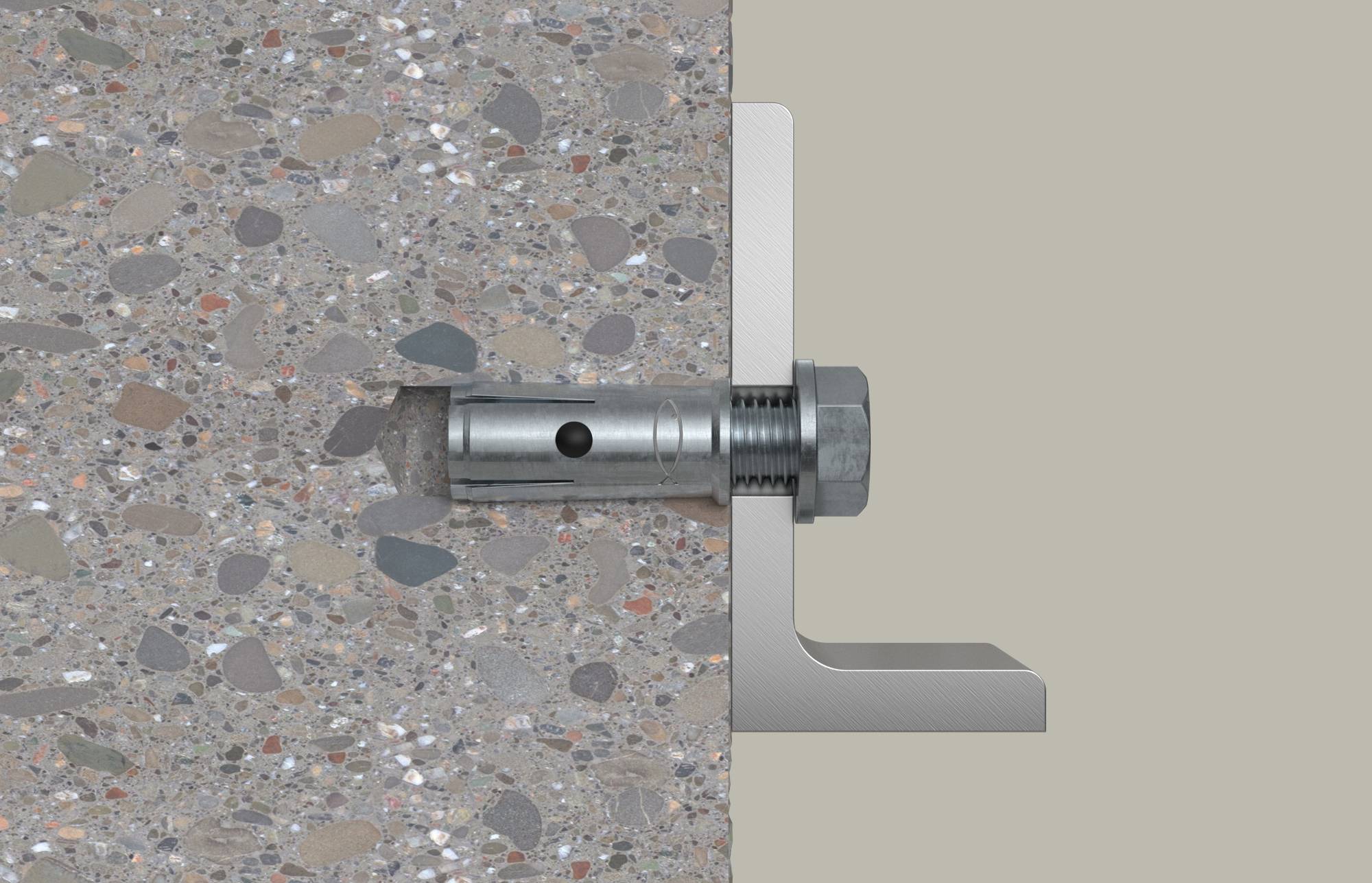

The fischer impact anchor EA II is an internal thread from galvanically zinc-plated steel. The Steele plug is flush with the surface with a hammer. anchoring base. With the impact tool EAW H plus or the machine setting device EA II S-SDS is the sleeve with the driving of inner pin in the wings and tightens against the drill hole wall. For a correct straddle irritation, there is no torque on the screw or the threaded rod has to be applied. The fischer impact anchor EA II is ideal for sprinkler systems, grilles and consoles in the inner area with approval.
