Buy Fischer 533376 STSI M10x181 A2 Hanger bolt

A threaded metal bolt assembly with nuts, washers, and a rubber or plastic spacer on a white background.

Steel threaded rod with nuts, washers, and a black rubber grommet, shown diagonally on a white background.

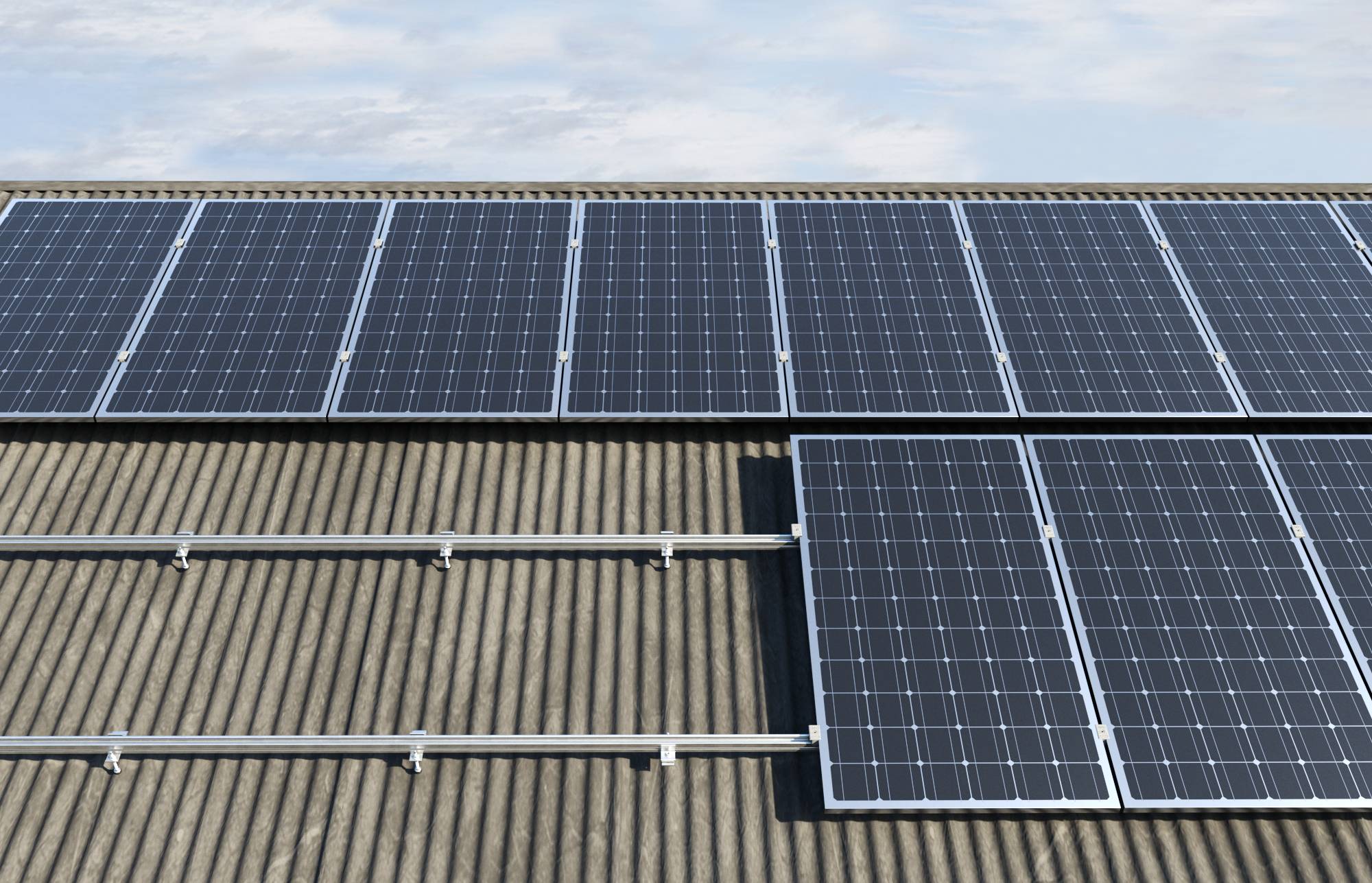

Solar panels mounted on a corrugated rooftop under a partly cloudy sky, showing a renewable energy installation.

Cross-section of a solar panel mounting clamp securing a frame to a roof rail with a bolt and adjustable base.

Metal roof clamp and bolt fastening a rail bracket to a corrugated roof panel, with shadow cast across the roofing surface.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

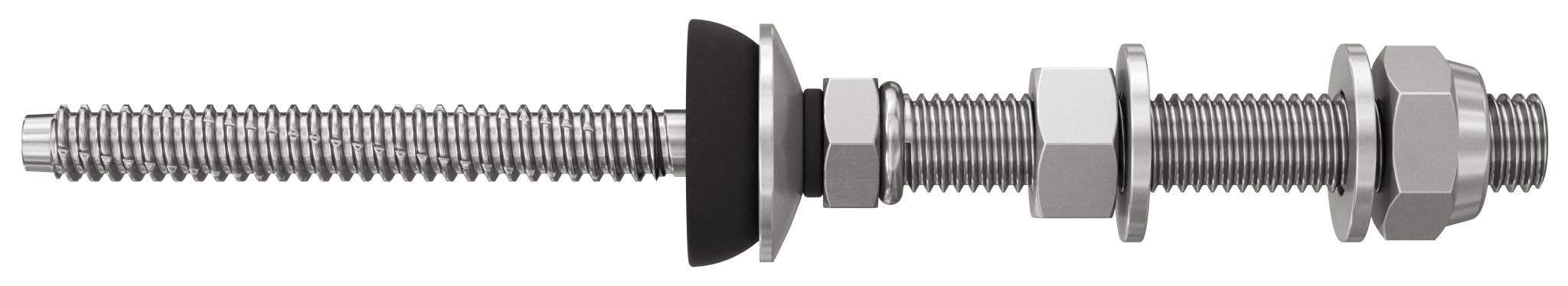

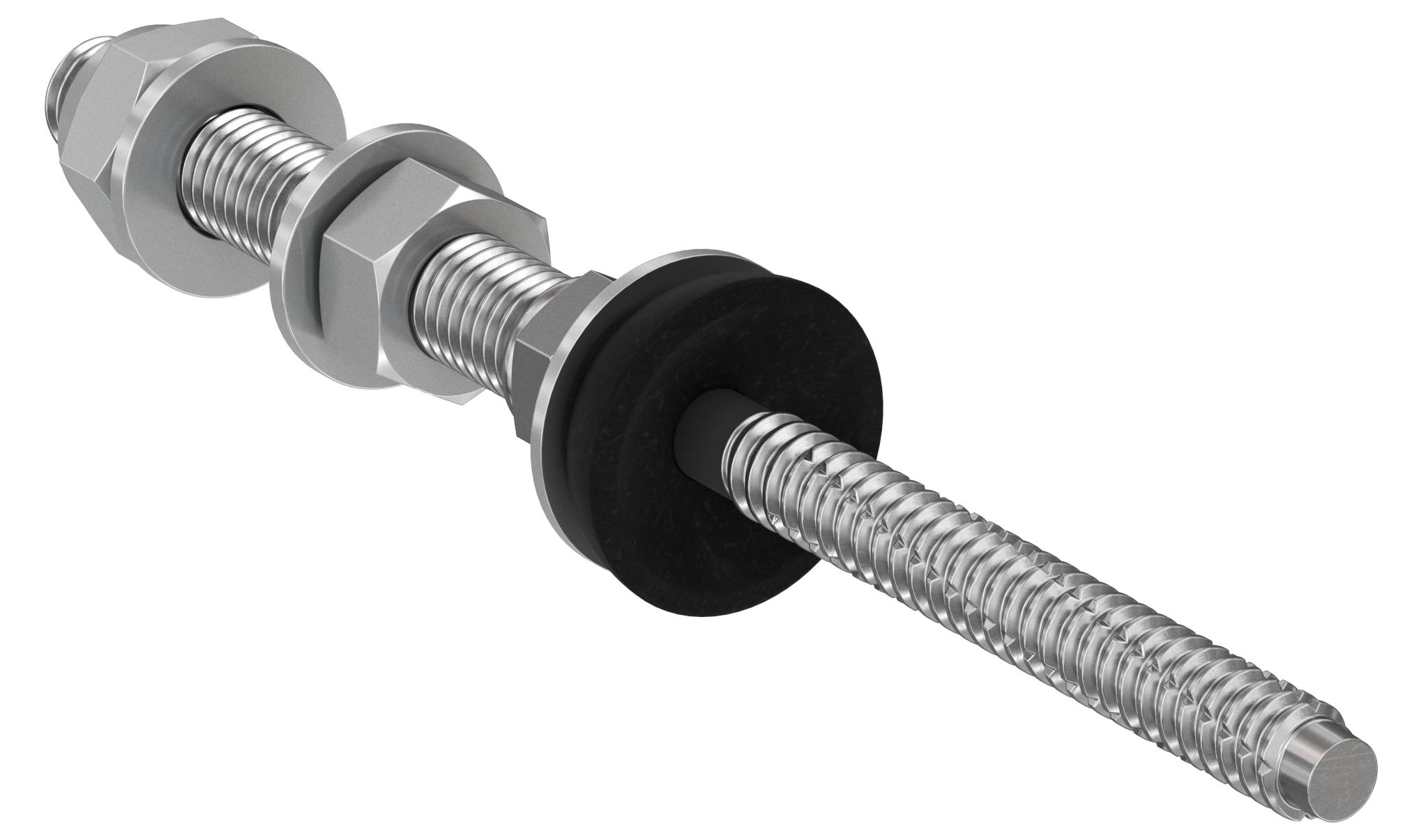

Fischer metal shaft cover STSI M10 x 181 A2, not stainless steel A2

Built-in EPDM seal for sealing and protection against moisture and rain. Lower thread for steel
Metric outside threads
Built-in EPDM seal
Made of stainless steel A2
Determine the length of the STSI stock bolt depending on the thickness of the support structure
Determine the distance between the axles of the STSI stock bolts depending on the snow and wind loads on site and the roof pitch
Determine the position of the STSI stock bolts depending on the support structure and installation arrangement
Pre-drill the cover with 14 mm and the steel carrier with 6.5 mm

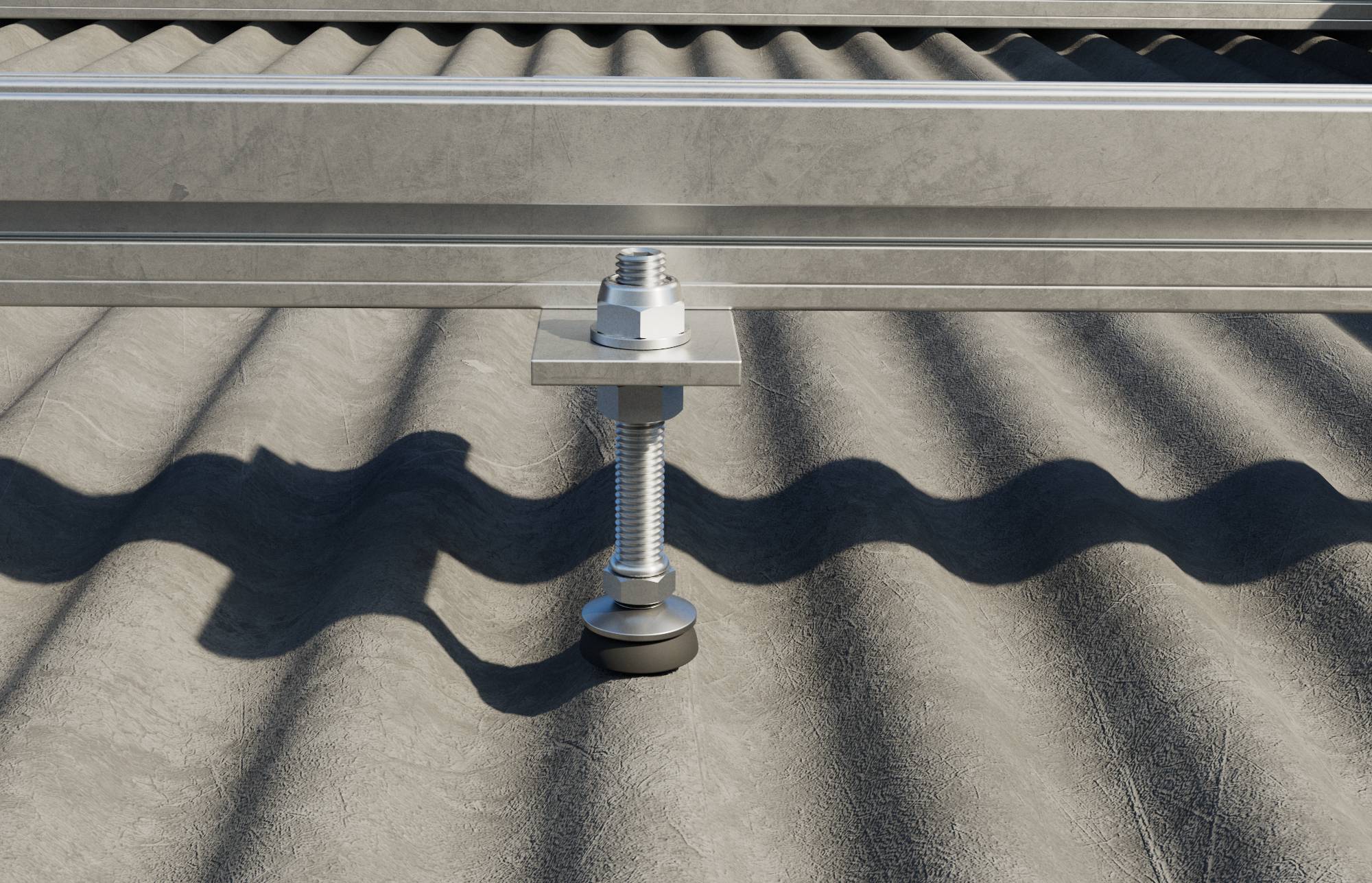

Attach the STSI stock screw to the steel construction. The EPDM rubber is placed on the covering
Tighten the MU nut on the seal to maintain water tightness
Carefully seal the screw outlet from the roof with bituminous sealing compound

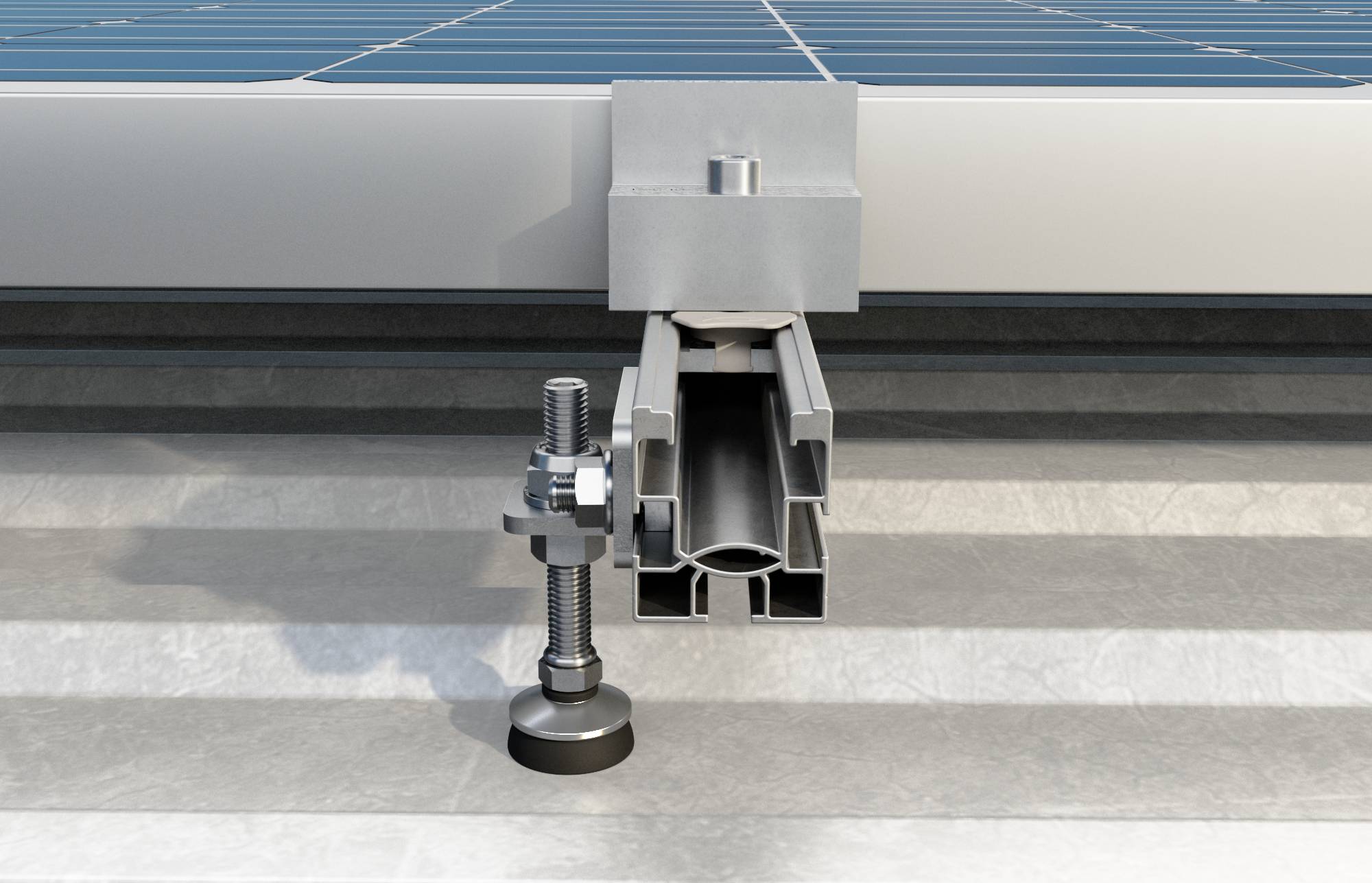

Attach the SSP or MW connector plate by adjusting its height with the MU nuts
Suitable for corrugated cardboard roof system:
Solar light rail
SolarFish rail
STSI stock screw fixing:
Directly on steel carriers and rails after pre-drilling

Technical specifications

Diameter 8 mm
Thread: M10
Wooden thread length 70 mm
Length: 181 mm
Metric thread length 56 mm
Shaft length 8.5 mm
Thread type: Double thread

Product type: Hanger bolt

Weight: 180 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3028796 Fischer 533376 STSI M10x181 A2 Hanger bolt

Description

STSI is the stock screw made of A2 stainless steel. The stock screw is suitable for fixing sub-structures of photovoltaic systems on pitched roofs with corrugated sheet or cement covering. For this purpose, the stock screw is mounted in the load-bearing steel substructure. The STSI stock screw is supplied pre-assembled with an EPDM seal, clamping nut and nut pair for connection to the MW or SSP consoles. Quick installation, as the roof covering does not need to be removed during installation. Thanks to the EPDM seal, the water-tightness of the roof is maintained.

This text is machine translated.

Scope of delivery

10 pcs.
