Name: Fischer 534157 FIF-CS 8/60 Plasterboard plug 108 mm 8 mm 100 pc(s)
Brand: Fischer
SKU: 2148020

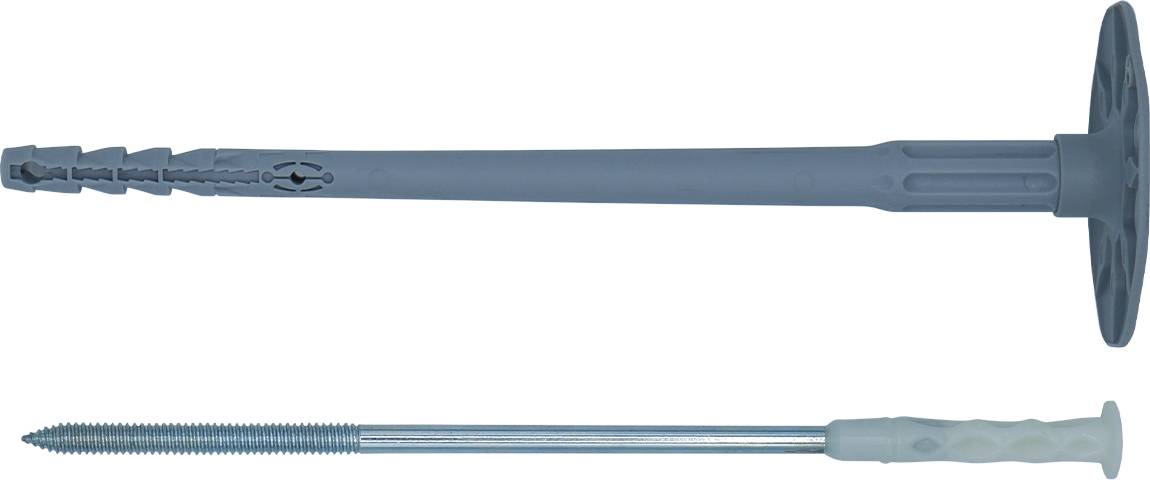

Two wall anchors: a long gray plastic anchor with a wide flange and a thin metal screw or nail beside it, shown on a white background.

Close-up of a red power drill driving a screw into a wall anchor in a white wall.

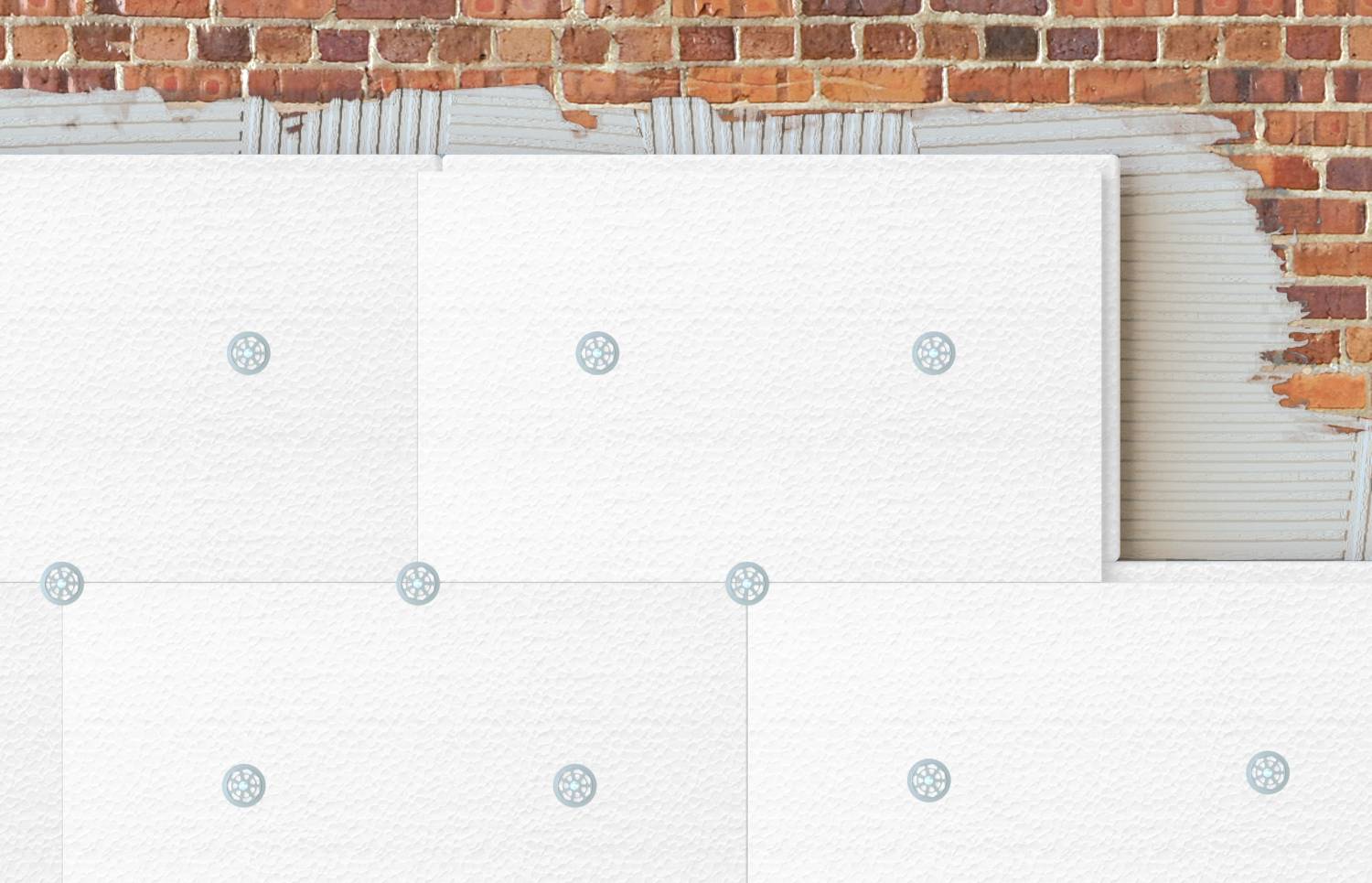

Blank white textured panels layered against a brick wall, with visible circular mounting points and torn edges on the right.

1/3

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Plasterboard plug FIF-CS 8/60

100pc set

Technical specifications

Max. Usable length 70 mm

(Ø): 8 mm

Product type: Plasterboard plug

Length: 108 mm

Dim: (Ø x H) 8 mm x 108 mm

Suitable for: Concrete
Bricks
Flintlime bricks
Hollow block
Cored bricks
Flintlime hollow bricks
Structural lightweight concrete
Foamed concrete wall

Content: 100 pc(s)

Outside Ø: 8 mm

Features: incl. screw

Height: 108 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148020 Fischer 534157 FIF-CS 8/60 Plasterboard plug 108 mm 8 mm 100 pc(s)

Description

The ETA approved fischer FIF-CS wall plug is ideal for securely fixing pressure-resistant insulation materials up to 340 mm thick for heat insulation systems such as polystirene insulation boards or mineral wool boards in concrete, full and perforated stone, superstructure lightweight concrete and porous concrete. The uniform setting depth for all building materials simplifies assembly. The screw plug consists of a gray dowel sleeve with an octagonal plate attached and a compound screw. The compound screw minimizes the heat bridge. This prevents dowel markings on the facade. The FIF-CS 8 is set with a commercially available screwdriver.

Building materials:
BUILDING MATERIAL CLASSES A, B, C, D, E.
Concrete
Concrete (weather shell)
Brick wall
Flintlime bricks
Hollow block made of lightweight concrete
Vertically perforated brick
Flintlime hollow bricks
Structural-inspired lightweight concrete
ACC

This text is machine translated.

Features

The compound screw (steel-plastic combination) minimizes the heat bridge. As a result, no dowel markings are created on the facade
Minimum binding depth of 35 mm in the supporting surface ensures low drill wear and reduces the drilling time
for the insulating flush mounting ensures the very thin running plate for the optimum forging to the insulation plate and the application of thin reinforcement layers
for insulation thicknesses up to 340 Mm
one binding depth for all building materials
Authorization DOP No. 0010, DOP No. 0141

Description

Features

The compound screw (steel-plastic combination) minimizes the heat bridge. As a result, no dowel markings are created on the facade
Minimum binding depth of 35 mm in the supporting surface ensures low drill wear and reduces the drilling time
for the insulating flush mounting ensures the very thin running plate for the optimum forging to the insulation plate and the application of thin reinforcement layers
for insulation thicknesses up to 340 Mm
one binding depth for all building materials
Authorization DOP No. 0010, DOP No. 0141
