Fischer 534160 FIF-CS 8/120 Plasterboard plug 168 mm 8 mm 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Plasterboard plug FIF-CS 8/120
- 100pc set
Technical specifications
- Max. Usable length 130 mm
- (Ø)
8 mm
- Product type
Plasterboard plug
- Material
Plastic
- Length
168 mm
- Dim
(Ø x H) 8 mm x 130 mm
- Suitable for
Concrete
Bricks
Flintlime bricks
Hollow block
Cored bricks
Flintlime hollow bricks
Structural lightweight concrete
Foamed concrete wall
- Content
100 pc(s)
- Outside Ø
8 mm
- Height
130 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2148381 Fischer 534160 FIF-CS 8/120 Plasterboard plug 168 mm 8 mm 100 pc(s)
Description

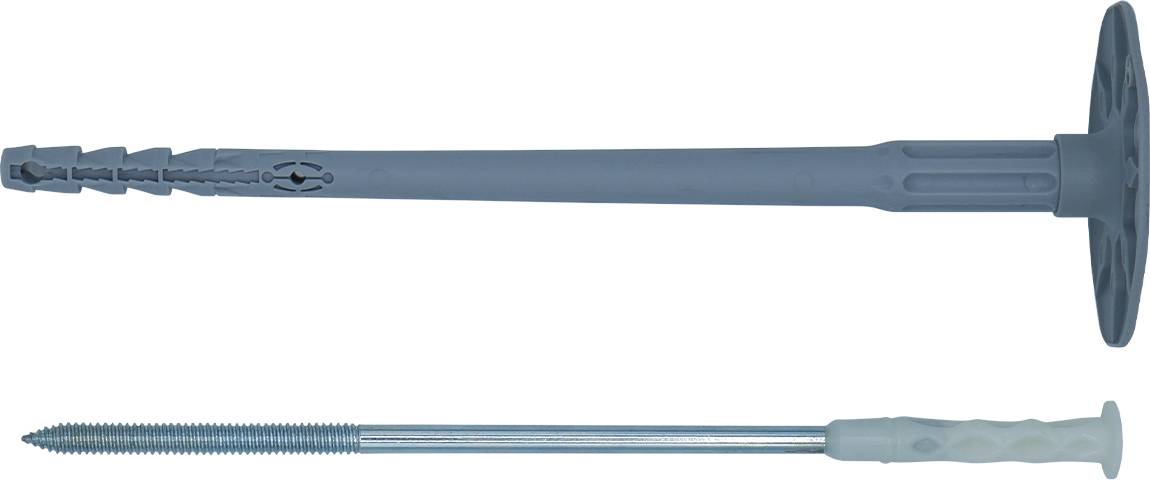

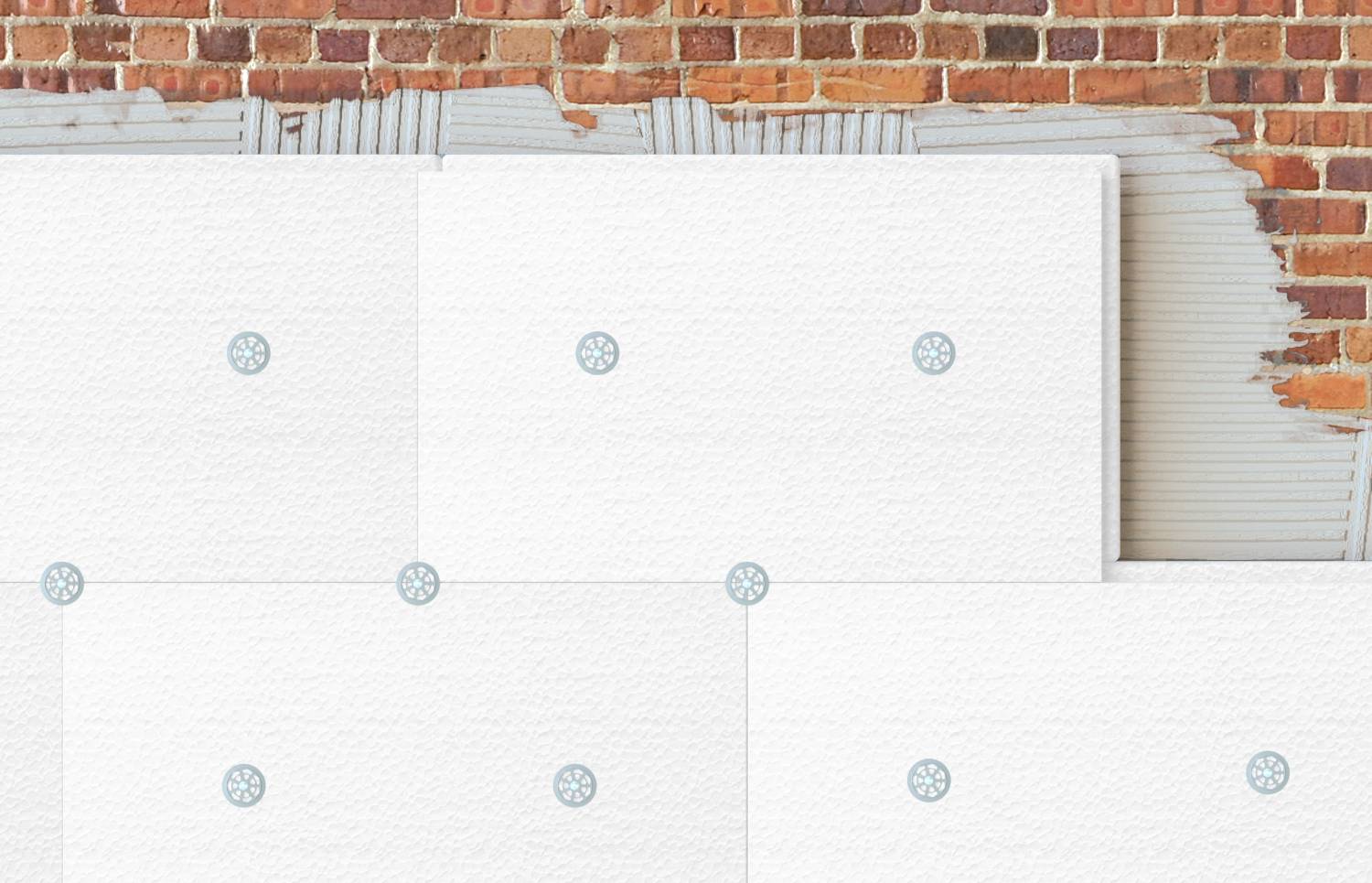

The ETA approved fischer FIF-CS wall plug is ideal for securely fixing pressure-resistant insulation materials up to 340 mm thick for heat insulation systems such as polystirene insulation boards or mineral wool boards in concrete, full and perforated stone, superstructure lightweight concrete and porous concrete. The uniform setting depth for all building materials simplifies assembly. The screw plug consists of a gray dowel sleeve with an octagonal plate attached and a compound screw. The compound screw minimizes the heat bridge. This prevents dowel markings on the facade. The FIF-CS 8 is set with a commercially available screwdriver.
Building materials:
BUILDING MATERIAL CLASSES A, B, C, D, E.
Concrete
Concrete (weather shell)
Brick wall
Flintlime bricks
Hollow block made of lightweight concrete
Vertically perforated brick
Flintlime hollow bricks
Structural-inspired lightweight concrete
ACC
This text is machine translated.
Building materials:
BUILDING MATERIAL CLASSES A, B, C, D, E.
Concrete
Concrete (weather shell)
Brick wall
Flintlime bricks
Hollow block made of lightweight concrete
Vertically perforated brick
Flintlime hollow bricks
Structural-inspired lightweight concrete
ACC
This text is machine translated.
Features
- The compound screw (steel-plastic combination) minimizes the heat bridge. As a result, no dowel markings are created on the facade
- Minimum binding depth of 35 mm in the supporting surface ensures low drill wear and reduces the drilling time
- for the insulating flush mounting ensures the very thin running plate for the optimum forging to the insulation plate and the application of thin reinforcement layers
- for insulation thicknesses up to 340 Mm
- one binding depth for all building materials
- Authorization DOP No. 0010, DOP No. 0141
