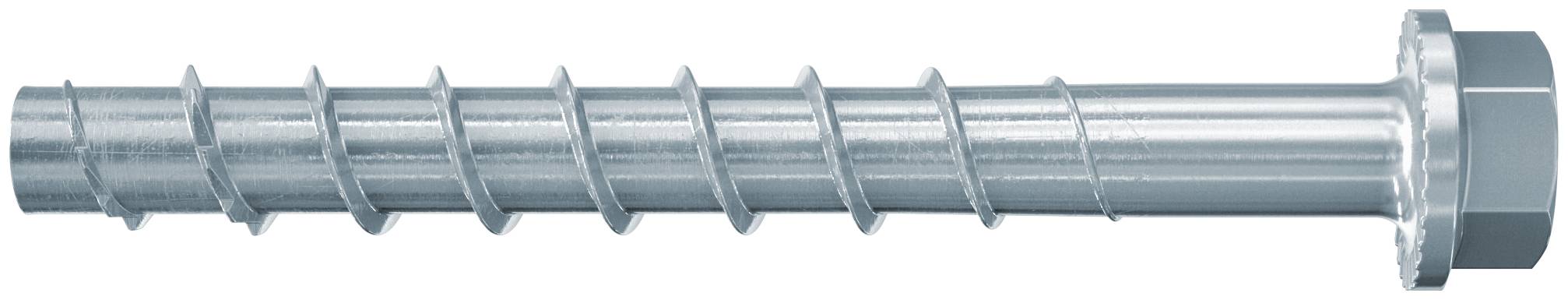

Metal auger screw with helical blades and a hex nut on one end, shown horizontally on a white background.

Metal auger screw with helical blades and a hex nut on one end, shown horizontally on a white background.

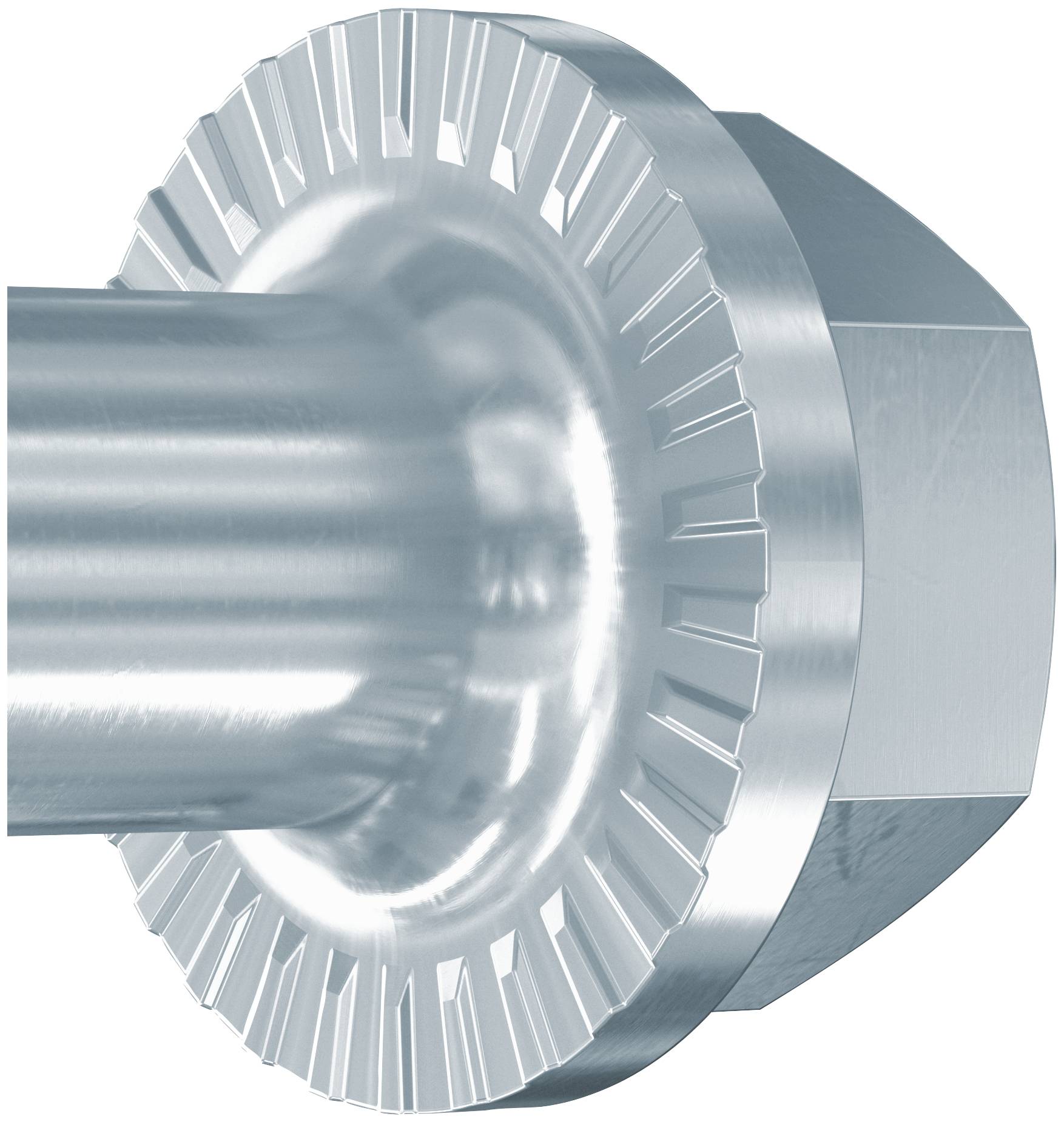

Close-up of a metal bolt with a hex nut and serrated locking washer, shown in side view on a white background.

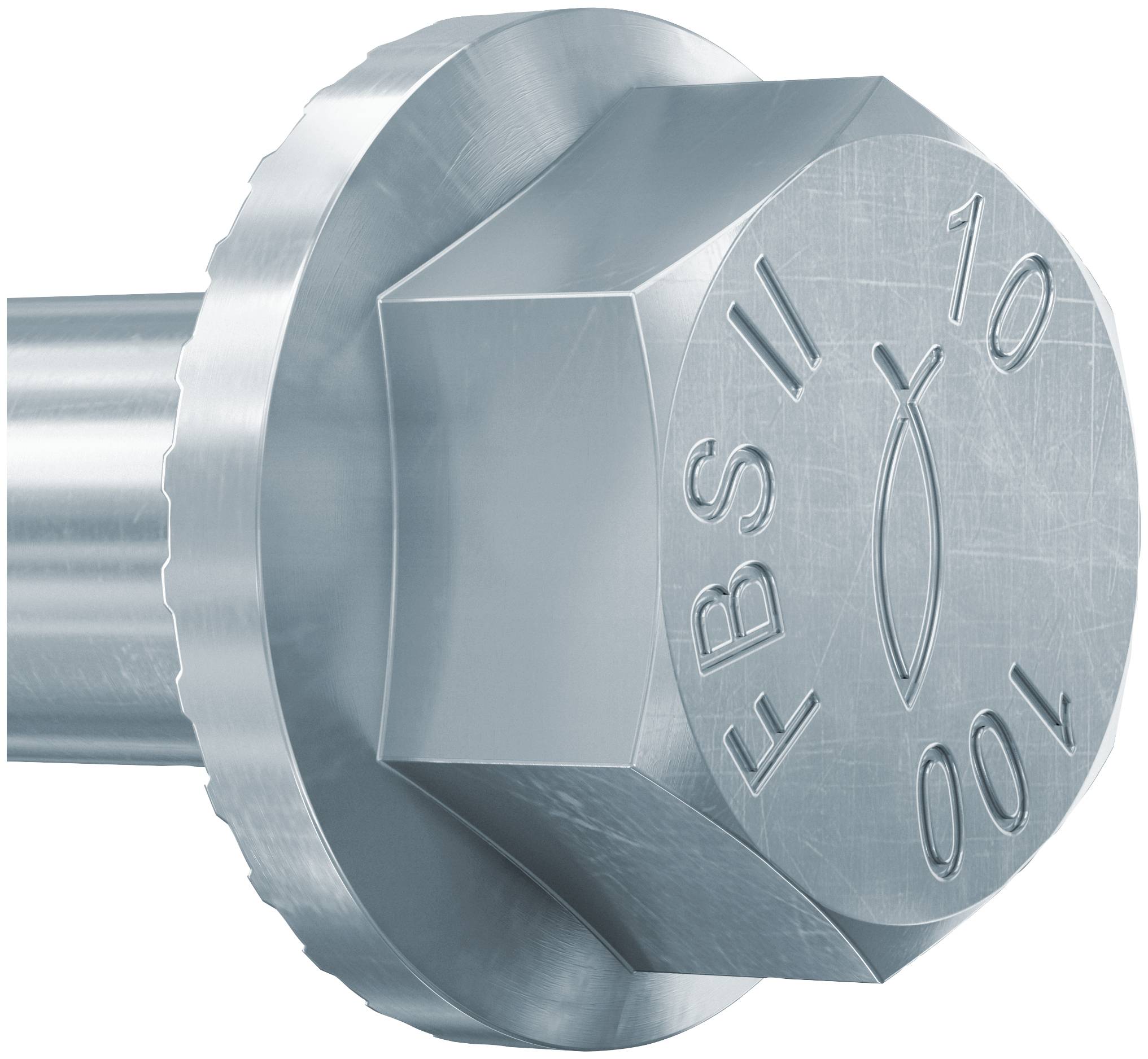

Close-up of a metal fastener bolt head with engraved 'EBSI' and '10' markings.

Empty concrete stairwell with metal railings and a landing, viewed from below in a parking structure or building underpass.

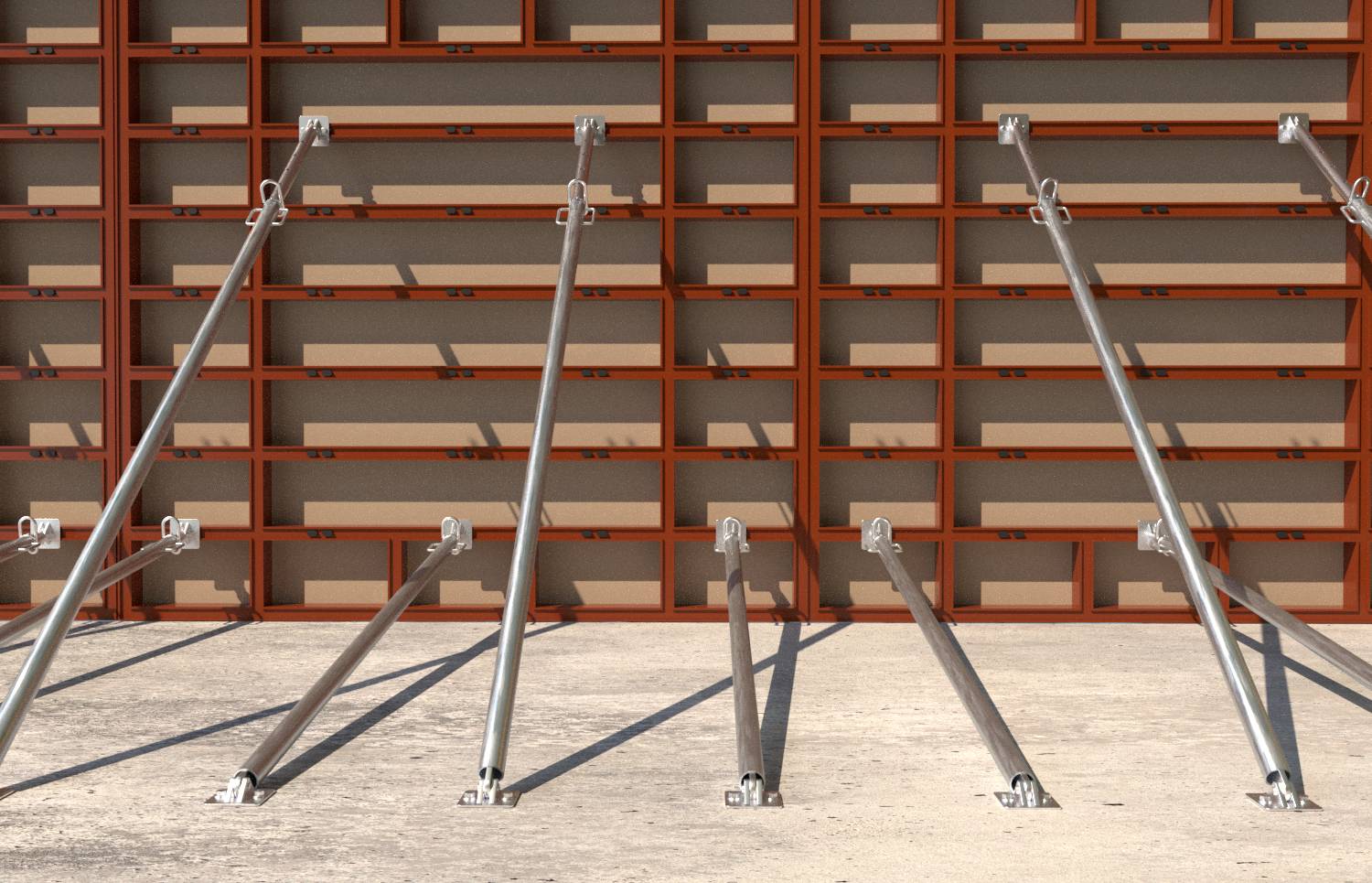

Several metal support struts brace a large wall of stacked shelves in an industrial or warehouse interior.

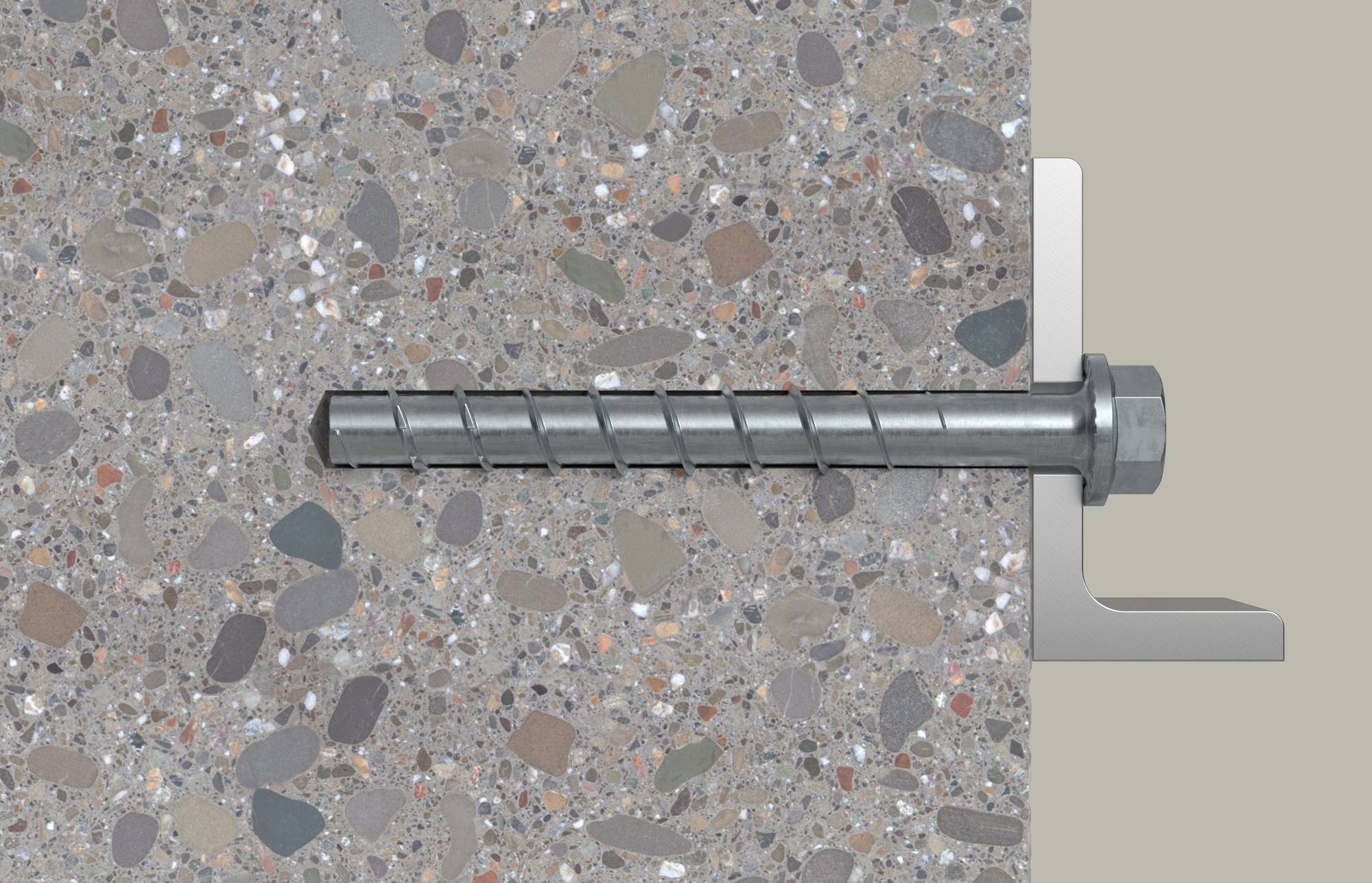

Metal anchor bolt installed horizontally into a concrete wall, with a large washer and L-shaped bracket on the right.

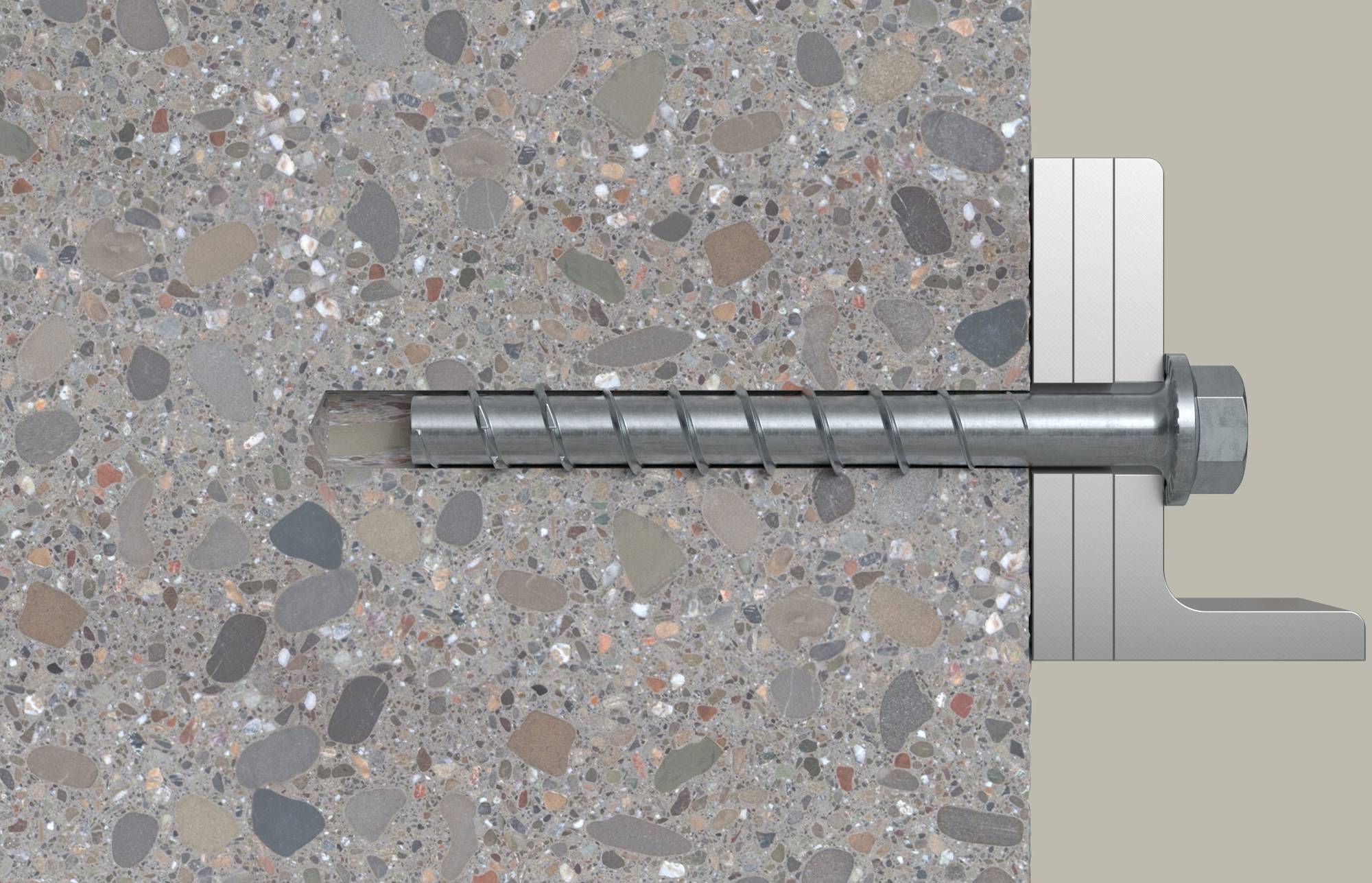

Cross-section of a concrete anchor bolt embedded in masonry, showing threaded metal rod secured into a wall bracket.

Cross-section illustration of a metal anchor bolt drilled into concrete, showing the bolt embedded in the wall with an expansion sleeve and nut on the right.

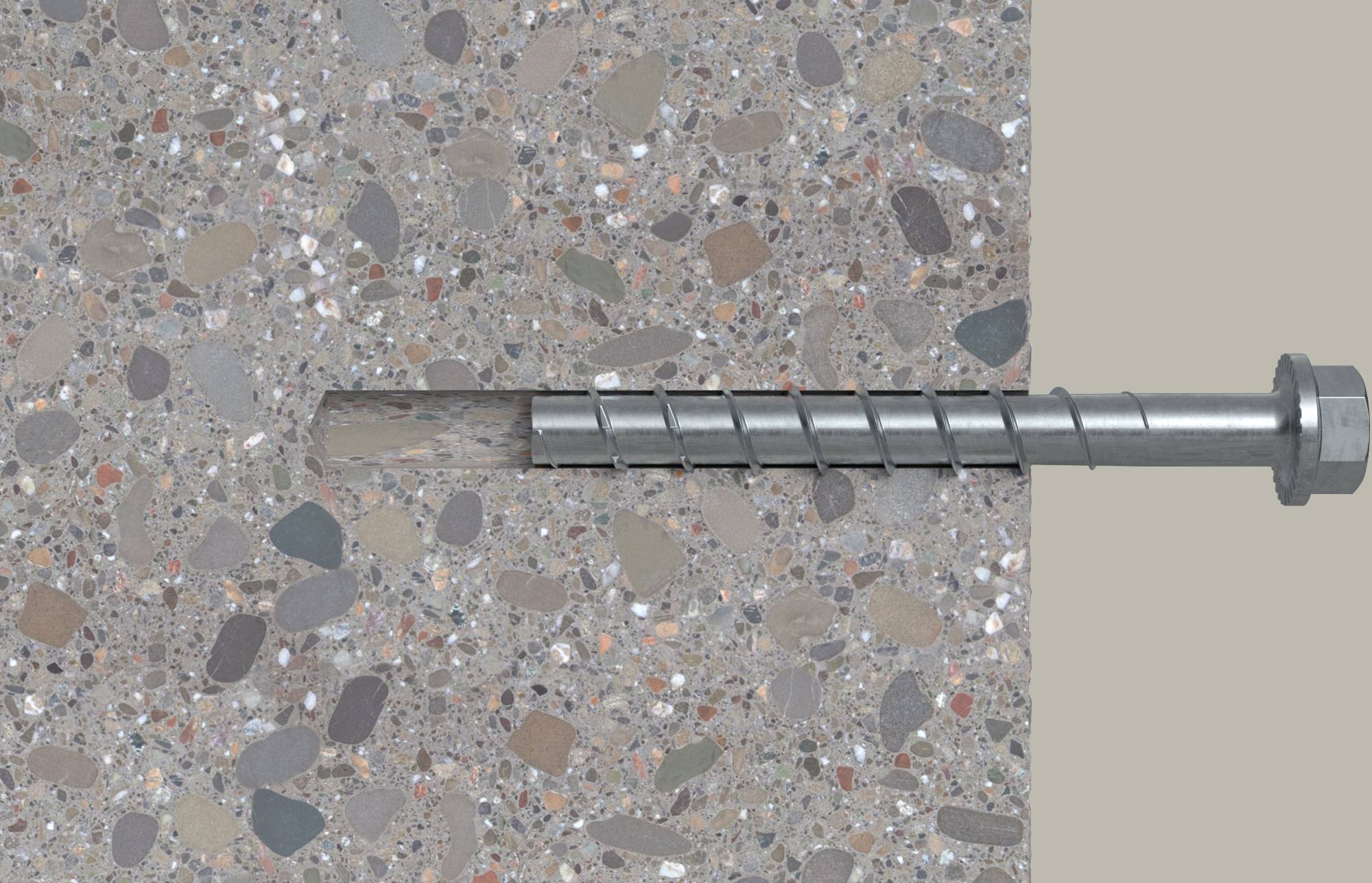

A metal expansion anchor bolt is partially inserted into a drilled hole in concrete, with the anchor sleeve expanding inside the masonry.

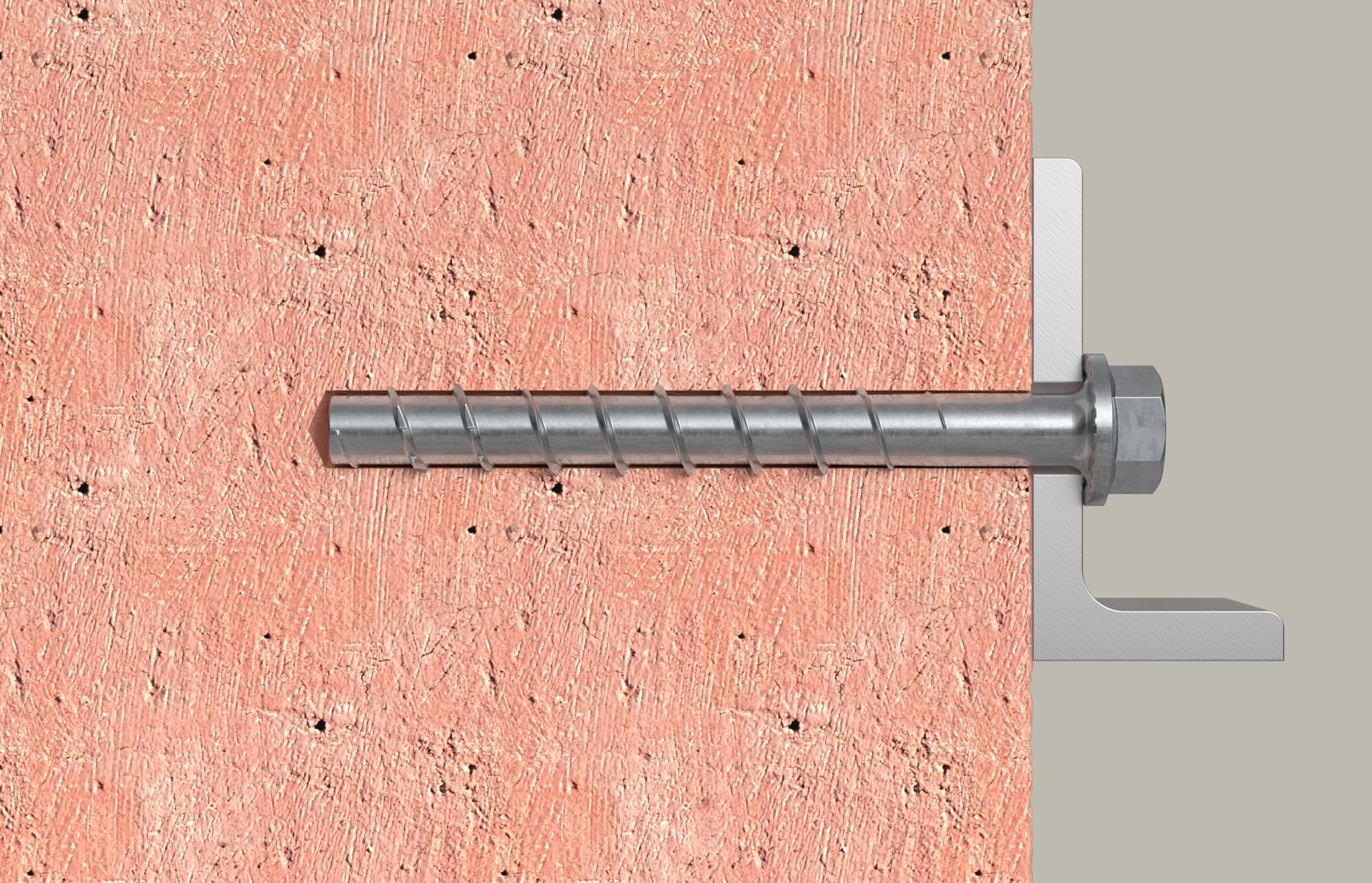

Steel expansion anchor bolt installed in a masonry wall, with the threaded end and washer projecting outward.<br>

1/10

Fischer

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Min. Drill hole depth for through-hole mounting: 240 mm

Product type: Concrete screw

Drive: Hex head

Content: 20 pc(s)

(Ø): 10 mm

Length: 230 mm

Dim: (Ø x L) 10 mm x 230 mm

Head shape: Hex head

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1879071 Fischer 536867 Concrete screw 10 mm 230 mm Hex head 20 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.
