Name: Fischer 536884 Concrete screw 10 mm 65 mm TX 50 pc(s)
Brand: Fischer
SKU: 1877895

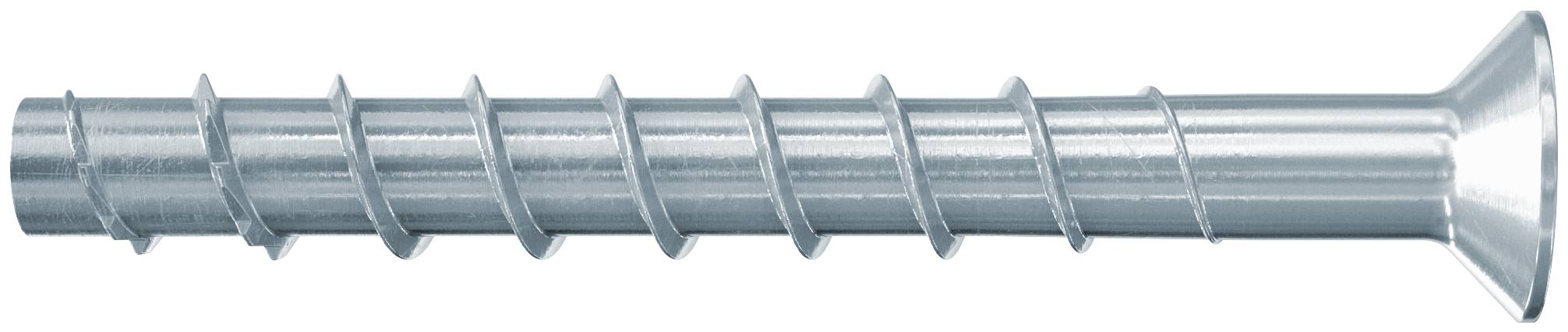

Metal screw with a wide countersunk head, shown horizontally on a white background.

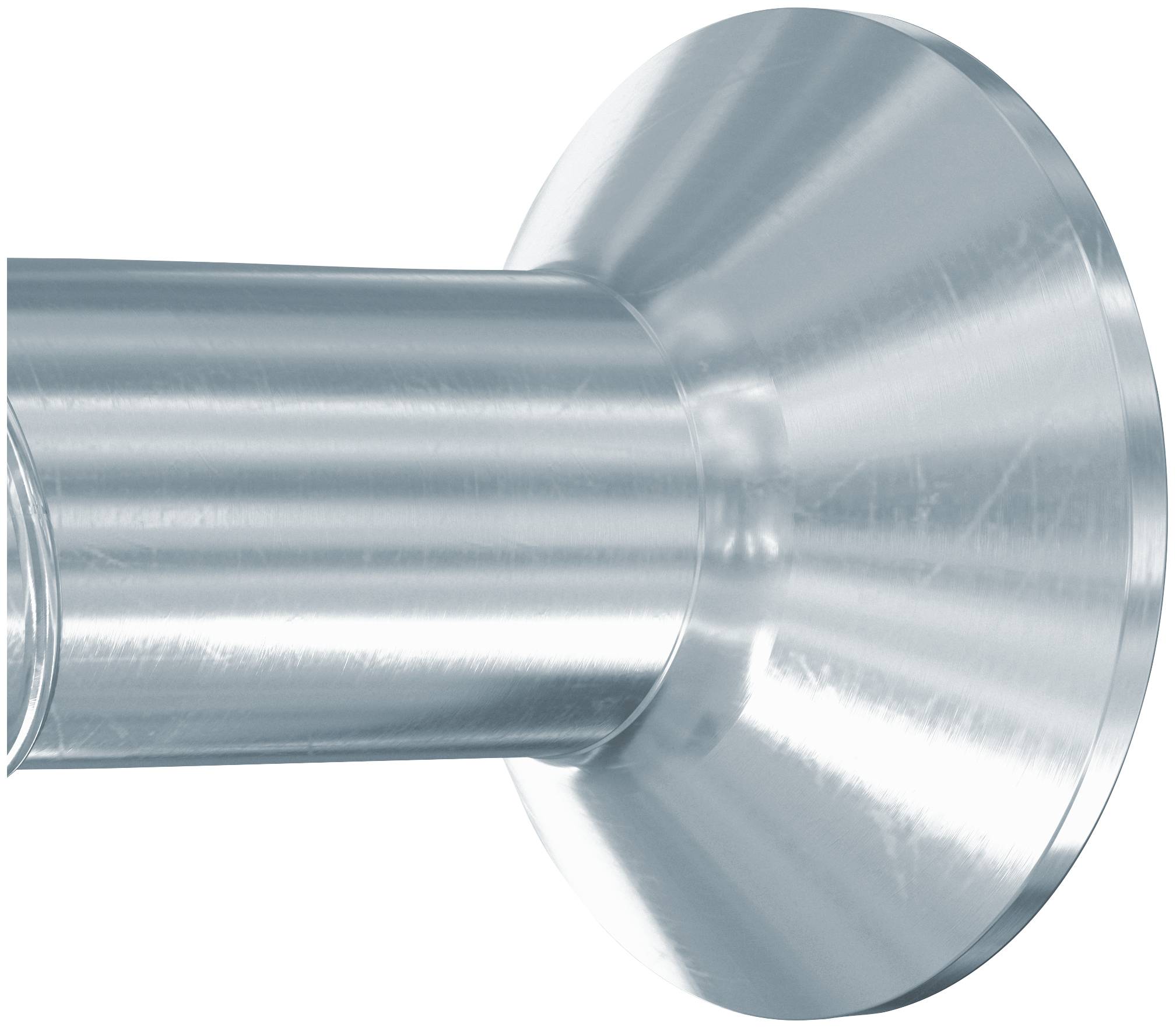

Silver metal duct pipe with a wide flared end on a white background.

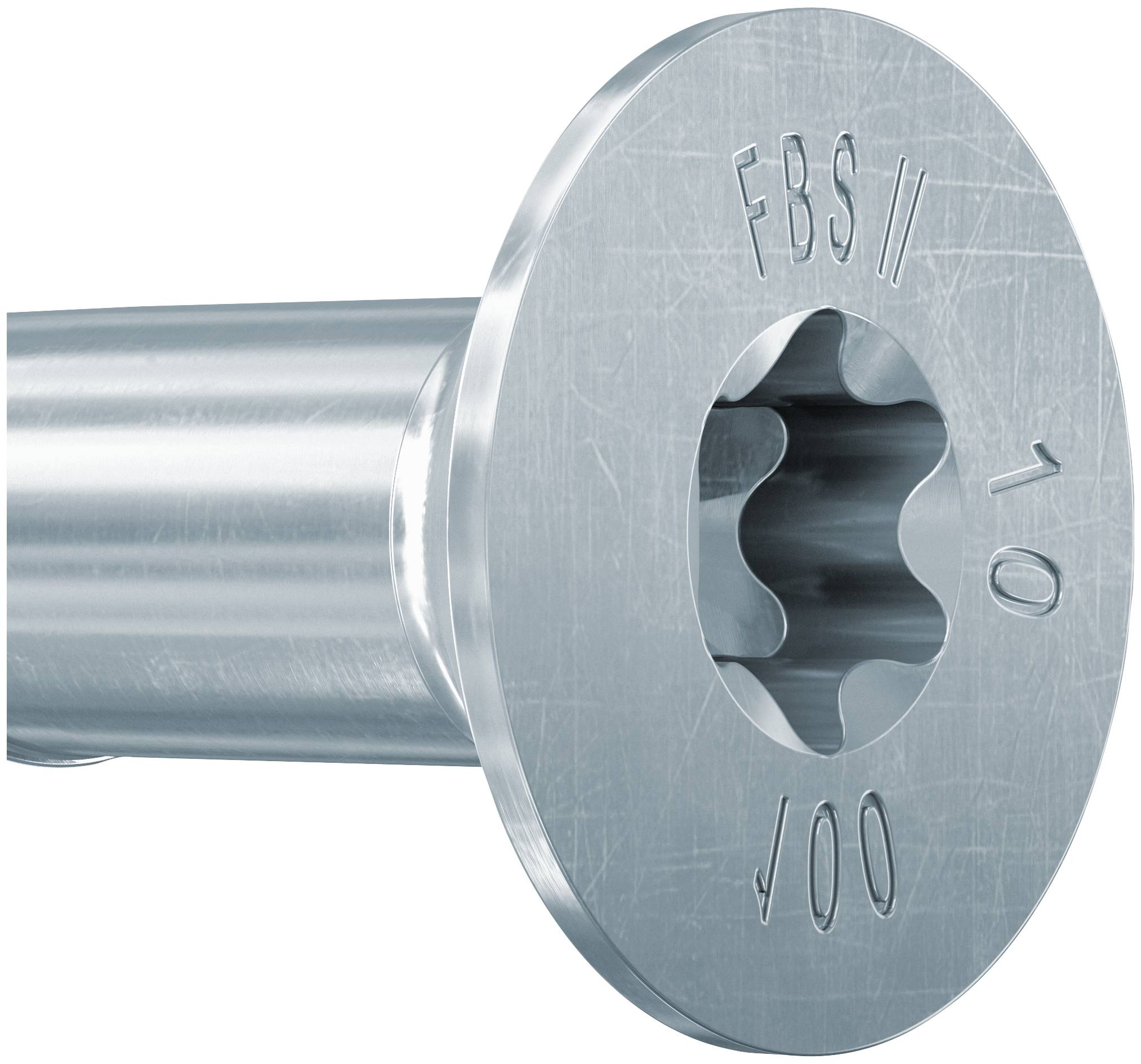

Close-up of a metal fastener with a round head and star-shaped recess, showing stamped markings 'FBS II 100'.

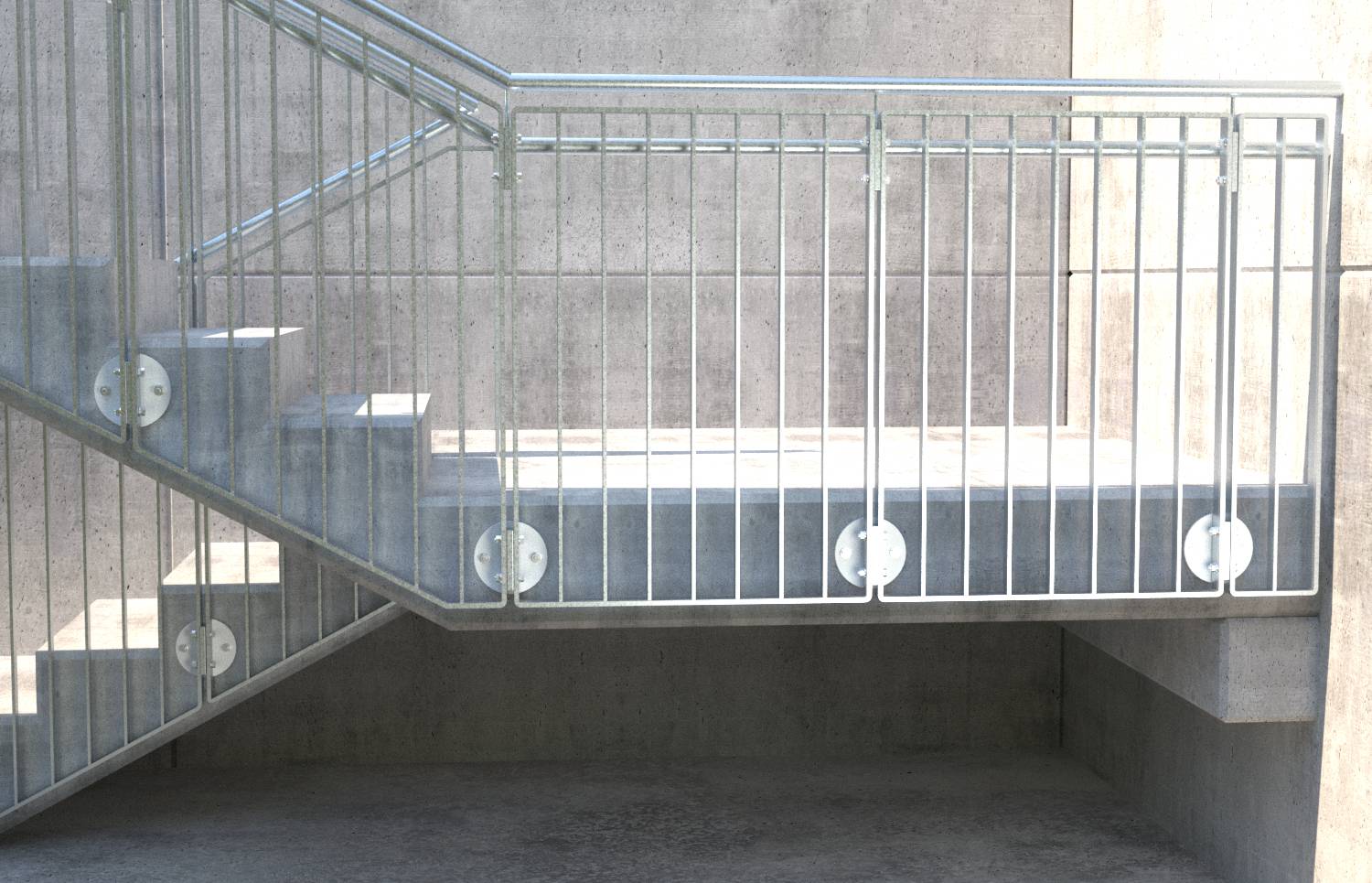

Outdoor metal stairway with railings beside a concrete wall, viewed from below under a raised landing.

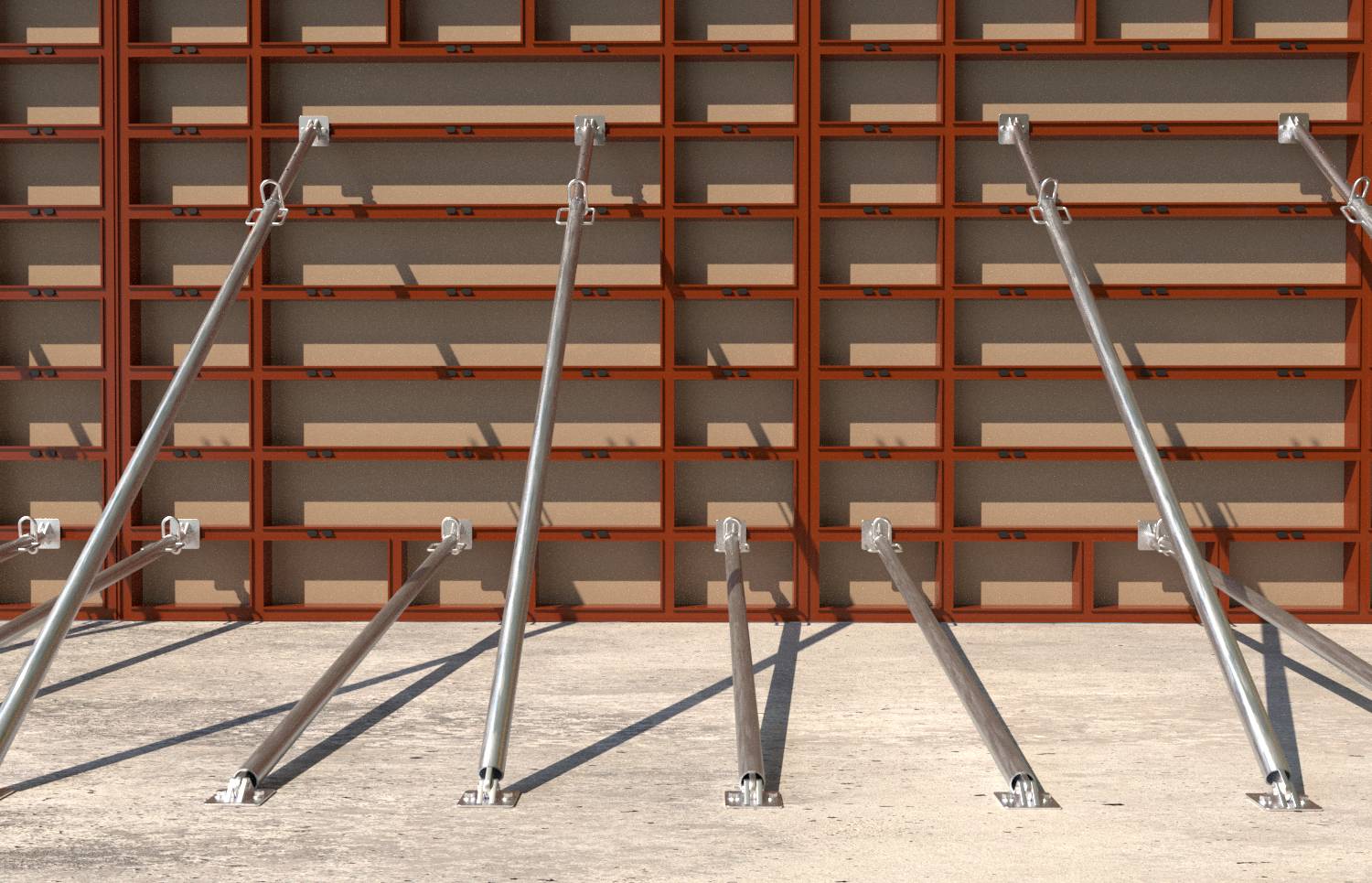

Metal support braces anchored to a concrete floor, leaning against a multi-level orange-framed wall structure.

1/5

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Min. Drill hole depth for through-hole mounting: 75mm

Product type: Concrete screw

Drive: TX

Content: 50 pc(s)

(Ø): 10 mm

Length: 65 mm

Dim: (Ø x L) 10 mm x 65 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1877895 Fischer 536884 Concrete screw 10 mm 65 mm TX 50 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.
