Fischer 538881 PM C U 30-50 AL sw Inline clamp
EAN:
Part number:
Item no:
Highlights & Details

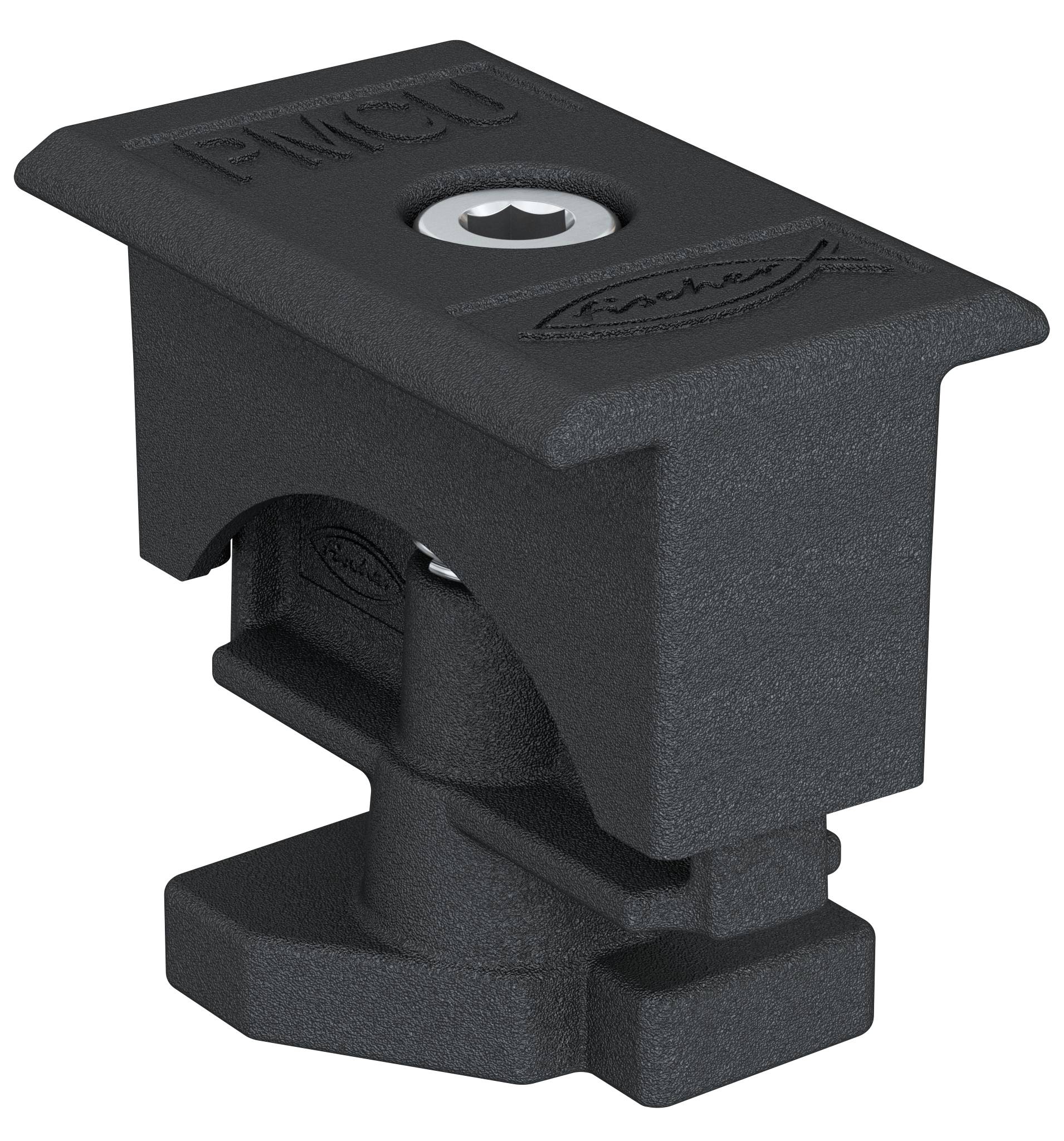

Fischer universal center clamp pre-assembled PM C U AL 30-50 black
- Can be used universally for panels with a thickness of 30 to 50 mm
- Quick insertion in the profile
- Flat and with countersunk screw to prevent formation of shadows
- Made of aluminum EN FROM 46100

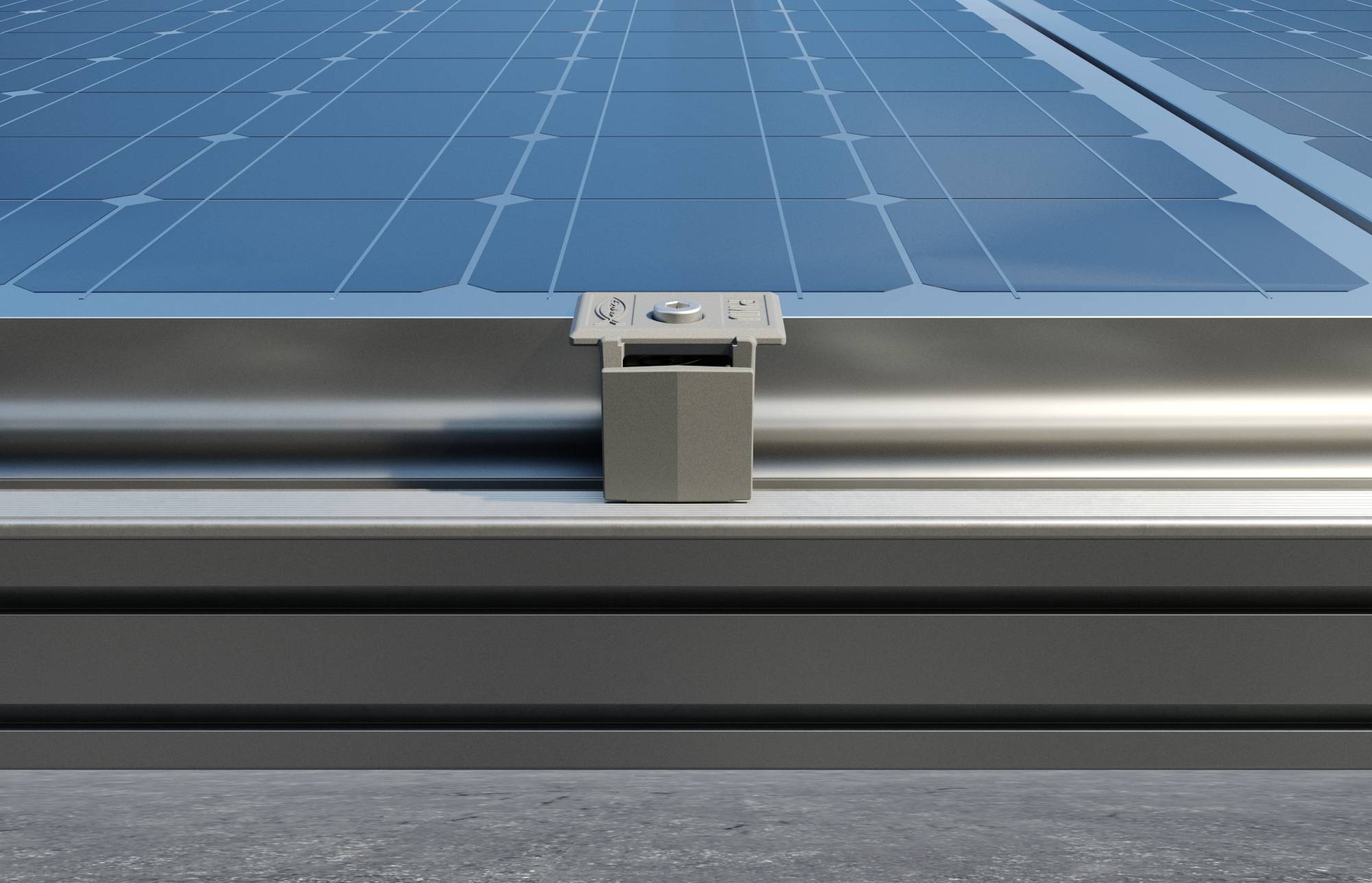

- Insert the lower part of the pre-assembled PMC U universal terminal into the upper groove of the rail
- Turn the pre-assembled universal terminal PMC U clockwise to use as a center terminal
- Secure the PV module by applying a tightening torque of 10 Nm to the socket head screw (TCEI)
- Suitable for:

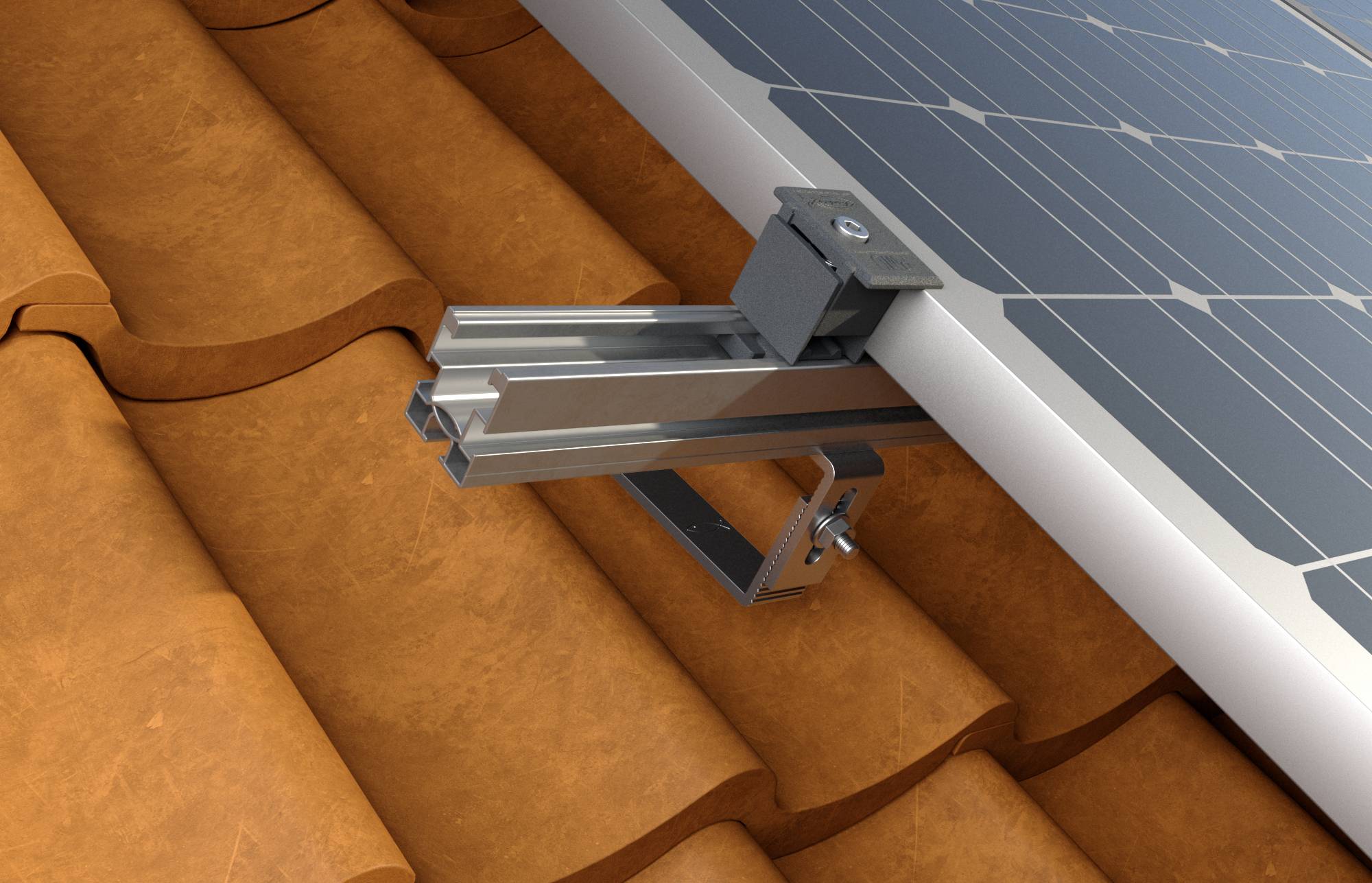

- Pitched Roof Systems with Hook
- Flat roof systems with triangular frames

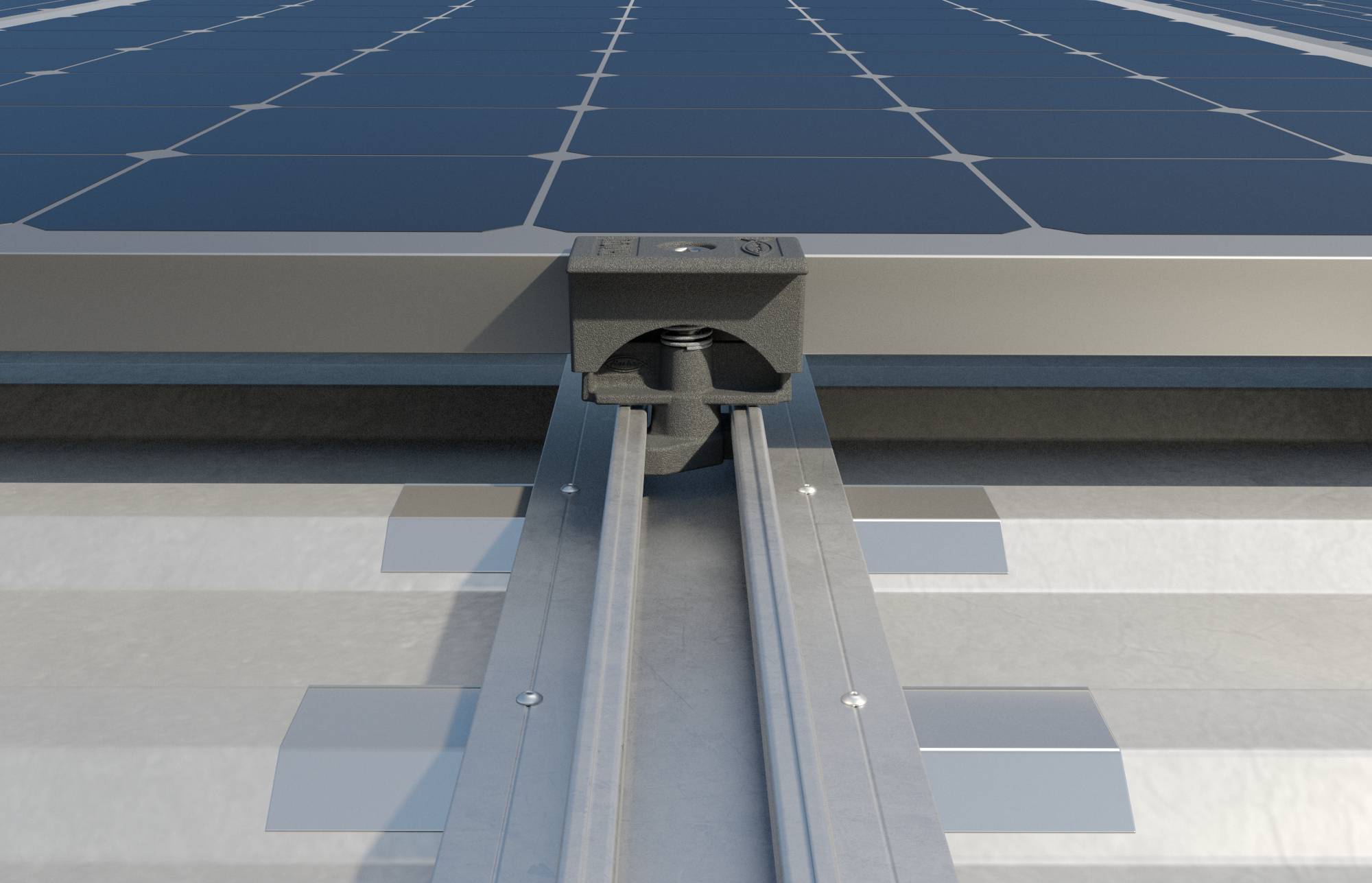

- Trapezoidal sheet metal roof systems
- Corrugated sheet-metal roof systems
- Special constructions
- For fixing PV modules on rails:
- Solar light
- SolarFish
- SolarMid
- SolarFlat
Technical specifications
- Thread: M8
- Installation torque: 10 Nm
- Module thickness 30 - 50 mm
- Width across flats (inner hexagonal): 6 mm
- Screw length 40 mm
- Product type
Inline clamp
- Weight
110 g
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3028802 Fischer 538881 PM C U 30-50 AL sw Inline clamp
Description
PMC U is the universal center terminal for PV panels with a thickness of 30 to 50 mm. PMC U can be quickly inserted into the rails by simply turning. Compatible with SolarLight, SolarFish, SolarMid, SolarFlat and SolarMetal rails The pre-mounted universal center terminal PMC U can attach all PV modules with a thickness of 30 to 50 mm. The recessed screw in the clamp avoids shadows on neighboring modules. Thanks to the intelligent nut, the PM U universal clamp can be hung and locked at any point of the mounting rail quickly. The spring keeps the clamp raised during the tightening phases and the plastic element ensures that it remains in position and does not slip in position in the rail. The PMC U terminal does not require additional elements such as screws, seals or bolts.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 10 pcs.
