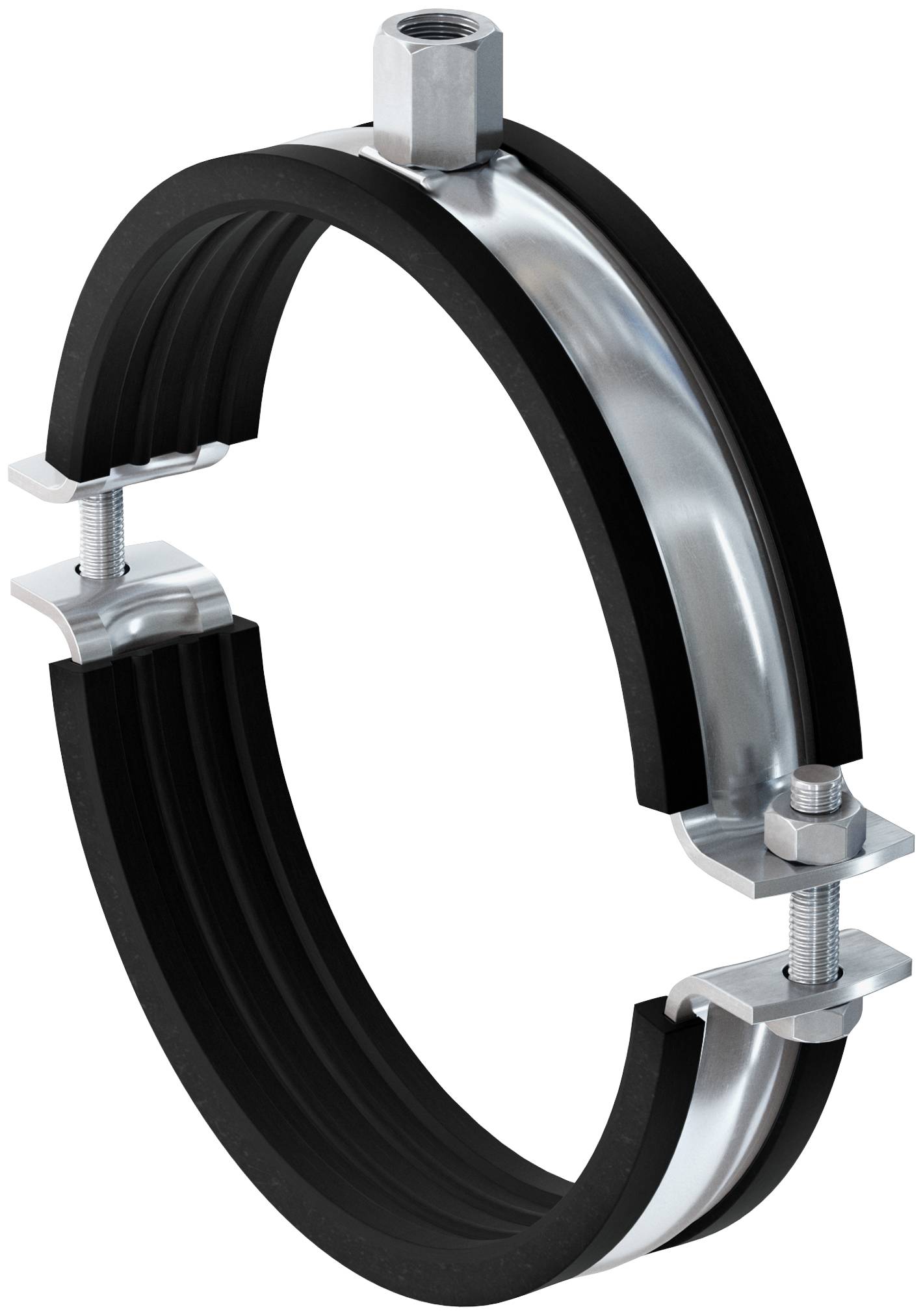

Fischer 539660 Pipe clamp Pipe CLIP FRS 200 - 206 M10 15 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Width x thickness of clamp band 25 x 2.5 mm
- Height Z 118 mm
- Max. recv. Static load (central train): 2.75 kN
- Screw plug: M8
- Insulation: Sound insulation
- Product type
Pipe clamp
- Content
15 pc(s)
- Material
Steel
- Clamping range
200 up to 206 mm
- Thread size
M10
- DIN standard
DIN 4109
- Thread
M10
- Material properties
zinc galvanized
- Width
256 mm
- Height
227 mm
- Length
118 mm
- Range (max.)
206 mm
- Clamping range (min.)
200 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472274 Fischer 539660 Pipe clamp Pipe CLIP FRS 200 - 206 M10 15 pc(s)
Description

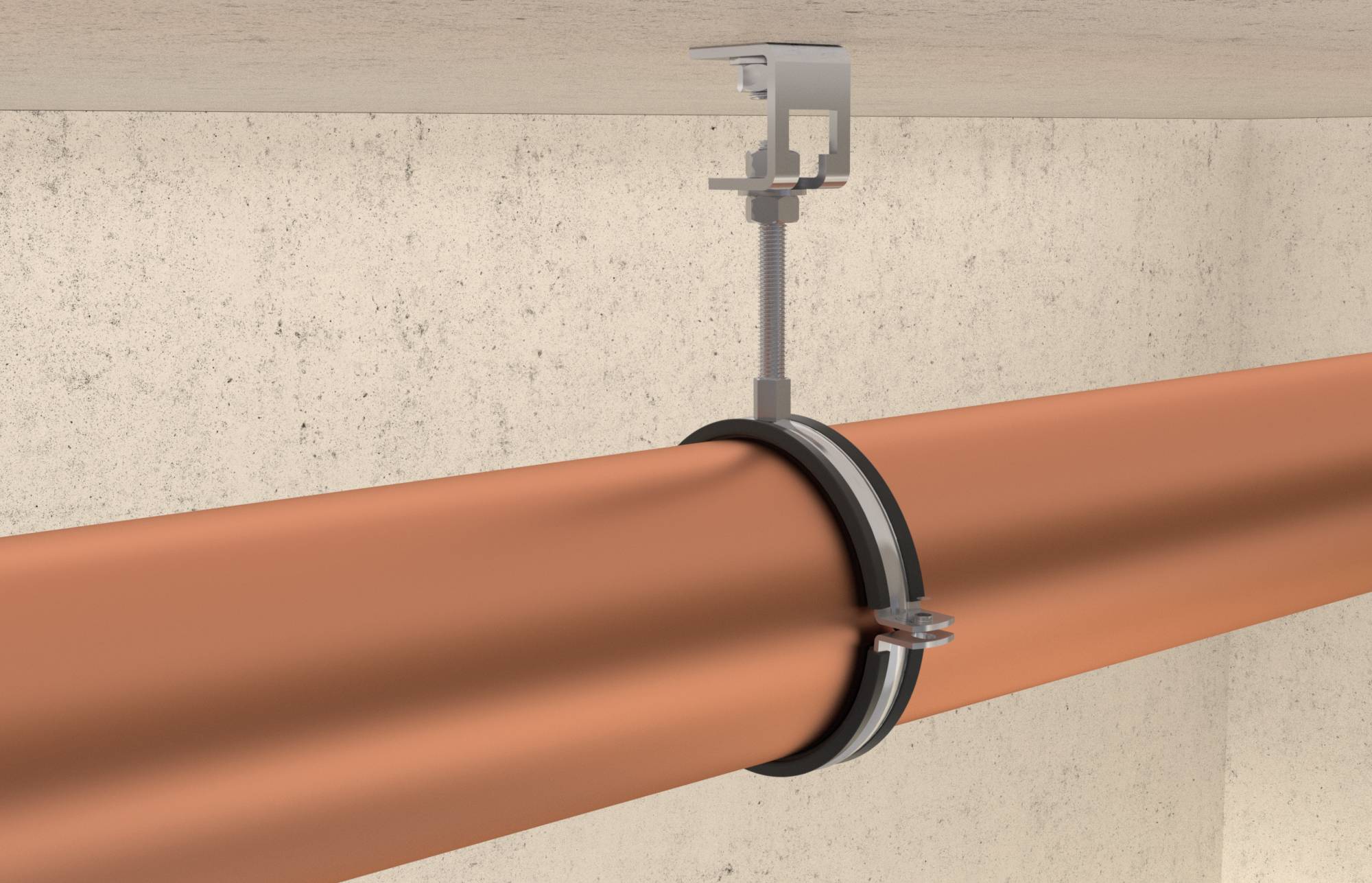

the fischer FRS pipe clamp is a two-screw pipe clamp made of galvanized steel of material quality DD11 with combination connection thread M 8/M 10. The design with two screws enables the optimized adaptation to the outer diameter of the pipe. Together with the combination connection thread this increases the flexibility. This means that pipes with an external diameter of 12 - 168 mm can be securely fastened with threaded rod or hanger bolt in accordance with the fire protection requirements of the fire resistance class R 120 and the MLAR in the interior. The pipe clamp meets the requirements of DIN 4109 with a chlorine-free and silicone-free sound insulation insert. the fischer FRS is suitable for applications in the temperature range from -40 °C to +100 °C.
This text is machine translated.
This text is machine translated.
Features
- The fire test report guarantees objectively tested functional safety
- the two-screw design allows optimized adaptation to the outer diameter of the pipe
- The connecting nut with combination thread M8/M10 ensures flexibility on the construction site
- the sound insulation lining ensures noise reduction and prevents contact corrosion
- The loss protection of the screws ensures a problem-free installation
