Fischer 539797 RM II Cartridge 90 mm 12 mm 10 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

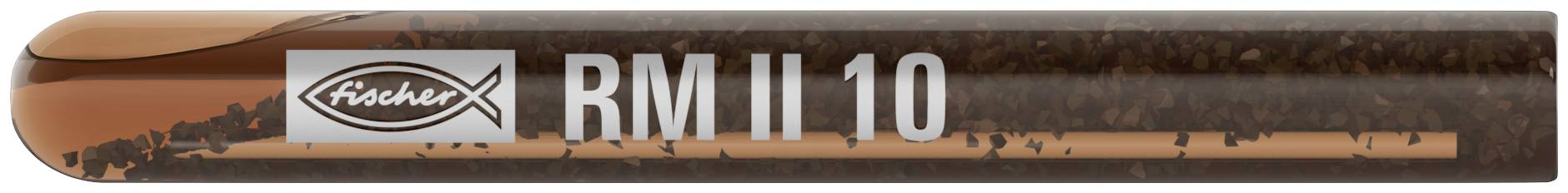

Fischer RM II 10 cartridge
- Reaction cartridge for fittings in cracked concrete.
- Fast to process without drill hole cleaning.
- Secure anchoring of high loads.
- Ideal for individual attachments and overhead mounting.
- Numerous anchor rods available as accessories.
Technical specifications
- Suitable for RG M 10 / RG M 8 I
- (Ø)
12 mm
- Product type
Cartridge
- Length
90 mm
- Screw diameter
10 mm
- Dim
(Ø x L) 12 mm x 90 mm
- Suitable for
Concrete
- Content
10 pc(s)
Documents & Downloads
Security datasheet
Security datasheet 2760604 Fischer 539797 RM II Cartridge 90 mm 12 mm 10 pc(s)
Signal word
GHS / H Statements
- H 411: Toxic to aquatic life, with long-lasting effects
GHS / P Statements
- P 280: Wear protective gloves/protective clothing/eye protection/face protection
GHS / EUH statements
- EUH 208: Contains a substance that may cause an allergic reaction
Description
The fischer RM II reaction cartridge is the first composite anchor with European Technical Assessment Option 1 for cracked concrete, which can be set in combination with a standard threaded rod (RG M) and does not require hole cleaning. With the reaction anchor steel construction, machines or stairs are fixed in the outer and inner area. The mortar cartridge can be used with the Fischer RG M anchor rod and the Fischer RG MI internal thread anchor. The RM II reaction cartridge does not require a drill hole cleaning, but it is still possible to introduce comparatively high loads. This allows fast work progress and a safe application.
This text is machine translated.
This text is machine translated.
Features
- RM II is the first composite anchor with an anchor rod RG M or internal thread anchor RG M I, which does not require a drill hole cleaning. This enables fast work progress and an economical assembly.
- In addition, there is a lower load due to drilling dust on the construction site. This increases safety for the user.
- The pre-portioned reaction cartridge is easy to use and is particularly suitable for single applications and overhead mounting.
- The use of the RG MI internal thread anchor enables the surface-flush dismantling and re-use of the mounting point and thus offers optimum flexibility.
