Fischer 540118 Plug (long) 160 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 90 mm
- Usable length for anchoring depth 50 mm: 110 mm
- Usable length for anchoring depth 90 mm: 70 mm
- Min. Drill hole depth for through-hole mounting: 170 mm
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
160 mm
- Dim
(Ø x L) 8 mm x 160 mm
- Suitable for
Brickwork
- Content
50 pc(s)
- Outside Ø
8 mm
- Features
incl. countersunk screw
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877368 Fischer 540118 Plug (long) 160 mm 8 mm 50 pc(s)
Description

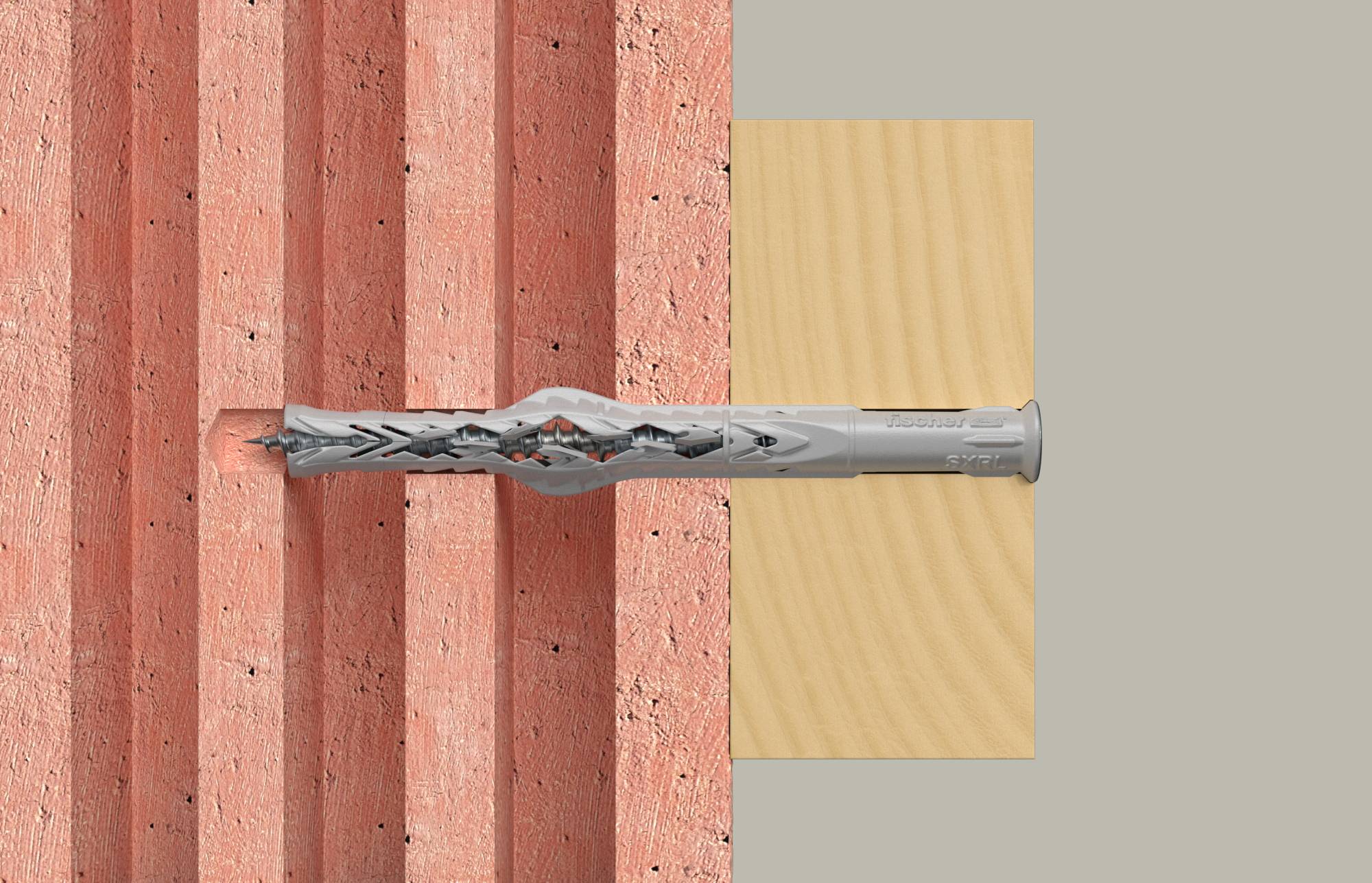

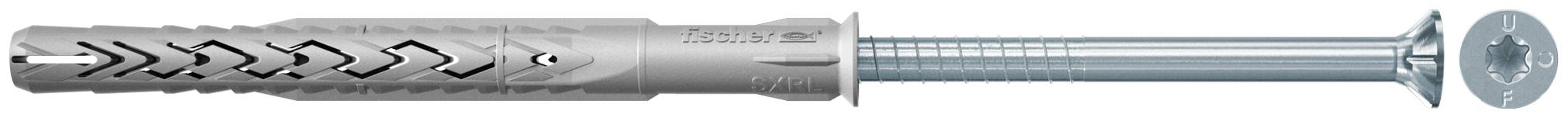

The fischer Long shaft anchor SXRL-T is with the fishermen countersunk screw with T30-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. The security screw from electro-galvanised is the Long shaft anchor for attachments in indoor areas such as windows, dressing rooms, hanging cabinets or TV-consoles.
