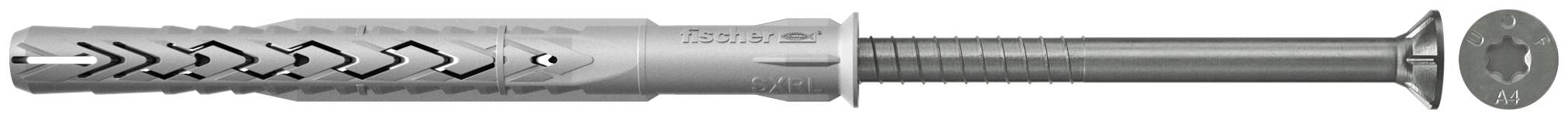

Fischer 540121 Plug (long) 80 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 10 mm
- Usable length for anchoring depth 50 mm: 30 mm
- Min. Drill hole depth for through-hole mounting: 90 mm
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
80 mm
- Dim
(Ø x H) 8 mm x 80 mm
- Suitable for
Brickwork
- Content
50 pc(s)
- Outside Ø
8 mm
- Features
incl. countersunk screw
- Material properties
rust-proof
- Height
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878497 Fischer 540121 Plug (long) 80 mm 8 mm 50 pc(s)
Description

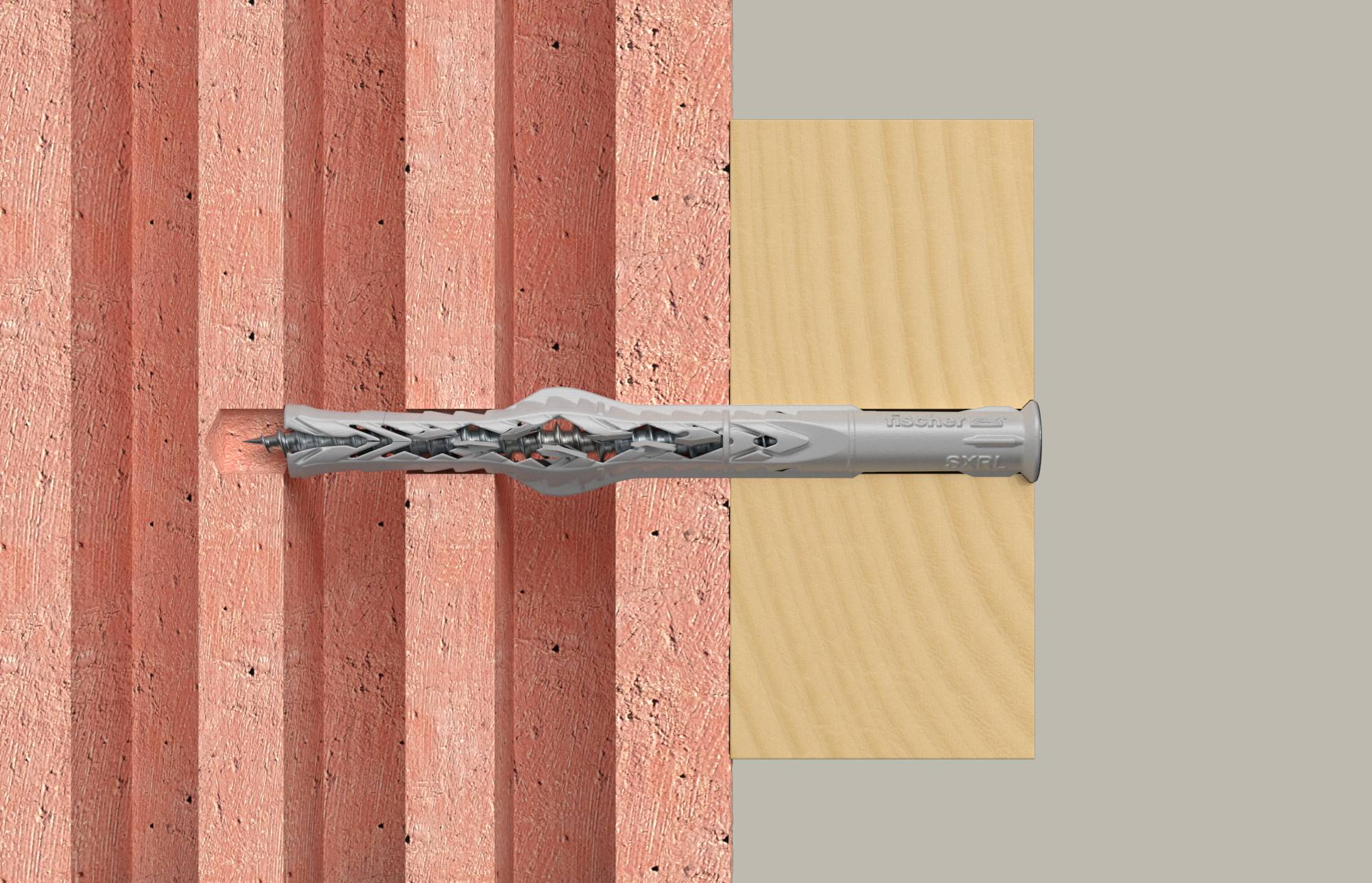

The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T30-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
