Fischer 540124 Plug (long) 120 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 50 mm
- Usable length for anchoring depth 50 mm: 70 mm
- Usable length for anchoring depth 90 mm: 30 mm
- Min. Drill hole depth for through-hole mounting: 130 mm
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
120 mm
- Dim
(Ø x H) 8 mm x 120 mm
- Suitable for
Brickwork
- Content
50 pc(s)
- Outside Ø
8 mm
- Features
incl. countersunk screw
- Material properties
rust-proof
- Height
120 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877653 Fischer 540124 Plug (long) 120 mm 8 mm 50 pc(s)
Description

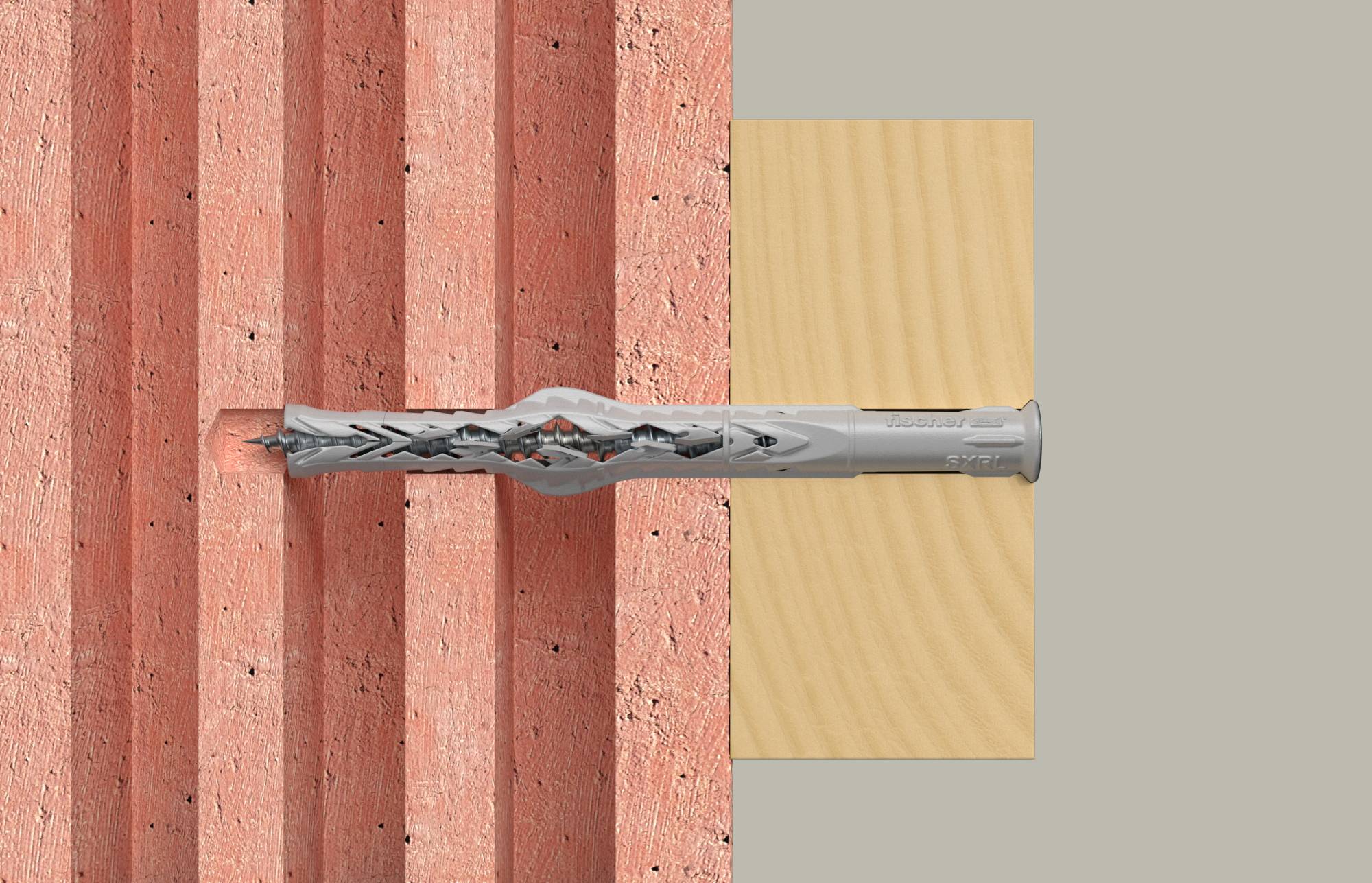

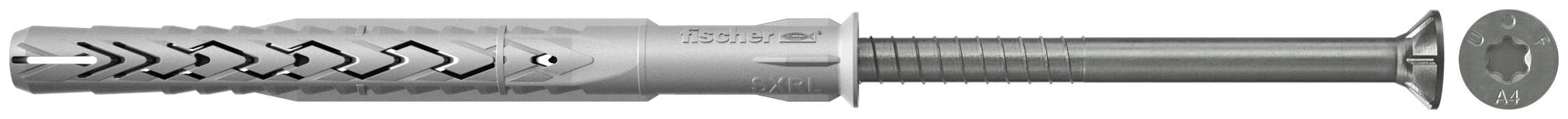

The fischer Long shaft anchor SXRL-T A4 is with the fishermen countersunk screw with T30-drive for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments in outdoor areas such as façades, ceiling and roof substructures.
