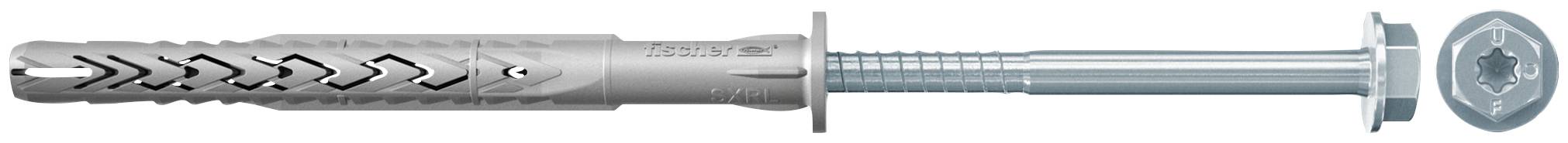

Fischer 540129 Plug (long) 80 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 10 mm
- Usable length for anchoring depth 50 mm: 30 mm
- Min. Drill hole depth for through-hole mounting: 90 mm
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
80 mm
- Dim
(Ø x L) 8 mm x 80 mm
- Suitable for
Concrete
Brickwork
Foamed concrete wall
Solid stone
Hollow bricks
- Content
50 pc(s)
- Outside Ø
8 mm
- Features
incl. hex screw
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1878266 Fischer 540129 Plug (long) 80 mm 8 mm 50 pc(s)
Description

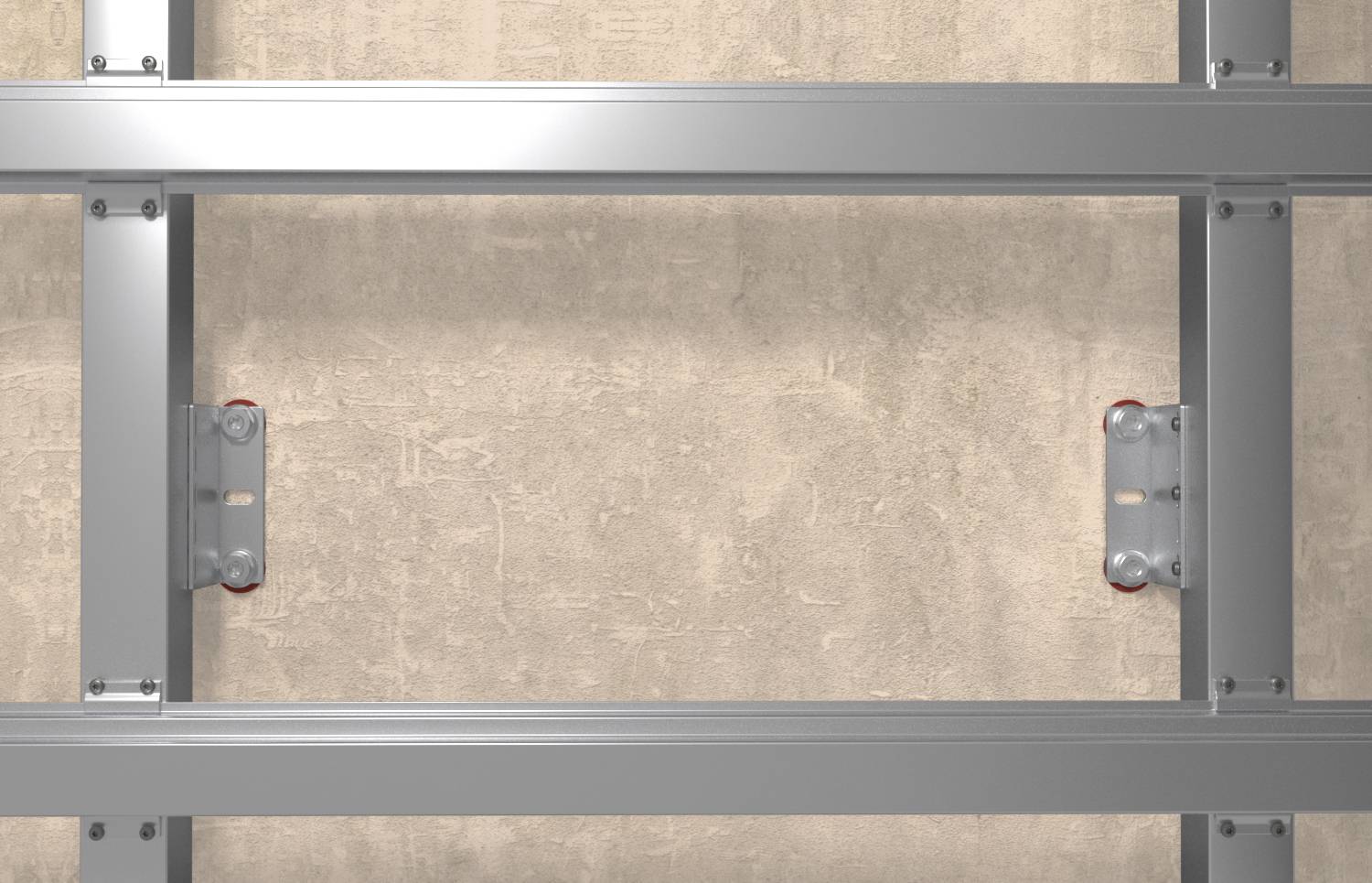

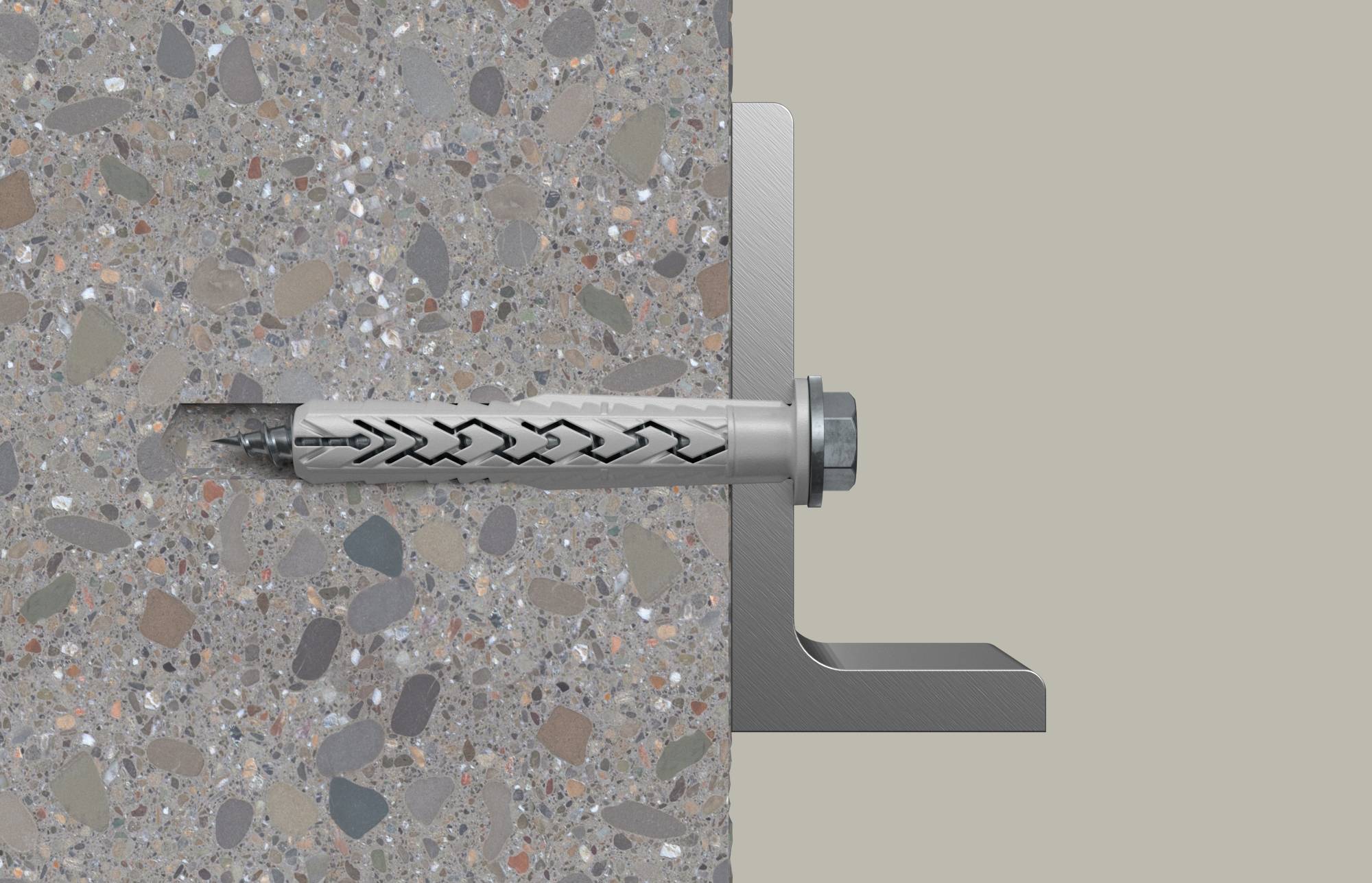

The SXRL-FUS is Fischer Long shaft bolt with the fishermen cap screw with keel disc and integrated bit holder T30 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. The security screw from electro-galvanised is the Long shaft anchor for attachments of metal constructions.
