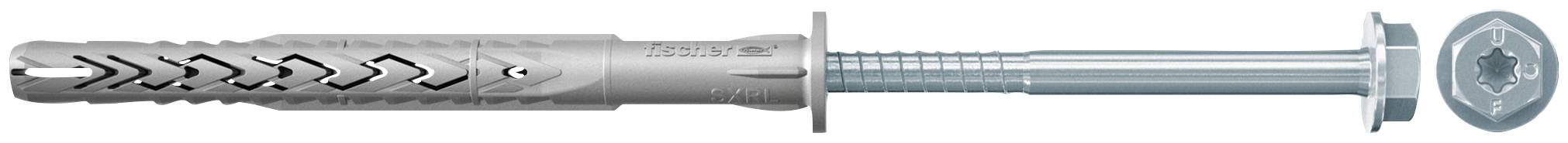

Fischer 540133 Plug (long) 140 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 70 mm
- Usable length for anchoring depth 50 mm: 90 mm
- Usable length for anchoring depth 90 mm: 50 mm
- Min. Drill hole depth for through-hole mounting: 150 mm
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
140 mm
- Dim
(Ø x L) 8 mm x 140 mm
- Suitable for
Brickwork
- Content
50 pc(s)
- Outside Ø
8 mm
- Features
incl. hex screw
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877654 Fischer 540133 Plug (long) 140 mm 8 mm 50 pc(s)
Description

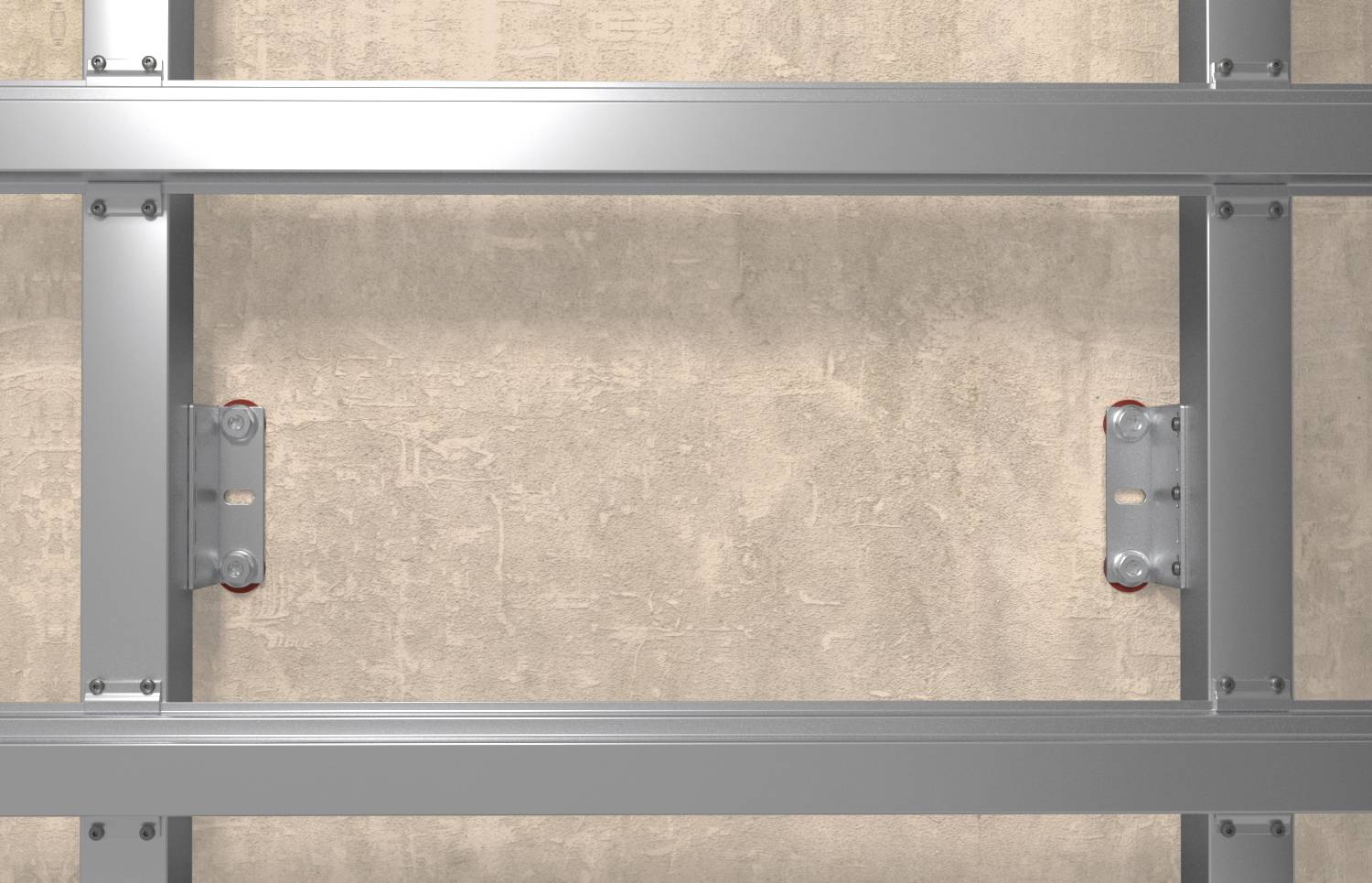

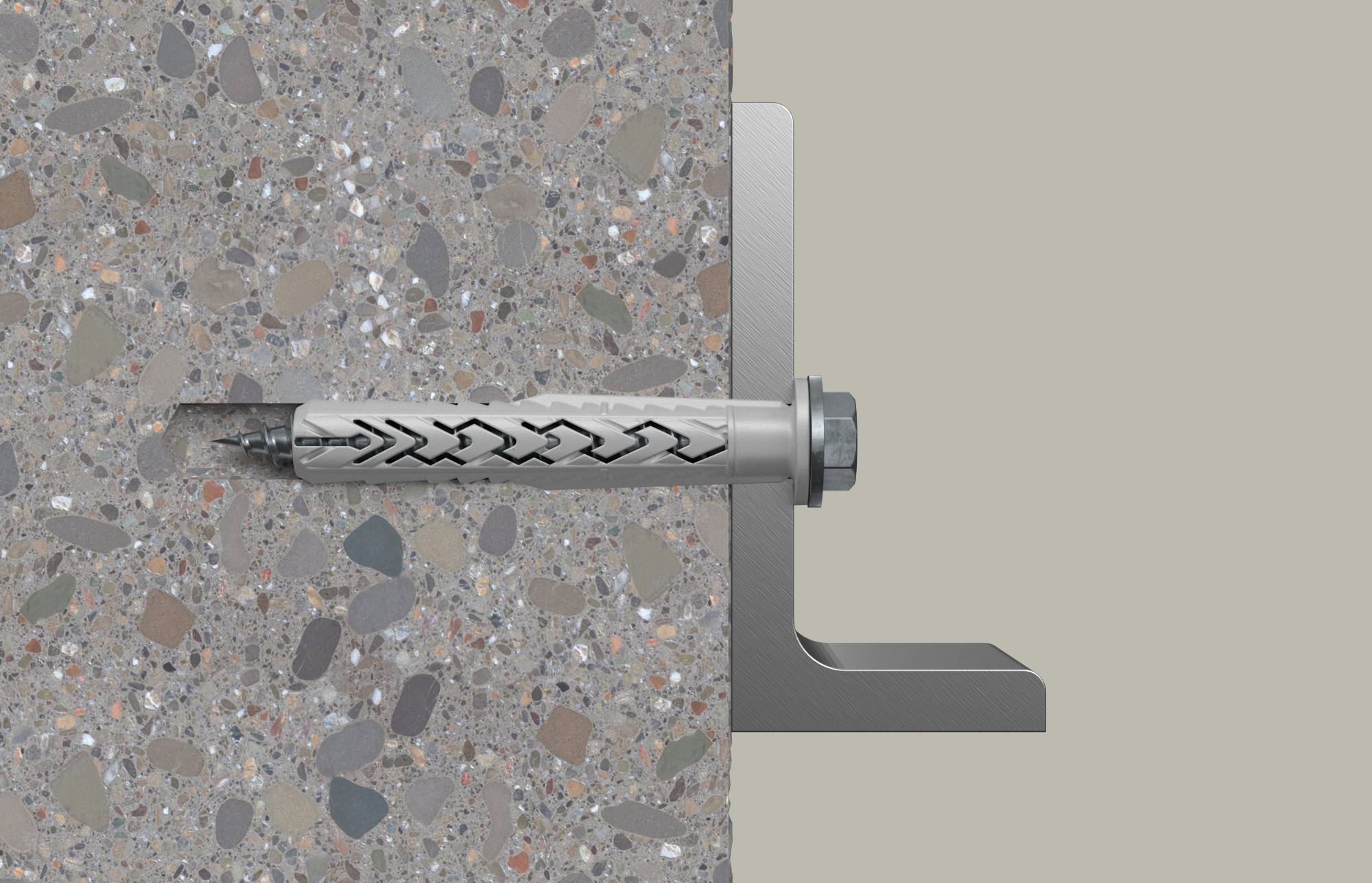

The SXRL-FUS is Fischer Long shaft bolt with the fishermen cap screw with keel disc and integrated bit holder T30 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. The security screw from electro-galvanised is the Long shaft anchor for attachments of metal constructions.
