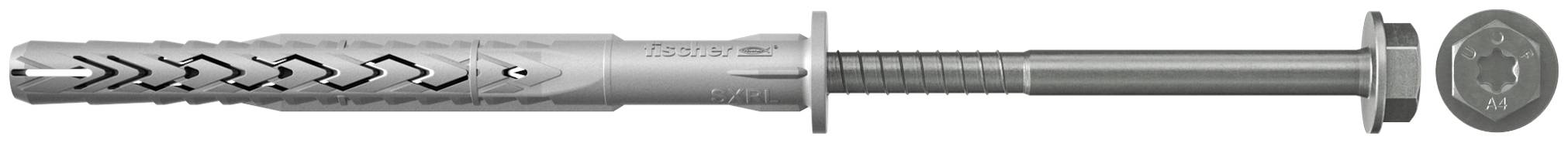

Fischer 540137 Plug (long) 100 mm 8 mm 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Usable length for anchoring depth 70 mm: 30 mm
- Usable length for anchoring depth 50 mm: 50 mm
- Usable length for anchoring depth 90 mm: 10 mm
- Min. Drill hole depth for through-hole mounting: 110 mm
- (Ø)
8 mm
- Product type
Plug (long)
- Material
Steel
- Length
100 mm
- Dim
(Ø x L) 8 mm x 100 mm
- Suitable for
Hollow bricks
Foamed concrete wall
Concrete
Brickwork
Solid stone
- Content
50 pc(s)
- Outside Ø
8 mm
- Features
incl. hex screw
- Material properties
rust-proof
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1877516 Fischer 540137 Plug (long) 100 mm 8 mm 50 pc(s)
Description

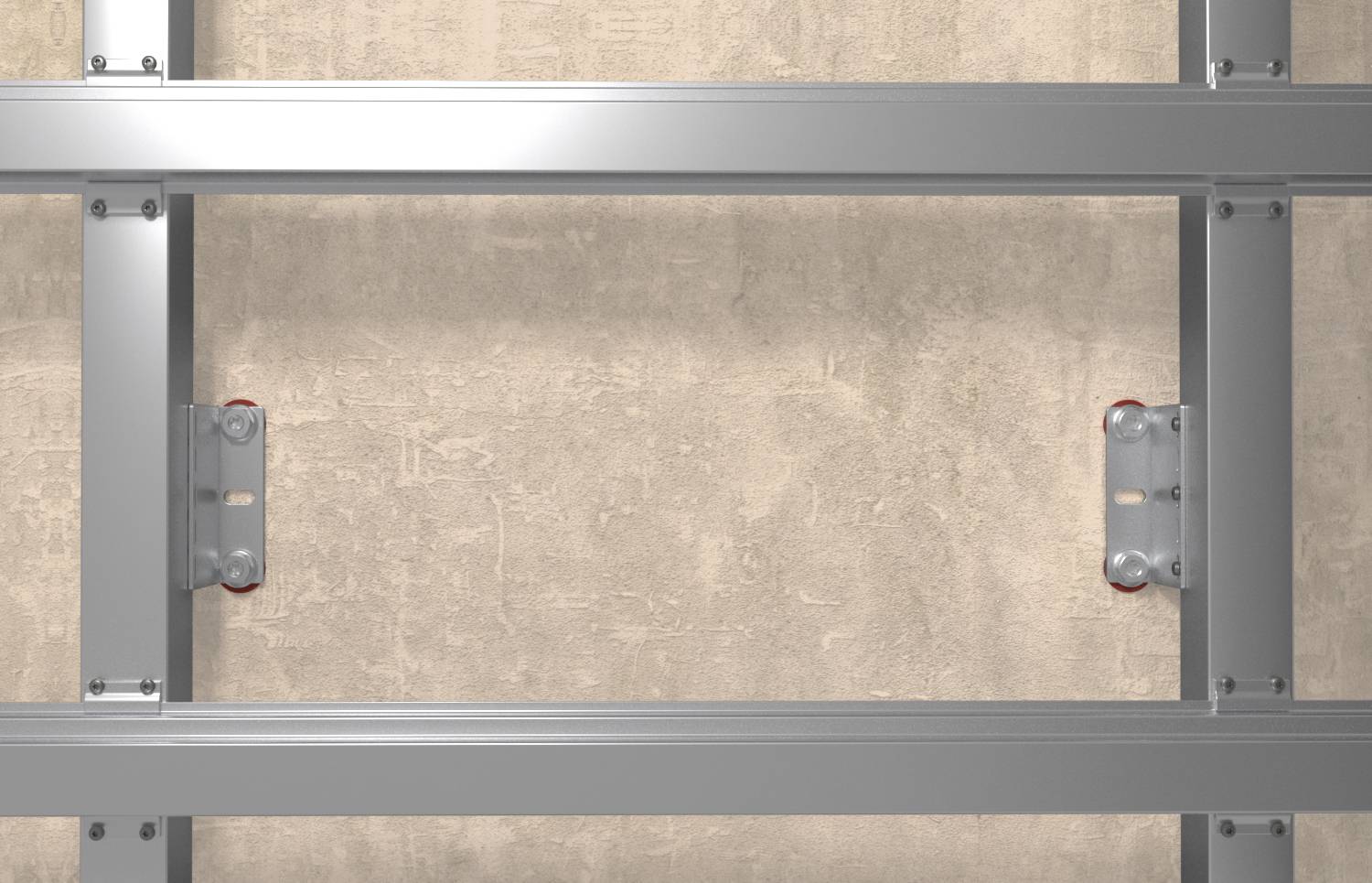

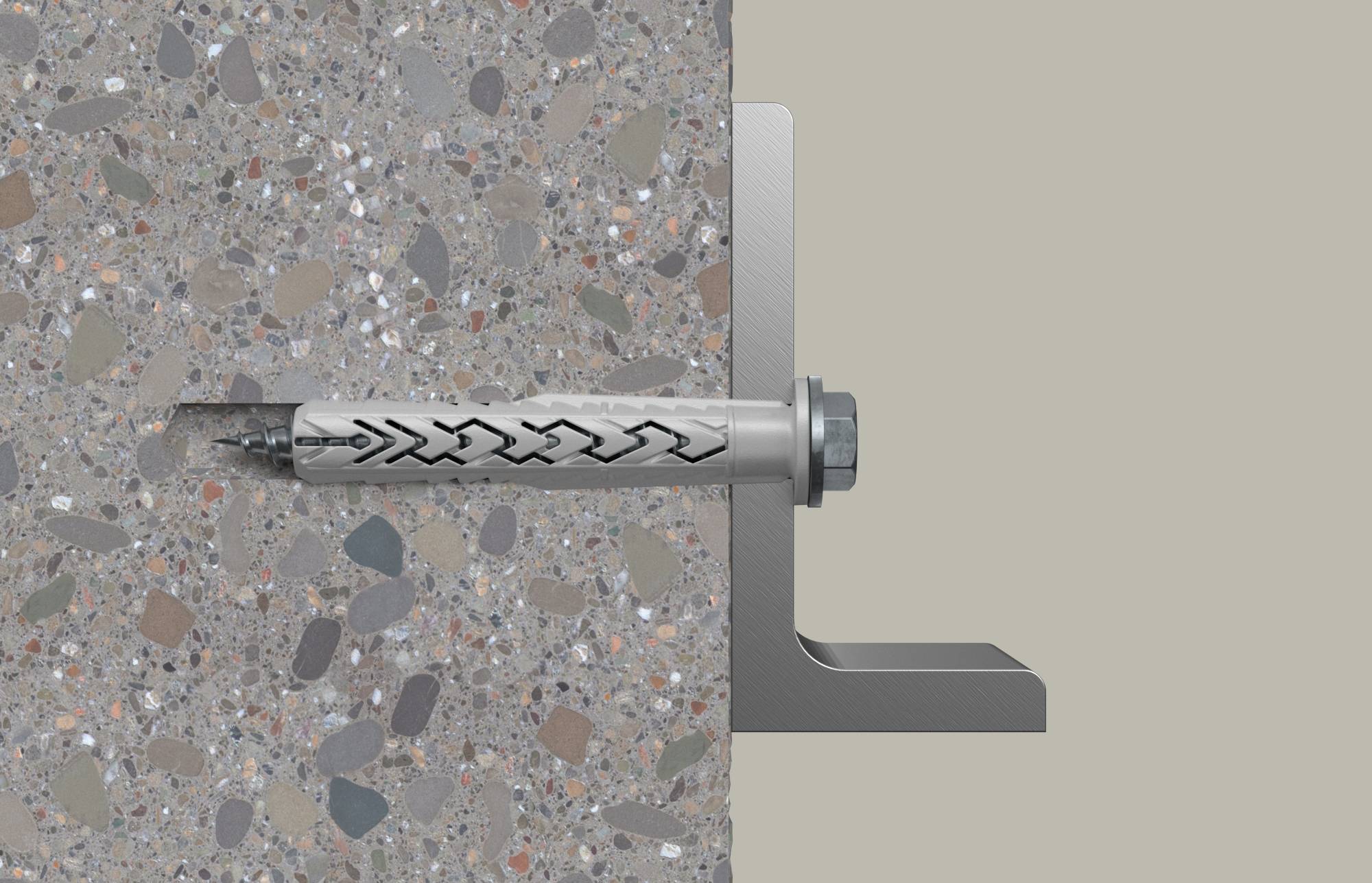

The fischer Long shaft anchor SXRL-FUS A4 is with the fishermen cap screw with keel disc and integrated bit holder T30 for multiple connections of the non-load-bearing systems in masonry, concrete and aerated concrete. Hole in the stone wall, the two zones of the dowel evenly spread force in aerated concrete and solid material combines these to a long spread element. With the safety screw made of non-rusting steel is the Long shaft anchor for attachments of metal constructions in outdoor areas.
