Pisces Highbond anchor FHB-A dyn 16 x 125/100

The Highbond anchor rod dynamic FHB-A dyn is used in conjunction with the Highbond special mortar FIS HB.
The FIS HB injection mortar closes the ring gap in the attachment during the setting process and ensures optimum load distribution. This allows the recording of dynamic threshold and changeover keys.

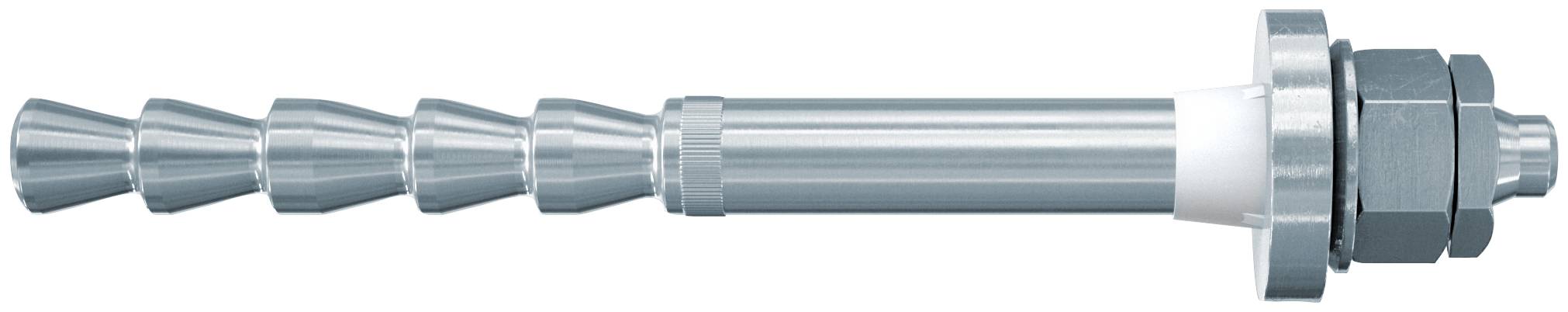

The conic geometry of the anchor rod FHB-A dyn provides for a safe re-spreading under dynamic load and thus enables the use in cracked concrete.
The FHB-A dyn anchor rod is also available in highly corrosion-resistant steel. This makes it suitable for applications in an aggressive atmosphere, for example Tunnels, suitable.
The Highbond dynamic anchor system achieves even higher transverse forces by means of the additional sleeve in the anchor rod FHB-A dyn V and thus offers an increased level of safety.

Technical specifications

(Ø): 16 mm

Product type: Dowel

Material: Steel

Length: 125 mm

Dim: (Ø x L) 16 mm x 125 mm

Suitable for: Concrete

Content: 10 pc(s)

Outside Ø: 16 mm

Material properties: highly anti-corrosive

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148198 Fischer 541875 Highbond FHB-A dyn 16x125/100 Dowel 10 pc(s)

Description

the fischer Highbond anchor dynamic FHB-A dyn is processed with the special Highbond mortar FIS HB. It is used for recording dynamic threshold and changeover keys. The approved armature with its conical geometry ensures safe subsequent spreading under dynamic load and thus enables the use in cracked concrete. It is used to secure guide rails for elevators, production robots, gantry and ceiling cranes or jet fans. The fire suitability according to fire resistance class R120, variants made of highly corrosion-resistant steel or an additional sleeve for higher transverse forces with the anchor rod FHB-A dyn V, offers an additional plus in safety.
