Buy Fischer 542108 RODFORCE FGD 10 M6 TR 60 Dowel 25 pc(s)

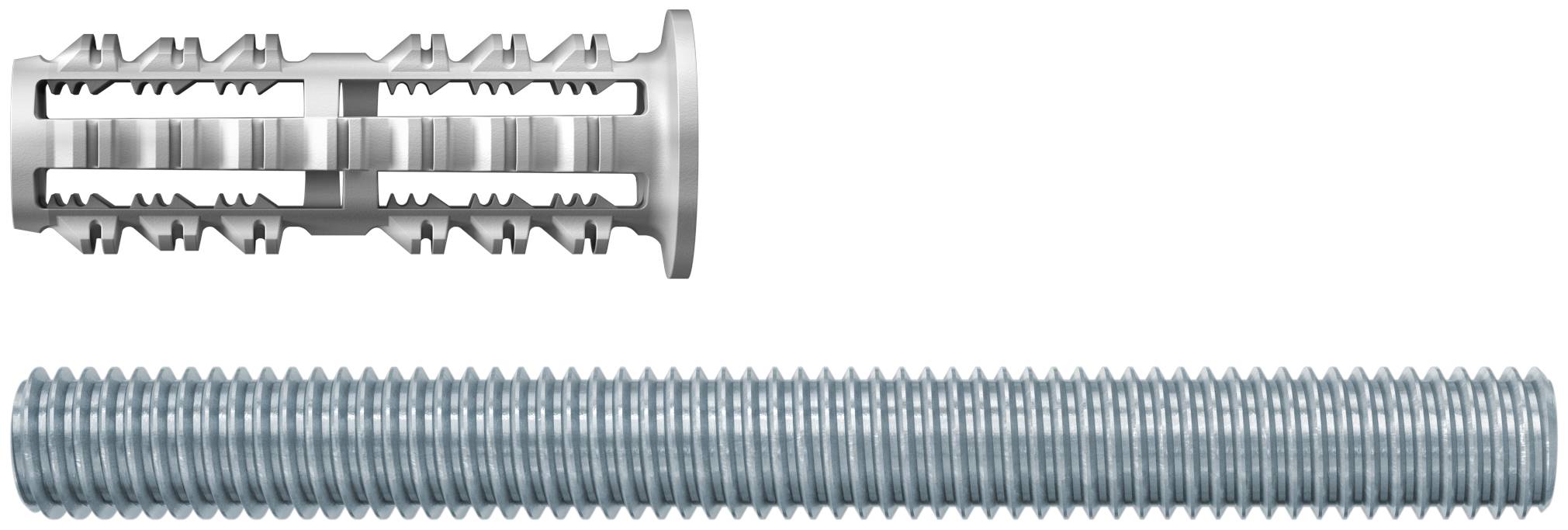

Metal wall anchor at top and long threaded screw below on a white background.

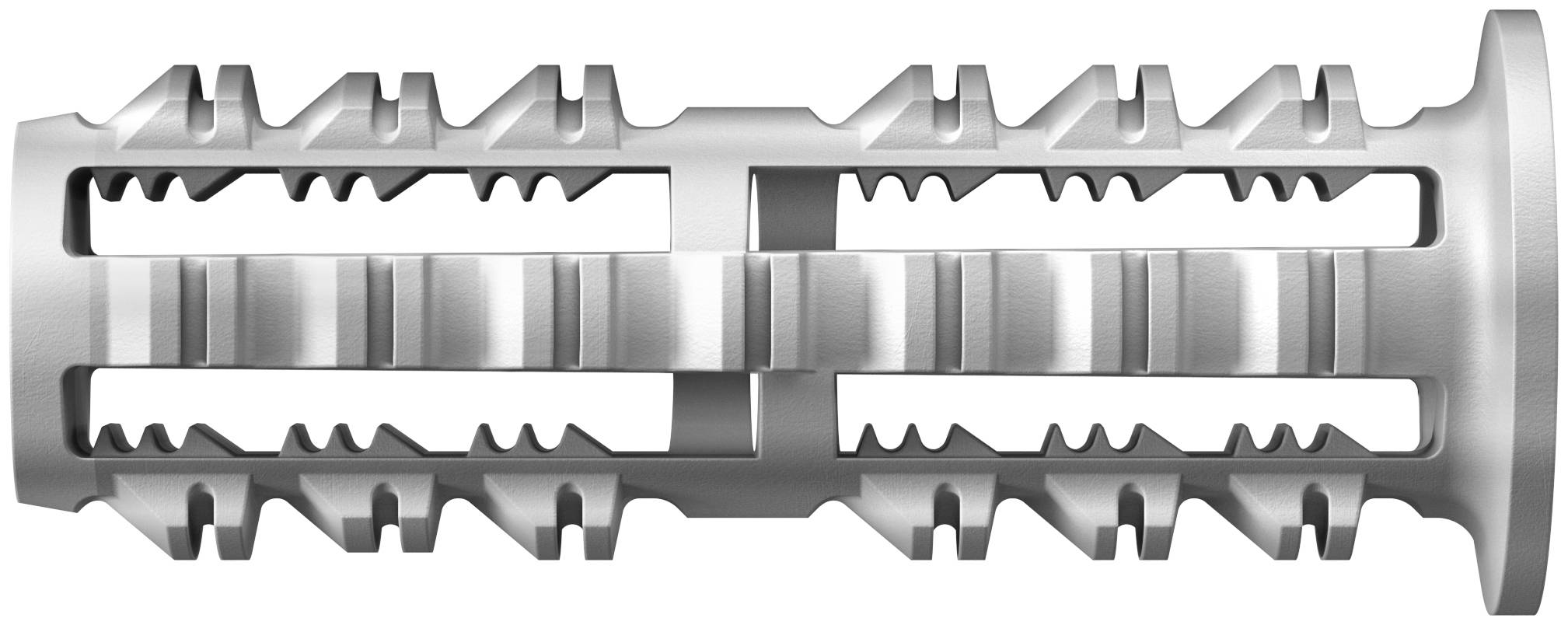

Silver metal wall anchor with expanded fins and serrated openings for securing screws in drywall or masonry.

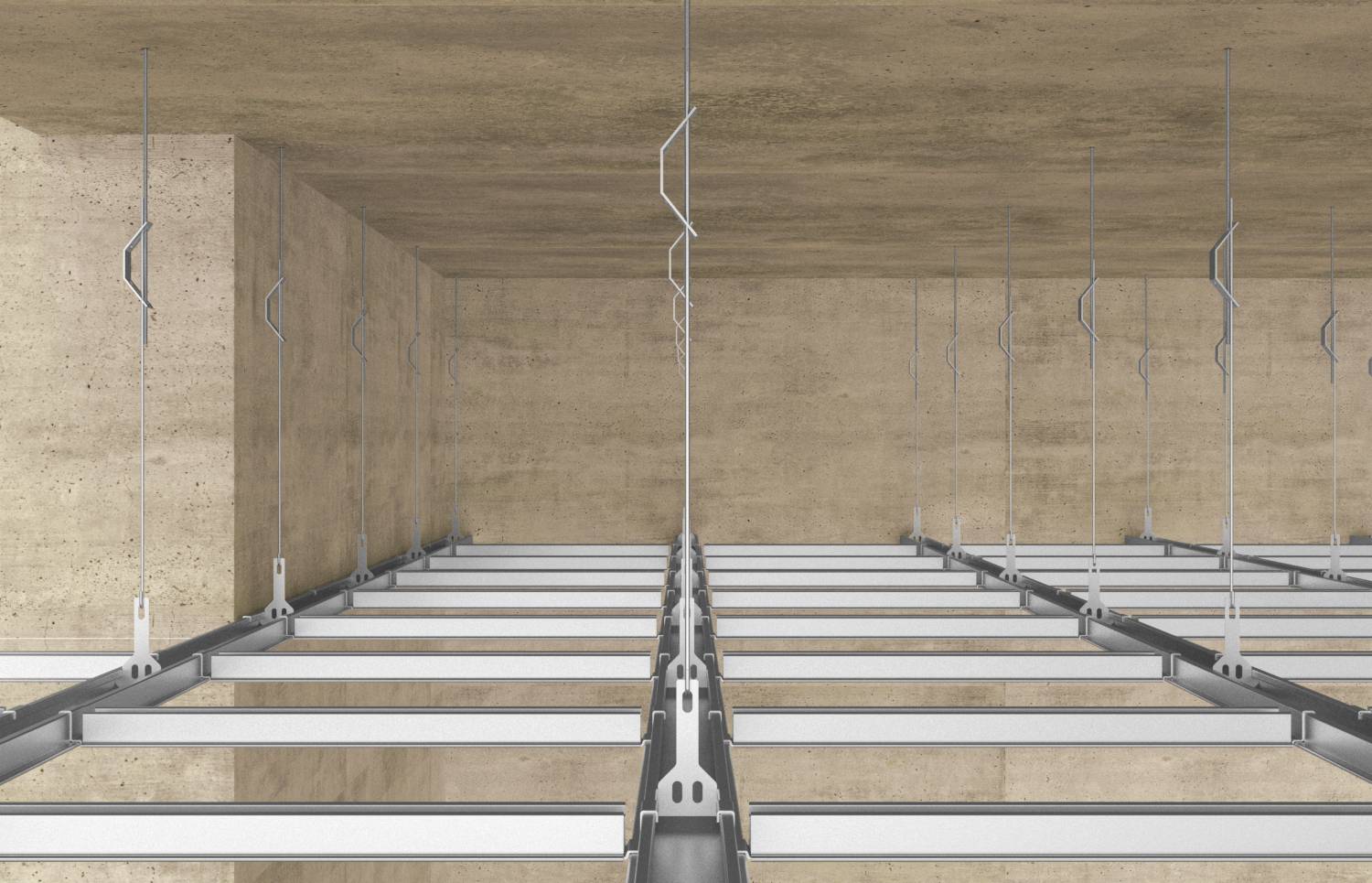

Interior construction view of a suspended ceiling grid with metal tracks and hanging support rods in a concrete room.<br>

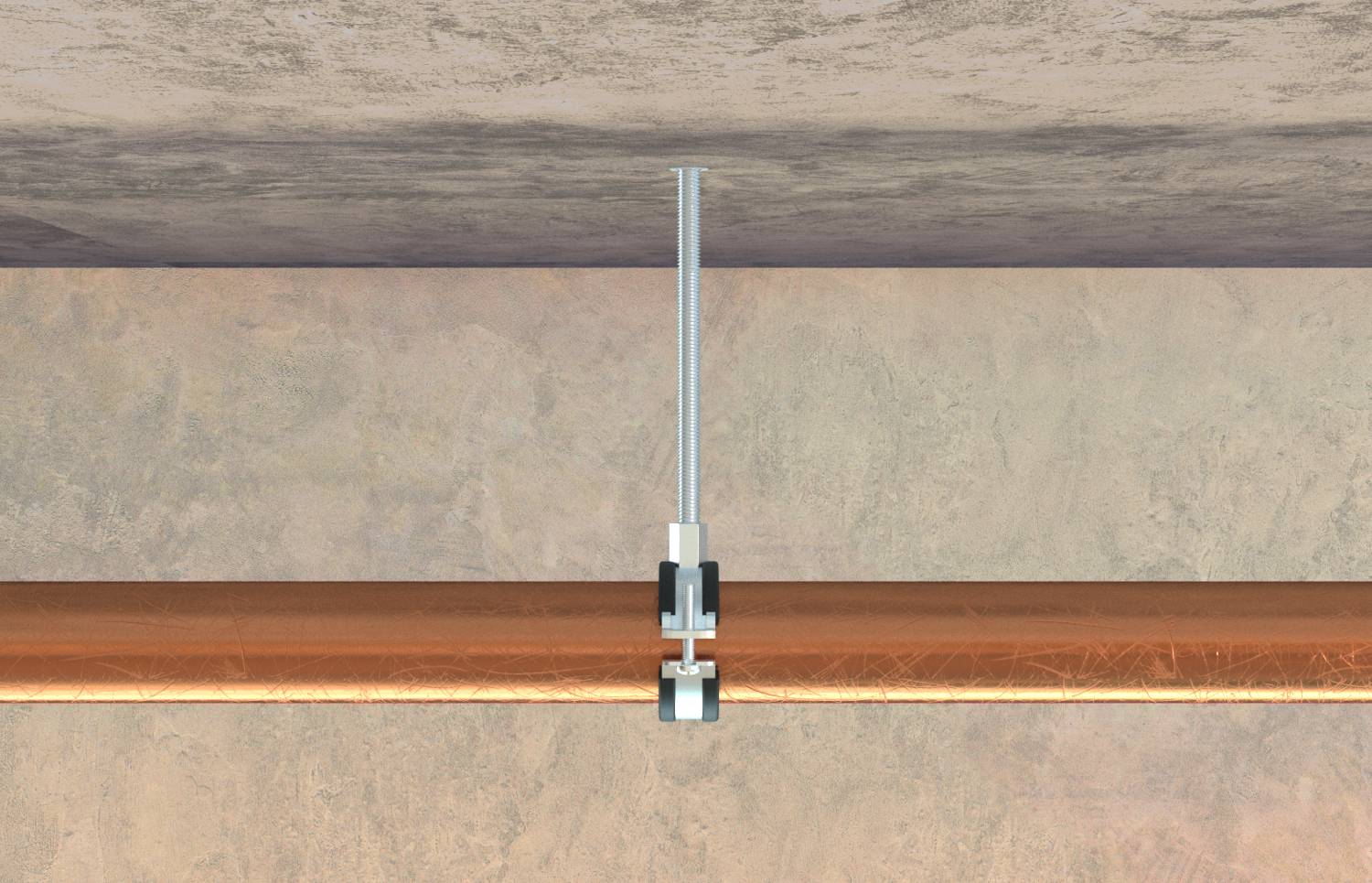

Close-up of a cable clamp fastening a vertical metal rod to a horizontal copper pipe against a concrete surface.

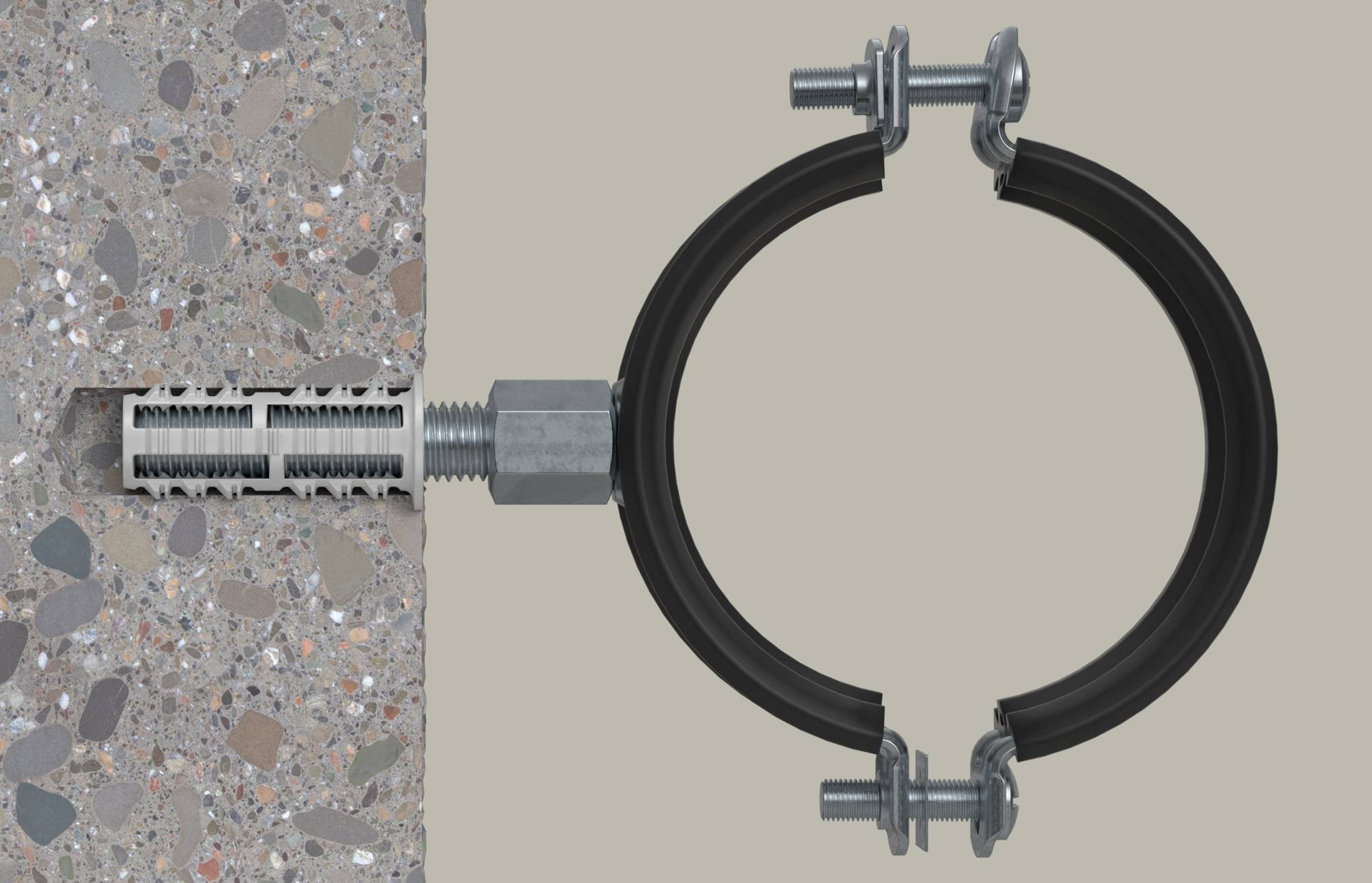

Metal pipe clamp mounted to a wall with an anchored fastener on the left and a bolt-tightened circular ring bracket on the right.

1/5

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer RODFORCE FGD M6 x 35 threaded rod plug with 60 mm threaded rod

- the innovative dowel geometry allows a quick and easy mounting of the threaded rod with a few hammer strokes.
- the short dowel length prevents reinforcement buffers and guarantees safe use in moving concrete.
- the locking lugs in the dowel core enable the inclusion of commercially available metric threads. This saves a large assortment of stock screws.
- Installation without special tools: Only a hammer is required to insert the dowel.
- the visible edge of the dowel serves as a visual control of the setting and guarantees the correctness of the setting.
- simple control and re-adjustment: To check the setting depth, the closed dowel tip is used as a stop point. The predetermined breaking point also allows the threaded rod to be lowered.

Technical specifications

Product type: Dowel

Material: Plastic

Screw diameter: 6 mm

Suitable for: Concrete

Content: 25 pc(s)

Outside Ø: 10 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148199 Fischer 542108 RODFORCE FGD 10 M6 TR 60 Dowel 25 pc(s)

Description

the fischer RODFORCE FGD threaded rod plug is an economical solution for fixing commercially available threaded rods in solid materials. The plastic dowel is inserted easily and quickly with the hammer without a special setting tool. The short dowel body reduces drilling effort and avoids reinforcement buffers. The accuracy of the setting is guaranteed with the help of the visible dowel border for visual setting control. To ensure a uniform setting depth, the closed dowel tip is used as a stop point. This can also act as a predetermined breaking point to allow readjustment and deeper tapping of the threaded rod.

This text is machine translated.
