Fischer 542960 Ventilation duct clamp Ventilation duct clamp LGS 630 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

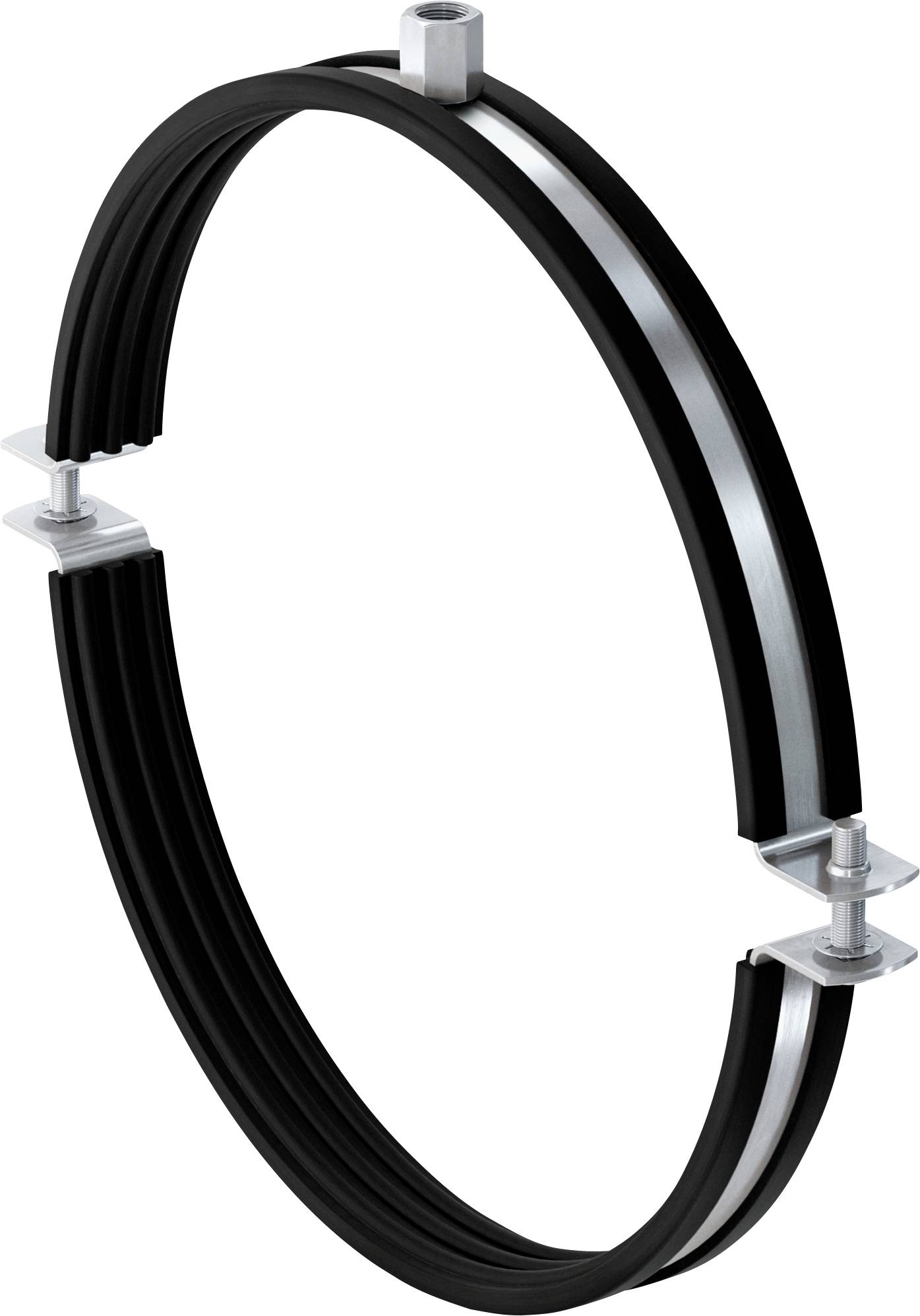

Ventilation duct clamp LGS 630
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Sound-absorbing insert
- Connection nut with combination thread M8 / M10
Technical specifications

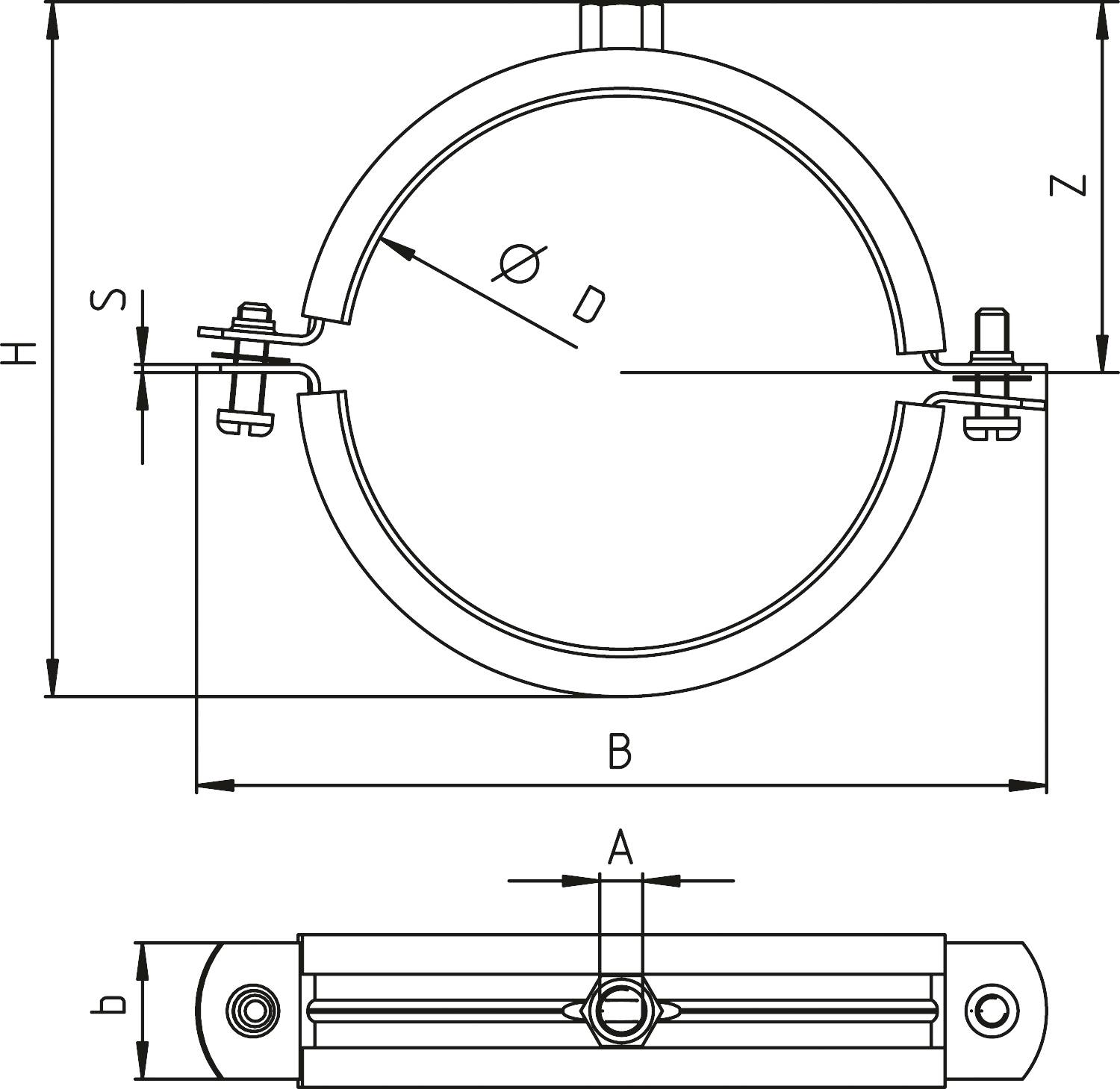

- Width x thickness of clamp band 25 x 2.5 mm
- Height Z 338 mm
- Max. recommended load (central train): 0.8 kN
- Screw plug: M10
- Product type
Ventilation duct clamp
- Content
1 pc(s)
- Material
Steel
- Thread size
M10
- Thread
M8 - M10
- Material properties
zinc galvanized
- Width
691 mm
- Height
660 mm
- (Ø)
630 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472264 Fischer 542960 Ventilation duct clamp Ventilation duct clamp LGS 630 1 pc(s)
Description

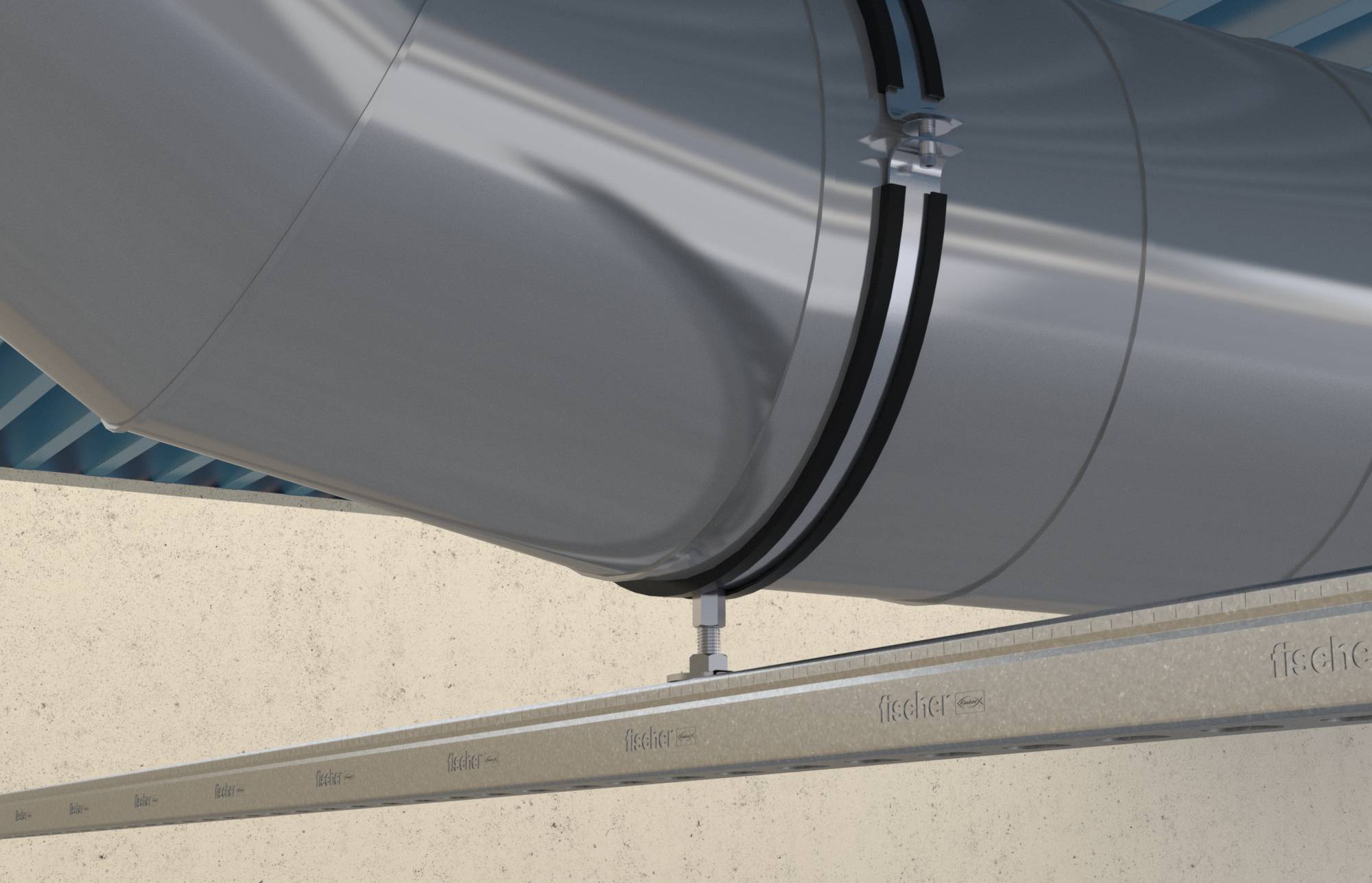

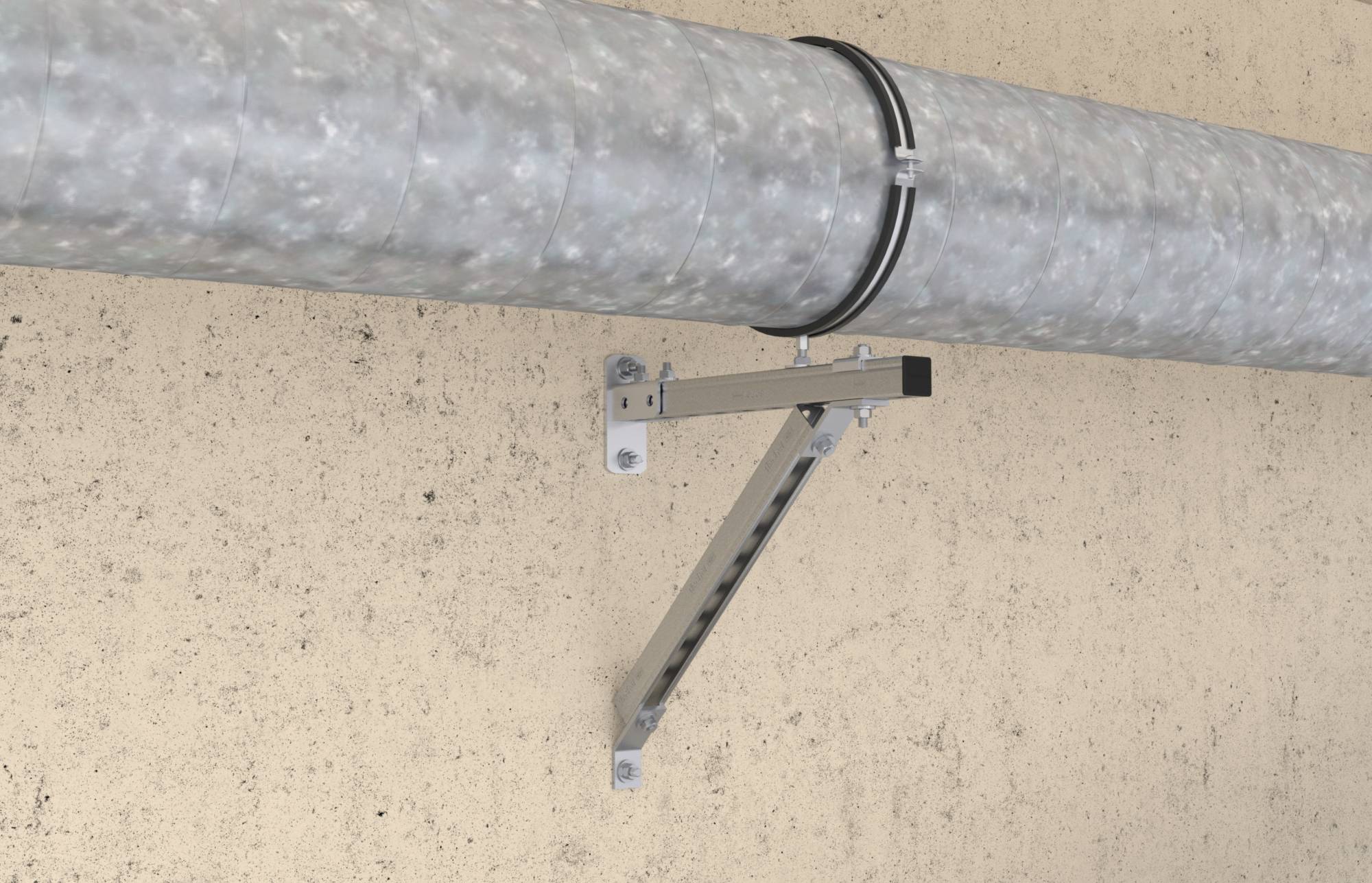

the fischer LGS 630 ventilation duct clamp for a nominal size of 630 mm, two-piece design with glued-in acoustic insulation insert for fixing winding seam pipes or plastic pipes. The large opening angle of the LGS allows quick and easy installation. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connection nut with combination thread M8 / M10 for holding threaded rods or stock screws. Both clamp halves are perforated for connection with two screws or threaded rods with nuts. This allows the recommended load to be doubled.
This text is machine translated.
This text is machine translated.
Features
- The large opening angle of the LGS allows quick and easy installation
- the two-screw nature of the LGS enables the optimized adaptation to the outer diameter of the pipe
- The retaining screw with a large slot/cross-head is protected against loss and provides additional mounting security
- The sound insulation insert has a tight fit and prevents it from falling out during pipe adjustment
- The LGS is perforated from a diameter of 450 mm on both clamp halves. This allows the connection with two screws and nuts or two threaded rods with nuts. This allows the recommended load to be doubled
