Fischer 542962 Ventilation duct clamp Ventilation Duct Clamp LGS 710 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Ventilation Duct Clamp LGS 710
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Sound-absorbing insert
- Connection nut with combination thread M8 / M10
Technical specifications
- Width x thickness of clamp band 25 x 2.5 mm
- Height Z 378 mm
- Max. recommended load (central train): 0.8 kN
- Screw plug: M10
- Product type
Ventilation duct clamp
- Content
1 pc(s)
- Material
Steel
- Thread size
M10
- Thread
M8 - M10
- Material properties
zinc galvanized
- Width
771 mm
- Height
740 mm
- (Ø)
710 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472263 Fischer 542962 Ventilation duct clamp Ventilation Duct Clamp LGS 710 1 pc(s)
Description

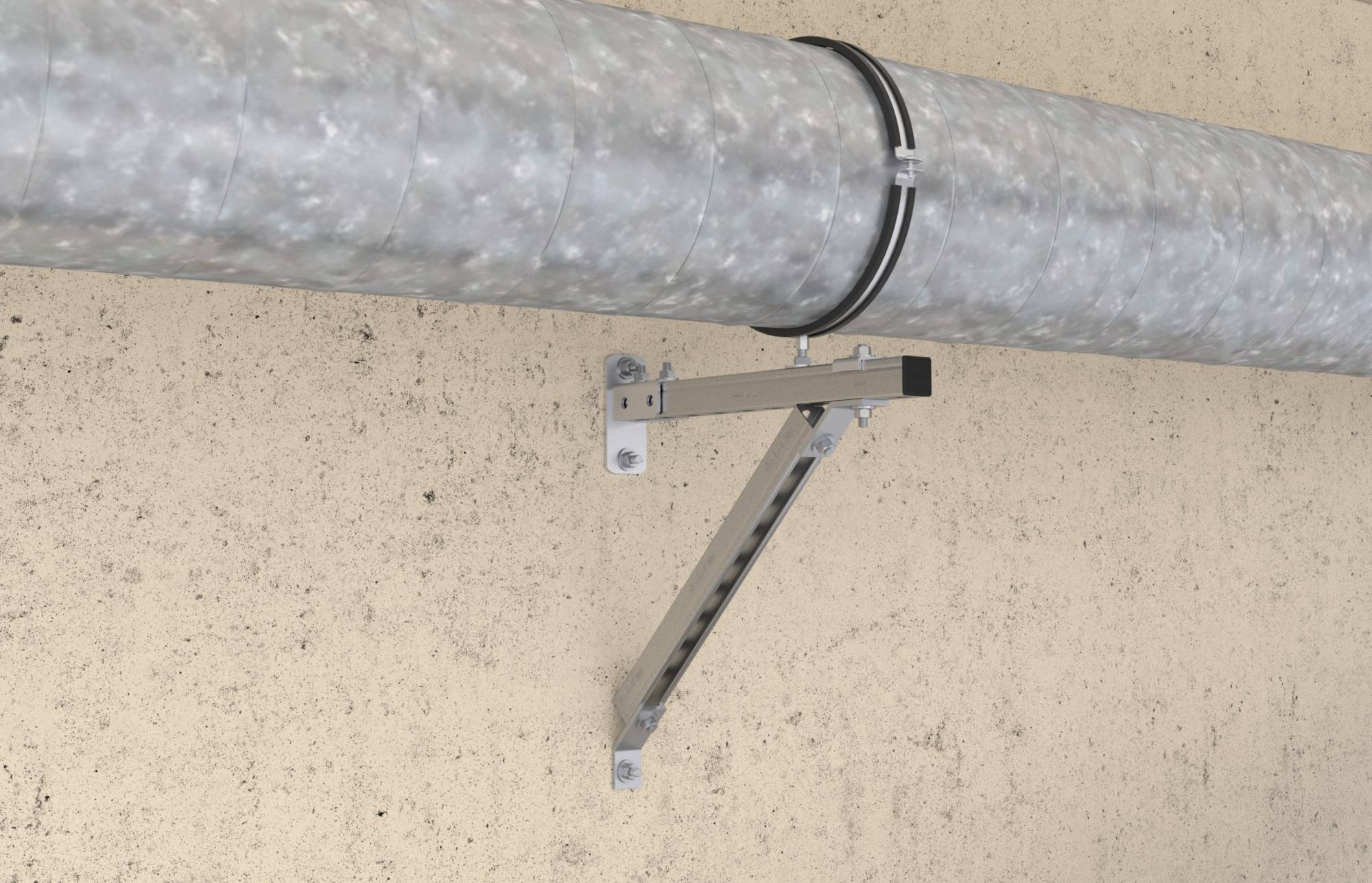

the fischer LGS 710 ventilation duct clamp for rated size 710 mm, two-piece design with glued-in acoustic insulation insert for fastening spiral ducting or plastic pipes. The large opening angle of the LGS allows quick and easy installation. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connection nut with combination thread M8 / M10 for holding threaded rods or stock screws. Both clamp halves are perforated for connection with two screws or threaded rods with nuts. This allows the recommended load to be doubled.
This text is machine translated.
This text is machine translated.
Features
- The large opening angle of the LGS allows quick and easy installation
- the two-screw nature of the LGS enables the optimized adaptation to the outer diameter of the pipe
- The retaining screw with a large slot/cross-head is protected against loss and provides additional mounting security
- The sound insulation insert has a tight fit and prevents it from falling out during pipe adjustment
- The LGS is perforated from a diameter of 450 mm on both clamp halves. This allows the connection with two screws and nuts or two threaded rods with nuts. This allows the recommended load to be doubled
