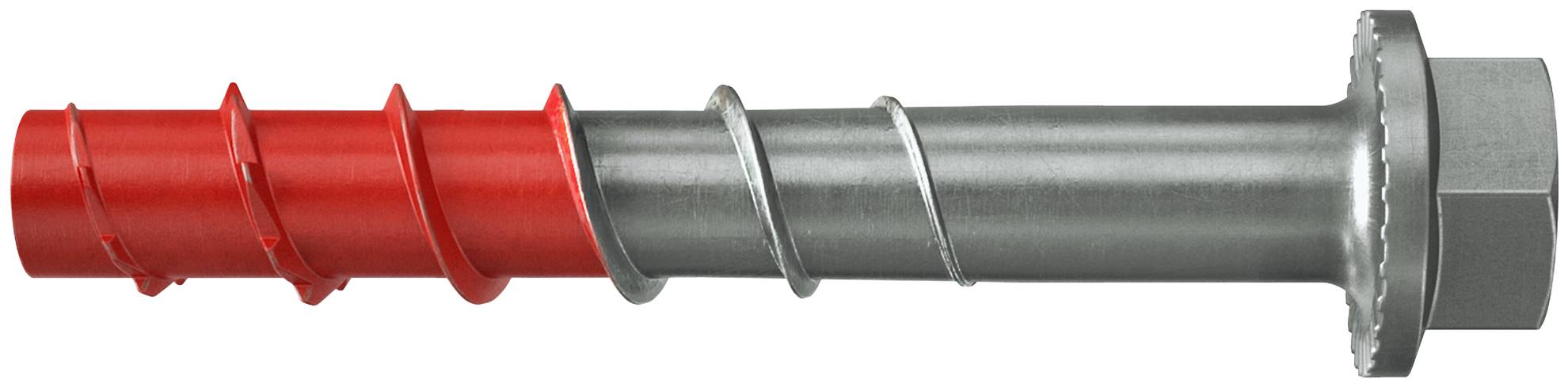

Metal screw anchor with a red threaded section and silver shaft, used for fastening into masonry or concrete.

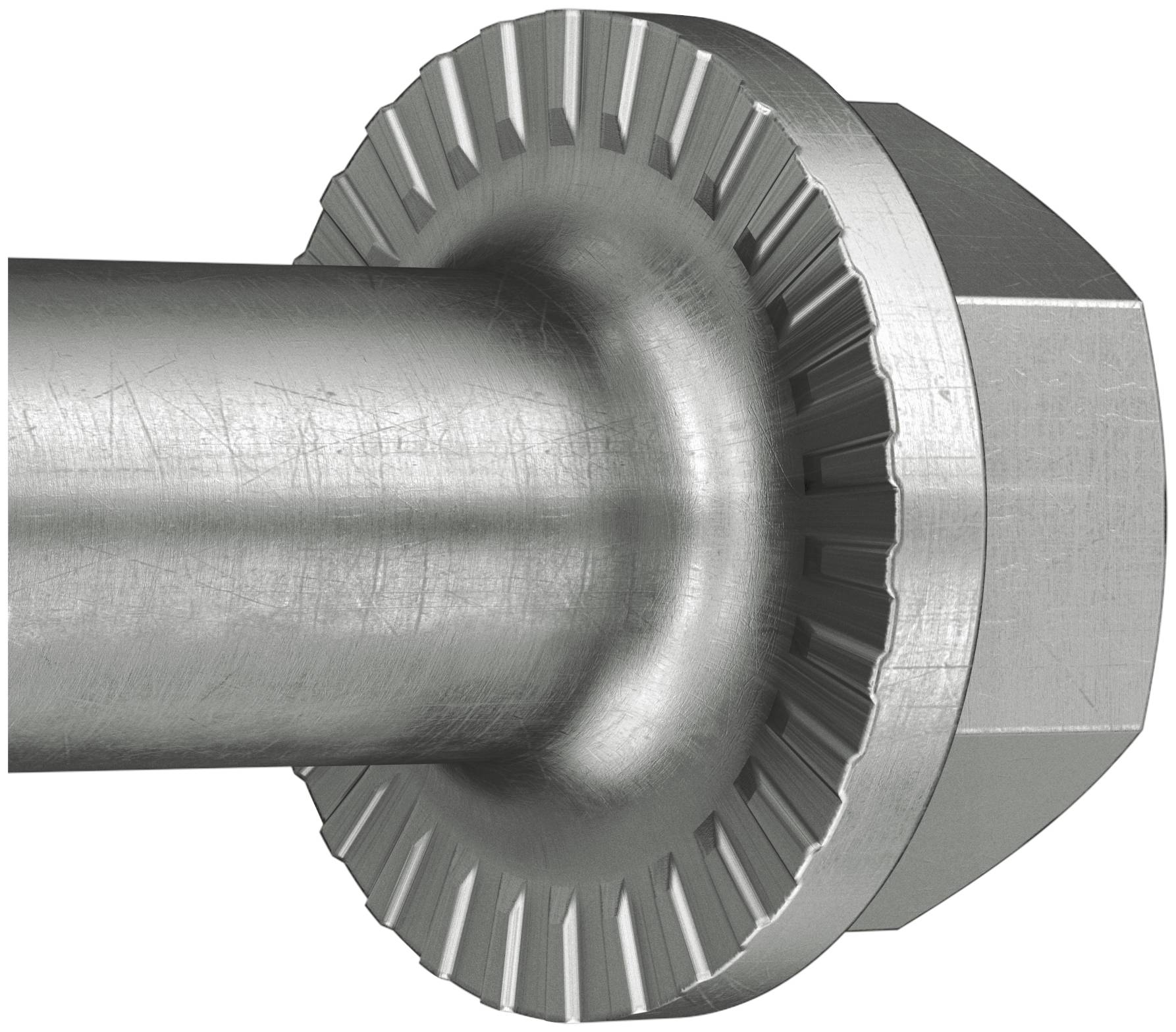

Close-up of a metal bolt with a serrated locking flange and hex nut, shown on a white background.

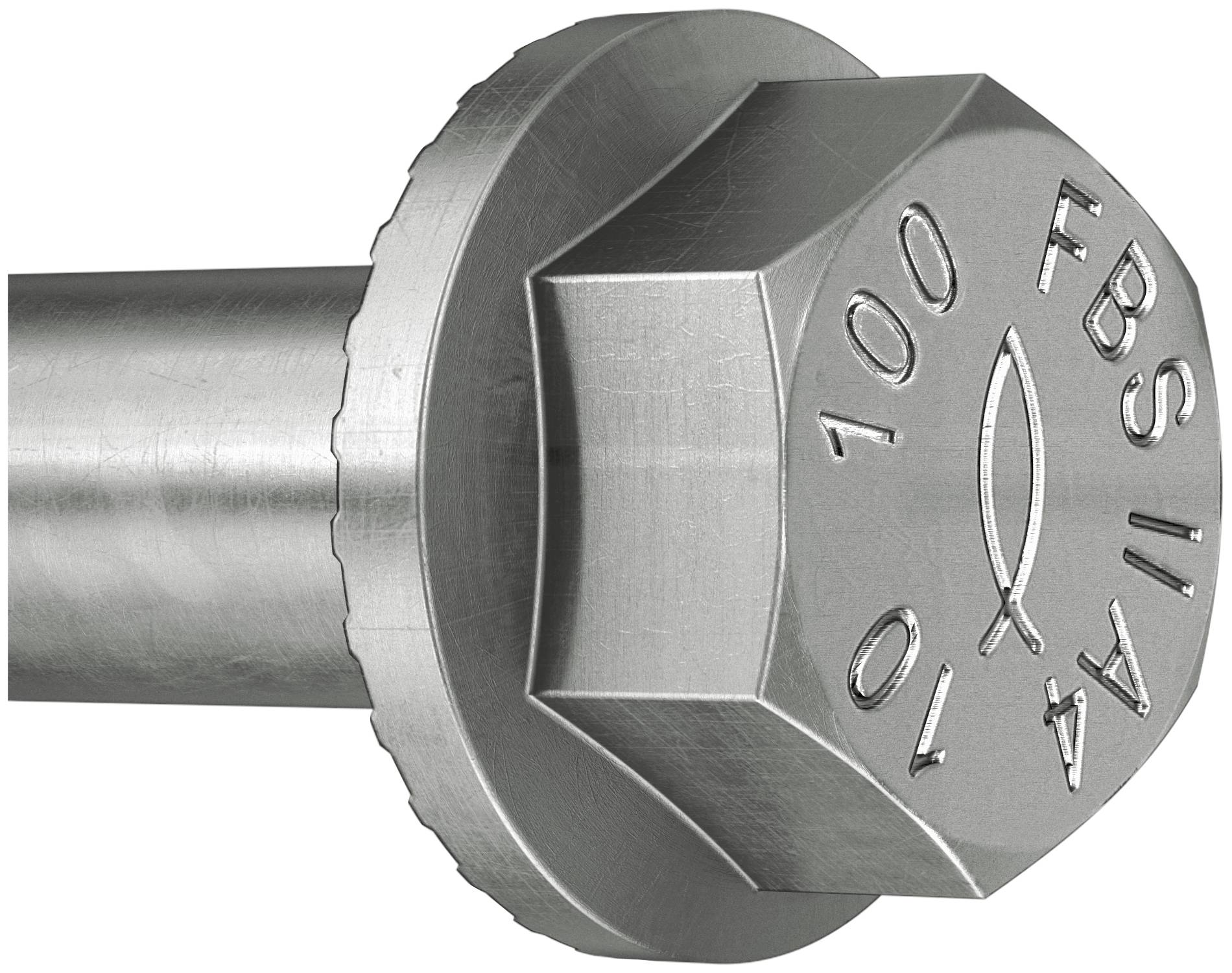

Close-up of a stainless steel hex bolt with a large washer, showing the threaded shaft and stamped head marked '100' and 'FBSIAX'.

Concrete stairwell with metal railings and a fenced landing over an underpass or storage area, viewed from the side.<br>

Red steel beam bolted to a concrete wall with a rectangular base plate and visible anchor bolts.

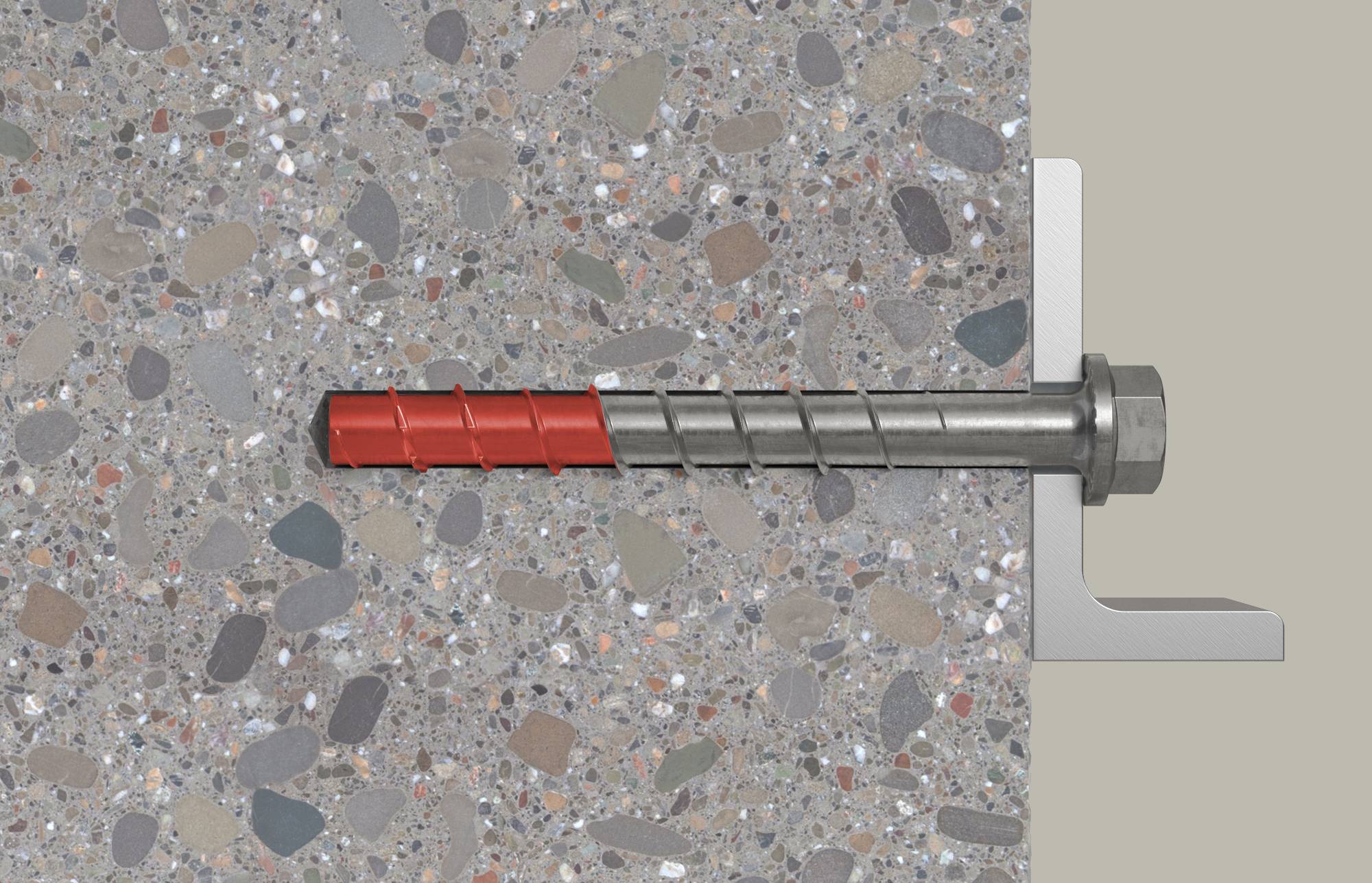

Cutaway of a concrete anchor bolt with a red plastic sleeve embedded in concrete, tightened against a metal bracket on the right.

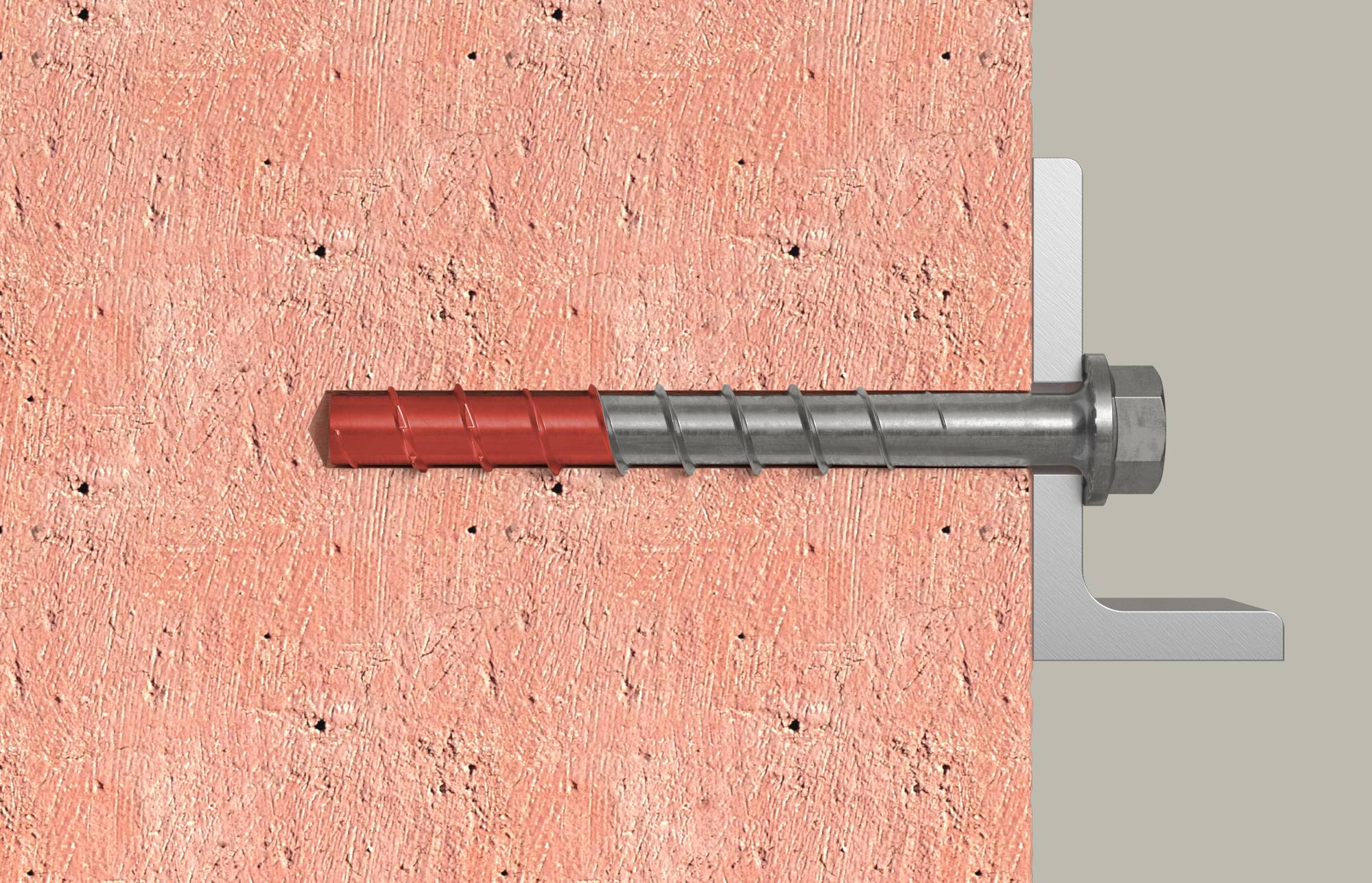

Wall anchor partly inserted into a masonry wall, showing red expanding sleeve and gray metal screw for fastening a bracket.

1/7

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer ULTRACUT FBS II 8 x 80 15/US A4 hexagonal with washer

The specially hardened red tip ensures noticeably faster and secure mounting.
The construction of the concrete screw in stainless steel ensures a very high corrosion protection and thus enables an application in damp rooms and in the outdoor area.
The special saw-tooth geometry allows quick cutting into the concrete.
For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not necessary. For holes in the ground, 3x drill diameter must be drilled deeper.
The ETA evaluation covers the application in cracked concrete, as well as the seismic performance categories C1 and C2.
The adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned.
Three approved screw-in depths enable the application for a wide range of applications and thus provide for a high degree of flexibility.
The short design with reduced screw-in depth enables a low drill hole depth, fast mounting and less reinforcement buffers.
This text is machine translated.

Technical specifications

Product type: Concrete screw

Drive: TX

Material: Stainless steel

Content: 50 pc(s)

(Ø): 8 mm

Length: 80 mm

Dim: (Ø x L) 8 mm x 80 mm

Material properties: A4

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148267 Fischer 543567 fischer ULTRACUT FBS II 8x80 15/- US A4 Concrete screw 50 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.
