Name: Fischer 543568 ULTRACUT FBS II 8x90 25/- US A4 Concrete screw 50 pc(s)
Brand: Fischer
SKU: 2148331

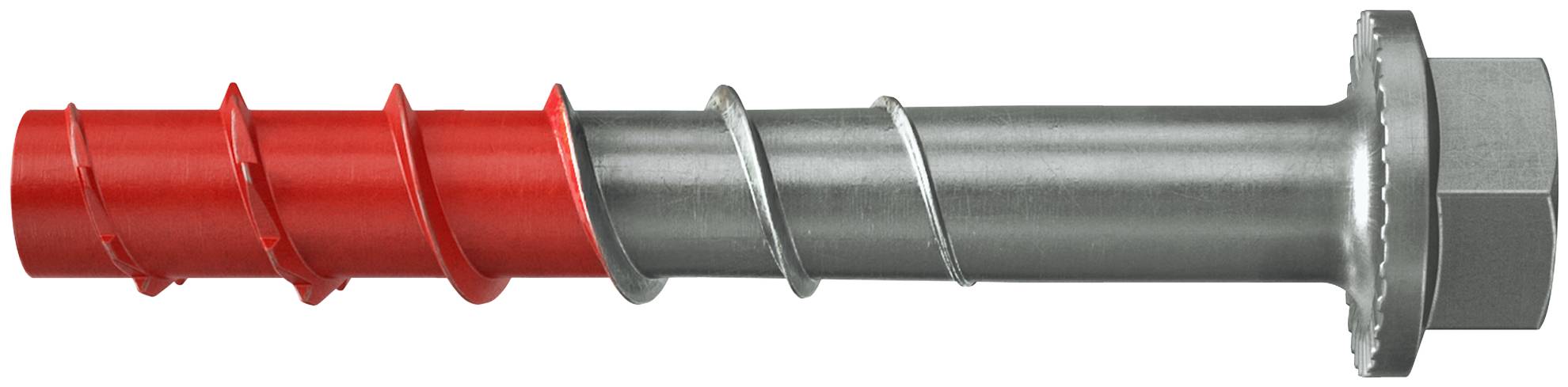

Metal auger bit with red cutting spiral and gray shaft, shown horizontally on a white background.

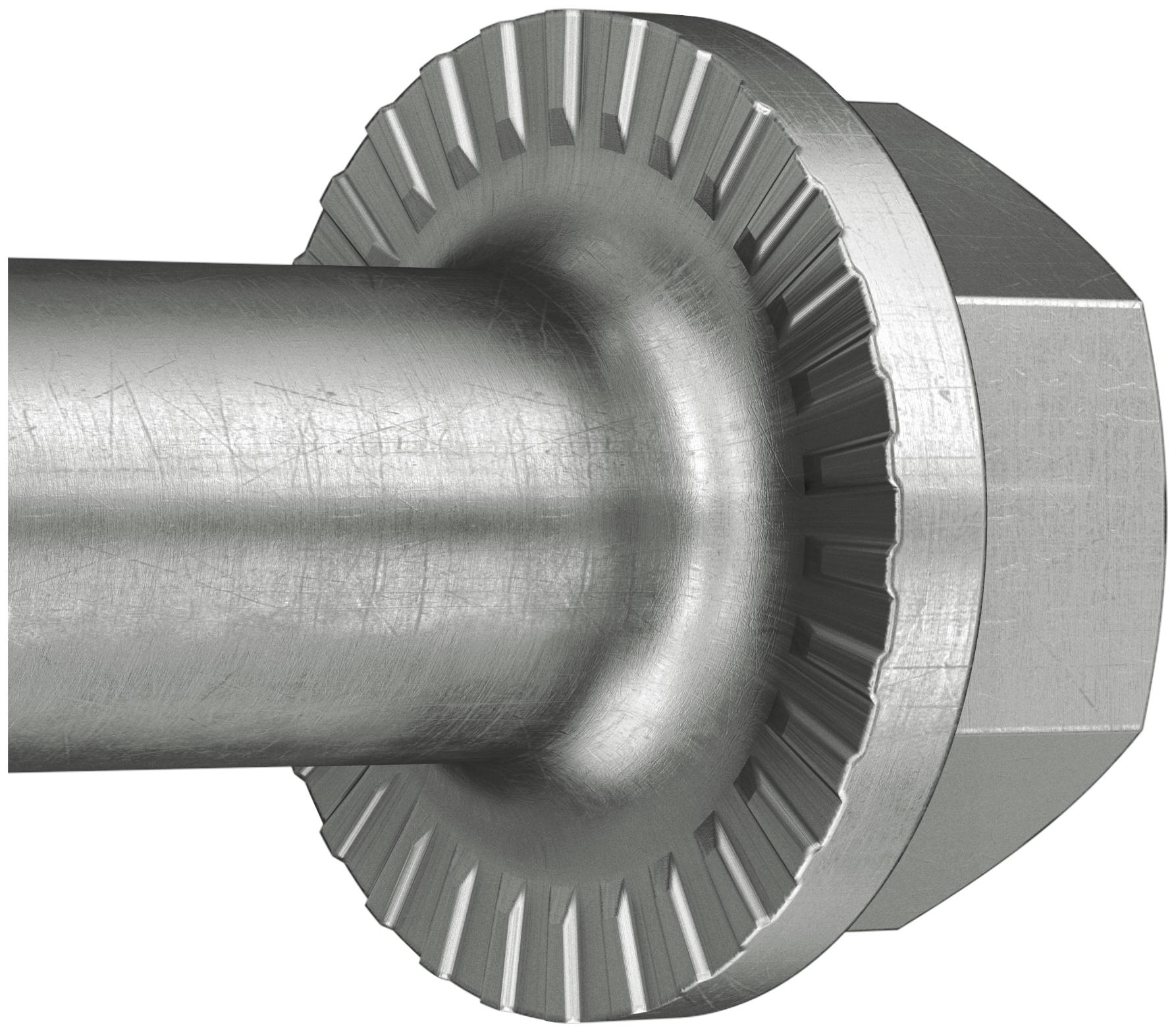

Close-up of a metal shaft with a splined circular gear and hexagonal end nut.

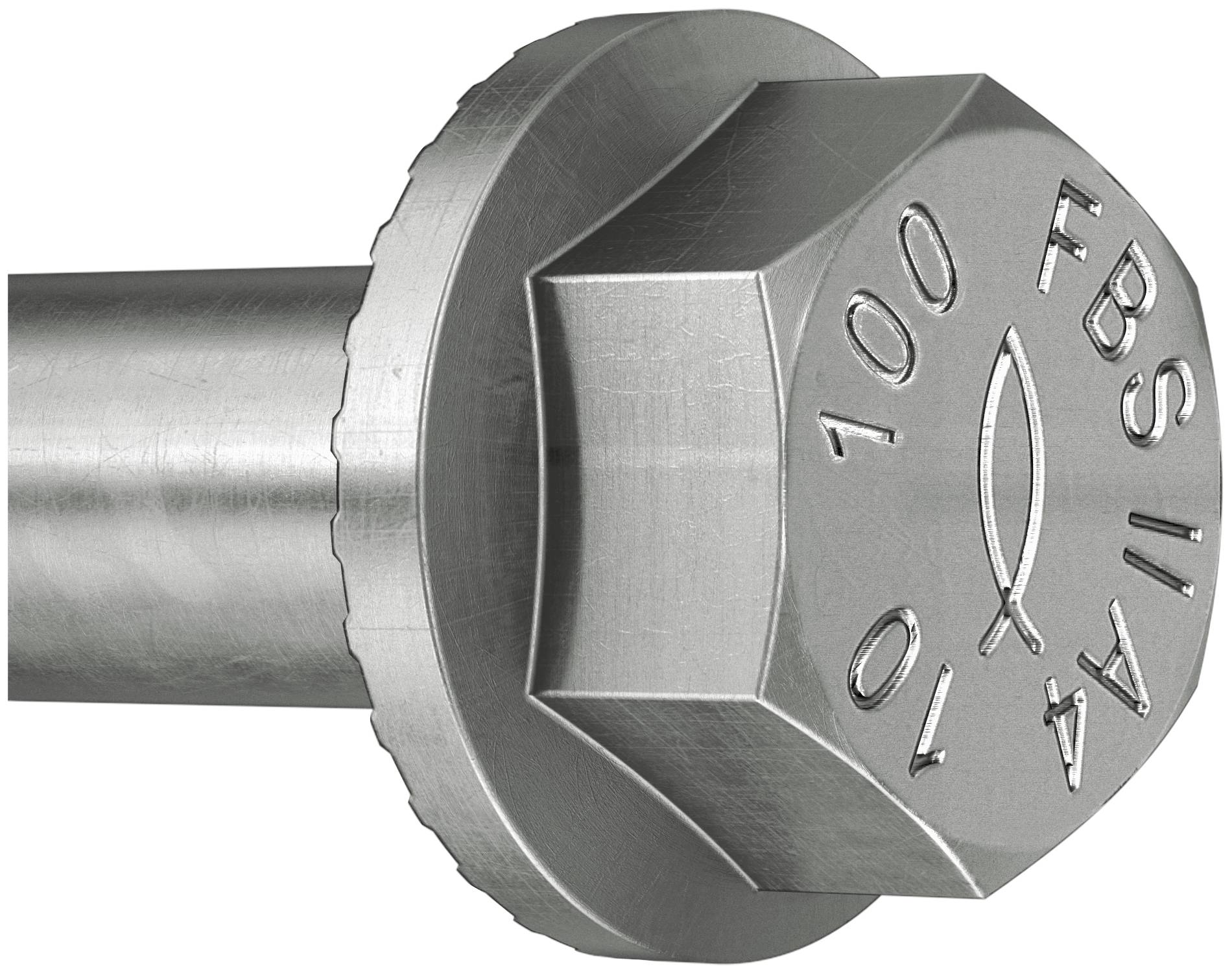

Close-up of a metal hex-head fastener with a washer, stamped 'FBS II A 100', shown on a white background.

Metal staircase and landing with silver railings in a concrete stairwell, viewed from below.<br>

Red steel beam bolted to a concrete wall with a square mounting plate and visible anchor bolts.

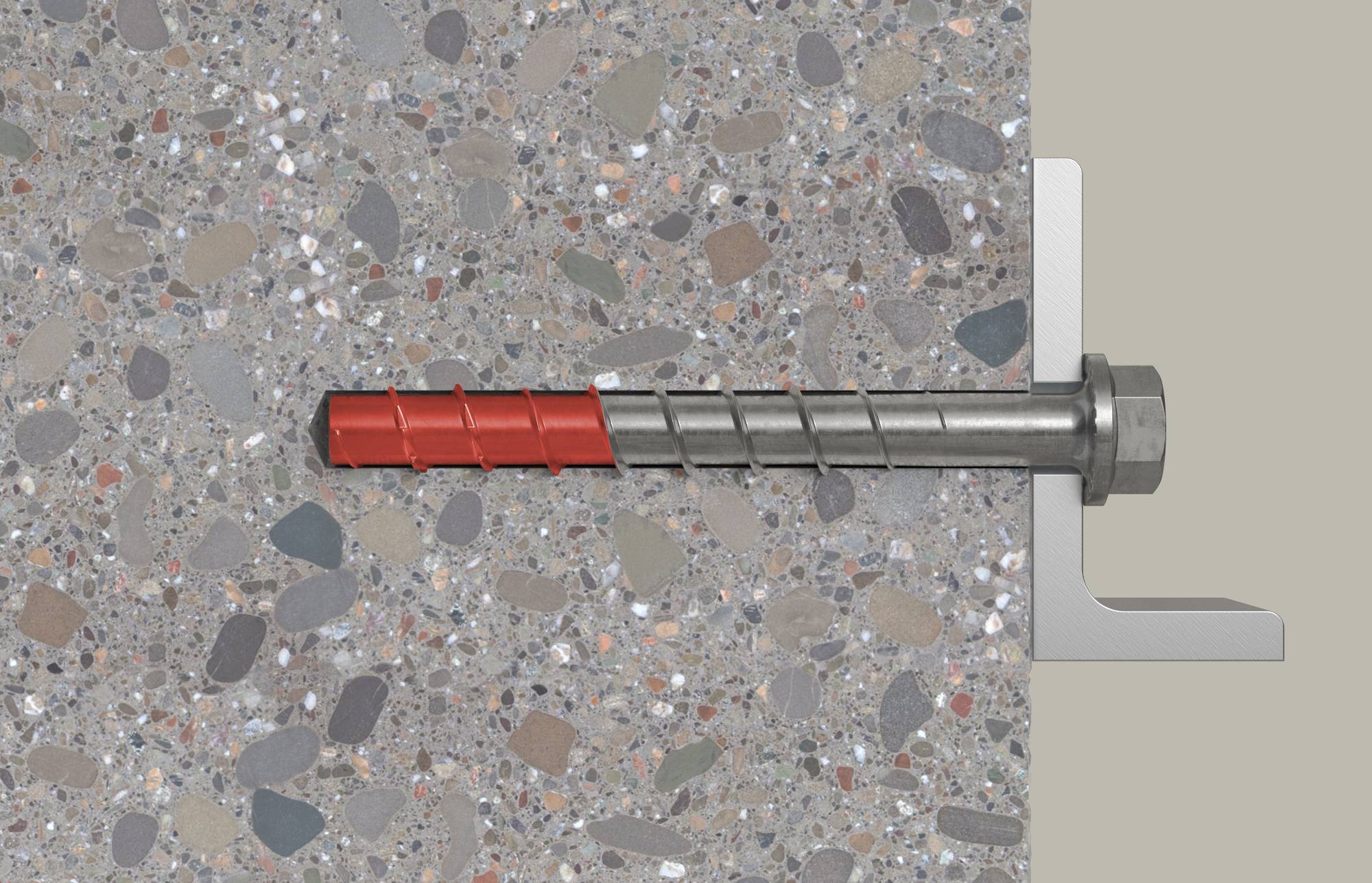

Concrete anchor bolt with a red plastic sleeve driven into a concrete wall, shown in side view with a metal bracket on the right.

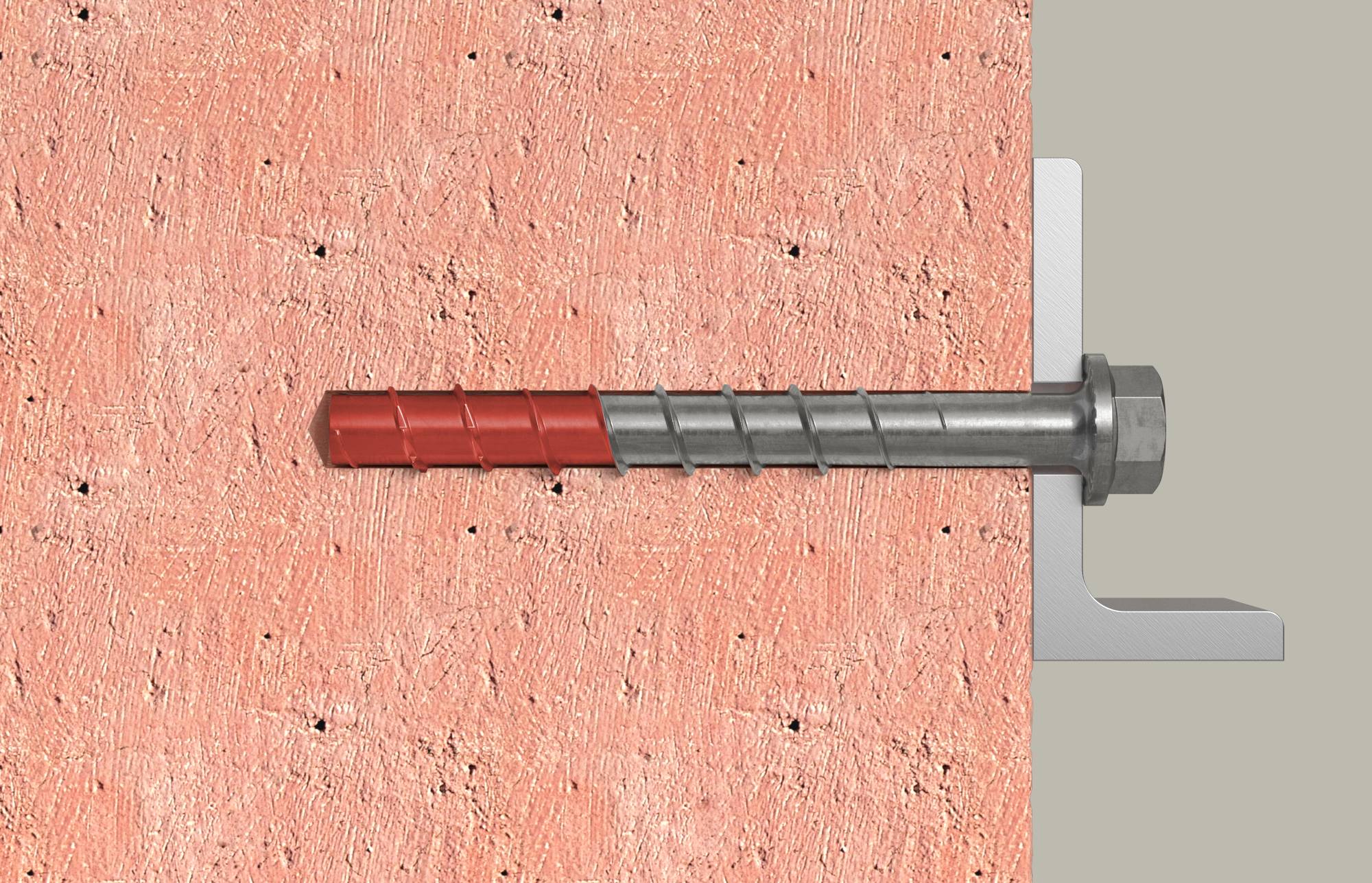

Cross-section of a concrete anchor bolt set in a wall, with the red expansion sleeve gripping the drilled hole and the metal bolt head visible outside.

1/7

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Fischer ULTRACUT FBS II 8 x 90 25/US A4 hexagonal with washer

The specially hardened red tip ensures noticeably faster and secure mounting.
The construction of the concrete screw in stainless steel ensures a very high corrosion protection and thus enables an application in damp rooms and in the outdoor area.
The special saw-tooth geometry allows quick cutting into the concrete.
For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not necessary. For holes in the ground, 3x drill diameter must be drilled deeper.
The ETA evaluation covers the application in cracked concrete, as well as the seismic performance categories C1 and C2.
The adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned.
Three approved screw-in depths enable the application for a wide range of applications and thus provide for a high degree of flexibility.
The short design with reduced screw-in depth enables a low drill hole depth, fast mounting and less reinforcement buffers.
This text is machine translated.

Technical specifications

Product type: Concrete screw

Drive: TX

Material: Stainless steel

Content: 50 pc(s)

Material properties: A4

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148331 Fischer 543568 ULTRACUT FBS II 8x90 25/- US A4 Concrete screw 50 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.
