Buy Fischer 544907 Pipe clamp Fischer pipe clamp FRS-L 138-145 M8/M10 Univ 220 mm 5 pc(s)

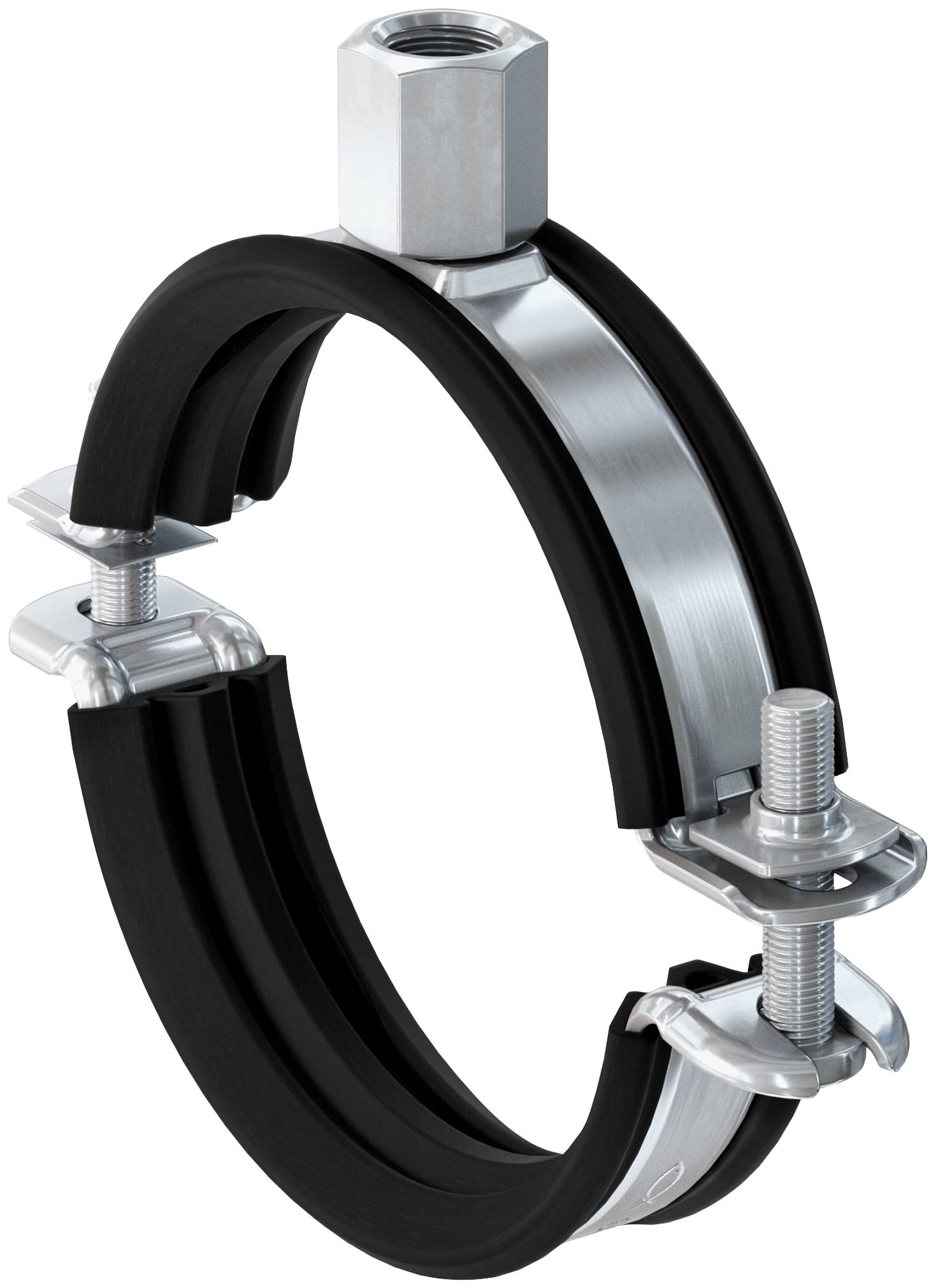

Metal pipe clamp with black rubber lining and adjustable bolts securing a circular pipe or cable.<br>

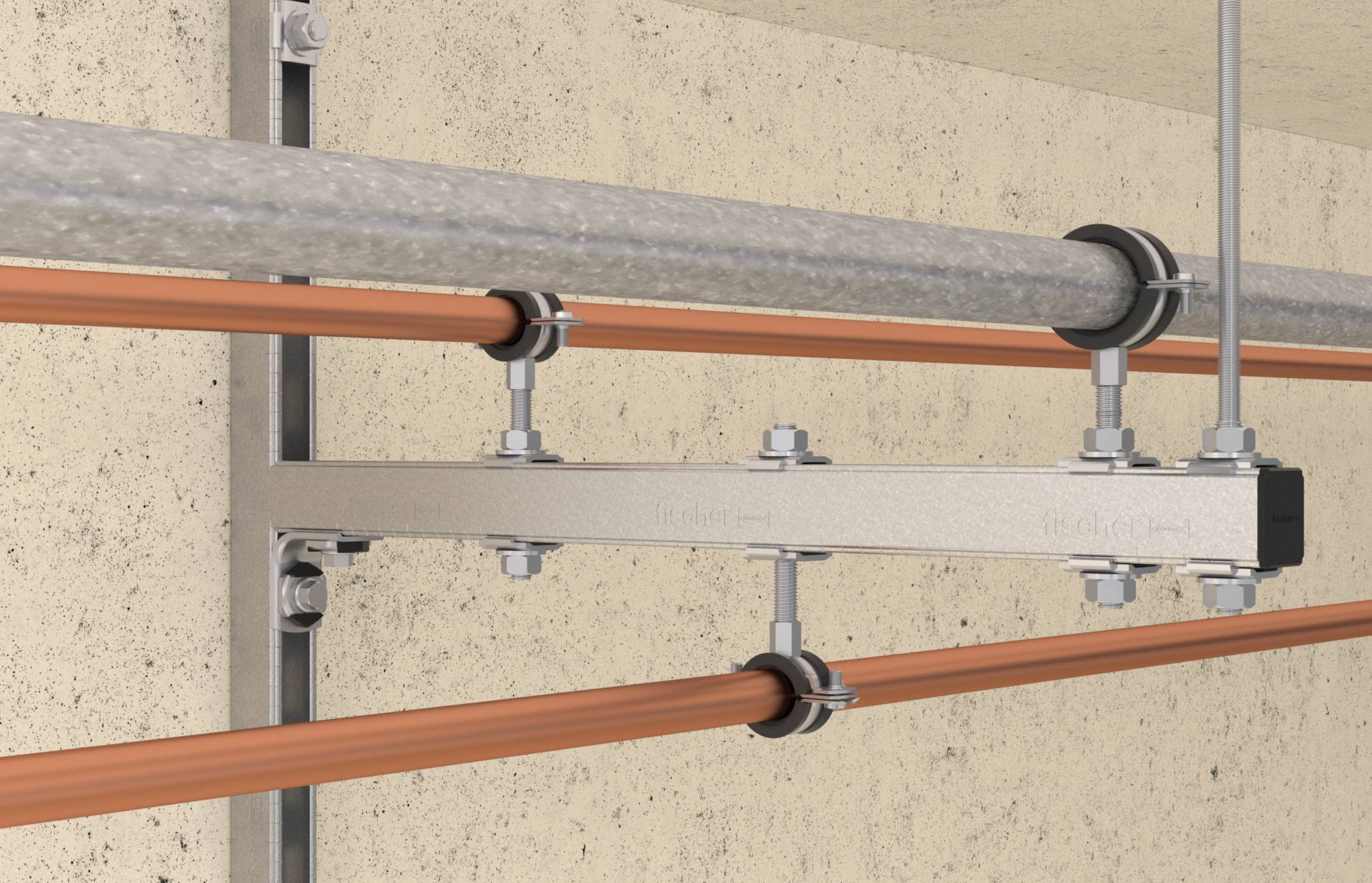

Close-up of a wall-mounted pipe support bracket holding two copper pipes and a gray insulated pipe against a concrete wall.

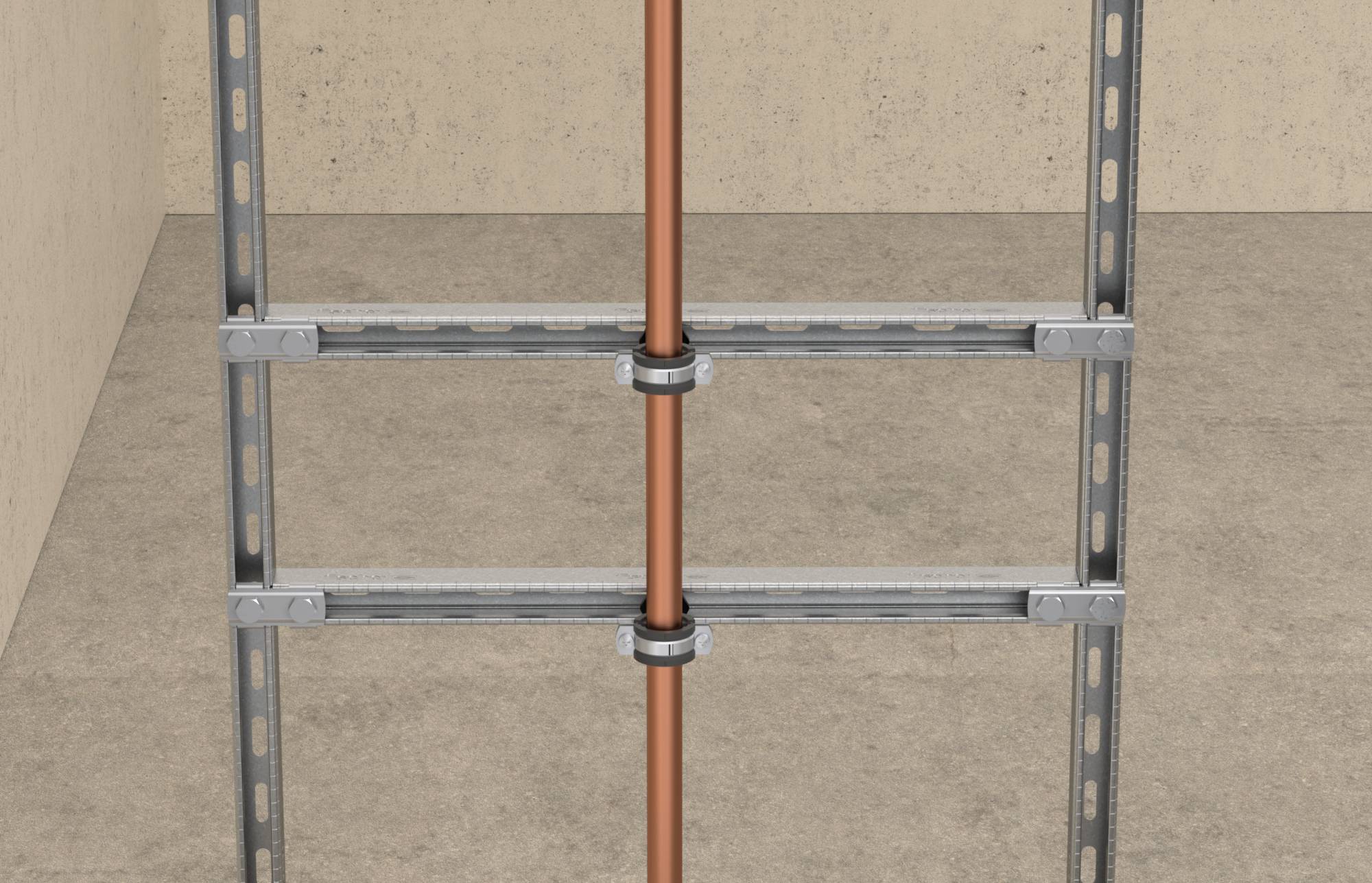

Metal shelving frame with a vertical copper pipe secured by two clamps in front of it<br>

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer pipe clamp FRS-L 138-145 M8/M10 Univ

- the fire test report and the sound insulation test report guarantee objectively tested functional safety.
- the unique snap closure with a rotating edge enables a secure and time-saving installation.
- the clamp band with pronounced beads on the edge gives the sound insulation insert a firm fit and prevents it from falling out during pipe adjustment.
- the two-screw version of the FRS-L Universal allows optimum adaptation to any external diameter of the pipe.
- the connecting nut with combination thread M8/M10 enables an optimized storage.
- the loss protection of the screw ensures a problem-free mounting.

Technical specifications

Product type: Pipe clamp

Content: 5 pc(s)

Material: Steel

Clamping range: 8 up to 119 mm

DIN standard: DIN 4109

Material properties: zinc galvanized

Width: 220 mm

Height: 110 mm

Length: 220 mm

Range (max.): 119 mm

Clamping range (min.): 8 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148336 Fischer 544907 Pipe clamp Fischer pipe clamp FRS-L 138-145 M8/M10 Univ 220 mm 5 pc(s)

Description

the fischer FRS-L Universal pipe clamp is a two-screw pipe clamp made of galvanized steel of material quality DD11 with combination connection thread M 8/M 10 and a sound insulation certificate. The quick-release fastener guarantees simple and time-saving installation. The design with two screws enables the optimized adaptation to the outer diameter of the pipe. Together with the combination connection thread this increases the flexibility. This allows pipes with an external diameter of 8 - 119 mm to be fastened with threaded rod or hanger bolt in accordance with the fire protection requirements of the fire resistance class R 120 and the MLAR in the interior. The pipe clamp meets the requirements of DIN 4109 with a chlorine-free and silicone-free sound insulation insert.

This text is machine translated.
