Buy Fischer 545677 DUOBLADE LD Drywall anchor 44 mm 40 pc(s)

A gray and red wall anchor with side wings, designed for secure fastenings in drywall and solid materials.

An image of a screw anchor being fastened into a wall, illustrating the anchoring mechanism with arrows indicating rotation and expansion.

A large mirror reflecting a spacious, empty room with a single green potted plant in an orange pot. Front view of modern cabinet with vases.

'Illustration showing a wall anchor being installed into a wall with an arrow indicating clockwise rotation of the screw.'

A diagram showing a wall anchor system securing a wall panel to a support, featuring a screw, anchor, and cross-section of the wall.

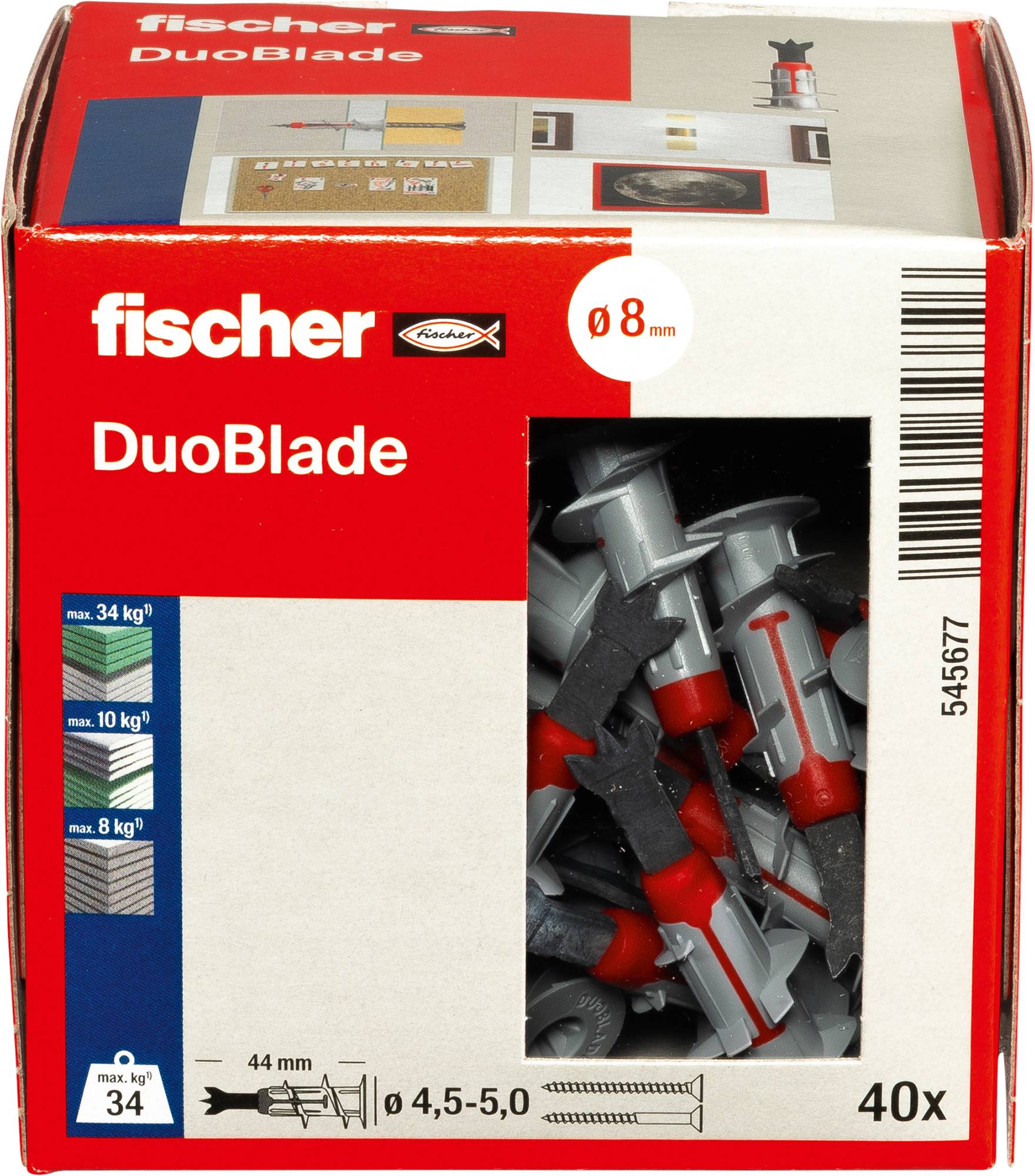

Box of Fischer DuoBlade wall plugs, showing product image, size 'Ø 8 mm', and quantity '40x'. Includes load capacities and screw size info.

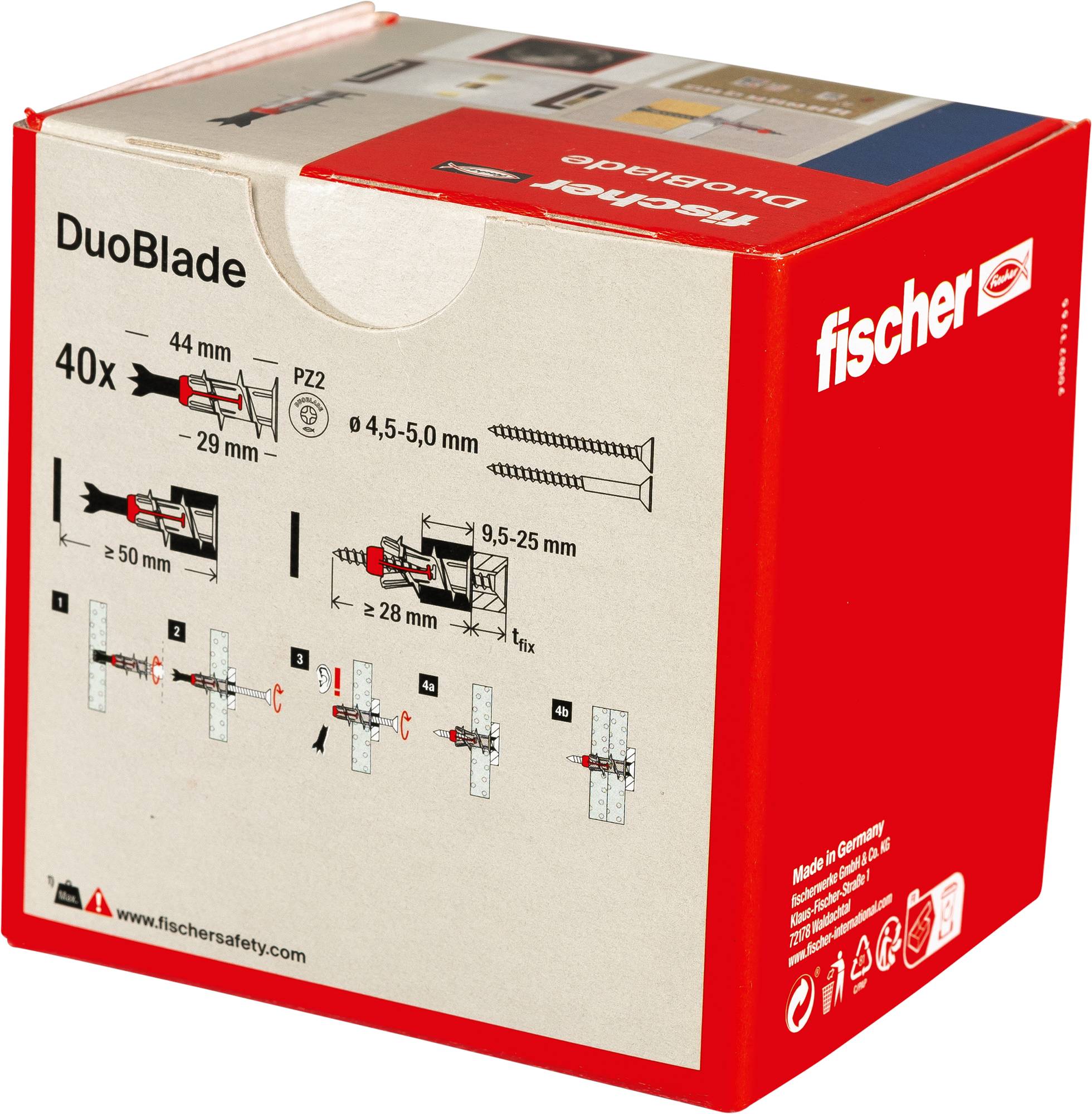

Box of Fischer DuoBlade plugs, showing product details, dimensions (44mm), screw type (PZ2, 4.5-5.0mm), and installation steps.

Cross-section diagram of a wall with a screw being inserted. Highlighted ear and exclamation mark indicate noise from insert.

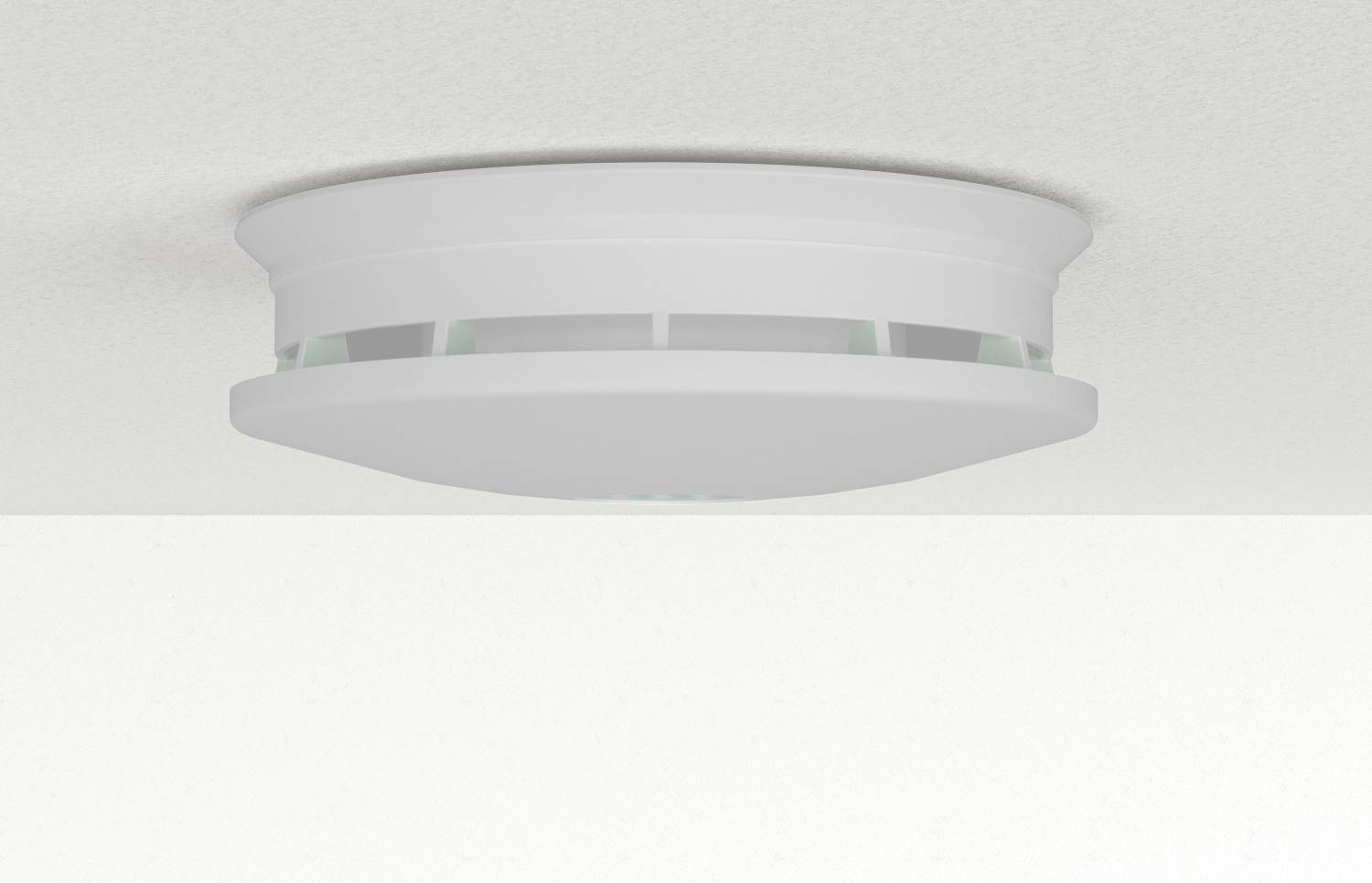

A smoke detector mounted on a ceiling, featuring a round, white design with side vents, typically used to detect smoke and fire.

A large mirror reflects a minimalist room with a single potted plant in an orange pot, adding a touch of color to the neutral space.

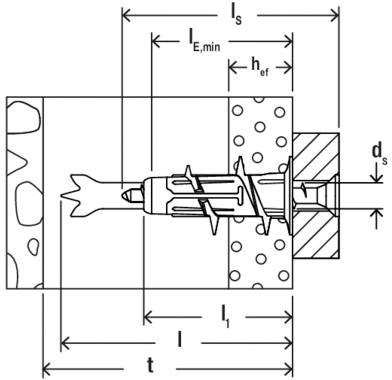

'Technical drawing of an anchor bolt in a wall, showing various measurements labeled l_s, l_E,min, h_ef, d_s, l_1, l, and t.'

'Diagram showing a drywall anchor being inserted into a wall. An arrow indicates the screw is being tightened to secure the anchor.'

Diagram illustrating a wall anchor being installed into a perforated wall. Anchor is expanded, securing it in place.

'Expansion anchor in wall' diagram showing insertion process; anchor expands inside hole to secure attachment.

An illustration of an expansion anchor installation in a wall, showing the bolt expanding as it is turned to secure the fixture.

Diagram of a drywall anchor, showing side view of installation. Includes a screw, expandable sleeve, and anchor base mounted on drywall.

An illustration shows a toggle bolt with a hook inserted through a wall. The bolt expands behind the wall to secure it in place.

1/17

67 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 40 pc(s))

Piece(s)

Total (€ 13.44 / piece)

€

Report legal concerns

Highlights & Details

Fischer plasterboard plug DUOBLADE

Self-drilling of dowels for the quick and easy installation in plasterboard
High torque for an optimum setting feeling
No shaft rotates by ribs
Use commercially available hooks, screws and eyelets
Common Cross-tip tool holder (PZ2) for easy installation

Technical specifications

Dowel length 44 mm
Min. Drill hole depth for pre-on mounting 50 mm
Min. The first structural layer thickness up to 50 mm
Min. Screw-in depth 28 mm
Screw dimensions 4 - 5 mm
Anchoring depth 9.5 - 25 mm
Dowel length without drill bit 29 mm

Dim: (L x W x H) 44 x 75.0000 x 90.0000 mm

Content: 40 pc(s)

Height: 90.0000 mm

Length: 44 mm

Width: 75.0000 mm

Suitable for: Plasterboard
Plasterboard

Material: Plastic

Screw diameter: 4 mm
5 mm

Product type: Drywall anchor

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1926890 Fischer 545677 DUOBLADE LD Drywall anchor 44 mm 40 pc(s)

Description

The fischer DUOBLADE is the newest member of the highly decorated DUO-Line and consists of several components for the best possible performance. The self-probing drill bit, enables a clean and effective drilling process. The bolt is in the pre-mounted installation with a cordless screwdriver or screwdriver surface is flush with gypsum or plaster fiber plates are screwed. The fischer DUOBLADE is adapted to wood, sheet metal and chipboard screws from 4 to 5 mm thick as well as different hooks and eyelets. Thus, it is universally suitable, for example, smoke detectors, curtain rods and shutters safely and quickly.

This text is machine translated.
