Buy Fischer 546388 ULTRACUT FBS II 6x140/85 SK Concrete screw 100 pc(s)

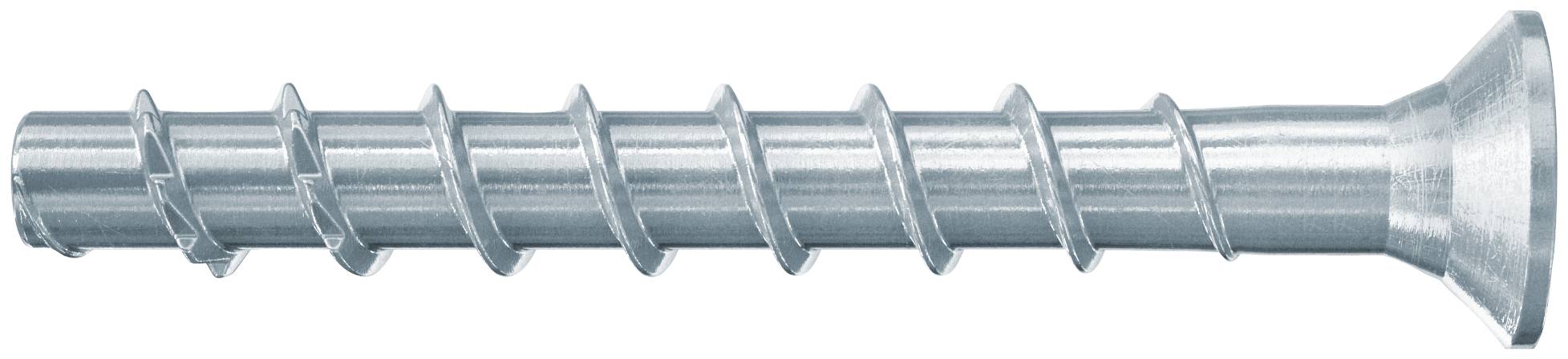

Metal screw with a flat, countersunk head shown horizontally on a white background.

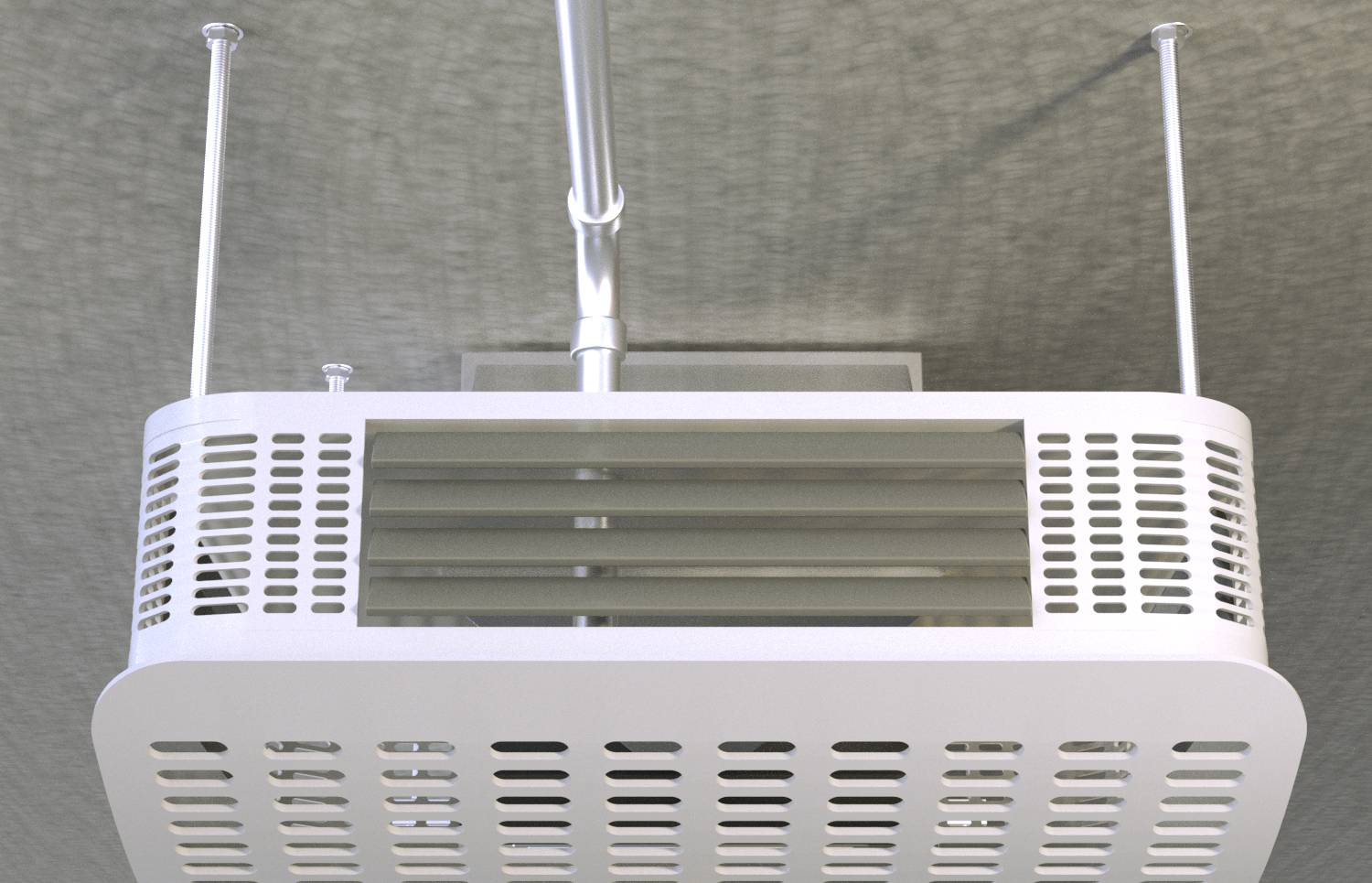

Bottom view of a white ceiling-mounted projector, showing ventilation grilles and a central lens area suspended from the ceiling.

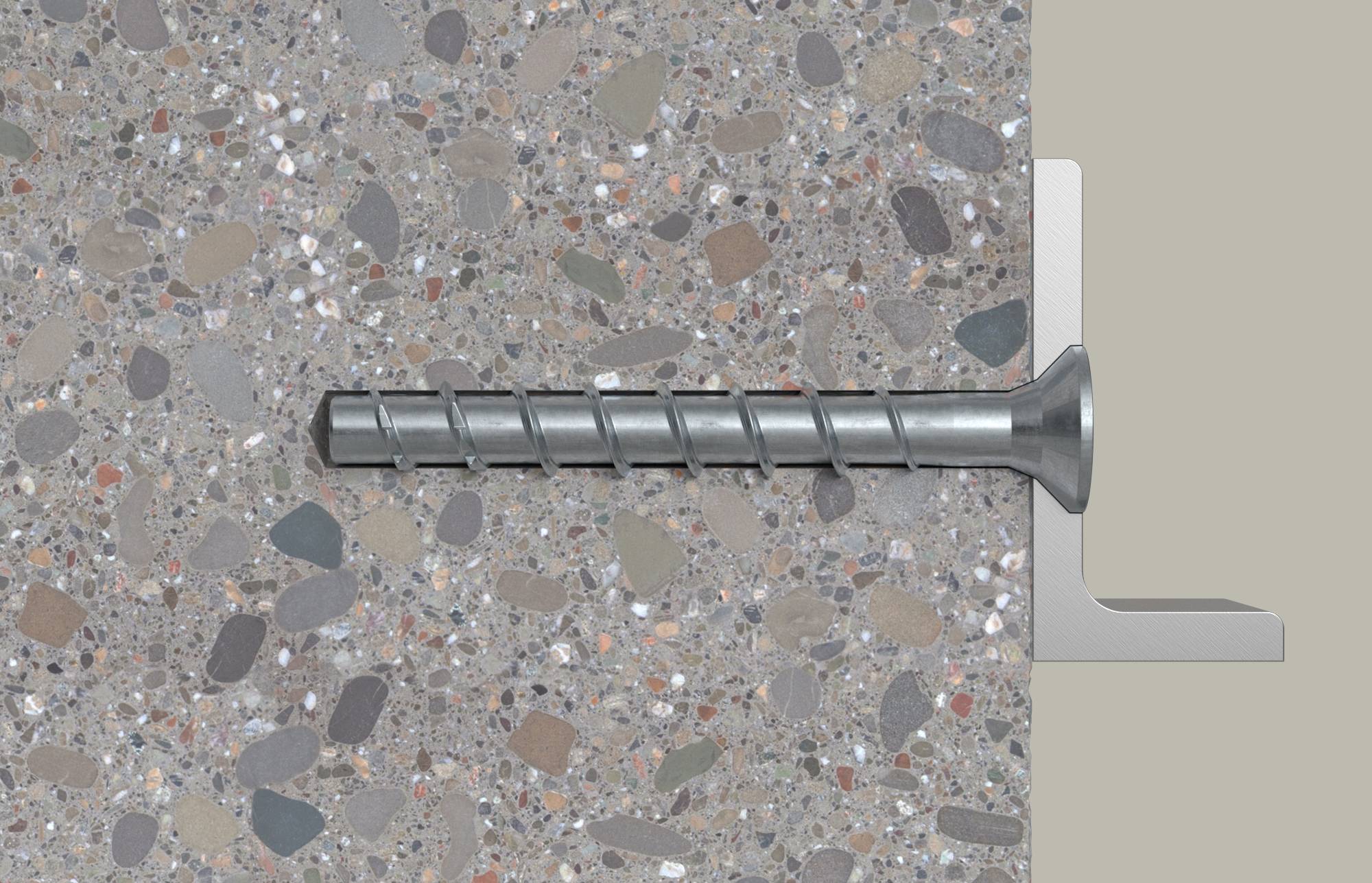

Illustration of a metal anchor screw drilled horizontally into concrete, securing a white L-shaped bracket on the right.<br>

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer ULTRACUT FBS II 6 x 140/85 SK countersunk head

The first concrete screw in diameter 6 with a variable screw-in depth offers a high flexibility and enables a flexible adjustment to the loads.
The ETA evaluation (option 1) regulates the use in cracked and uncracked concrete for the highest safety requirements.
The first concrete screw in diameter 6 with an ETA rating for the seismic power category C1 for an additional added safety.
The FBS II 6 has been approved for the multiple anchoring of non-load-bearing systems and is thus ideally suited for anchoring pipes and cable trays in prestressed concrete hollow ceilings.
For vertical mounting (in ceilings and floors), a drill hole cleaning is not necessary. For holes in the ground, 3x drill diameter must be drilled deeper.
The different head shapes offer maximum flexibility and optimum adaptation to a variety of applications.
The design of the concrete screw with countersunk head enables a surface-flush and visually demanding installation.
The special double angle on the lower head geometry increases the stability of the concrete screw when screwing in.
The adjustment in accordance with the approval allows the screw to be loosened twice for a total of 20 mm, to be placed under a maximum of 10 mm and to align the attachment part.
The ULTRACUT FBS II 6 gvz concrete screw offers the option of being used in masonry (solid material).
This text is machine translated.

Technical specifications

Product type: Concrete screw

Drive: TX

Content: 100 pc(s)

Material properties: zinc galvanized

Head shape: Countersunk

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148396 Fischer 546388 ULTRACUT FBS II 6x140/85 SK Concrete screw 100 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.
