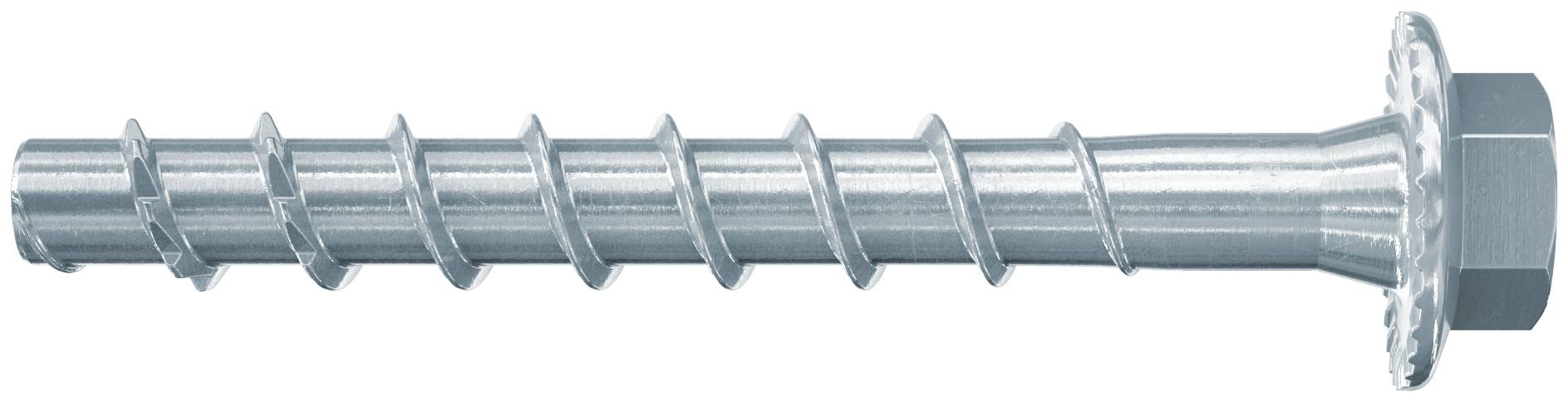

A metal lag screw with a hex head and washer, shown horizontally on a white background.

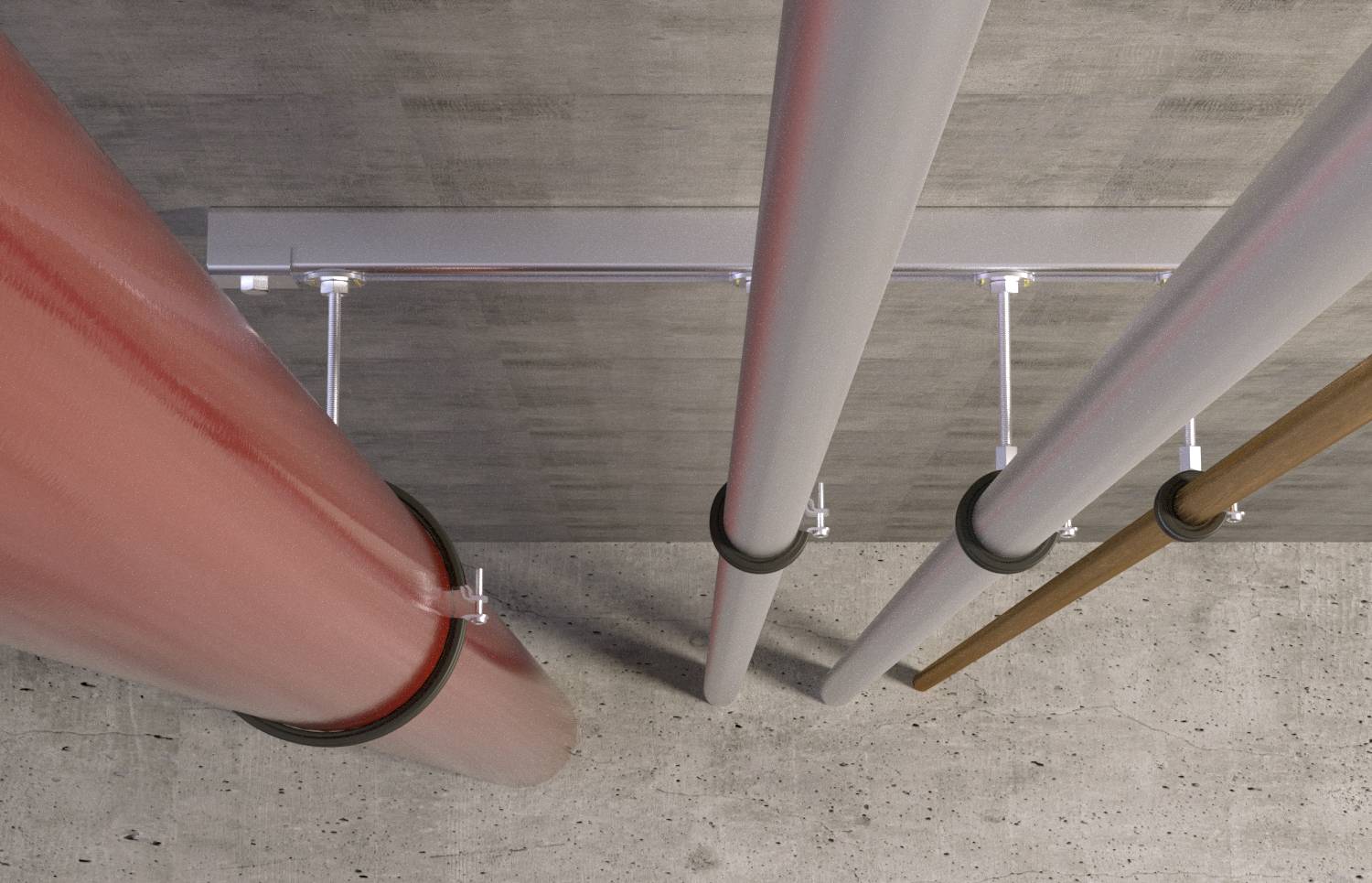

Underside view of four large utility pipes running along a concrete ceiling, including a red pipe and gray and tan pipes.<br>

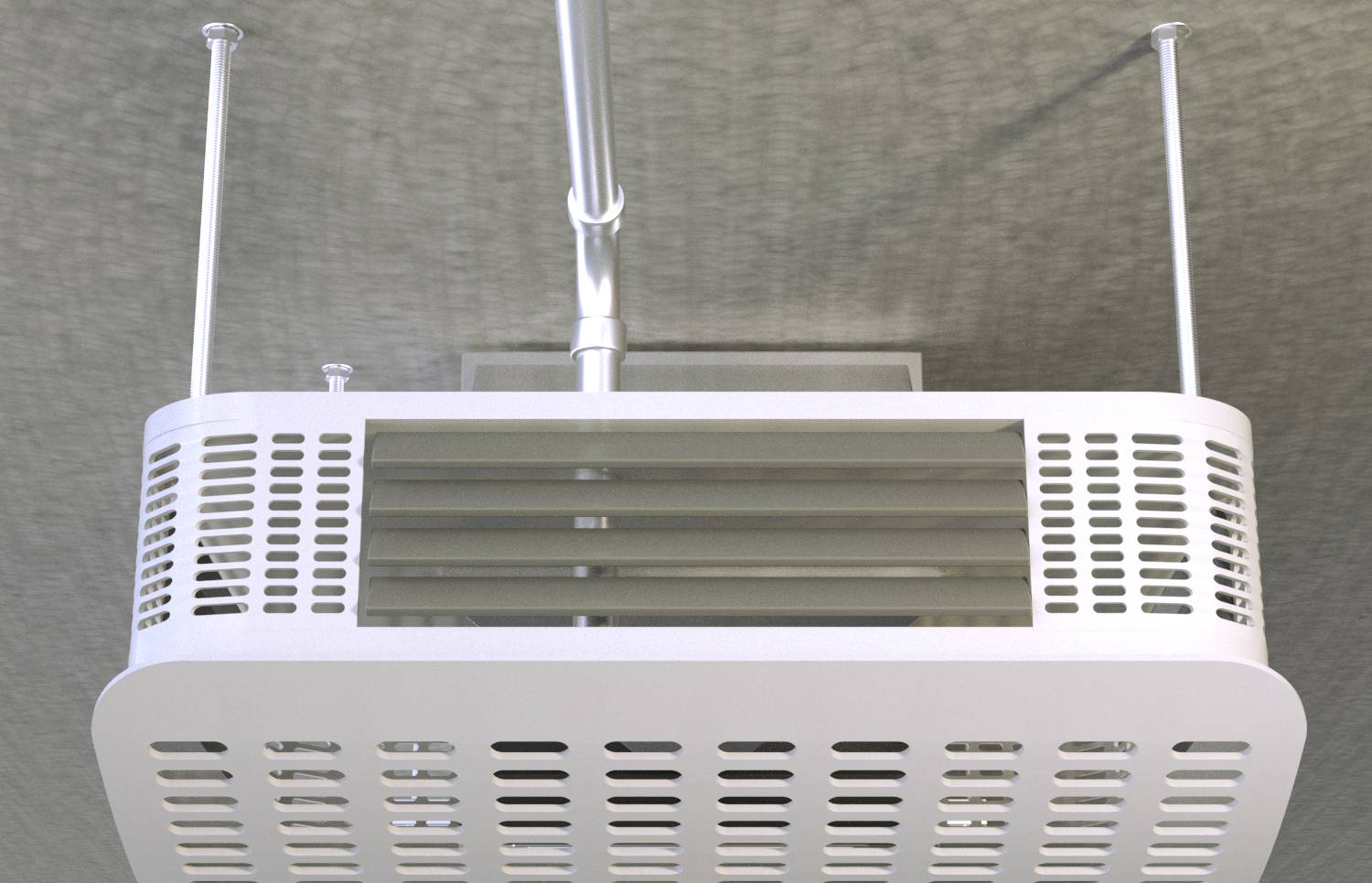

A white ceiling-mounted air vent or HVAC diffuser viewed from below, with a central adjustable louver and perforated side panels.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer ULTRACUT FBS II 6 x 100/45 US hexagonal with washer

The first concrete screw in diameter 6 with a variable screw-in depth offers a high flexibility and enables a flexible adjustment to the loads.
The ETA evaluation (option 1) regulates the use in cracked and uncracked concrete for the highest safety requirements.
The first concrete screw in diameter 6 with an ETA rating for the seismic power category C1 for an additional added safety.
The FBS II 6 has been approved for the multiple anchoring of non-load-bearing systems and is thus ideally suited for anchoring pipes and cable trays in prestressed concrete hollow ceilings.
For vertical mounting (in ceilings and floors), a drill hole cleaning is not necessary. For holes in the ground, 3x drill diameter must be drilled deeper.
The different head shapes offer maximum flexibility and optimum adaptation to a variety of applications.
The hexagonal head with pressed-on washer and under-head ribbing prevents the unwanted loosening of the concrete screw and ensures a secure attachment.
The special head geometry for use in mounting rails with a socket (SW10) enables an easy installation of the attachment part.
The adjustment in accordance with the approval allows the screw to be loosened twice for a total of 20 mm, to be placed under a maximum of 10 mm and to align the attachment part.
The ULTRACUT FBS II 6 gvz concrete screw offers the option of being used in masonry (solid material).
This text is machine translated.

Technical specifications

Product type: Concrete screw

Drive: Hex head

Content: 100 pc(s)

Material properties: zinc galvanized

Head shape: Hex head

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148154 Fischer 546393 ULTRACUT FBS II 6x100/45 US Concrete screw 100 pc(s)

Description

the fischer ULTRACUT FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.
