Fischer 546395 ULTRACUT FBS II 6x25 M8/19 Concrete screw 6 mm 25 mm Hex head Steel zinc galvanized 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

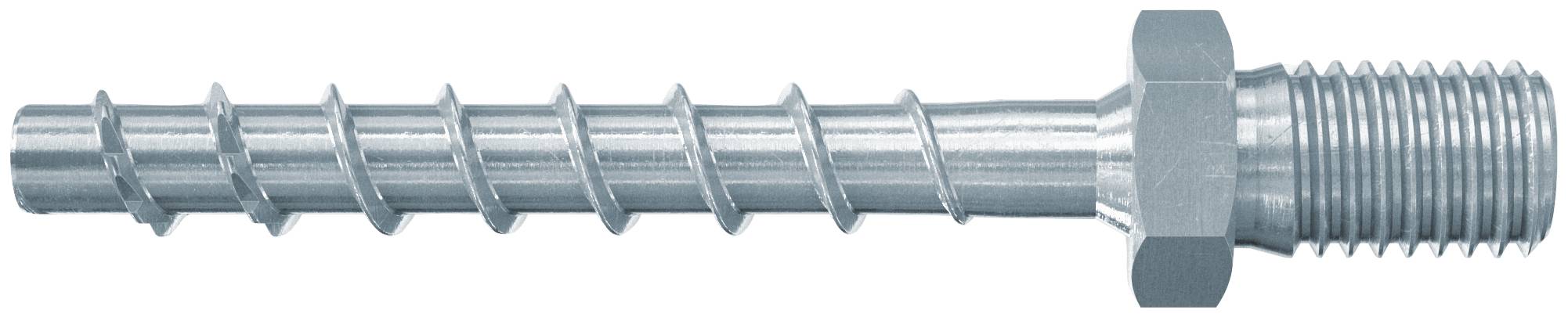

Concrete screw UltraCut FBS II 6 x 25 M8/19 external thread
- Concrete screw in diameter 6 with a variable screw-in depth offers high flexibility and enables a millimeter-exact adjustment to the loadsThe ETA rating (option 1) regulates the use in cracked and untorn concrete for the highest safety requirementsConcrete screw in diameter 6 with a ETA rating for seismic power category C1 for an additional safety benefit
Technical specifications
- Approved for: Concrete C20/25 to C50/60, cracked and untorn / mounting in prestressed concrete hollow boards C30/37 to C50/60 for use as multiple mounting of non-supporting systems
- Also suitable for: Concrete C12/15/masonry with dense structure/solid building materials

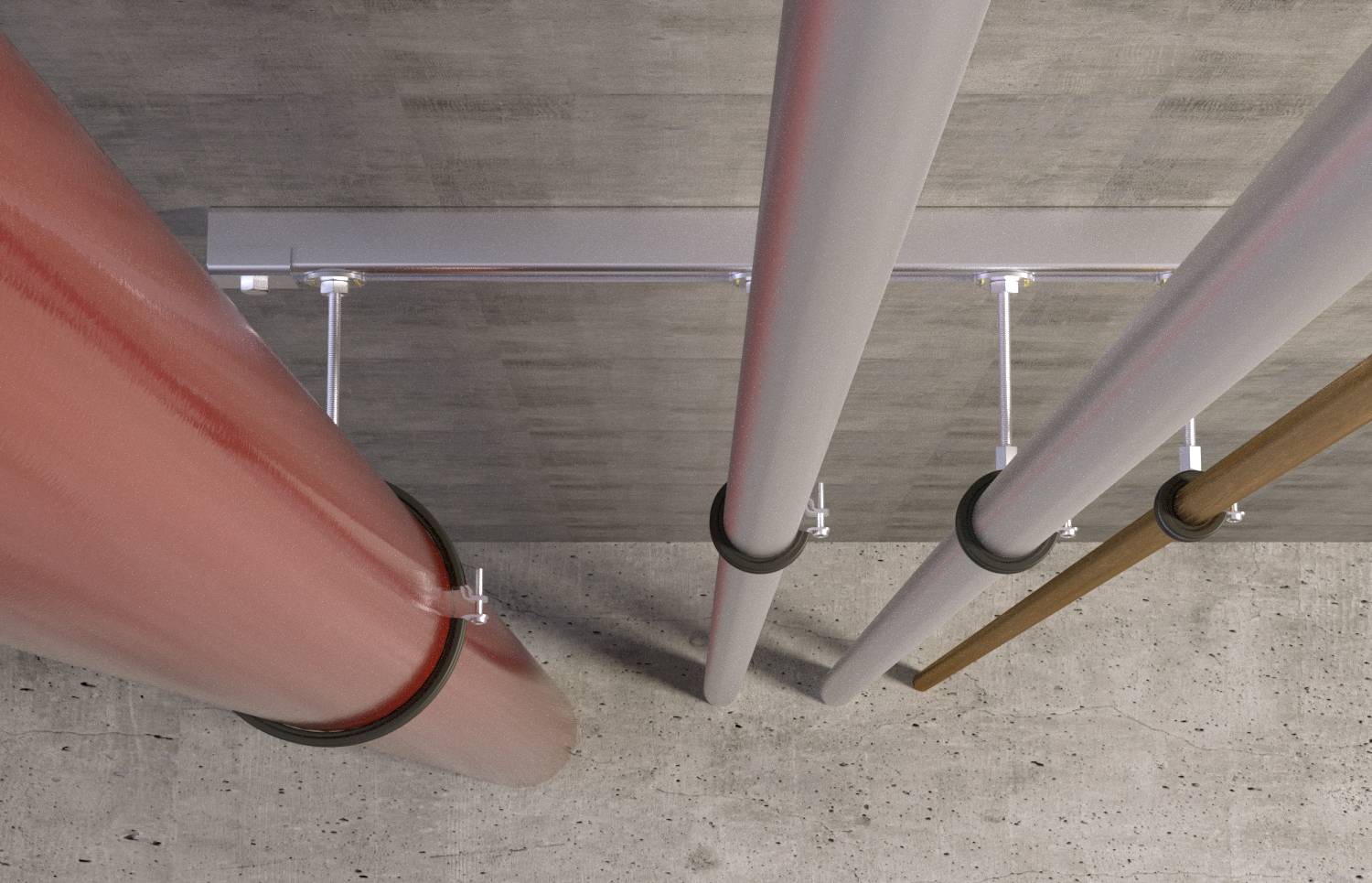

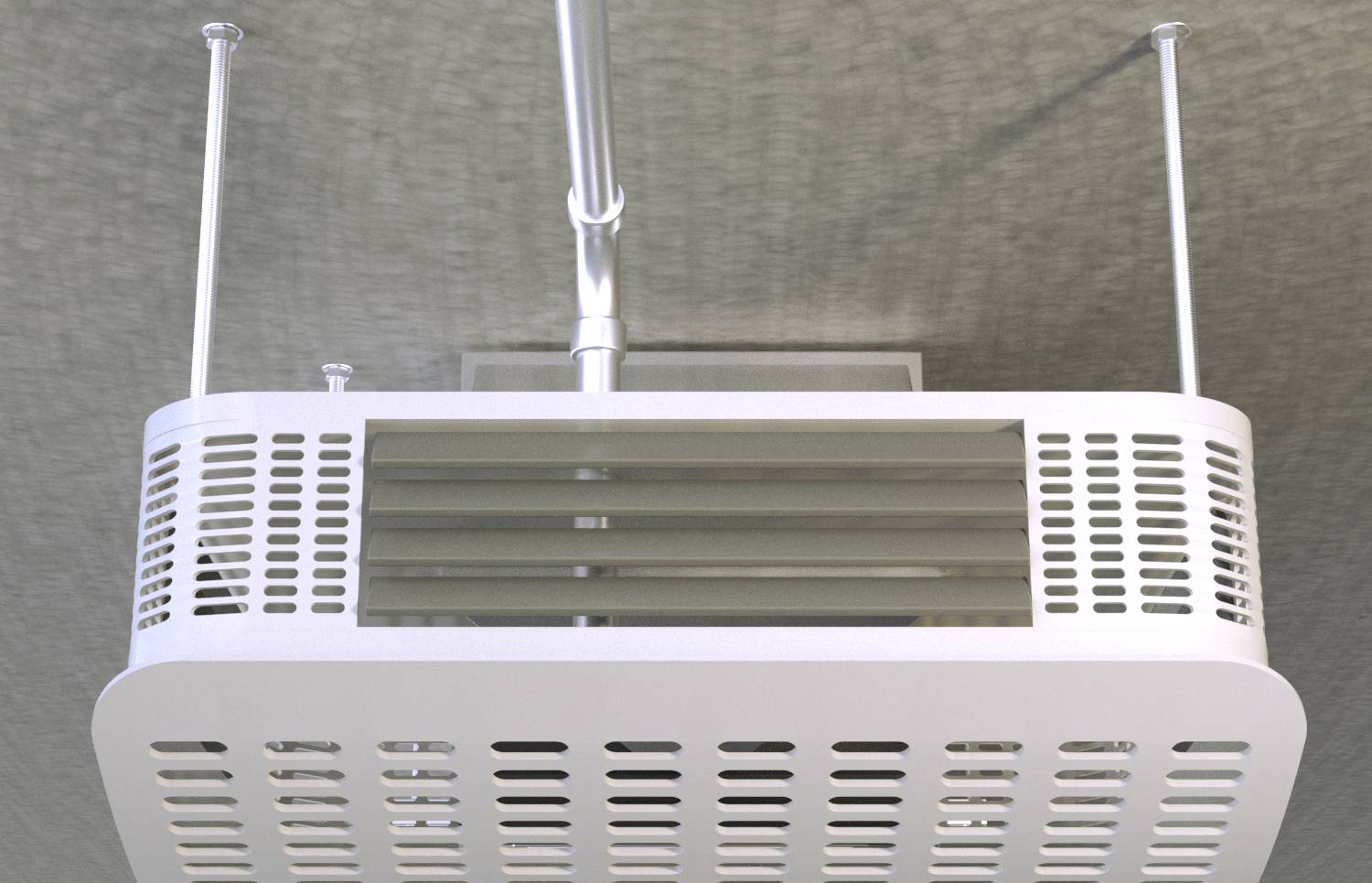

- Typical uses: Pipe runs, individual pipe suspensions, suspended mounting rails, prestressed concrete hollow ceilings, cable trays, Ventilation channels, punched tapes
- Drive SW 10
- 6 mm drill nominal diameter
- Screw depth 25 mm, multiple fixing ETA-18/0242: 25 mm
- Thread length: 15 mm
- Hole depth for through-hole installation min.: 30 mm
- Bore hole depth at pre-installation min.: 35 mm
- Projection 19 mm
- Product type
Concrete screw
- Drive
Hex head
- Material
Steel
- Thread size
M8
- Content
100 pc(s)
- (Ø)
6 mm
- Length
25 mm
- Dim
(Ø x L) 6 mm x 25 mm
- Material properties
zinc galvanized
- Head shape
Hex
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2157960 Fischer 546395 ULTRACUT FBS II 6x25 M8/19 Concrete screw 6 mm 25 mm Hex head Steel zinc galvanized 100 pc(s)
Description
Powerful concrete screw for maximum installation comfort. The Fischer UltraCut FBS II 6 M8/19 concrete screw is an anchoring solution made of galvanized steel with a stock screw (M8 external thread). The UltraCut FBS II 6 M8/19 is Ideal for the attachment of pipe sections, individual pipe suspensions or suspended mounting rails for building technology. When the concrete screw is screwed into the drill hole with an impact driver, the threaded flanges cut form-locking into the concrete and ensure the highest load-carrying capacity. The low drilling effort saves time with the multiple mounting. The European Technical Assessment for torn and untorn concrete as well as seismic loads and the fire rating for the R 120 fire resistance class guarantee an additional safety benefit.For mounting a tangential impact wrench with impact driver suitable nut or a special TX bit is recommended.For vertical installation (in ceilings and floors) and the use of hollow drills, there is no need to clean the drill hole.When drilling holes in the ground, drill holes in three different diameters must be drilled deeper.The screw head is attached to the attachment part so that the screw can no longer be screwed in, ensuring the correct assembly of the screw (optical setting control).
This text is machine translated.
This text is machine translated.
Features
- Concrete screw in diameter 6 with a variable screw-in depth offers high flexibility and allows flexible adjustment to the loads.The ETA rating (option 1) regulates the use in cracked and untorn concrete for the highest safety requirements.Concrete screw in diameter 6 with a ETA rating for seismic power category C1 for an additional safety benefit.The FBS II 6 has the approval for the multiple anchoring of non-load-bearing systems and is thus suitable for Ideal for the anchorage of pipes and cable trays in prestressed concrete hollow ceilings.For vertical installation (in ceilings and floors) there is no need to clean the drill hole. When drilling holes in the ground, drill holes in three different diameters must be drilled deeper.The different head shapes offer the highest flexibility and the optimum adjustment to a variety of applications.The stock screw is used for the ideal application of pipe clamps or connection pieces.The calibration conforming to the approval allows the screw to be loosened twice for a total of 20 mm, to be placed below a maximum of 10 mm and to align the attachment.The concrete screw UltraCut FBS II 6 GVZ. Offers the option for use in masonry (solid building material).
