Buy Fischer 546444 Putzdübel FIF-CN II 8/80 Dowel 100 pc(s)

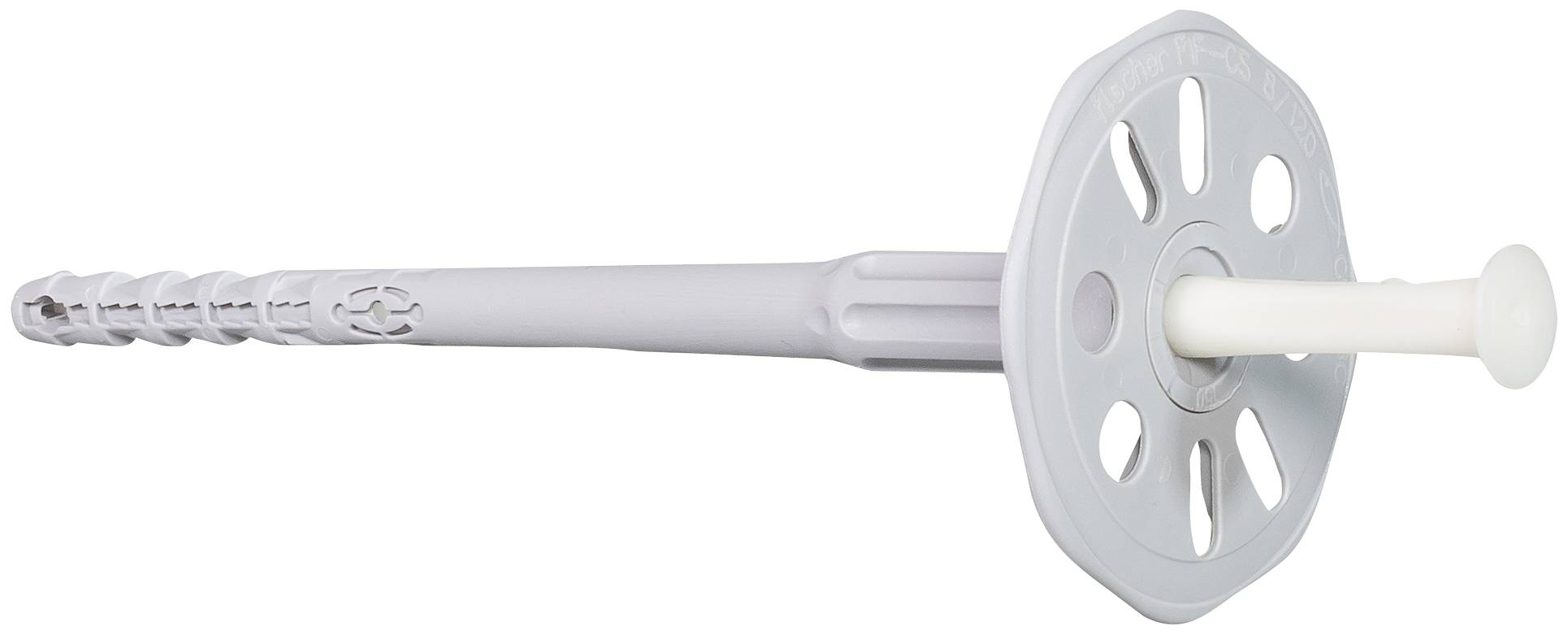

Plastic wall insulation anchor with wide disc washer and white expansion pin on a white background

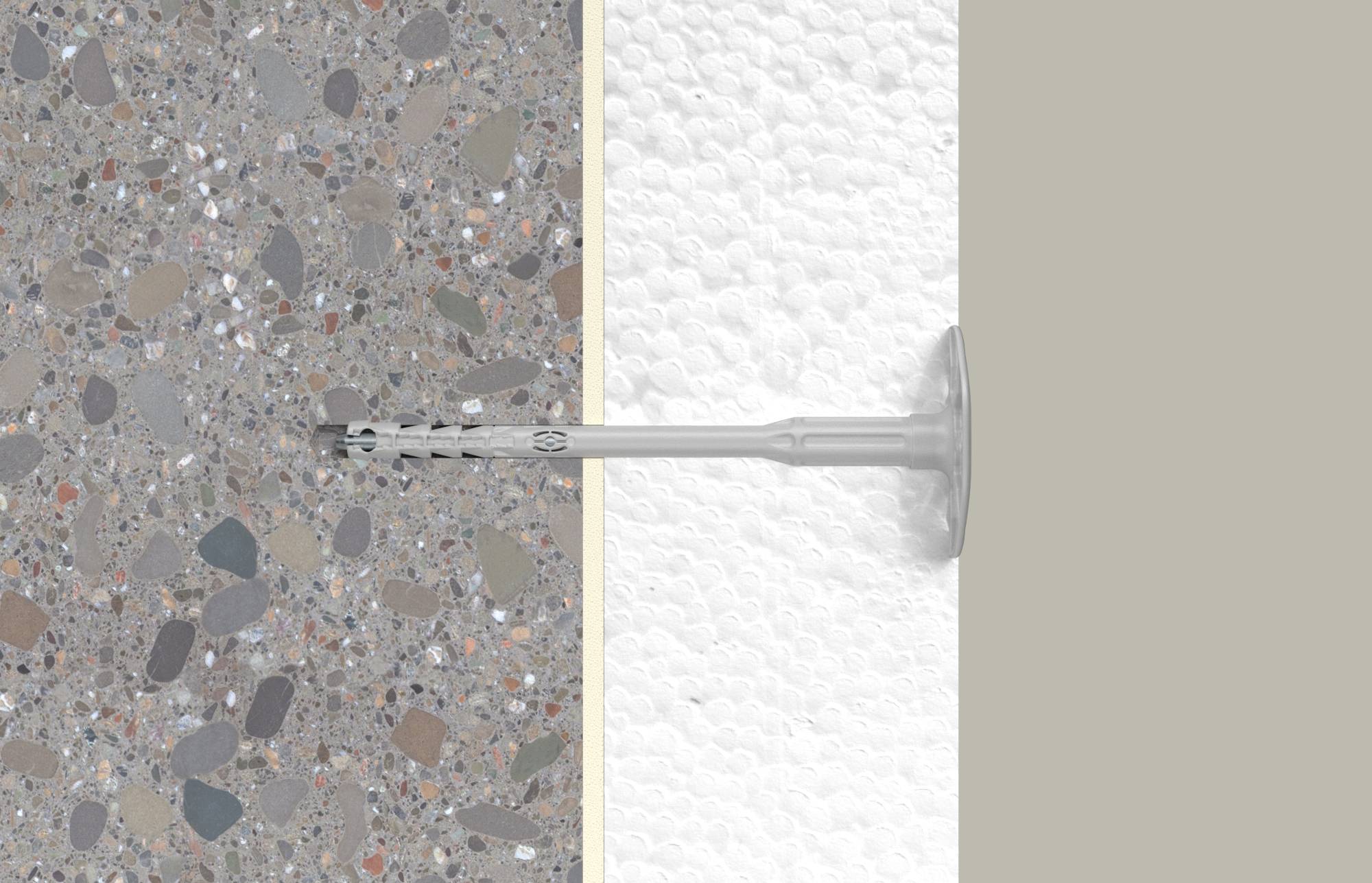

Cross-section of a fastener anchoring into concrete beside insulation, showing the screw passing through the white foam layer into the gray slab.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer FIF-CN II 8/80 cleaning plug

The compound nail (steel-plastic comination) minimizes the heat bridge. This does not result in any dowel markings on the facade.
With a few hammer strokes.
Due to the plate thickness of only 2.5 mm, the plate fits optimally into the insulation. Thus, low-cost, thin reinforcement layers can be applied.
High holding forces through the steel tip of the compound nail.
Low insertion depth of 35 mm saves drilling times.
Due to the compound nail, the FIF-CN II 8 is almost free of heat bridges.
The compression zone in the shaft enables an exact plate feed.
For insulation thicknesses up to 340 mm.

Technical specifications

(Ø): 8 mm

Product type: Dowel

Material: Plastic

Length: 80 mm

Dim: (Ø x L) 8 mm x 80 mm

Suitable for: Concrete

Content: 100 pc(s)

Features: incl. plastic nail

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148397 Fischer 546444 Putzdübel FIF-CN II 8/80 Dowel 100 pc(s)

Description

The ETA approved fischer FIF-CN II plaster anchor is ideal for securely fixing pressure-resistant insulation materials up to 350 mm thick in the plaster facade such as polystirene insulation boards, mineral wool panels, light wood wool panels and cork/coconut panels in concrete, full and perforated stone. The cleaning dowel consists of a gray dowel sleeve with an octogonalemplate attached and a steel plastic nail. The FIF-CN II is hit with a hammer. The innovative plastic nail with a steel tip enables high load requirements.

This text is machine translated.
