Fischer 546445 Putzdübel FIF-CN II 8/100 Dowel 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

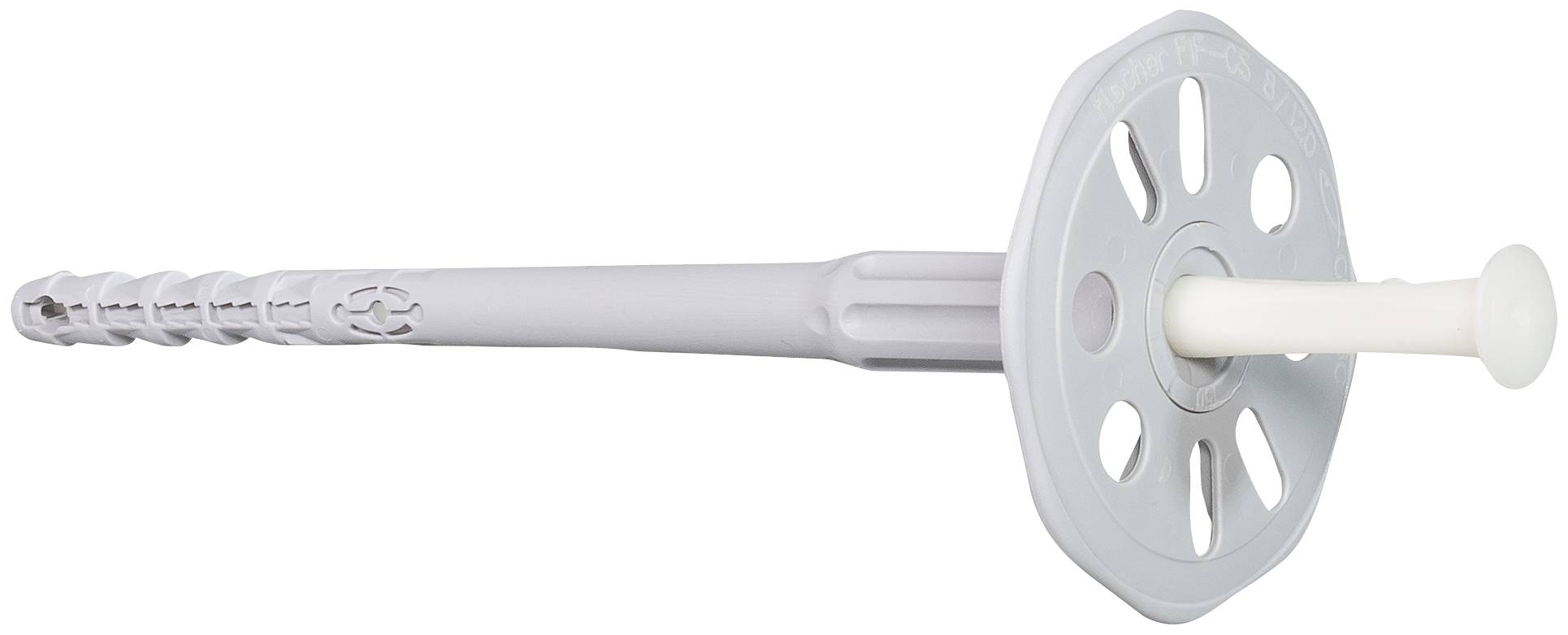

Fischer FIF-CN II 8/100 cleaning plug

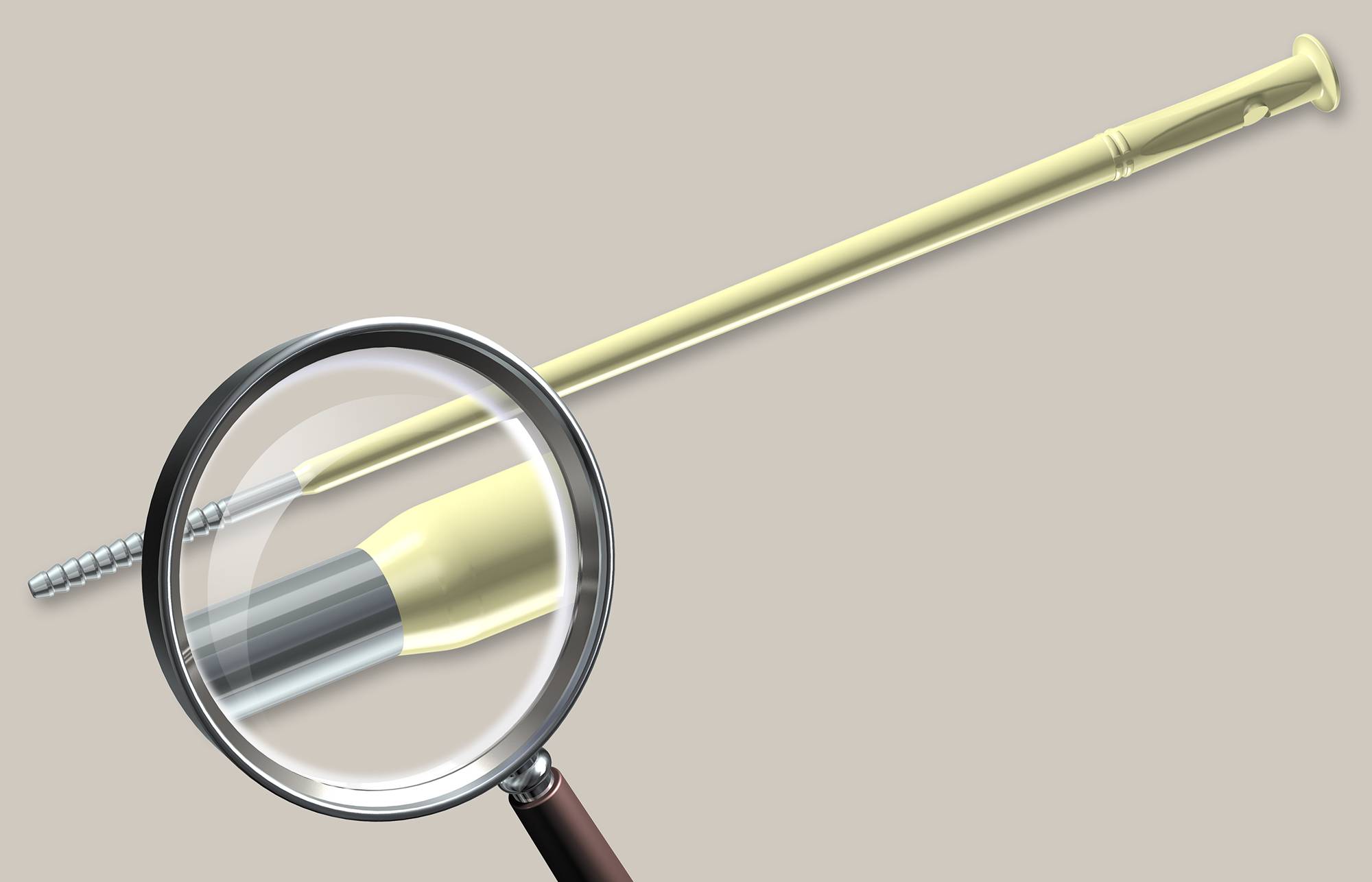

- The compound nail (steel-plastic comination) minimizes the heat bridge. This does not result in any dowel markings on the facade.
- With a few hammer strokes.
- Due to the plate thickness of only 2.5 mm, the plate fits optimally into the insulation. Thus, low-cost, thin reinforcement layers can be applied.
- High holding forces through the steel tip of the compound nail.
- Low insertion depth of 35 mm saves drilling times.
- Due to the compound nail, the FIF-CN II 8 is almost free of heat bridges.
- The compression zone in the shaft enables an exact plate feed.
- For insulation thicknesses up to 340 mm.
Technical specifications
- Product type
Dowel
- Material
Steel
- Suitable for
Insulation boards
- Content
100 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2148041 Fischer 546445 Putzdübel FIF-CN II 8/100 Dowel 100 pc(s)
Description

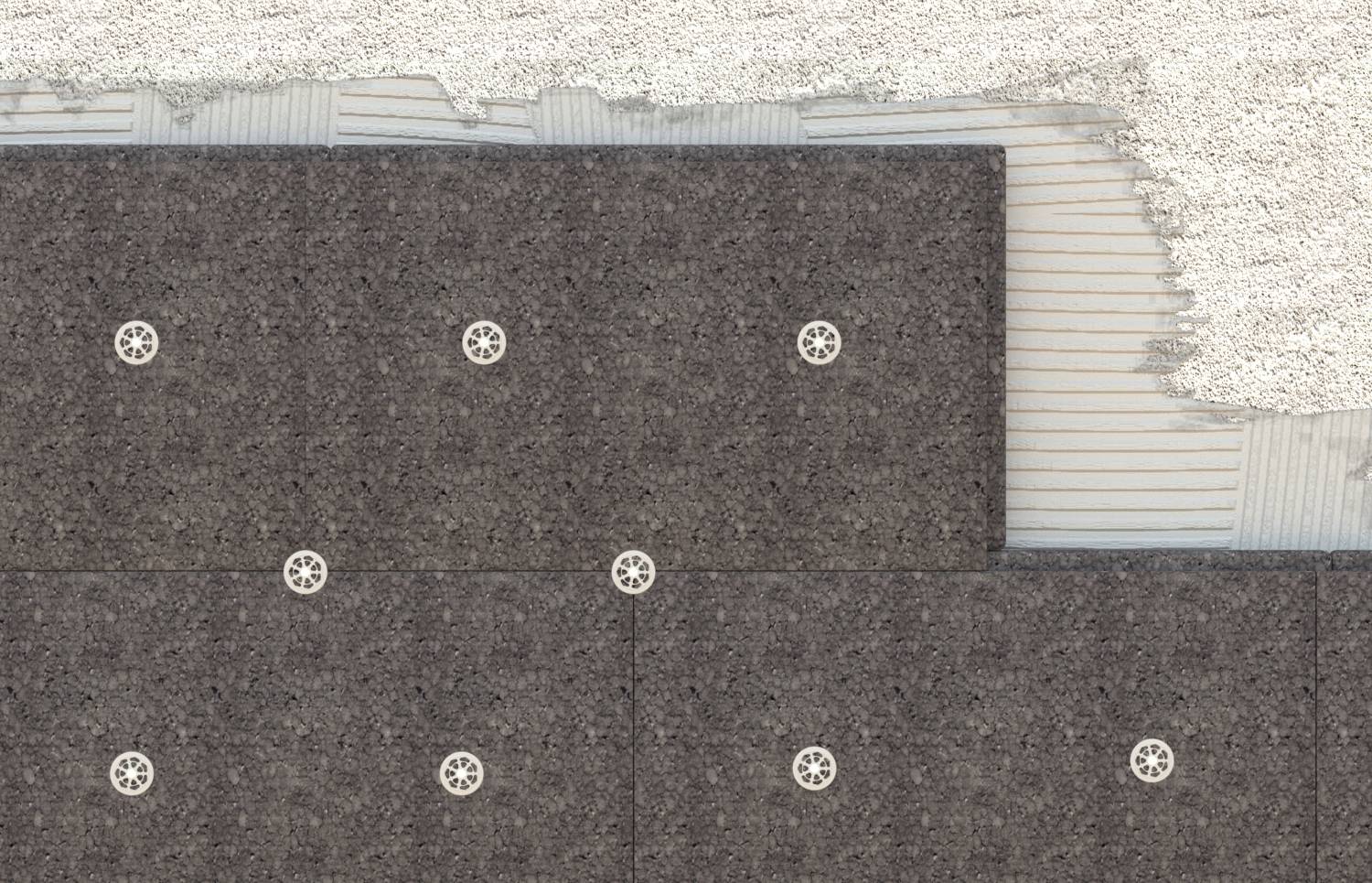

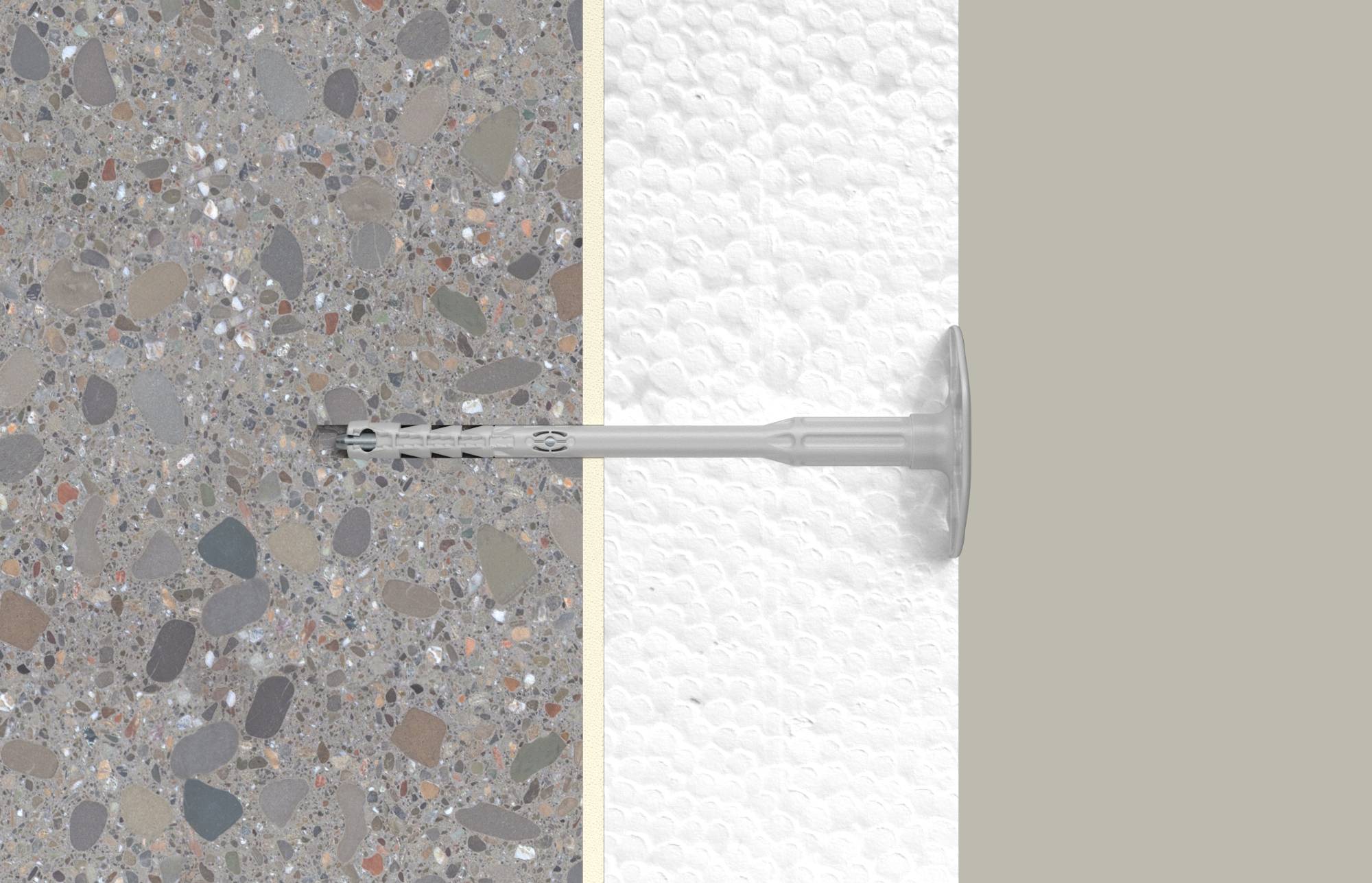

The ETA approved fischer FIF-CN II plaster anchor is ideal for securely fixing pressure-resistant insulation materials up to 350 mm thick in the plaster facade such as polystirene insulation boards, mineral wool panels, light wood wool panels and cork/coconut panels in concrete, full and perforated stone. The cleaning dowel consists of a gray dowel sleeve with an octogonalemplate attached and a steel plastic nail. The FIF-CN II is hit with a hammer. The innovative plastic nail with a steel tip enables high load requirements.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 100
