Buy Fischer 546447 Putzdübel FIF-CN II 8/140 Dowel 100 pc(s)

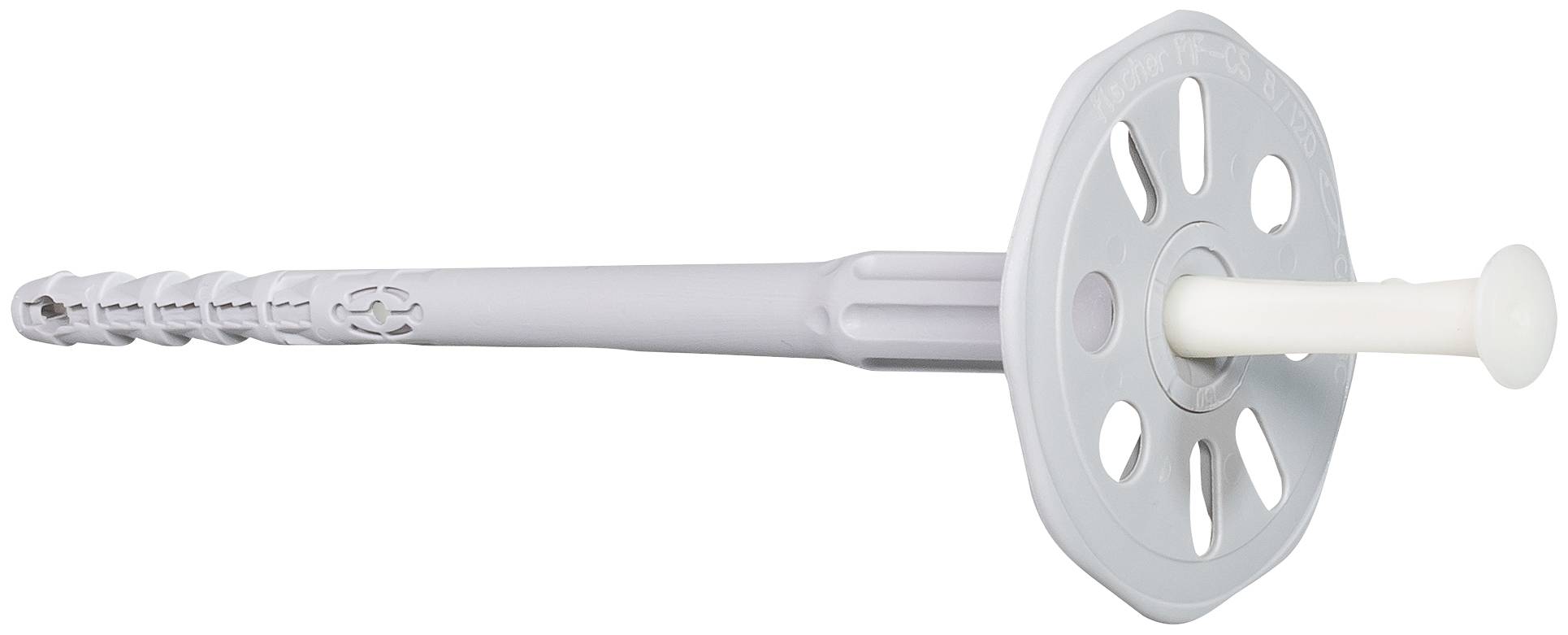

Plastic wall anchor with a wide flange and long metal screw, shown in side view on a white background.

Partially installed dark gray asphalt roof shingles over white underlayment and siding, showing exposed unfinished sections.<br>

Magnifying glass enlarging a screwdriver, with a gold handle and shaft on a plain beige background.

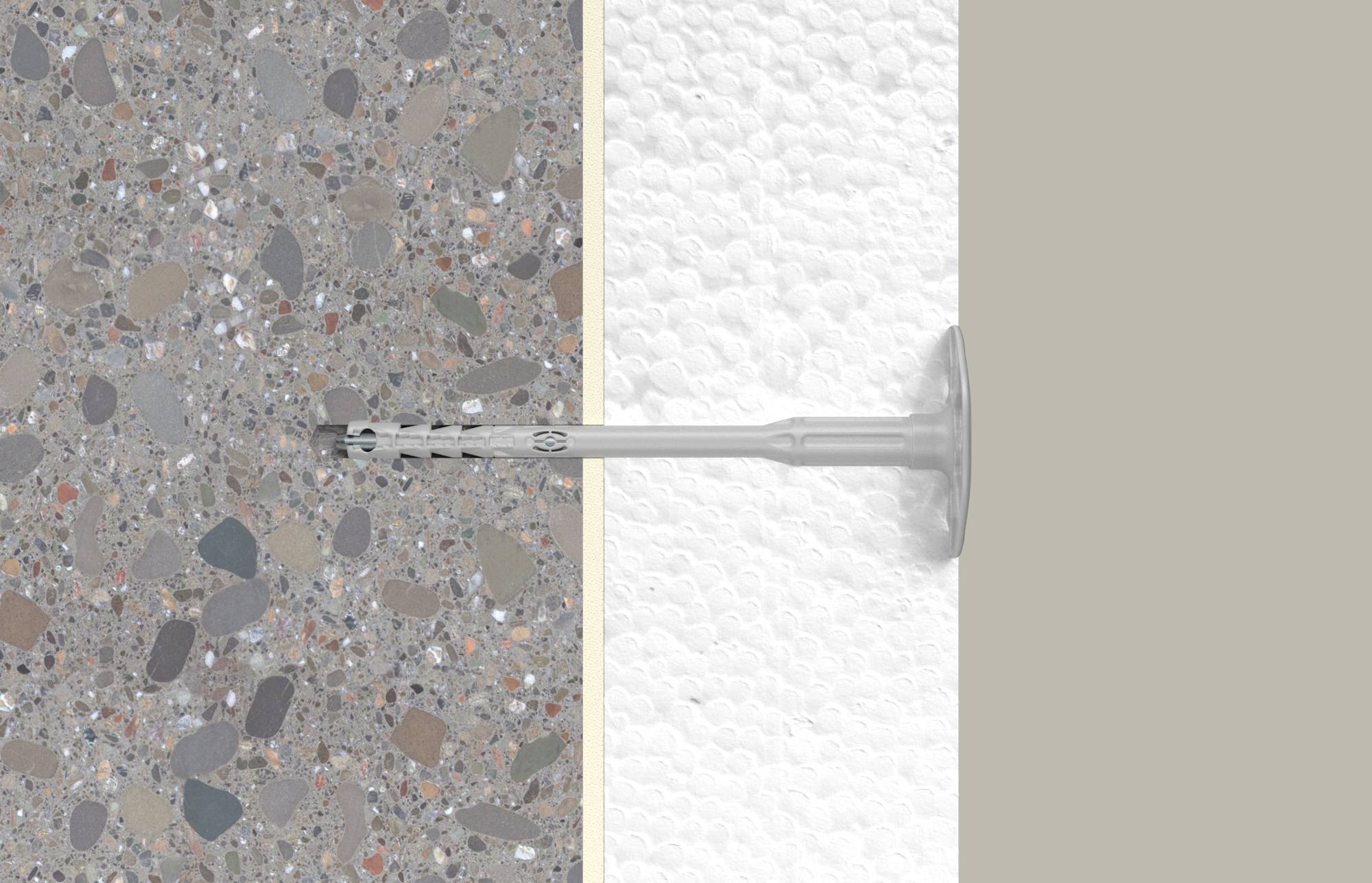

Cross-section illustration of a fastener anchored in concrete beside insulation, showing the screw passing through the white foam layer into the masonry wall.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer FIF-CN II 8/140 cleaning plug

- the compound nail (steel-plastic comination) minimizes the thermal bridge. This does not result in any dowel markings on the facade.
- to put with a few hammer strokes.
- The plate thickness of only 2.5 mm allows the plate to fit perfectly into the insulation. Thus, low-cost, thin reinforcement layers can be applied.
- high holding forces through the steel tip of the compound nail.
- low insertion depth of 35 mm saves drilling times.
- due to the compound nail, the FIF-CN II 8 is almost free of heat bridges.
- The compression zone in the shaft allows an exact plate feed.
- for insulation thicknesses up to 340 mm.

Technical specifications

Product type: Dowel

Material: Steel

Suitable for: Concrete

Content: 100 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148341 Fischer 546447 Putzdübel FIF-CN II 8/140 Dowel 100 pc(s)

Description

The ETA approved fischer FIF-CN II plaster anchor is ideal for securely fixing pressure-resistant insulation materials up to 350 mm thick in the plaster facade such as polystirene insulation boards, mineral wool panels, light wood wool panels and cork/coconut panels in concrete, full and perforated stone. The cleaning dowel consists of a gray dowel sleeve with an octogonalemplate attached and a steel plastic nail. The FIF-CN II is hit with a hammer. The innovative plastic nail with a steel tip enables high load requirements.

This text is machine translated.
