Fischer 546451 Putzdübel FIF-CN II 8/220 Dowel 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Fischer FIF-CN II 8/220 cleaning plug

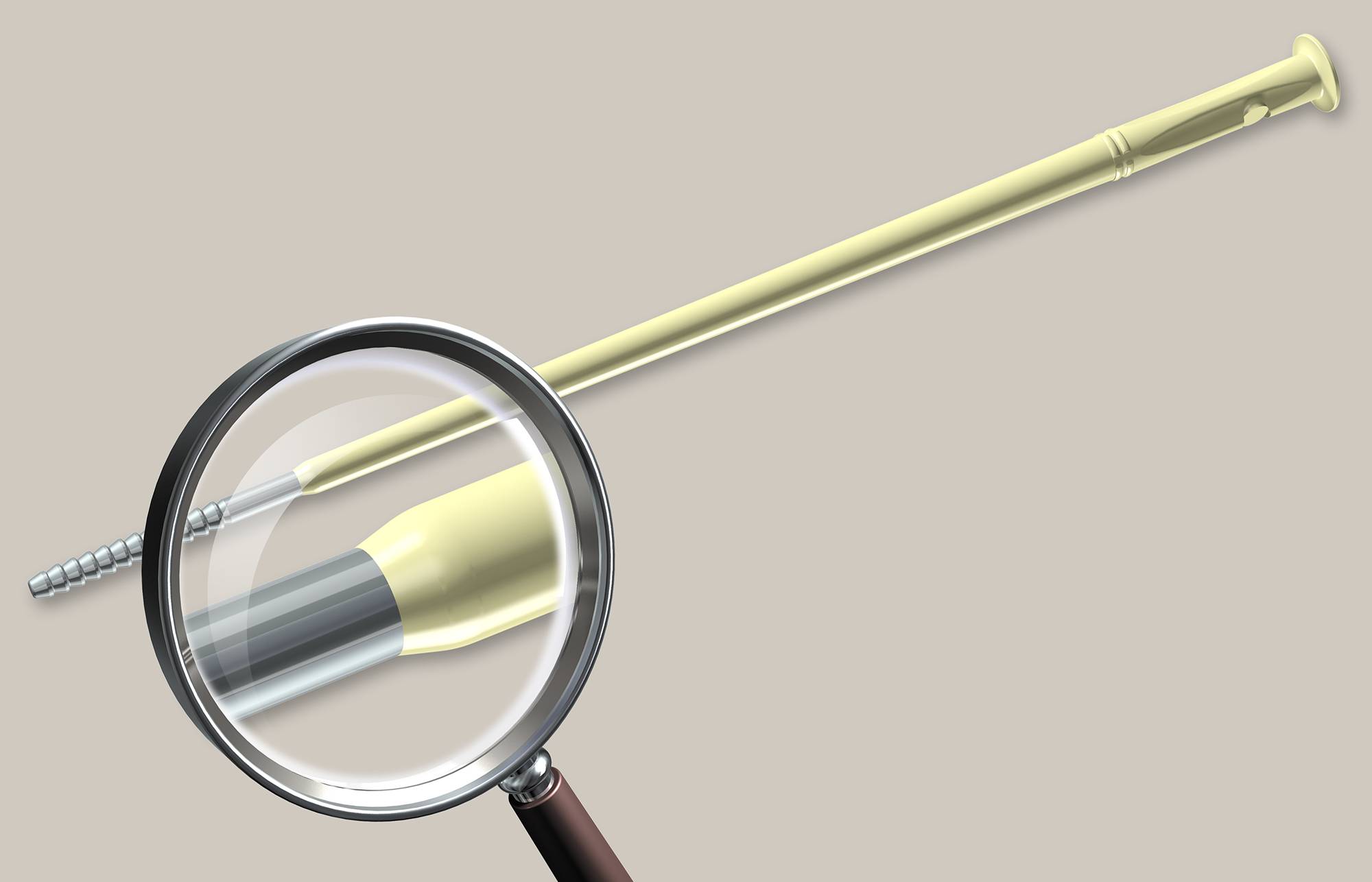

- - the compound nail (steel-plastic comination) minimizes the thermal bridge. This does not result in any dowel markings on the facade.
- - to put with a few hammer strokes.
- - The plate thickness of only 2.5 mm allows the plate to fit perfectly into the insulation. Thus, low-cost, thin reinforcement layers can be applied.
- - high holding forces through the steel tip of the compound nail.

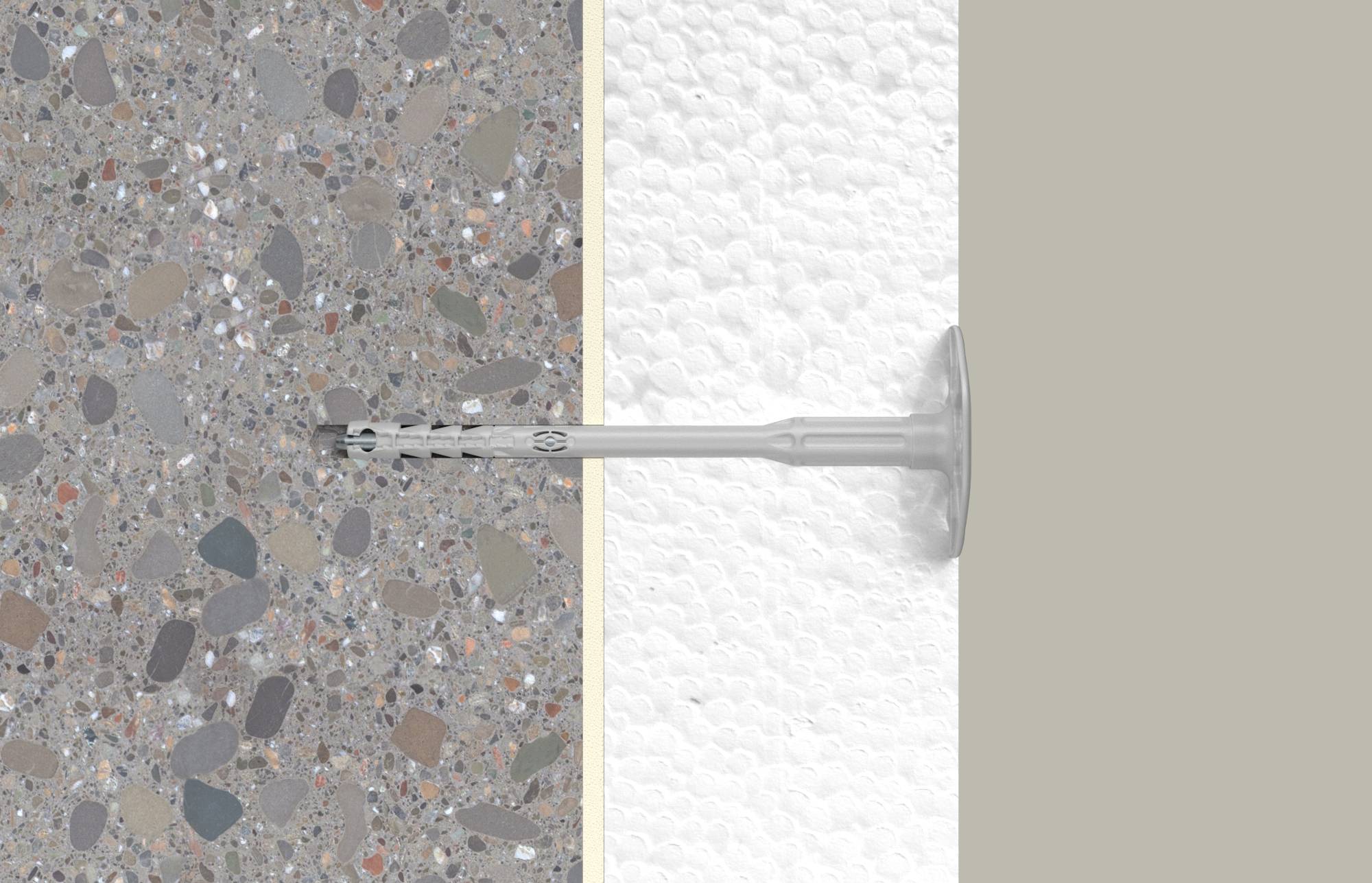

- - low insertion depth of 35 mm saves drilling times.
- - due to the compound nail, the FIF-CN II 8 is almost free of heat bridges.
- - The compression zone in the shaft allows an exact plate feed.
- - for insulation thicknesses up to 340 mm.
Technical specifications
- Product type
Dowel
- Material
Steel
- Length
220 mm
- Suitable for
Concrete
- Content
100 pc(s)
- Outside Ø
8 mm
- Features
incl. plastic nail
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2148097 Fischer 546451 Putzdübel FIF-CN II 8/220 Dowel 100 pc(s)
Description

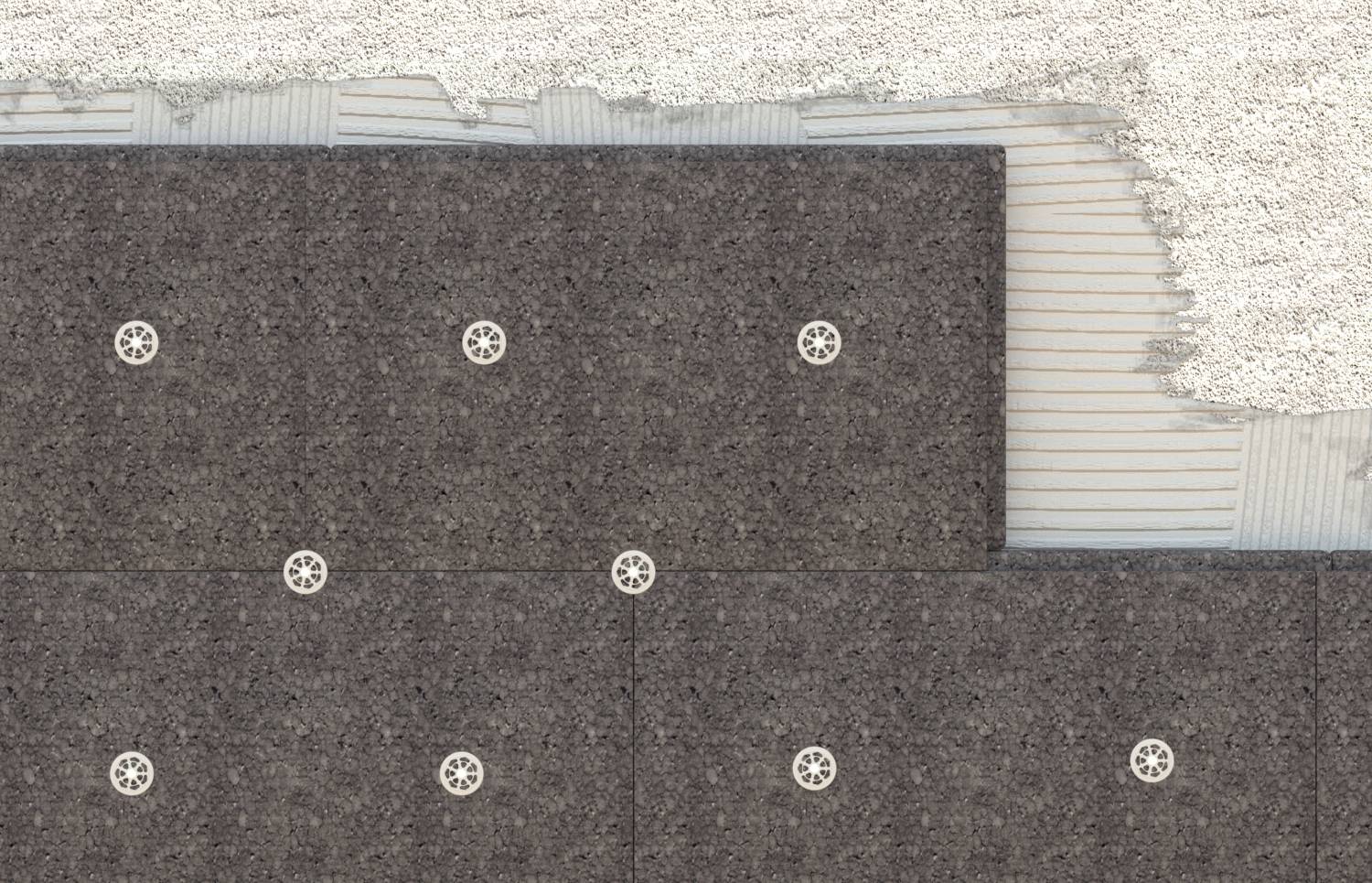

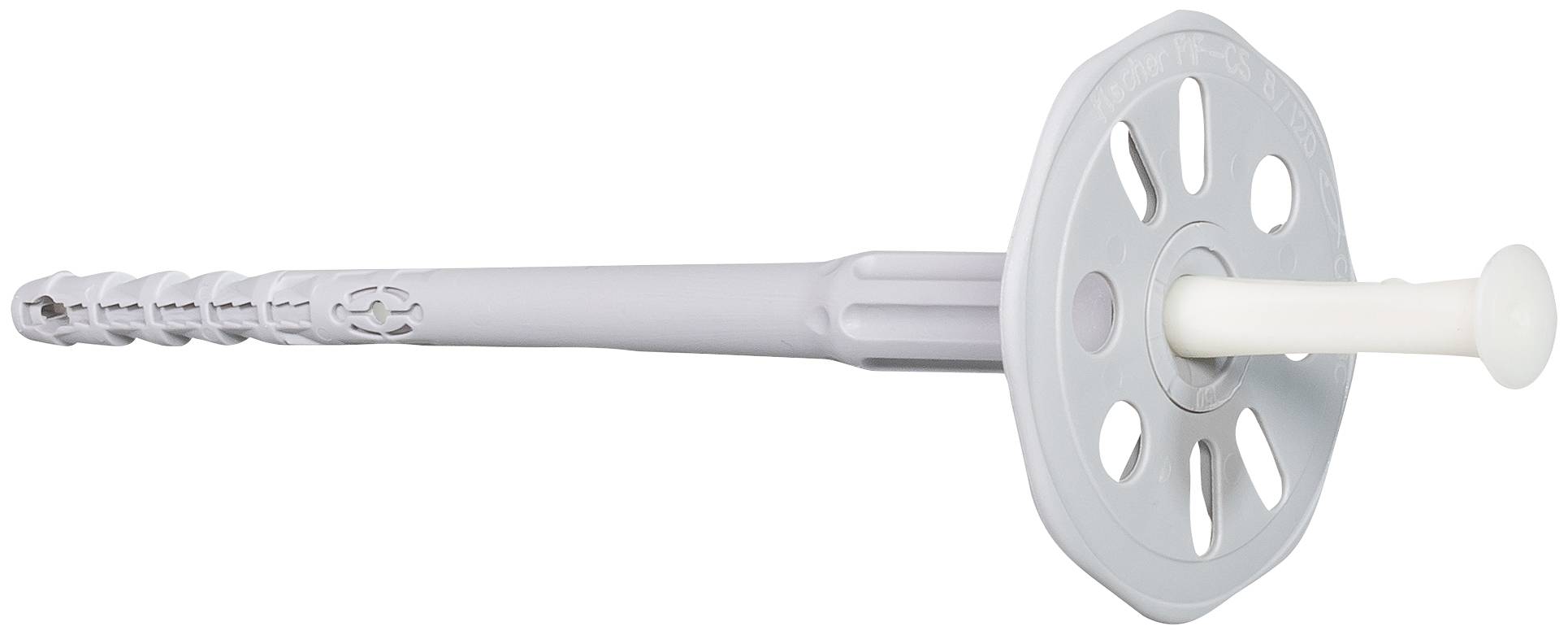

The ETA approved fischer FIF-CN II plaster anchor is ideal for securely fixing pressure-resistant insulation materials up to 350 mm thick in the plaster facade such as polystirene insulation boards, mineral wool panels, light wood wool panels and cork/coconut panels in concrete, full and perforated stone. The cleaning dowel consists of a gray dowel sleeve with an octogonalemplate attached and a steel plastic nail. The FIF-CN II is hit with a hammer. The innovative plastic nail with a steel tip enables high load requirements.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 100
