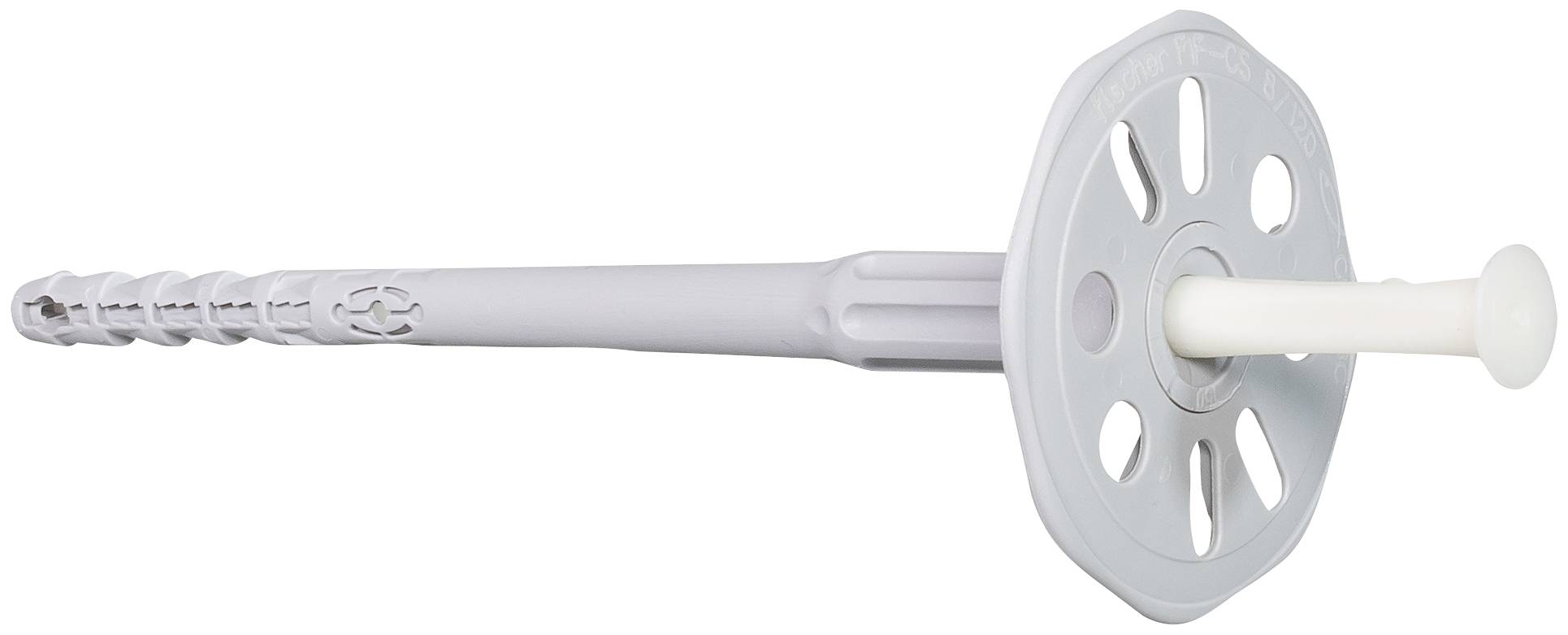

A gray plastic insulation anchor with a wide round washer and long nail-like shaft, used to fasten building insulation.

Roof underlayment and asphalt shingles being installed, with exposed strip showing the roof surface beneath.<br>

Magnifying glass examining a screw and a yellow-handled screwdriver crossed on a plain background, suggesting inspection or repair.

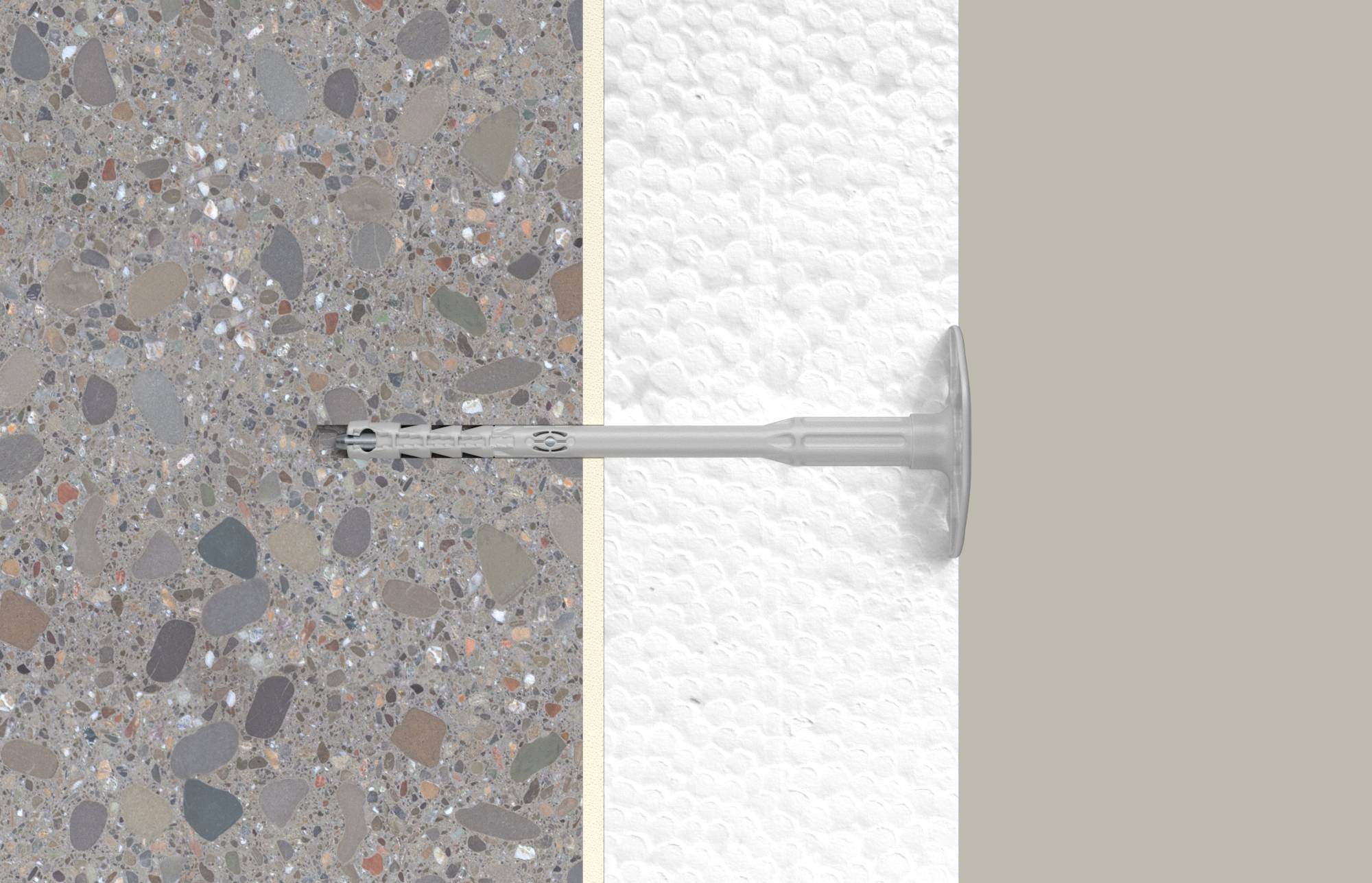

Cross-section of a wall anchor screw driven into masonry, passing through insulation into a concrete wall.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer FIF-CN II 8/280 cleaning plug

- the compound nail (steel-plastic comination) minimizes the thermal bridge. This does not result in any dowel markings on the facade.
- to put with a few hammer strokes.
- The plate thickness of only 2.5 mm allows the plate to fit perfectly into the insulation. Thus, low-cost, thin reinforcement layers can be applied.
- high holding forces through the steel tip of the compound nail.
- low insertion depth of 35 mm saves drilling times.
- due to the compound nail, the FIF-CN II 8 is almost free of heat bridges.
- The compression zone in the shaft allows an exact plate feed.
- for insulation thicknesses up to 340 mm.

Technical specifications

Product type: Dowel

Material: Steel

Length: 280 mm

Suitable for: Concrete

Content: 100 pc(s)

Outside Ø: 8 mm

Features: incl. plastic nail

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148098 Fischer 546454 Putzdübel FIF-CN II 8/280 Dowel 100 pc(s)

Description

The ETA approved fischer FIF-CN II plaster anchor is ideal for securely fixing pressure-resistant insulation materials up to 350 mm thick in the plaster facade such as polystirene insulation boards, mineral wool panels, light wood wool panels and cork/coconut panels in concrete, full and perforated stone. The cleaning dowel consists of a gray dowel sleeve with an octogonalemplate attached and a steel plastic nail. The FIF-CN II is hit with a hammer. The innovative plastic nail with a steel tip enables high load requirements.
