Buy Fischer 546477 Langschaftdübel SXRL 10x60 T Dowel 50 pc(s)

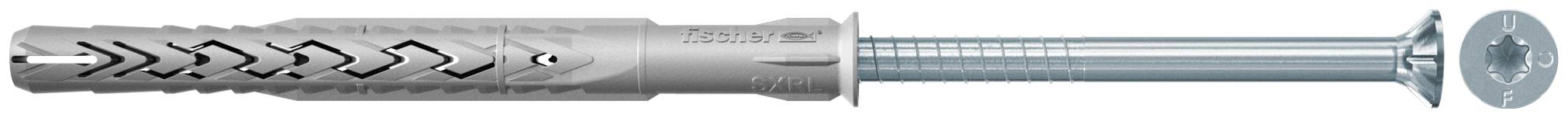

A metallic wall anchor with a screw beside it, shown horizontally on a white background.

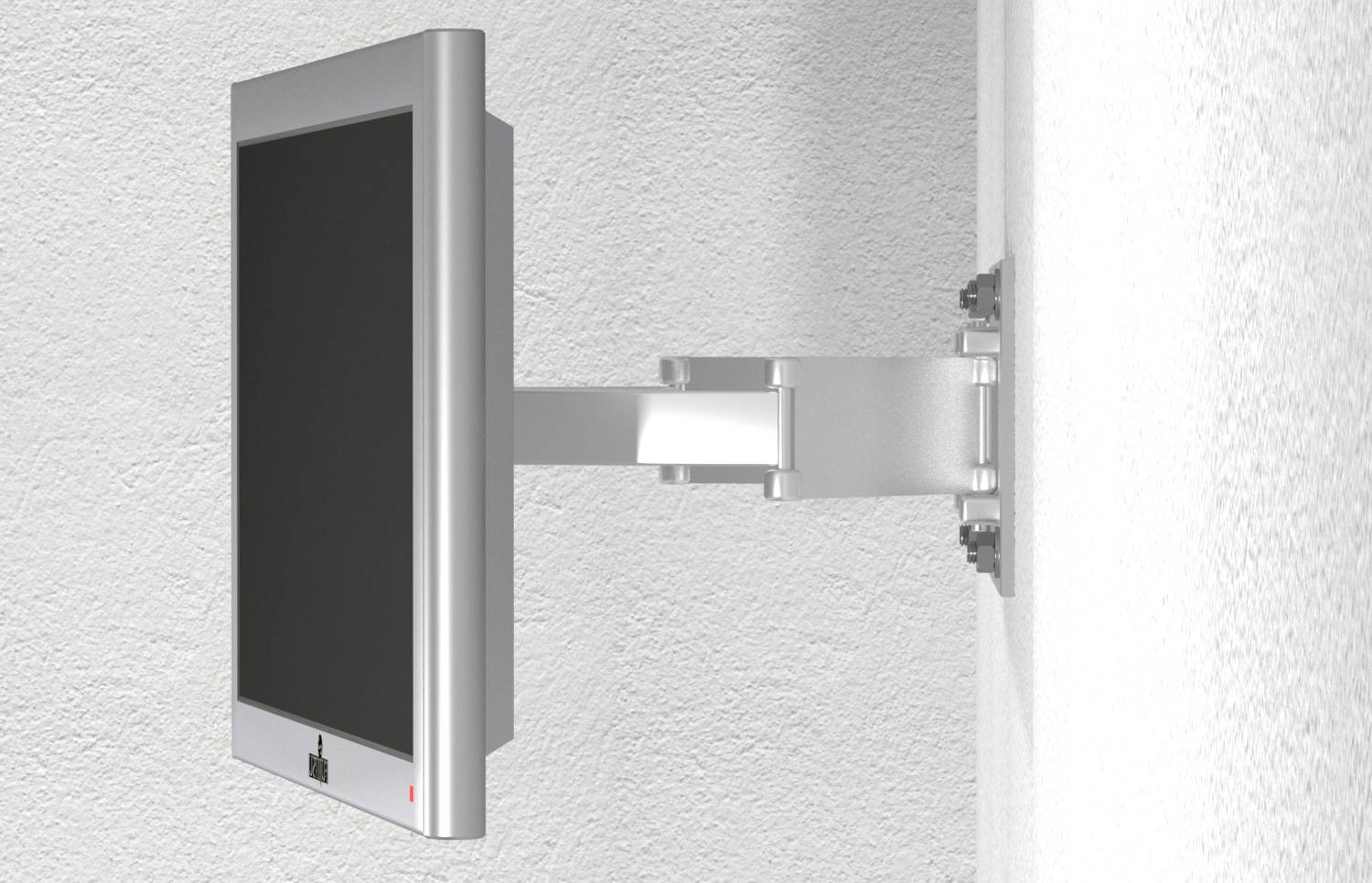

Wall-mounted flat-screen monitor on an articulated silver arm attached to a white wall.

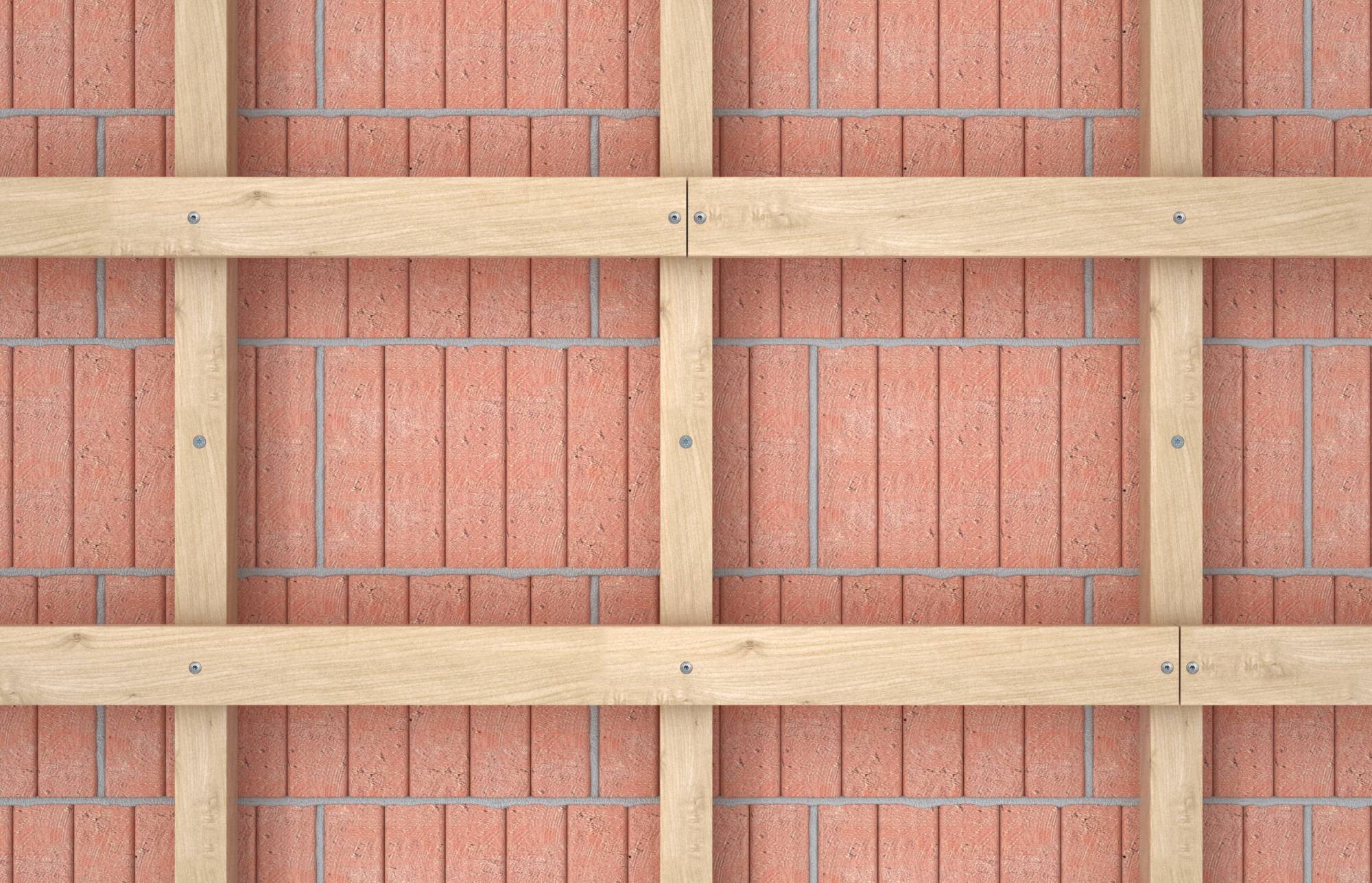

Wooden lattice support frame mounted over a red brick wall, forming a simple grid pattern.

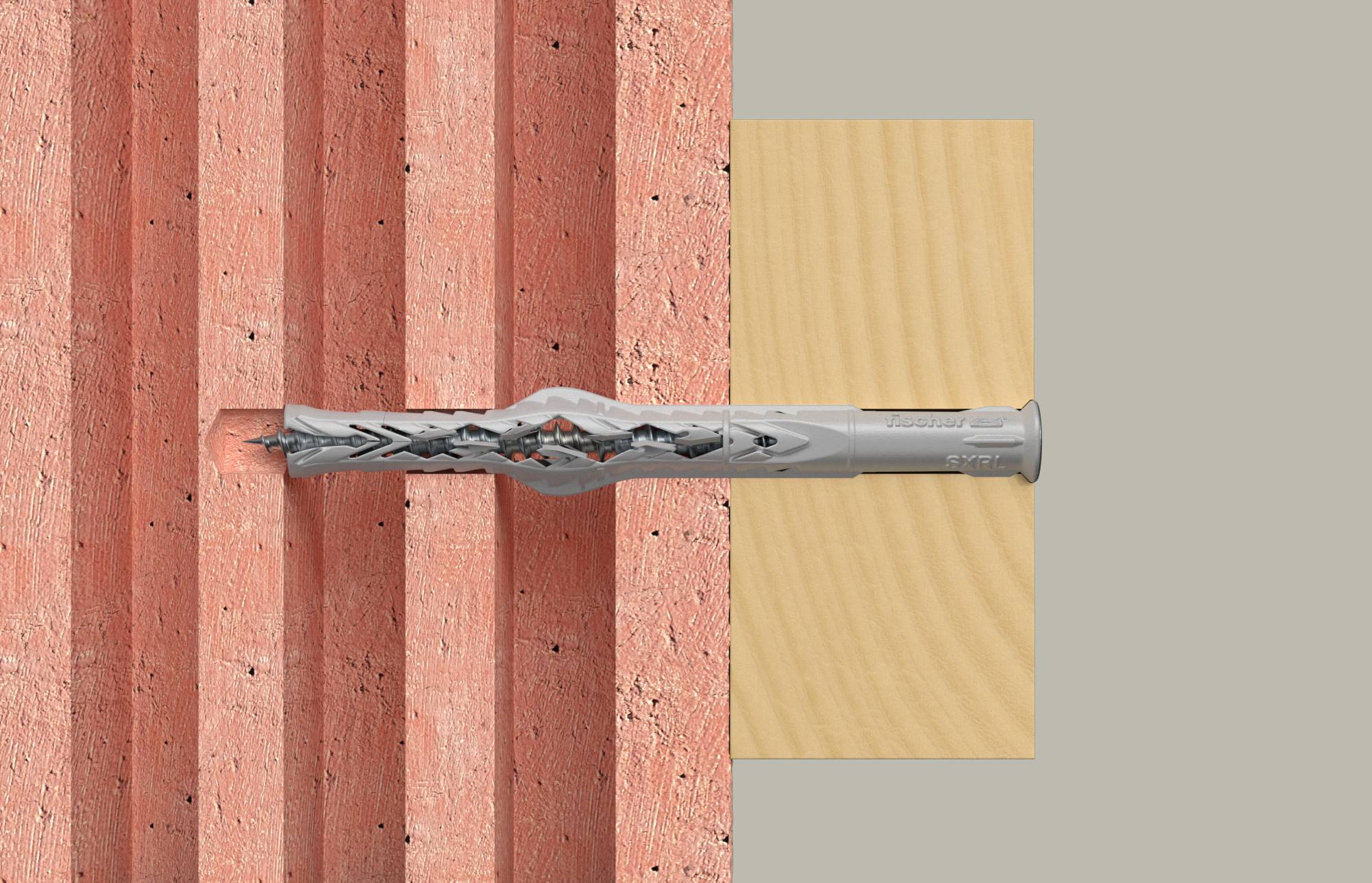

Drill bit inserted into a red brick wall beside a wood block, showing a wall anchor being installed.<br>

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer SXRL 10 x 60 T countersunk screw long shaft plug

The long spreading element with multiple anchoring depth 50, 70 and 90 mm for SXRL 8 and SXRL 10 and 70 and 90 mm for SXRL 14 makes the SXRL a versatile product.
The special geometry of the dowel distributes the holding forces evenly in the drill hole.
The approval for single point fixing in cracked concrete makes the SXRL 10 a specialist in concrete and an economical alternative to steel anchors for applications such as fastening canopies and outside railings.
When lowering, the longer ribs prevent the dowel from twisting during installation.
The SXRL 14 is additionally approved for applications that are subject to pressure and may be used for facade constructions that are mounted at a distance without wall bracket.
The SXRL with working lengths up to 290 mm offers the right dowel for every application.

Technical specifications

(Ø): 10 mm

Product type: Dowel

Material: Steel
Wood

Length: 60 mm

Dim: (Ø x L) 10 mm x 60 mm

Suitable for: Concrete
Hollow bricks
Brickwork

Content: 50 pc(s)

Outside Ø: 10 mm

Features: incl. countersunk screw

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148100 Fischer 546477 Langschaftdübel SXRL 10x60 T Dowel 50 pc(s)

Description

the fischer SXRL long shaft dowel with up to three anchor depths is approved with the fischer countersunk screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. The SXRL 10 is also approved for single point fixing in concrete, SXRL 14 for pressure-stressed distance constructions of facades. The two sprezzons of the dowel are applied uniformly in perforated masonry, and in aerated concrete and solid material they combine to form a long spreading element. This guarantees excellent load values. The extensive range with diameters 8, 10 and 14 mm and dowel lengths up to 360 mm enable versatile applications. The SXRL with the countersunk screw is especially recommended for fixing wooden constructions.

This text is machine translated.
