Buy Fischer 546506 Langschaftdübel SXRL 10x60 FUS Dowel 50 pc(s)

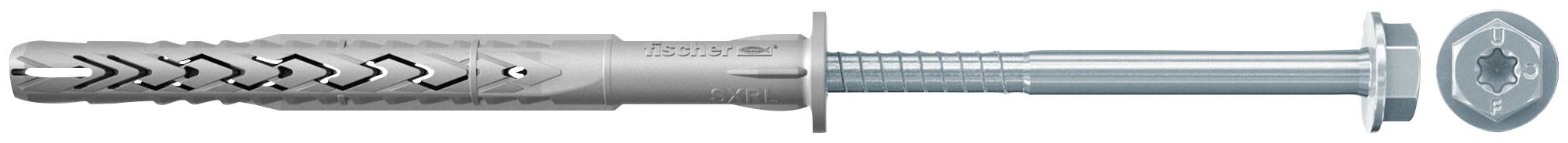

Metal expansion anchor bolt with slotted sleeve and hex head nut, shown with a separate end view of the nut.

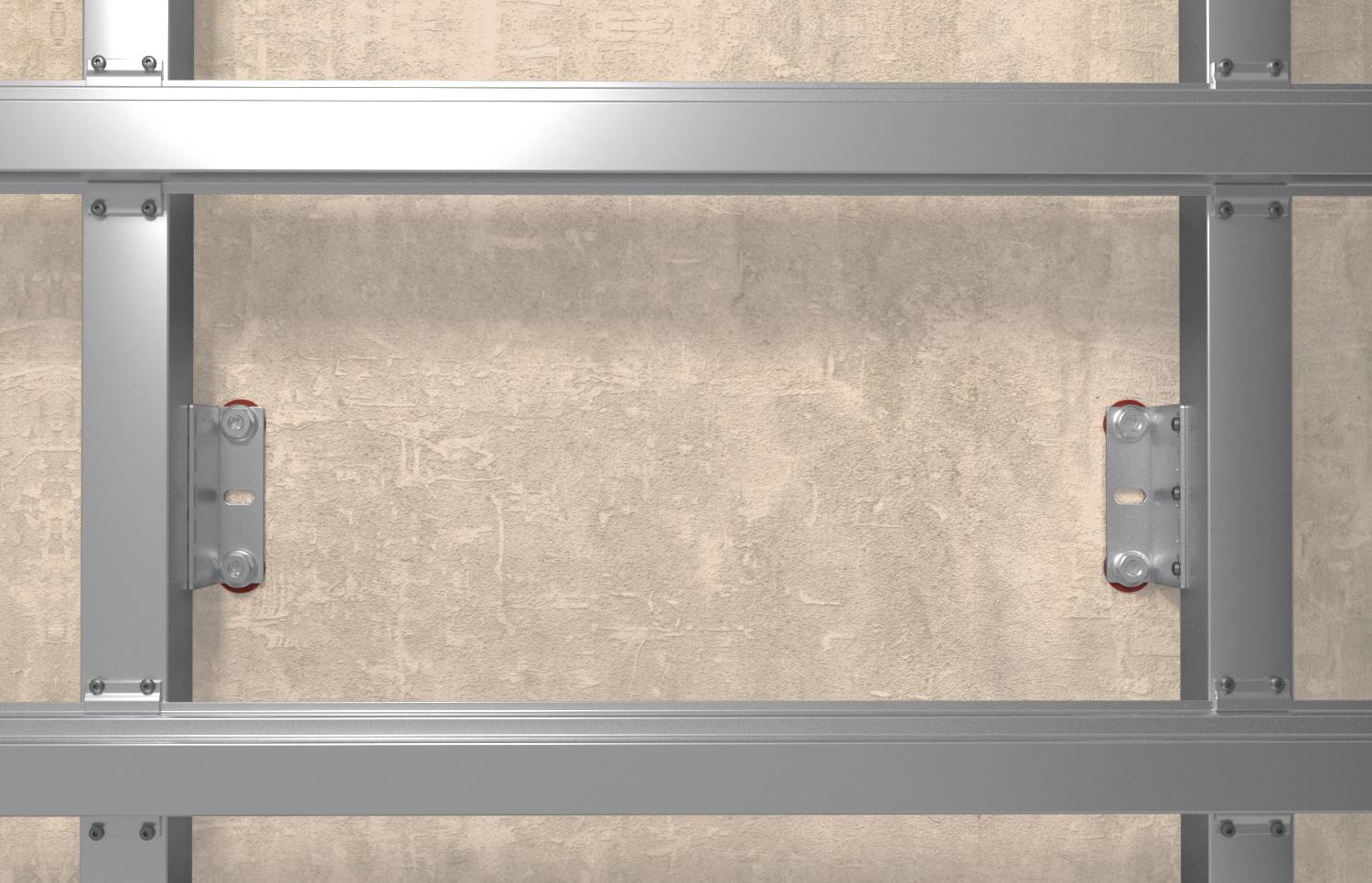

Close-up of a wall-mounted metal rail or bracket frame against a beige concrete wall, with visible mounting plates and bolts.

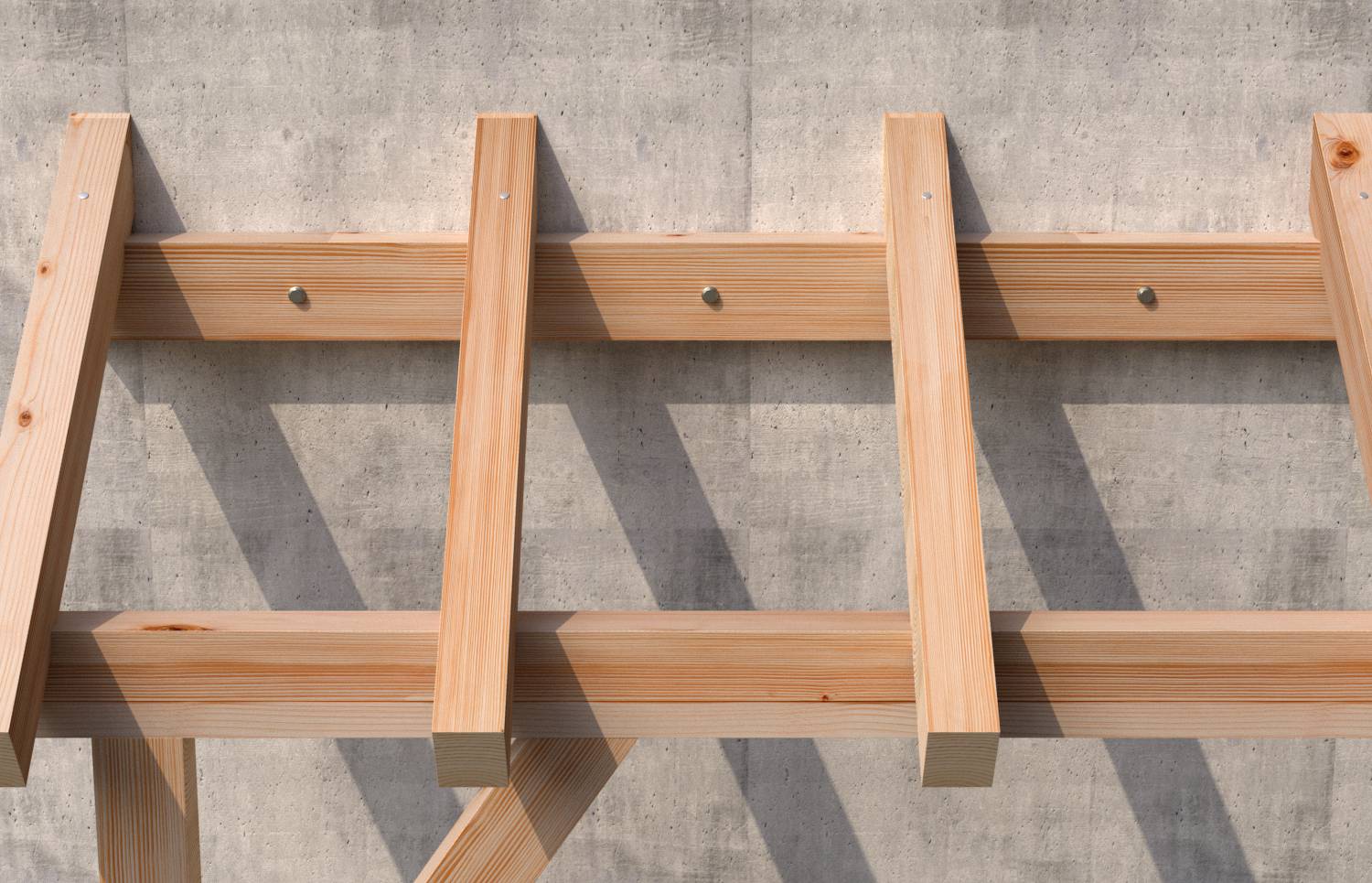

Wooden ladder-like rack mounted on a concrete wall, casting long diagonal shadows in sunlight.

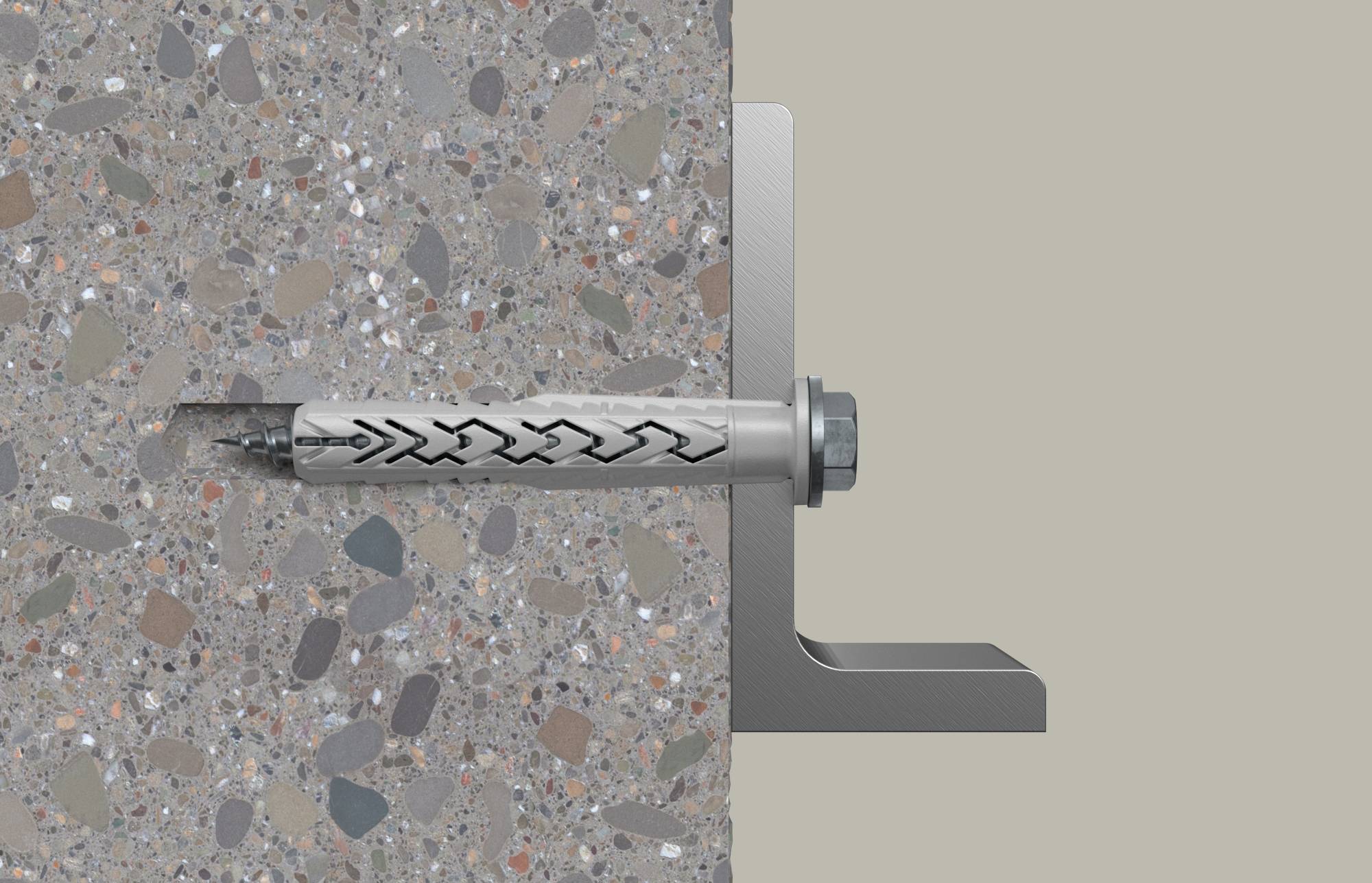

Cutaway of a concrete wall anchor: a metal expansion bolt inserted into concrete and secured to a bracket on the right.

1/4

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Fischer SXRL 10 x 60 FUS long shaft bolt with washer

- the long spreading element with multiple anchoring depth 50, 70 and 90 mm for SXRL 8 and SXRL 10 and 70 and 90 mm for SXRL 14 makes the SXRL a versatile product.
- The special geometry of the dowel distributes the holding forces evenly in the drill hole.
- the approval for single point fixing in cracked concrete makes the SXRL 10 a specialist in concrete and an economical alternative to steel anchors for applications such as fastening canopies and outside railings.
- when lowering, the longer ribs prevent the dowel from twisting during assembly.
- the SXRL 14 is additionally approved for applications that are subject to pressure and may be used for facade constructions that are mounted at a distance without wall bracket.
- the SXRL with working lengths up to 240 mm offers the right dowel for each application.

Technical specifications

(Ø): 10 mm

Product type: Dowel

Length: 60 mm

Dim: (Ø x L) 10 mm x 60 mm

Suitable for: Concrete

Content: 50 pc(s)

Outside Ø: 10 mm

Features: incl. safety screw

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2148398 Fischer 546506 Langschaftdübel SXRL 10x60 FUS Dowel 50 pc(s)

Description

the fischer SXRL long shaft dowel with up to three anchor depths is approved with the fischer hexagonal safety screw for multiple attachments of non-load-bearing systems in concrete, masonry and aerated concrete. The SXRL 10 is also approved for single point fixing in concrete, SXRL 14 for pressure-stressed distance constructions of facades. The two sprezzons of the dowel are applied uniformly in perforated masonry, and in aerated concrete and solid material they combine to form a long spreading element. This guarantees excellent load values. The extensive range with diameters of 8, 10 and 14 mm and dowel lengths up to 290 mm enable versatile applications. The SXRL with the cap screw and the molded washer is particularly recommended for fixing metal structures.

This text is machine translated.
