Fischer 546804 Putzdübel FIF-PN 8/80 Dowel 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Fischer FIF-PN 8/80 cleaning plug

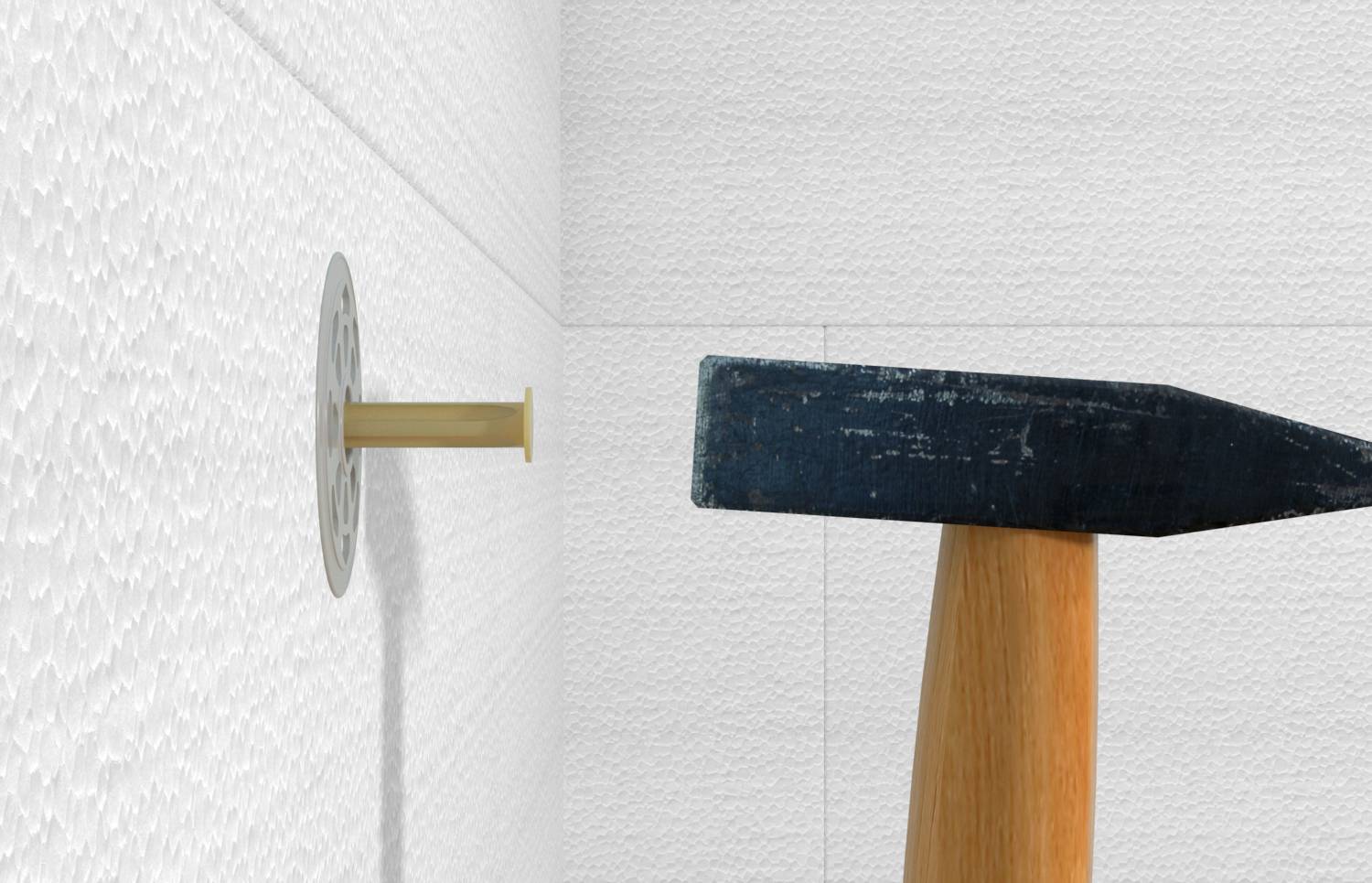

- With a few hammer strokes.
- Due to the plate thickness of only 2.5 mm, the plate fits optimally into the insulation. Thus, low-cost, thin reinforcement layers can be applied.
- Optimized holding forces by the nail made of glass-fiber reinforced plastic (GFK).

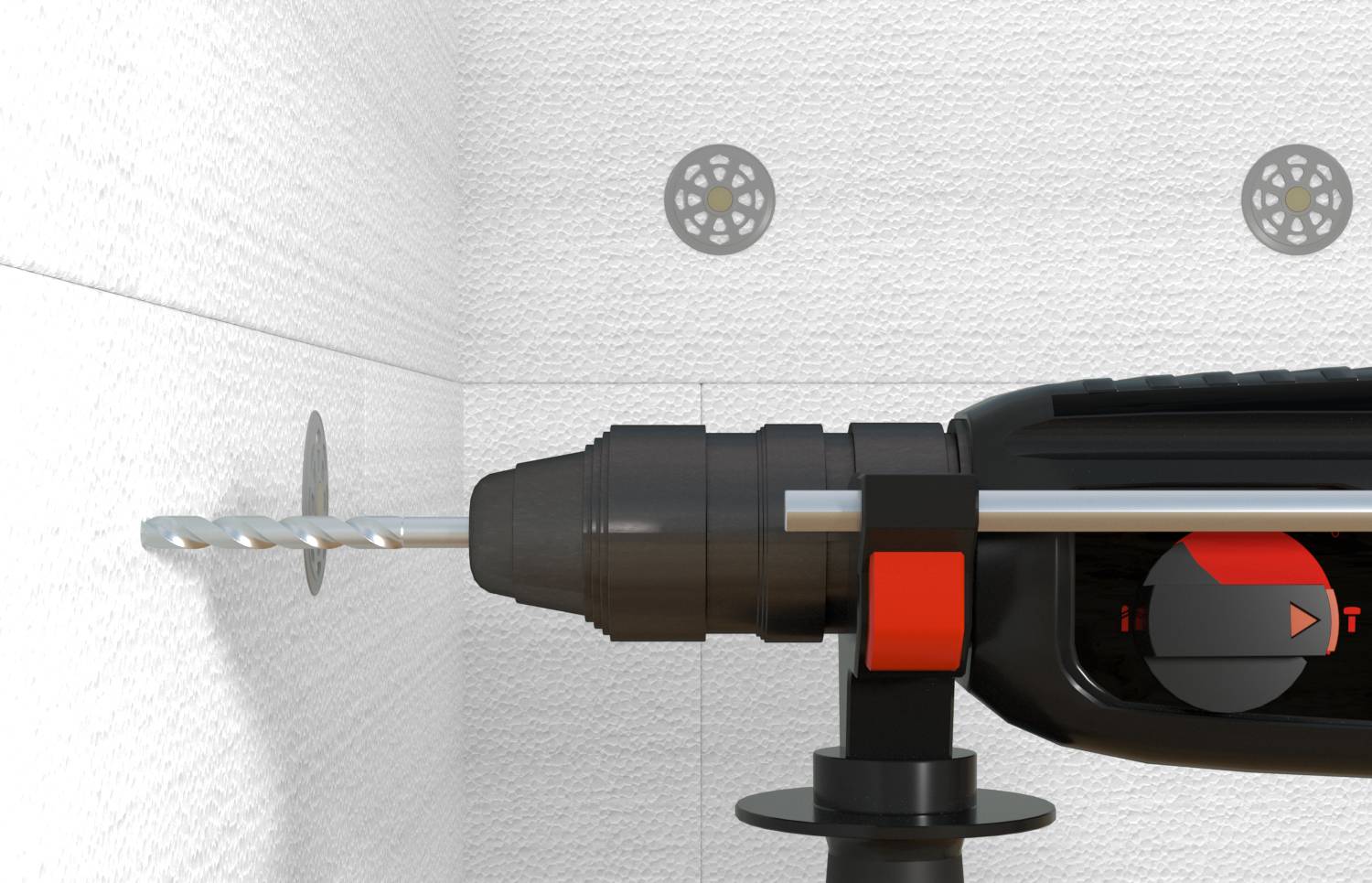

- Low insertion depth of 35 mm saves drilling times.
- The GFK nail makes the dowel heat-free with a Chi value of 0.000 [W/K].
- The compression zone in the shaft enables an exact plate feed into the insulation.
- For insulation thickness up to 180 mm.
Technical specifications
- (Ø)
8 mm
- Product type
Dowel
- Material
Plastic
GRP
Fibreglass
- Length
80 mm
- Dim
(Ø x L) 8 mm x 80 mm
- Suitable for
Concrete
Solid stone
Hollow bricks
- Content
100 pc(s)
- Outside Ø
8 mm
- Features
incl. plastic nail
- Material properties
fibreglass-reinforced
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2148344 Fischer 546804 Putzdübel FIF-PN 8/80 Dowel 100 pc(s)
Description

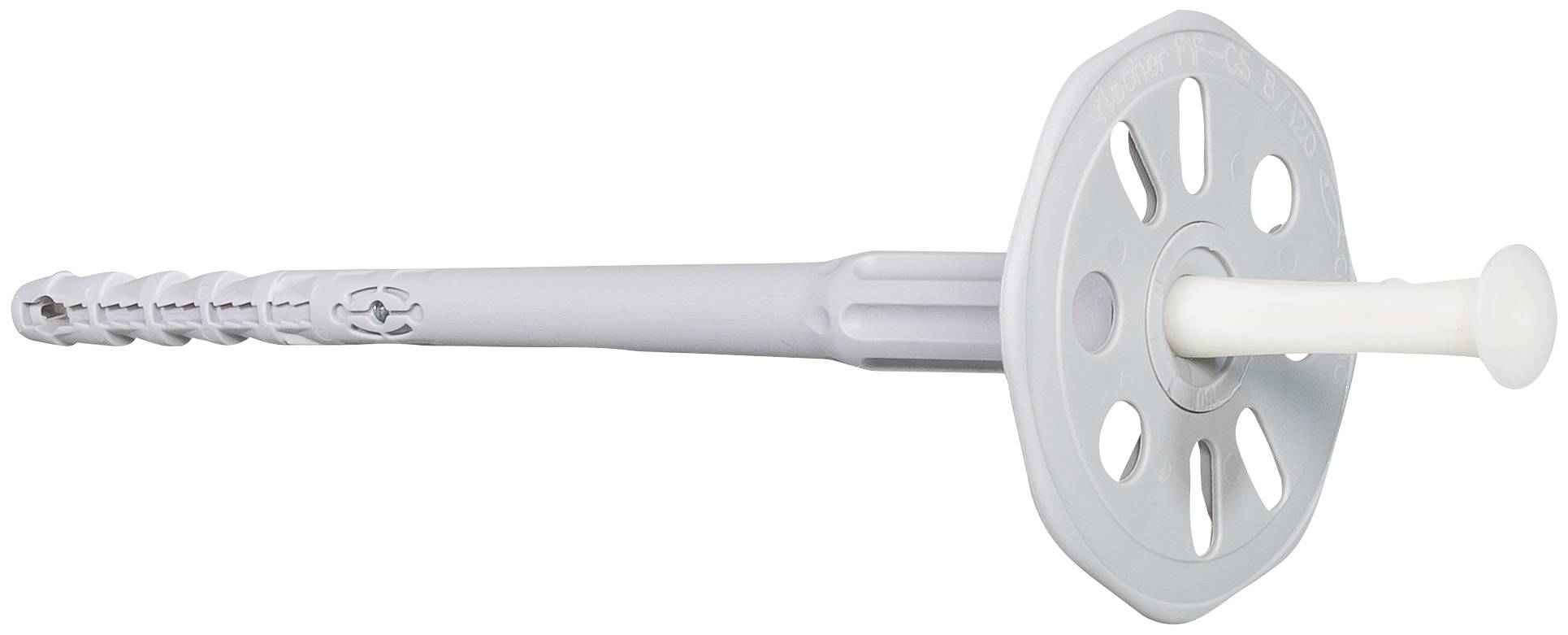

The ETA-approved fischer FIF-PN wall plugs are ideal for securely fixing pressure-resistant insulation materials up to 190 mm thick in the plaster facade such as polystirene panels, wood wool lightweight panels and PU hard foam plates in concrete, full and perforated stone. the fischer FIF-PN cleaning dowel consists of a gray dowel sleeve with an octogonal plate and a plastic nail. The FIF-PN is hit with a hammer. This saves time and costs. The integrated impact lock prevents premature spreading and enables trouble-free mounting. The glass-fiber reinforced plastic nail reduces the transmission heat and prevents markings on the plaster surface.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 100
