Fischer 547703 FIS A M Anchor rod 280 mm 14 mm 10 pc(s)

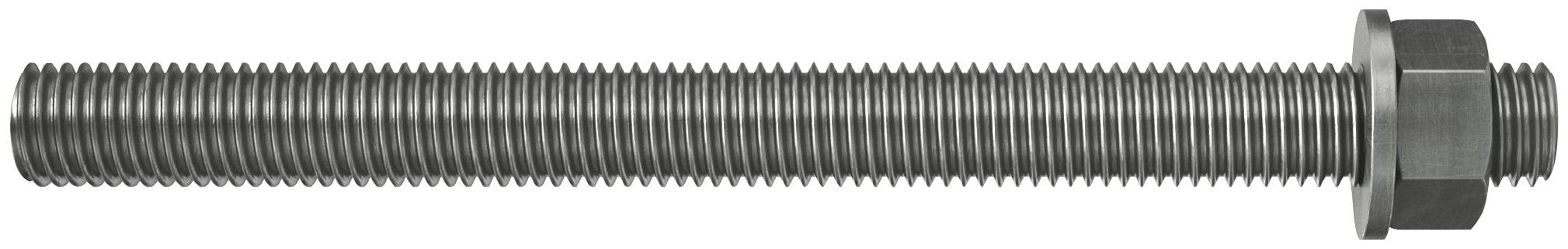

Long threaded bolt with a hex nut and washer on one end, shown horizontally on a white background.

Long threaded bolt with a hex nut and washer on one end, shown horizontally on a white background.

Close-up of a wooden truss frame with large diagonal braces and vertical posts under a blue sky, showing structural support construction.<br>

Blue steel pergola framework with beams and posts in front of a white tiled building facade with three windows.

Red steel column base plate bolted to a concrete floor with four anchor bolts.

Anchored threaded bolt embedded in a concrete slab, secured with a washer and hex nut on the right side.

Cross-section of a wall anchor bolt fixed in a brick wall, with a threaded bolt and expansion sleeve securing a bracket on the right.

Threaded anchor bolt embedded in concrete wall, secured by a nut and L-shaped metal bracket on the right.

A threaded anchor bolt extends through a wall and is secured on the right by a washer and hex nut against a metal bracket.<br>

1/8

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Thread: M12

(Ø): 14 mm

Product type: Anchor rod

Material: Steel

Length: 280 mm

Screw diameter: 12 mm

Dim: (Ø x L) 14 mm x 280 mm

Content: 10 pc(s)

Material properties: rust-proof

Documents & Downloads

Datasheet

Datasheet 2624692 Fischer 547703 FIS A M Anchor rod 280 mm 14 mm 10 pc(s)

User & Safety Instructions

User & Safety Instructions 2624692 Fischer 547703 FIS A M Anchor rod 280 mm 14 mm 10 pc(s)

Features

The universal solution for various fischer injection mortar. For a manageable range and simplified storageIn combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concreteOptimum load adjustment through variable anchoring depth. This reduces assembly and material costsStainless steel for outdoor use
This text is machine translated.

Description

Features

The universal solution for various fischer injection mortar. For a manageable range and simplified storageIn combination with the various fischer injection mortar approved for anchoring in cracked and uncracked concrete, solid stone masonry, perforated masonry and aerated concreteOptimum load adjustment through variable anchoring depth. This reduces assembly and material costsStainless steel for outdoor use
This text is machine translated.
