Fischer 548566 FFSII-RT6 5,0 x 70 A2 Panel anchors 5 mm 70 mm TX Stainless steel A2 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
fischer 5.0 x 70 countersunk stainless steel wood socket screw A2 internal thread TX
- High resistance to weathering and tannic acid
- Smooth, splice-free surfaces
- Suitable for wooden facades of all kinds
- No pre-drilling required thanks to cutting notch
Technical specifications
- Drive: Tx20
- Thread length: 42 mm
- Head diameter 7.8 mm
- Product type
Panel anchors
- Drive
TX
- Material
Stainless steel
- Thread size
5 mm
- (Ø)
5 mm
- Length
70 mm
- Head shape
Countersunk
- Dim
(Ø x L) 5 mm x 70 mm
- Content
100 pc(s)
- Material properties
A2
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472220 Fischer 548566 FFSII-RT6 5,0 x 70 A2 Panel anchors 5 mm 70 mm TX Stainless steel A2 100 pc(s)
Description
the fischer A2 FFSII-RT6 wood deck screw is a screw for fixing wood facades of all kinds. The screw made of stainless steel A2 with small countersunk head, partial thread and inner core mounting is used for the invisible screwing of wood profiles on wooden substructures – for example also for wood fences and view protection fences made of beech, Douglas fir, oak, spruce, pine or fir wood.
This text is machine translated.
This text is machine translated.
Features
- The 60° countersunk head with lower head ribs provides for a simple lowering of the head and provides an optically appealing picture of the screws
- It is ideally suited for non-visible screw connections in the spring The extra-deep bit seat ensures a secure hold of the tool in inside
- TX drives, was a high process safety when screwing, and the bit had a longer life
- the shank ribs widen the drill hole and reduce the tightening torque considerably
- This is especially suitable for screws with a long shaft for protecting the power and battery
- The middle double thread provides the unbraked propulsion of the screw
- Close-to-edges screw joints without pre-drilling are thus possible without any problem
- The cutting grooves in the first three-thread in combination with the fischer power fast high-performance sliding coating effectively reduce friction and thus lead to a much faster screwing-in process
- the special thread up to the tip provides for an extremely fast bite and thus prevents thawing of the screw already at the point
Hints

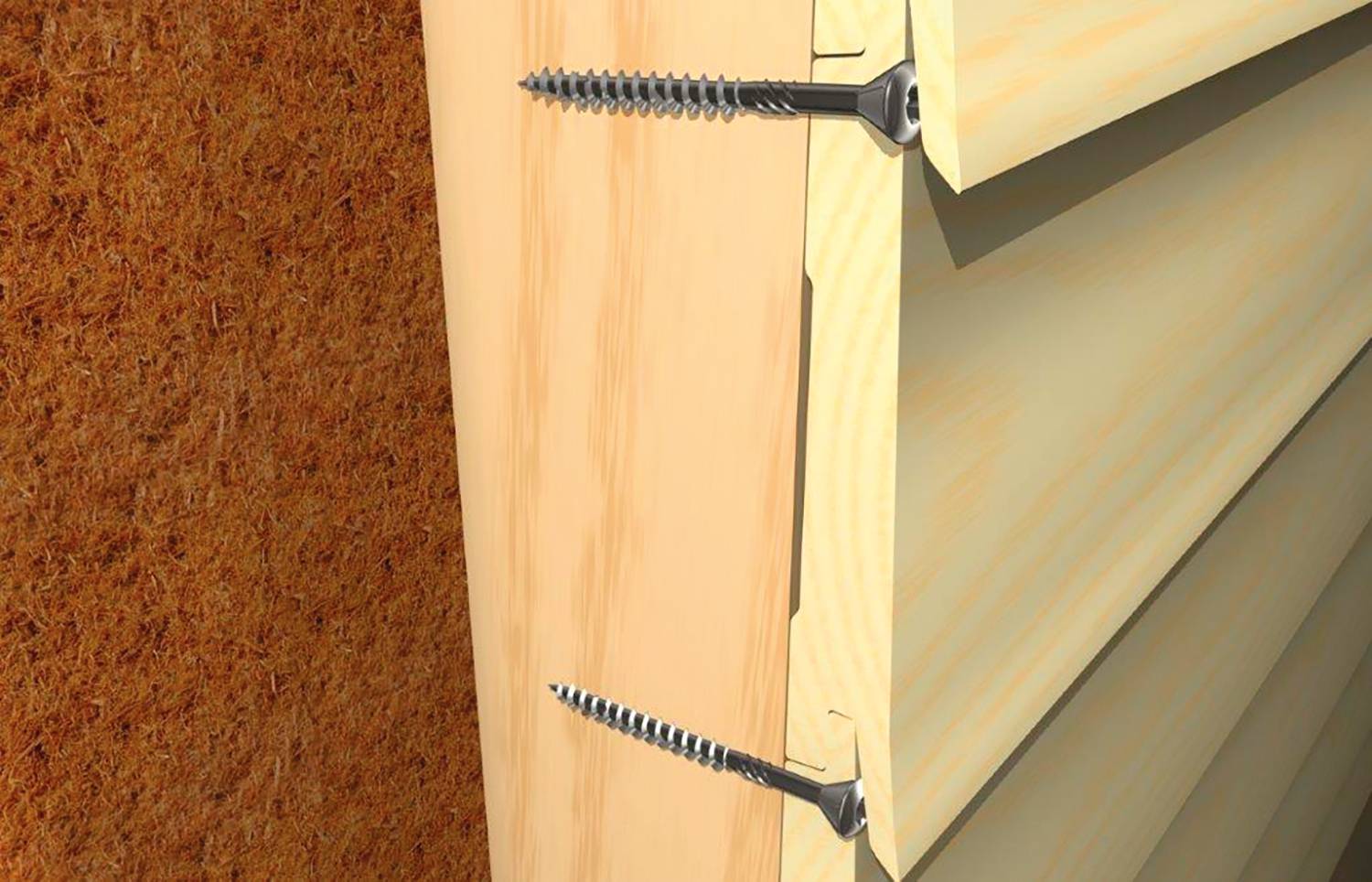

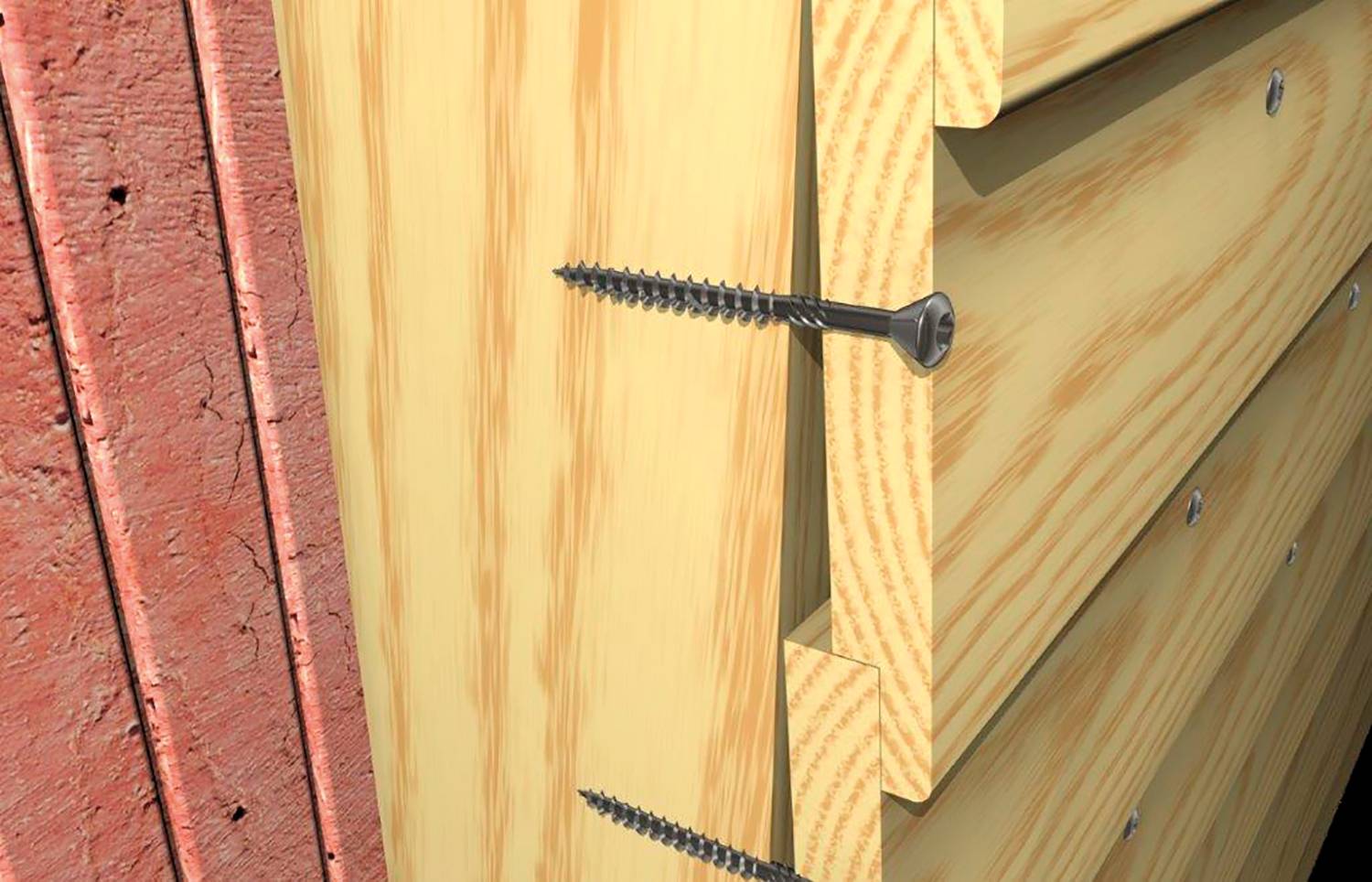

The wooden facade boards can be easily and permanently attached to the substructure with the fischer wood facade screw without pre-drilling.
