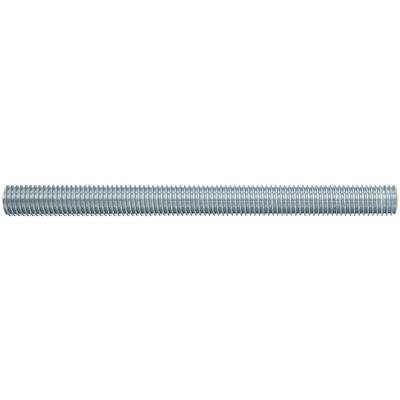

Fischer 551771 FIS A M 24 x 1000 Anchor rod 5 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

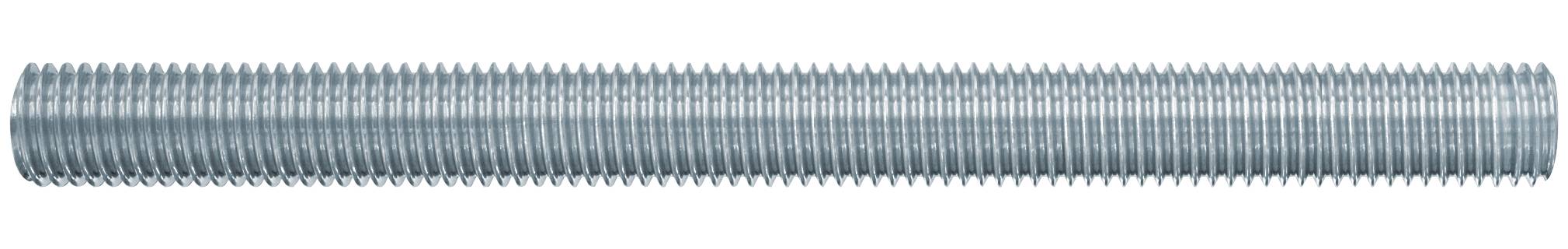

Fischer FIS A M 24 x 1000 galvanized galvanized steel quality 8.8 anchor rod
- The universal solution for various types of Fischer injection mortar. For a manageable range and simplified storage.

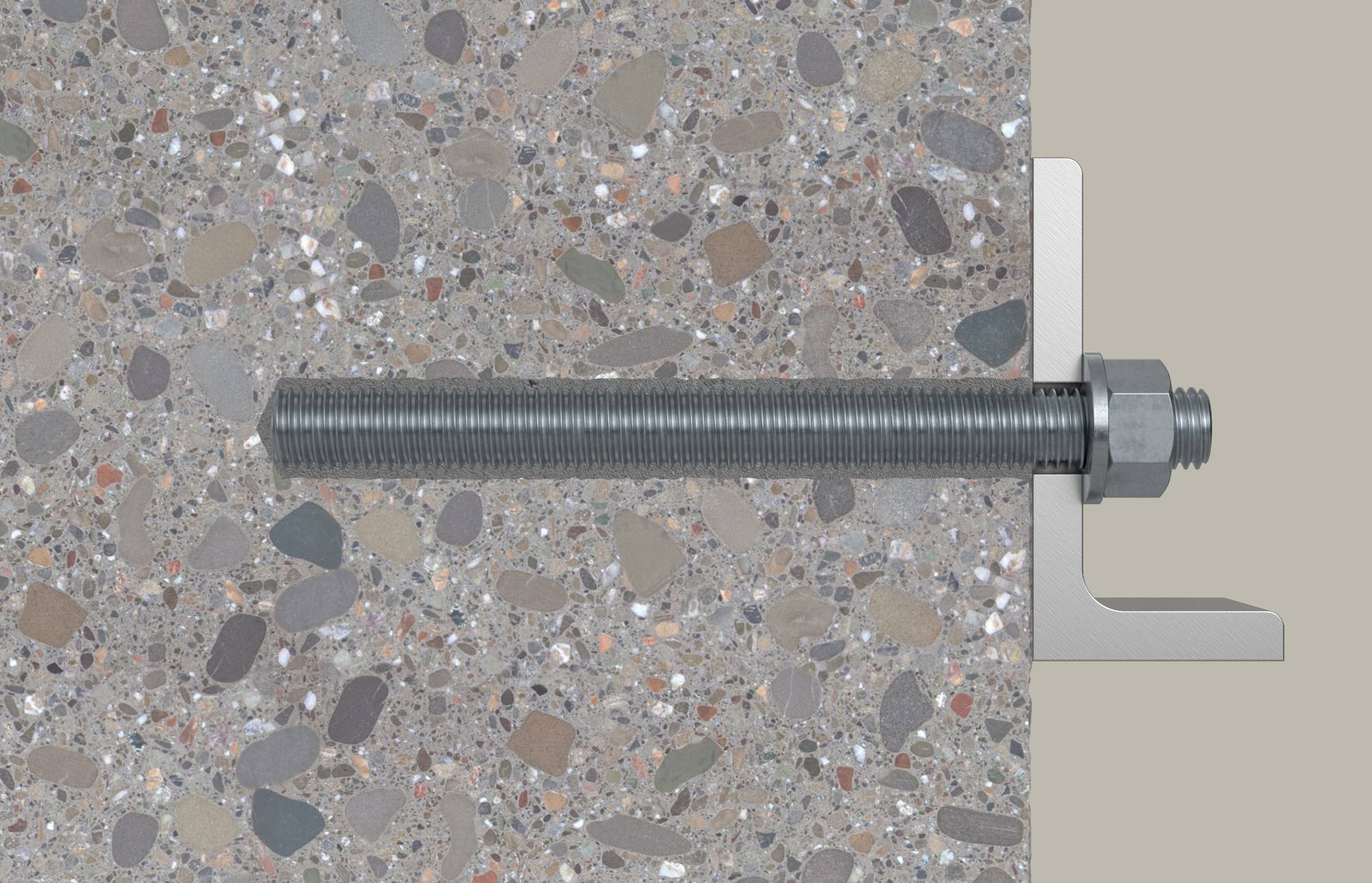

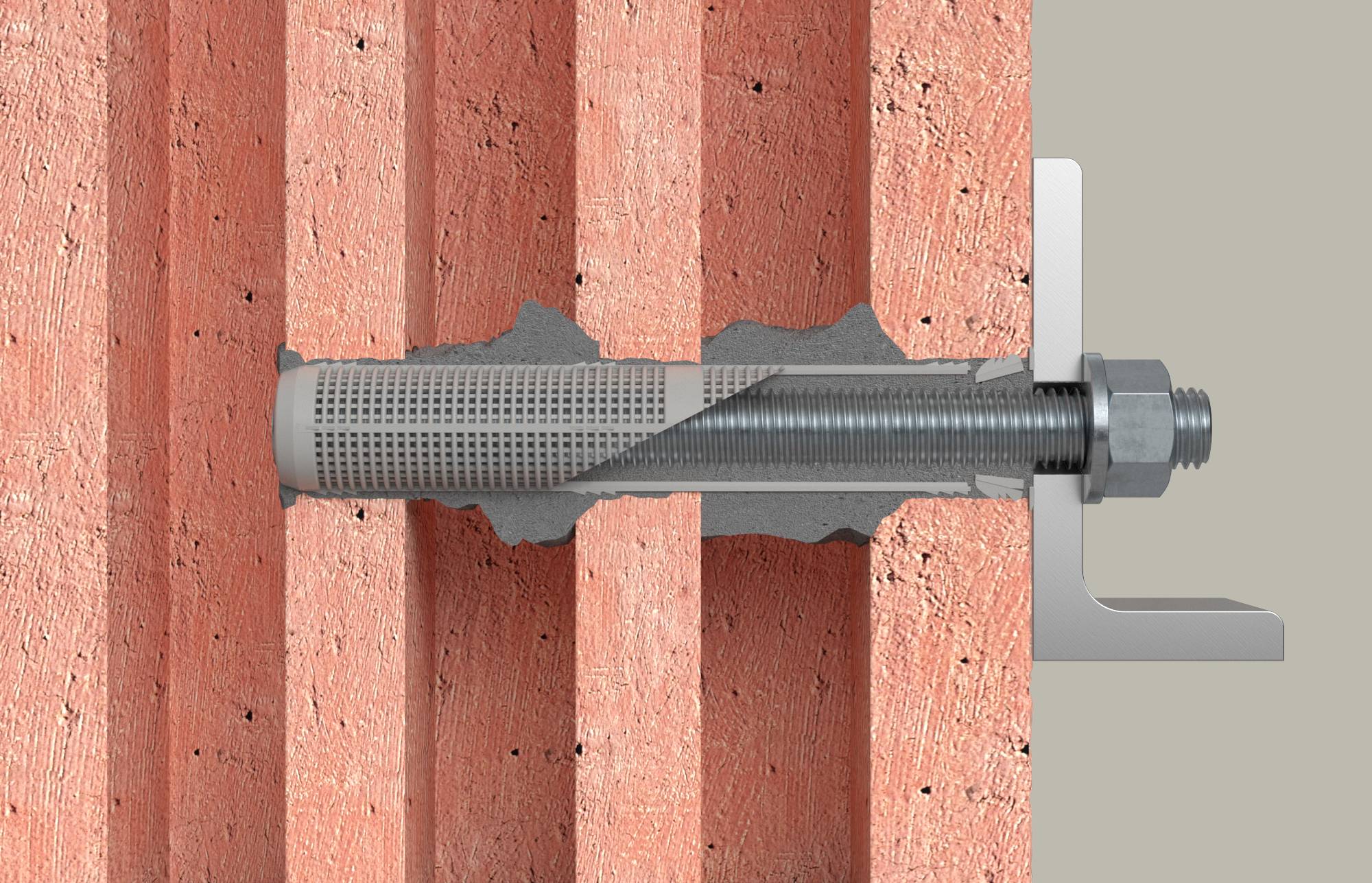

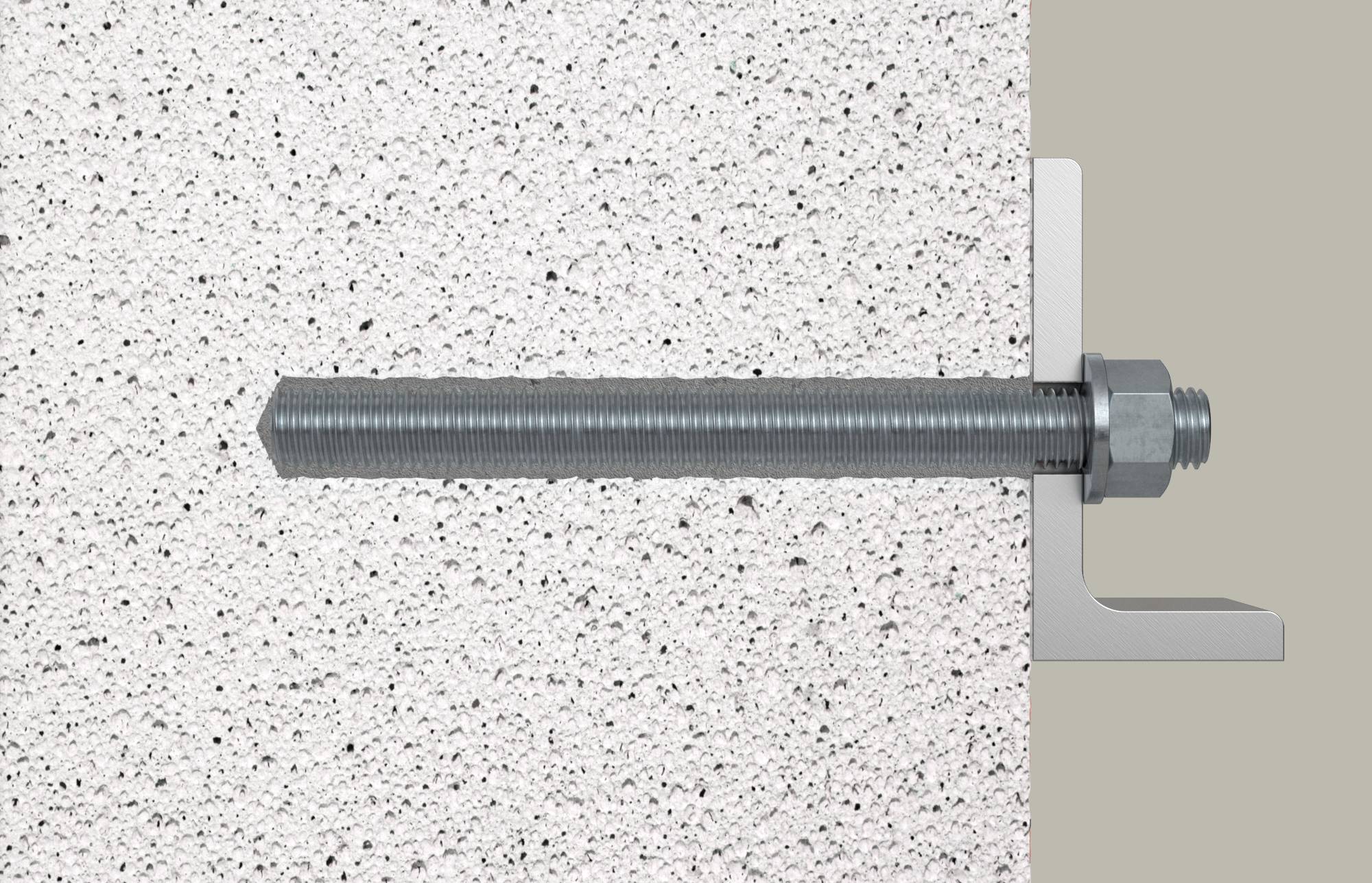

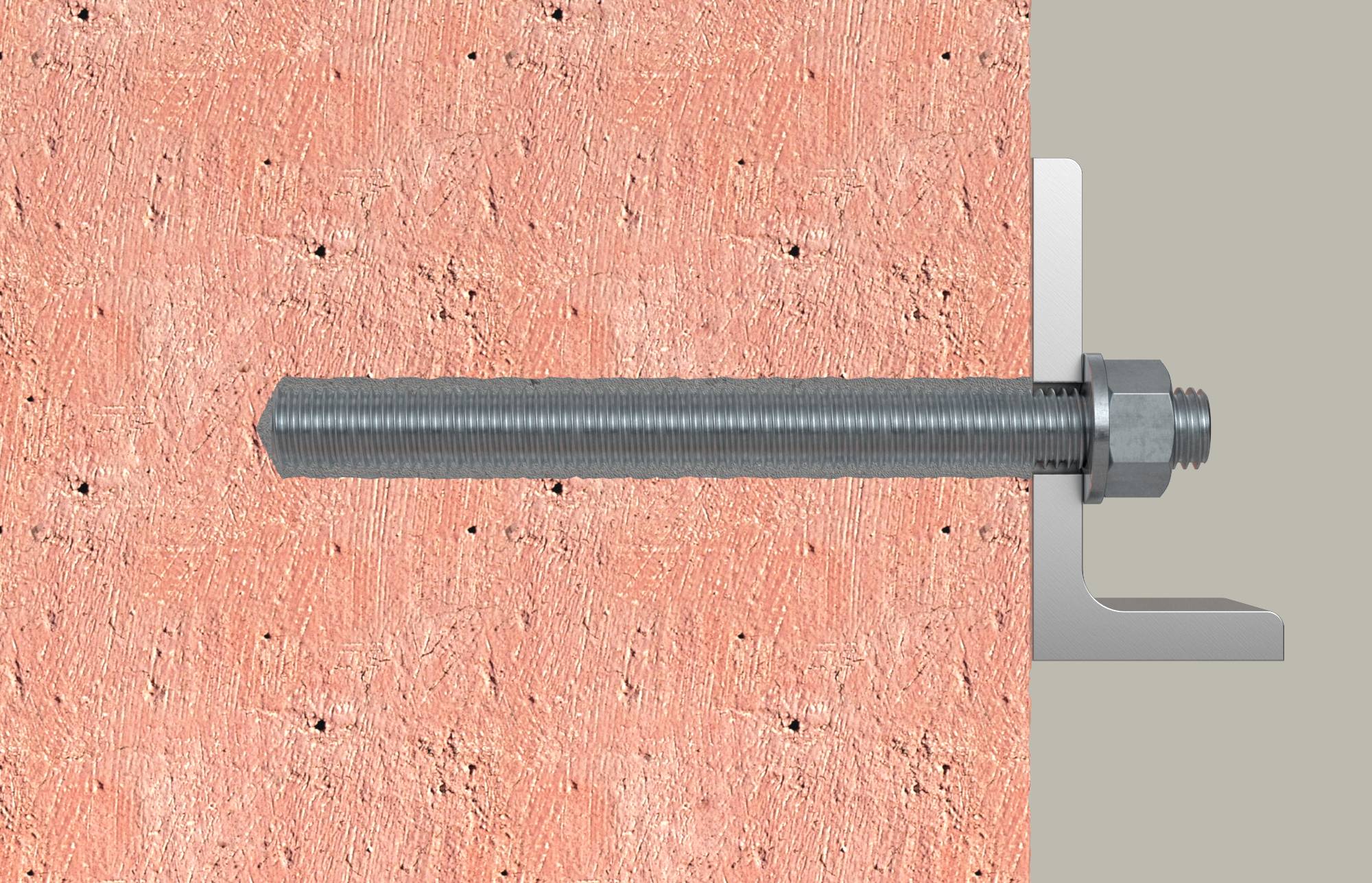

- In combination with the various fischer injection mortar approved for anchoring in cracked and untorn concrete, solid stone masonry, pebble stone masonry and porous concrete.
- Optimum load adjustment thanks to variable anchoring depth. This reduces installation and material costs.
Technical specifications
- Product type
Anchor rod
- Material
Steel
- Length
1000 mm
- Screw diameter
28 mm
- Suitable for
Concrete
- Content
5 pc(s)
- Outside Ø
24 mm
- Material properties
zinc galvanized
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2904151 Fischer 551771 FIS A M 24 x 1000 Anchor rod 5 pc(s)
Description
The Fischer FIS A anchor rod is made of galvanized steel of grade 8.8. The anchor rod is a system component for the various types of Fischer injection mortar. In combination with the injection mortar, the fischer anchor rod is suitable or approved for all surfaces. For the maximum load capacity of the system, thorough drill hole cleaning is recommended. The system, made of electroplated anchor rod in combination with fischer injection mortar, is suitable or approved for mounting in dry interiors.
This text is machine translated.
This text is machine translated.
Features
- The FIS A anchor rod can be used with almost all the fisher injection mortar (not with special high-bond mortar FIS HB) and can be selected individually according to your requirements. This enables a wide range of applications.
- The wide range of approved anchor rods FIS A from M6 to M30 opens up variable application possibilities.
- Please observe the approvals for each mortar.
- First dynamic load data in a ETA for anchoring light dynamic loads with threaded rods in cracked and untorn concrete in combination with FIS SB injection mortar and RSB reaction cartridge.
