Fischer 554066 FBS II 6x55 M6 Concrete screw 6 mm 55 mm Steel zinc galvanized 100 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

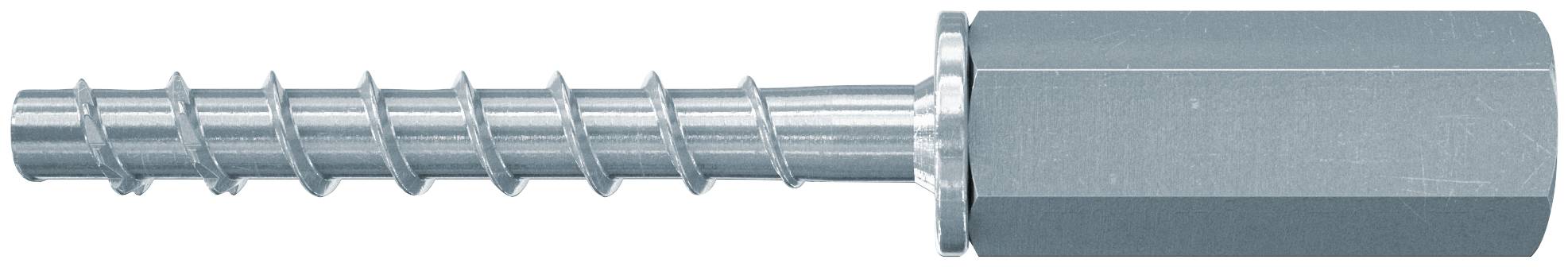

fischer UltraCut FBS II 6 x 55 M6 I internal thread
- The first concrete screw in diameter 6 with a variable screw-in depth offers a high flexibility and enables a millimeter-exact adjustment to the loads
- The ETA evaluation (option 1) regulates the use in cracked and uncracked concrete for the highest safety requirements
- The first concrete screw in diameter 6 with an ETA rating for the seismic power category C1 for an additional added safety
Technical specifications
- Drive: SW 13
- Through-hole mounting: Yes
- Screw-in depth 55 mm
- Min Drill hole depth for through-hole mounting: 65 mm
- Min Drill hole depth for pre-plug mounting: 65 mm
- Product type
Concrete screw
- Drive
Hex head
- Material
Steel
- Thread size
M6
- Content
100 pc(s)
- (Ø)
6 mm
- Length
55 mm
- Dim
(Ø x L) 6 mm x 55 mm
- Material properties
zinc galvanized
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472198 Fischer 554066 FBS II 6x55 M6 Concrete screw 6 mm 55 mm Steel zinc galvanized 100 pc(s)
Description

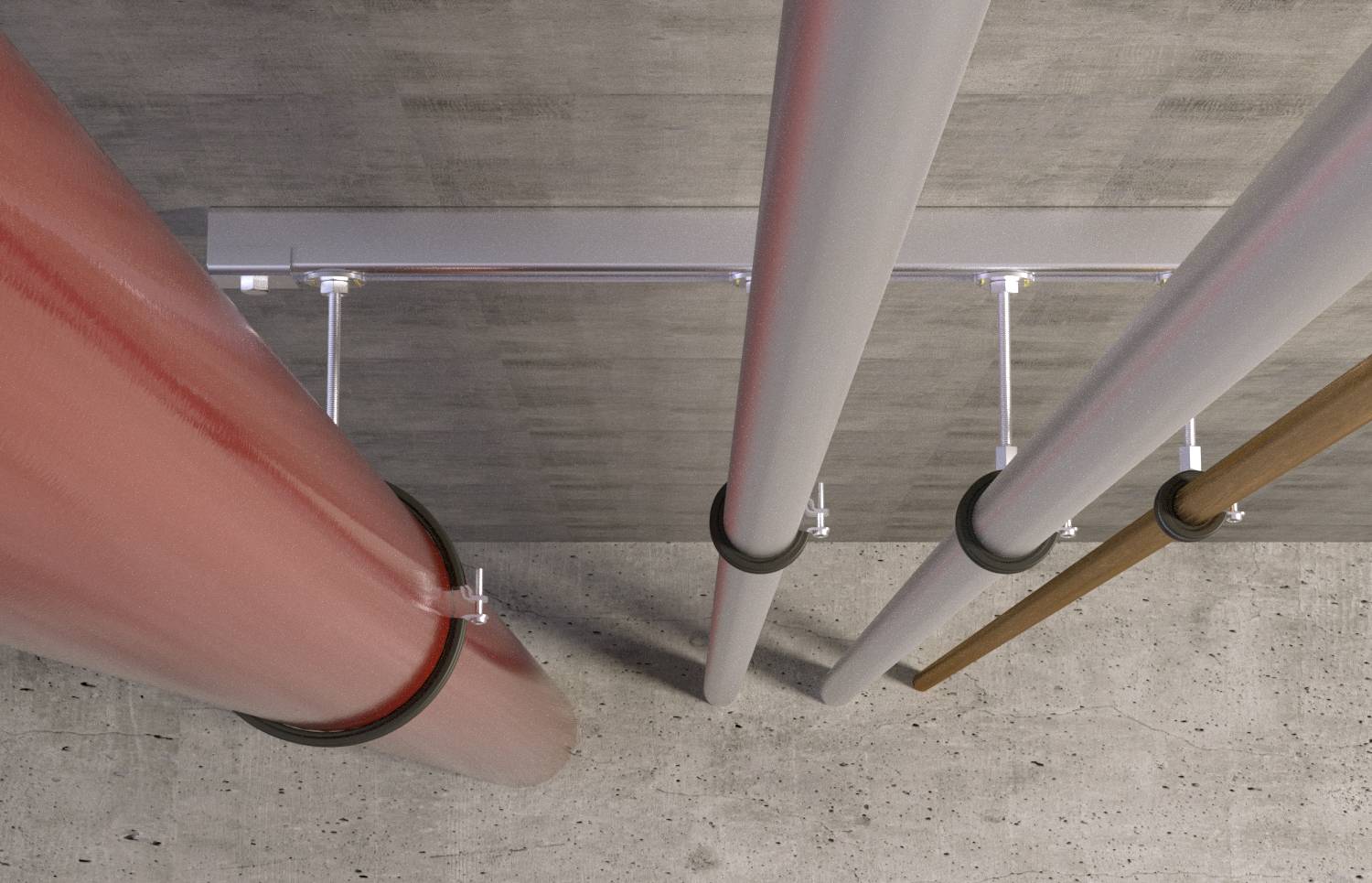

the fischer UltraCut FBS II 6 M6 I concrete screw is an anchoring solution made of galvanized steel with an internal thread connection. The UltraCut FBS II 6 M8/M10 I is ideal for mounting pipe rails, single pipe suspensions and suspended mounting rails for building technology. When the concrete screw is screwed into the drill hole with a impact wrench, the threaded flanks cut into the concrete in a positive way and ensure maximum load capacity. The low drilling effort saves time with the multiple attachment. The European Technical Assessment for cracked and uncracked concrete as well as for seismic loads and the fire suitability for the R 120 fire resistance class guarantee an additional increase in safety.
This text is machine translated.
This text is machine translated.
Features
- The first concrete screw in diameter 6 with a variable screw-in depth offers a high flexibility and enables a flexible adjustment to the loads
- ETA evaluation (option 1) regulates the use in cracked and uncracked concrete for the highest safety requirements
- the first concrete screw in diameter 6 with an ETA rating for the seismic power category C1 for an additional safety benefit The FBS II 6 has been approved for the multiple anchoring of non-load-bearing systems and is therefore ideal for anchoring pipes and cable trays in
- -concrete hollow ceilings
- For vertical mounting (in ceilings and floors), drill hole cleaning is not required for holes in the floor, 3x drill diameter must be drilled deeper
- the different head shapes offer maximum flexibility and optimum adaptation to a wide range of applications
- The construction of the concrete screw with step thread offers maximum flexibility when mounting threaded rods or connecting pieces
- the adjustment according to the approval allows the screw to be loosened twice for a total of 20 mm, to be placed under a maximum of 10 mm and to align the attachment part
- UltraCut FBS II 6 gvz concrete screw. Offers the possibility to use in masonry (solid material)
