Fischer 554253 Pipe clamp MASSIVE PIPE CLAMP FRSM 102 M10/M12 20 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

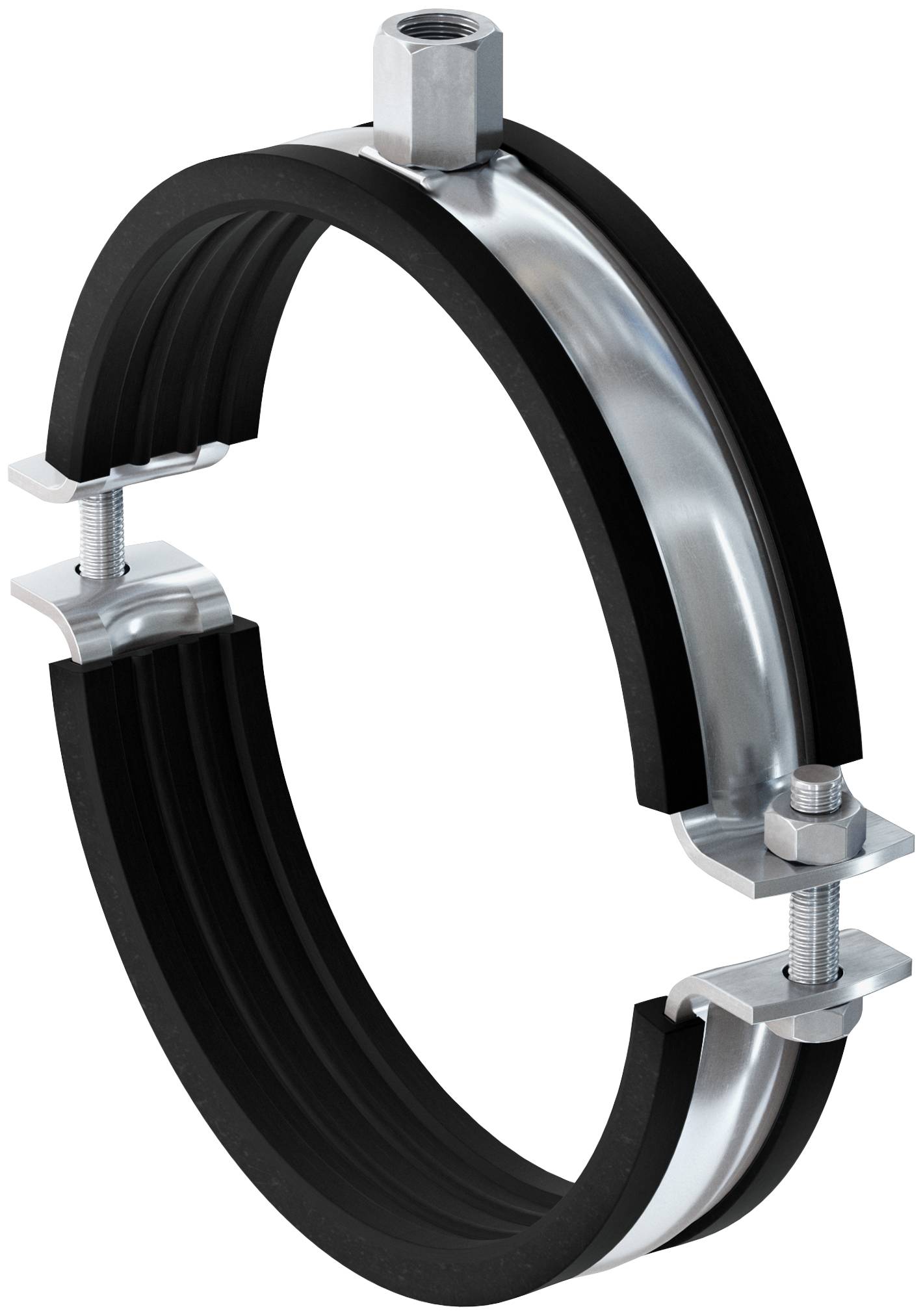

MASSIVE PIPE CLAMP FRSM 102 M10/M12
- Two-screw design for optimized adaptation to the outer diameter of the pipe
- Loss protection of the screw
- Connection nut with combination thread M10/M12
- Sound-absorbing insert
Technical specifications
- Width x thickness of clamp band: 30 x 3.0 mm
- Load level: Heavy
- Thread reduction: M10/M12
- Height Z 82 mm
- Max. recv. Static load (central train): 3.00 kN
- Screw plug: M8
- Insulation: Sound insulation
- Product type
Pipe clamp
- Content
20 pc(s)
- Material
Steel
- Clamping range
100 up to 106 mm
- Thread
M10 - M12
- Material properties
zinc galvanized
- Width
166 mm
- Height
143 mm
- (Ø)
102 mm
- Range (max.)
106 mm
- Clamping range (min.)
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472186 Fischer 554253 Pipe clamp MASSIVE PIPE CLAMP FRSM 102 M10/M12 20 pc(s)
Description

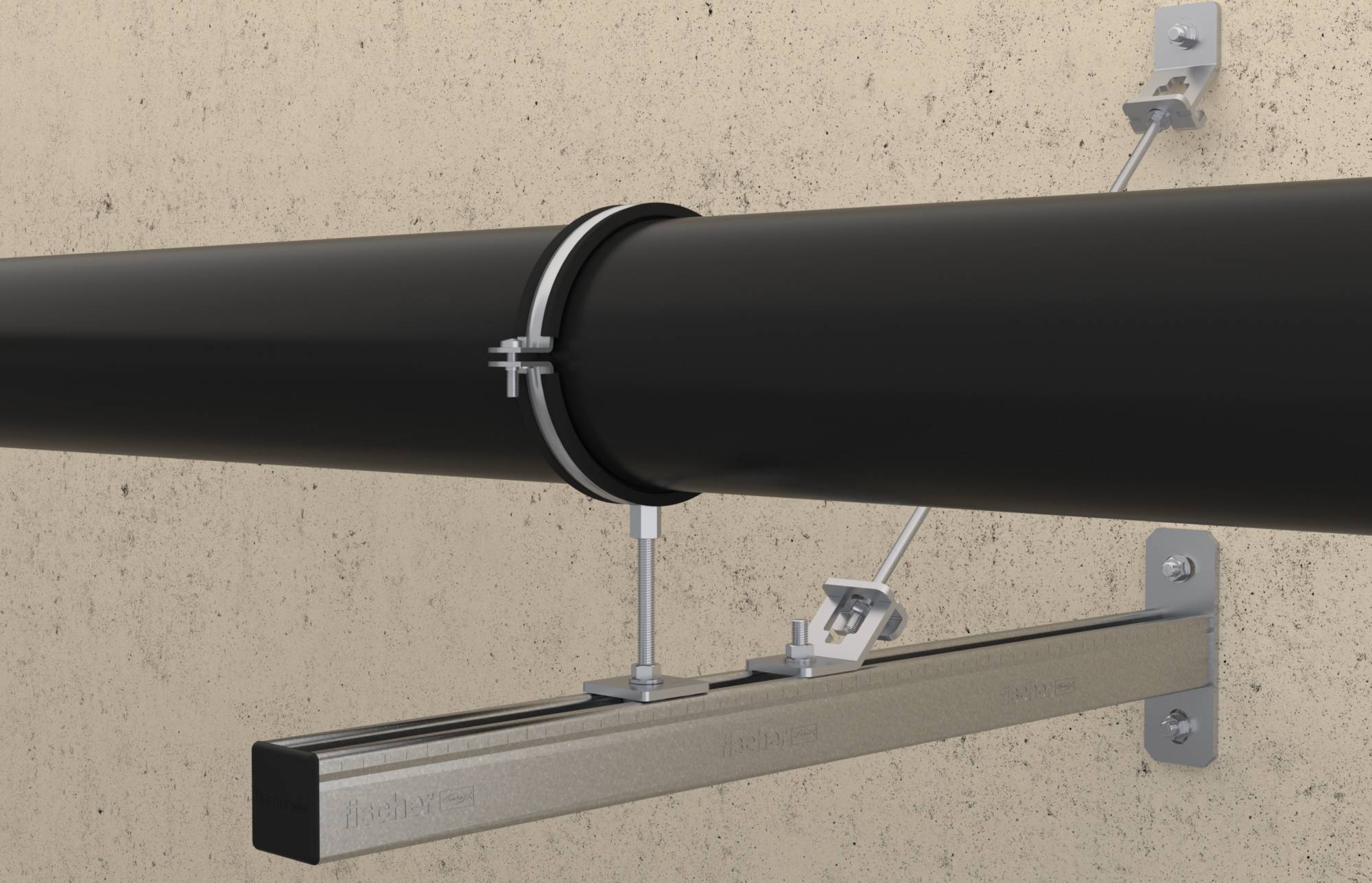

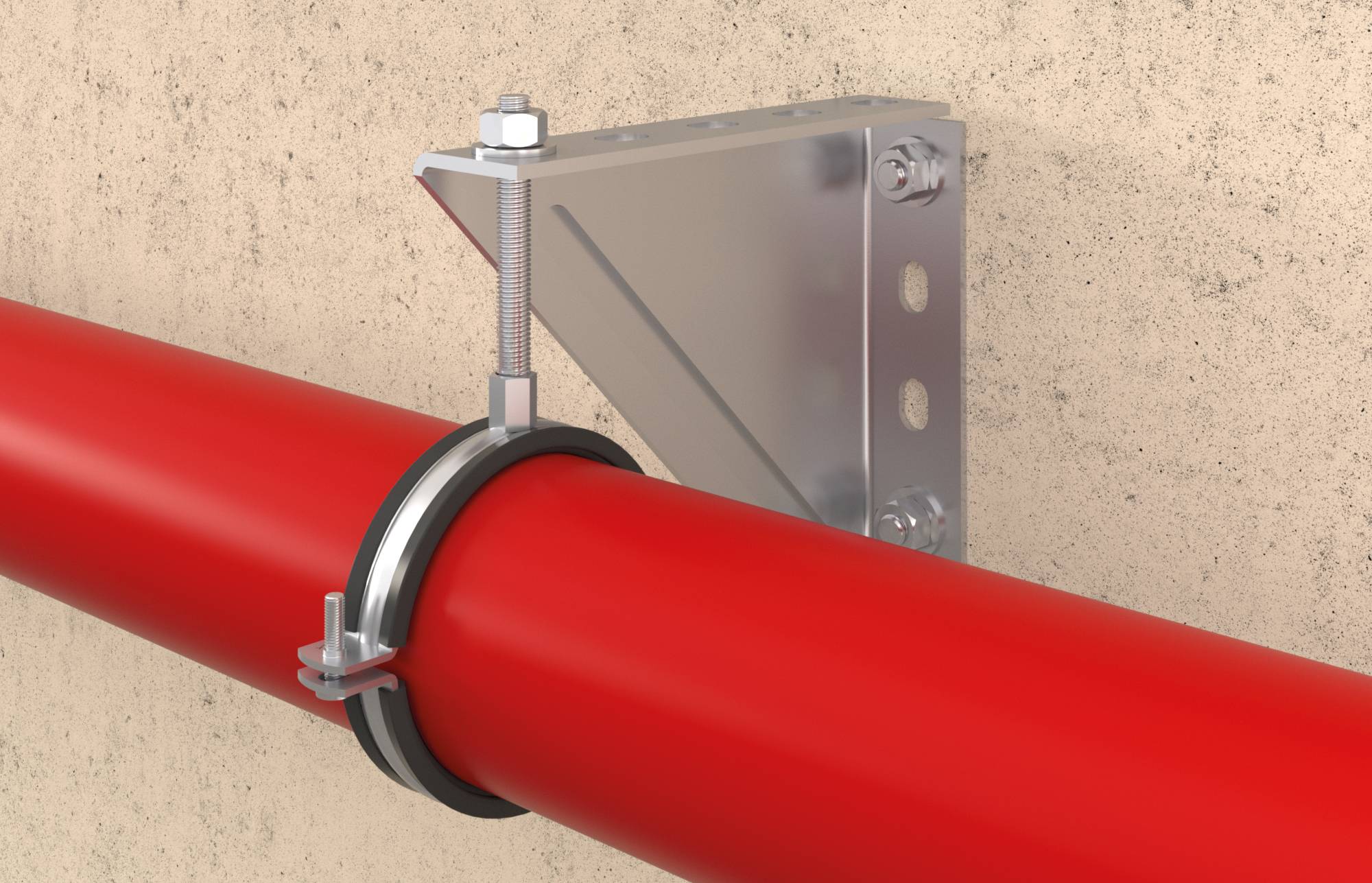

the fischer FSM 102 M10/M12 solid pipe clamp with sound insulation insert for fixing medium to heavy pipes with threaded rods or stock screws. The two-screw design allows optimized adaptation to the outer diameter of the pipe. Connection nut with combination thread M10/M12 for holding threaded rods or stock screws. Pipe clamp screws with loss protection.
This text is machine translated.
This text is machine translated.
Features
- High tested loads guarantee the safe function of the FRSM
- the connecting nut with combination thread M10/M12, M12/M16 or M16 enables an optimized storage
- the perforated clamp tape enables mounting with 2 threaded rods starting from Ø 124mm, e.g. for fixing cast roof drainage lines
- the two-screw design allows optimized adaptation to the outer diameter of the pipe
- The loss protection of the screws ensures a problem-free installation
