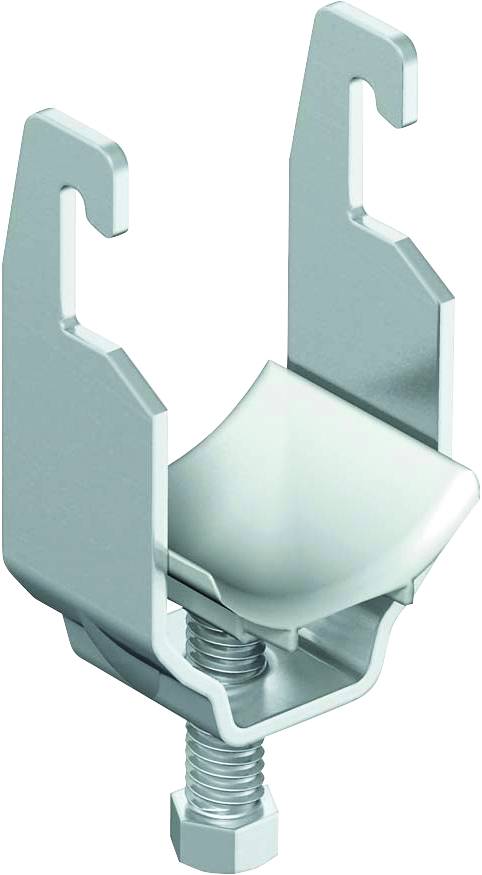

Fischer 558148 Bracket clamp Bracket clamp FUBD 48 50 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Width x thickness of clamp band 25 x 2.0 mm
- Locking screw: M 8 x 30
- Product type
Bracket clamp
- Content
50 pc(s)
- Clamping range
44 up to 48 mm
- Width
25 mm
- Height
85 mm
- Range (max.)
48 mm
- Clamping range (min.)
44 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472139 Fischer 558148 Bracket clamp Bracket clamp FUBD 48 50 pc(s)
Description
the fischer FUBD bracket clamp is the time- and cost-saving pipe and cable clamp for the direct attachment of cables to the fischer FUS mounting rails in buildings. The FUBD without sound insulation insert is ideal for fixing cables made of metal, plastic or cables with an external diameter of 35 - 100 mm. In the pre-mounted bracket clamp, a pressure pan is placed on a screw plug, which ensures optimum adaptation to the outside diameter of the cable and also serves as a fixing aid. This means that no additional accessories such as threaded rods or sliding nuts are required. This saves time and costs.
This text is machine translated.
This text is machine translated.
Features
- The FUBD without sound insulation insert is optimally applicable for industrial applications, e.g. for the attachment of light flexible media lines in the immediate area of production machines
- Locking screw with hexagonal head SW10 and slot drive
- rapid adaptation to the desired outer diameter of the pipe by locking the pressure pan
- No loss of parts of the clamp due to pre-assembled individual parts
- Time and cost-saving installation without additional accessories such as threaded rods or sliding nuts
