Name: Fischer 558228 FBS II 14x240 175/155/125 US Concrete screw 14 mm 240 mm 10 pc(s)
Brand: Fischer
SKU: 2472127

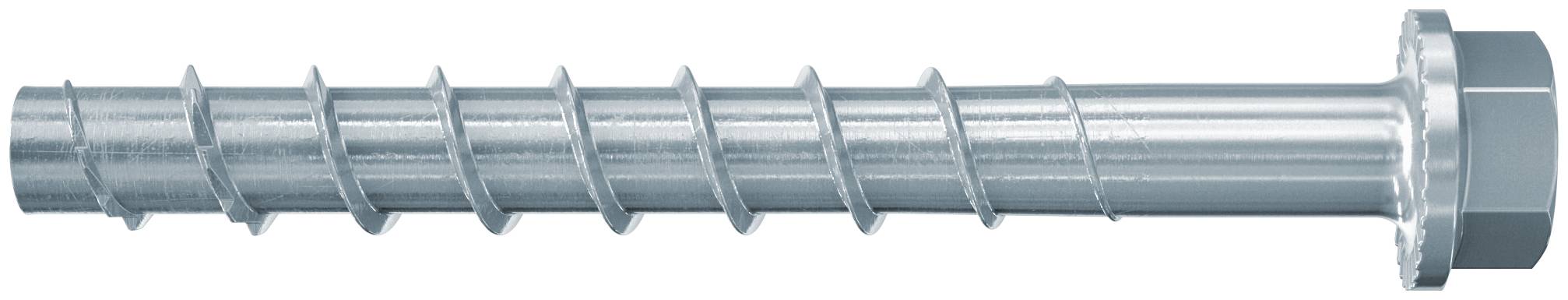

A shiny metal auger or screw conveyor shaft with helical blades and a hexagonal end fitting, shown on a white background.

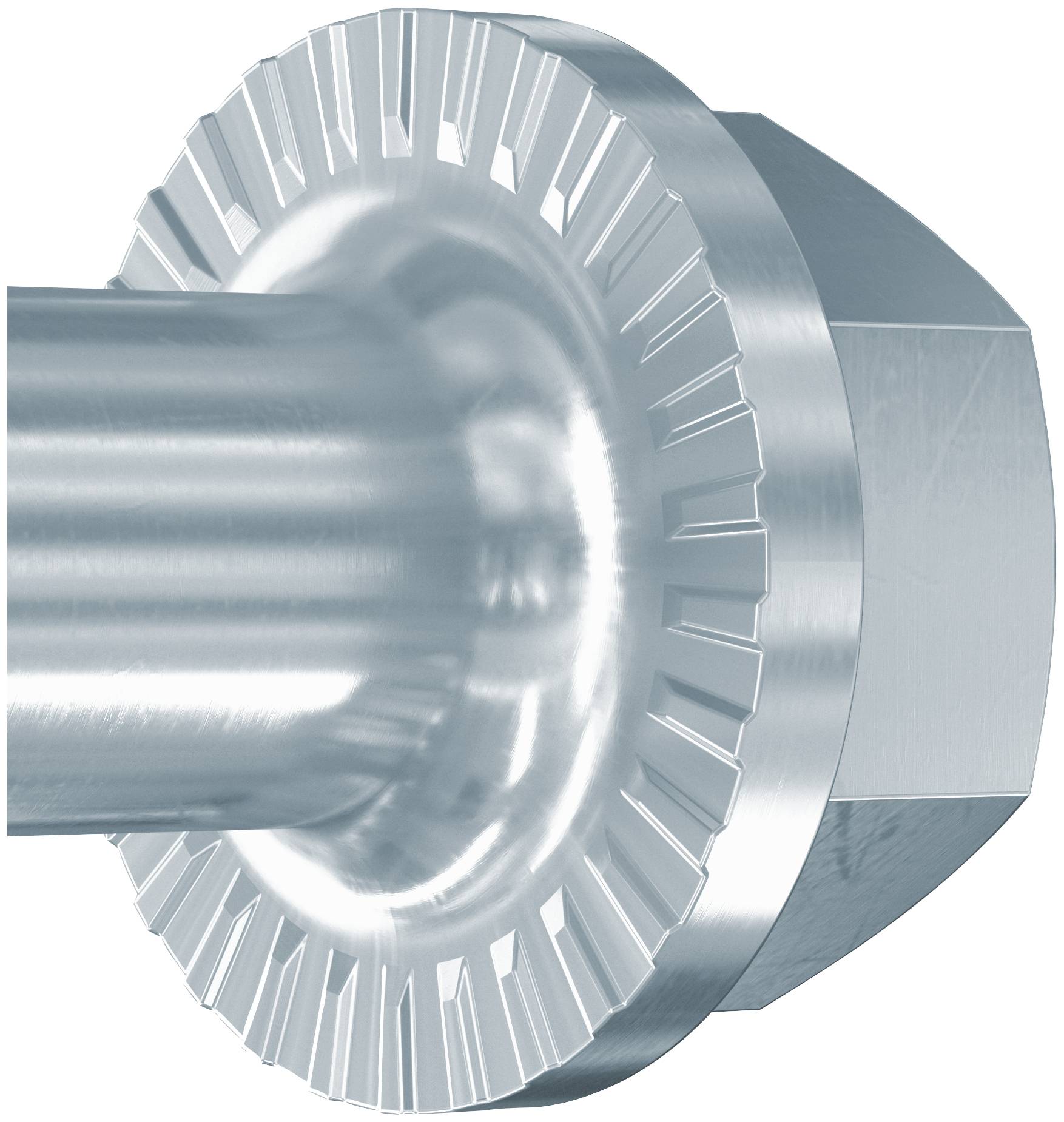

Close-up of a metallic bolt with a washer, showing the threaded shaft and hex nut.<br>

Close-up of a metallic bolted fastener with engraved 'EBS 1100' on the head, shown against a white background.

Metal staircase and landing with silver railings against a concrete wall, viewed from below.<br>

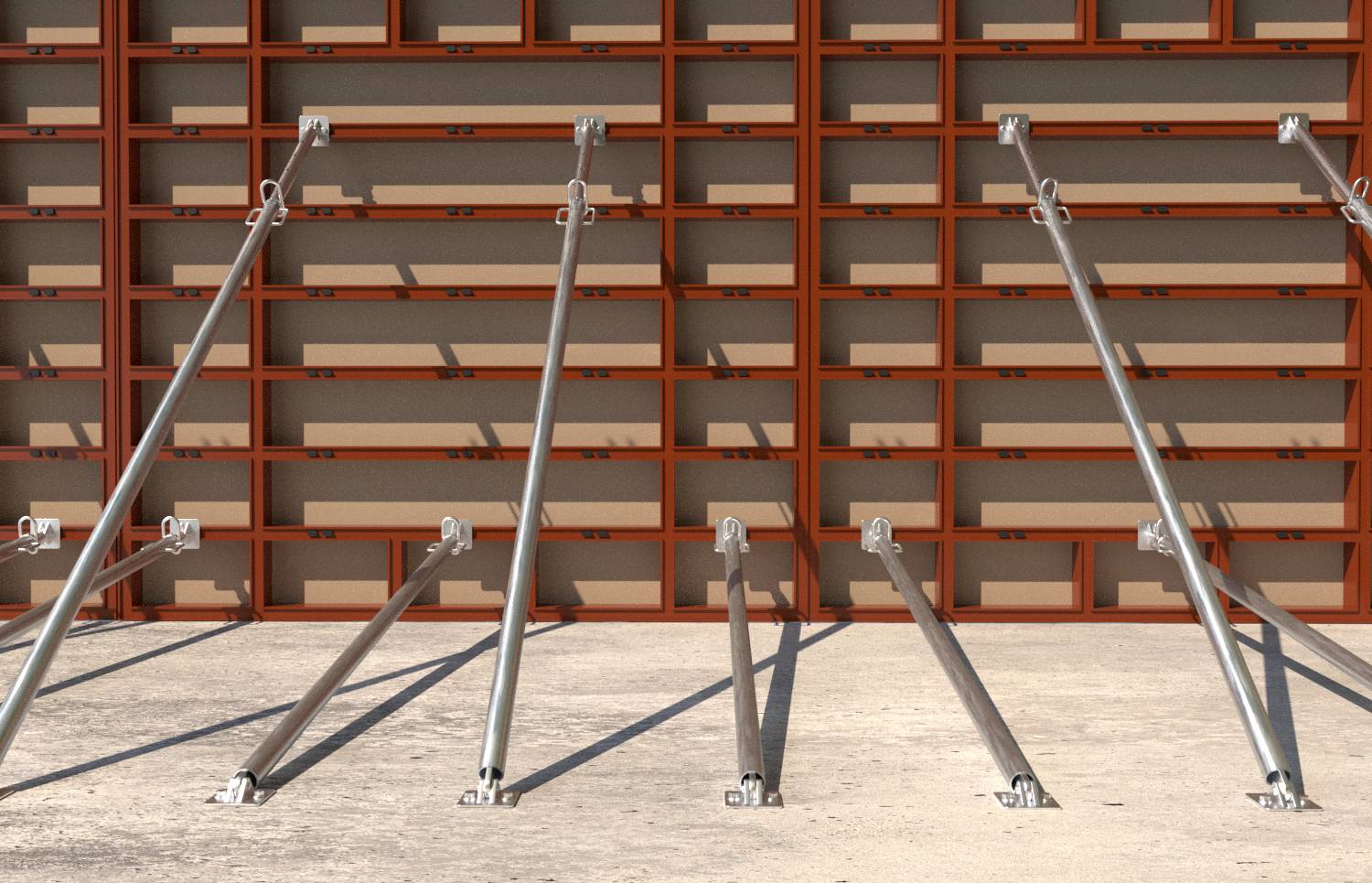

Metal support struts brace a slatted wall, anchored to the concrete floor in a structural construction detail.

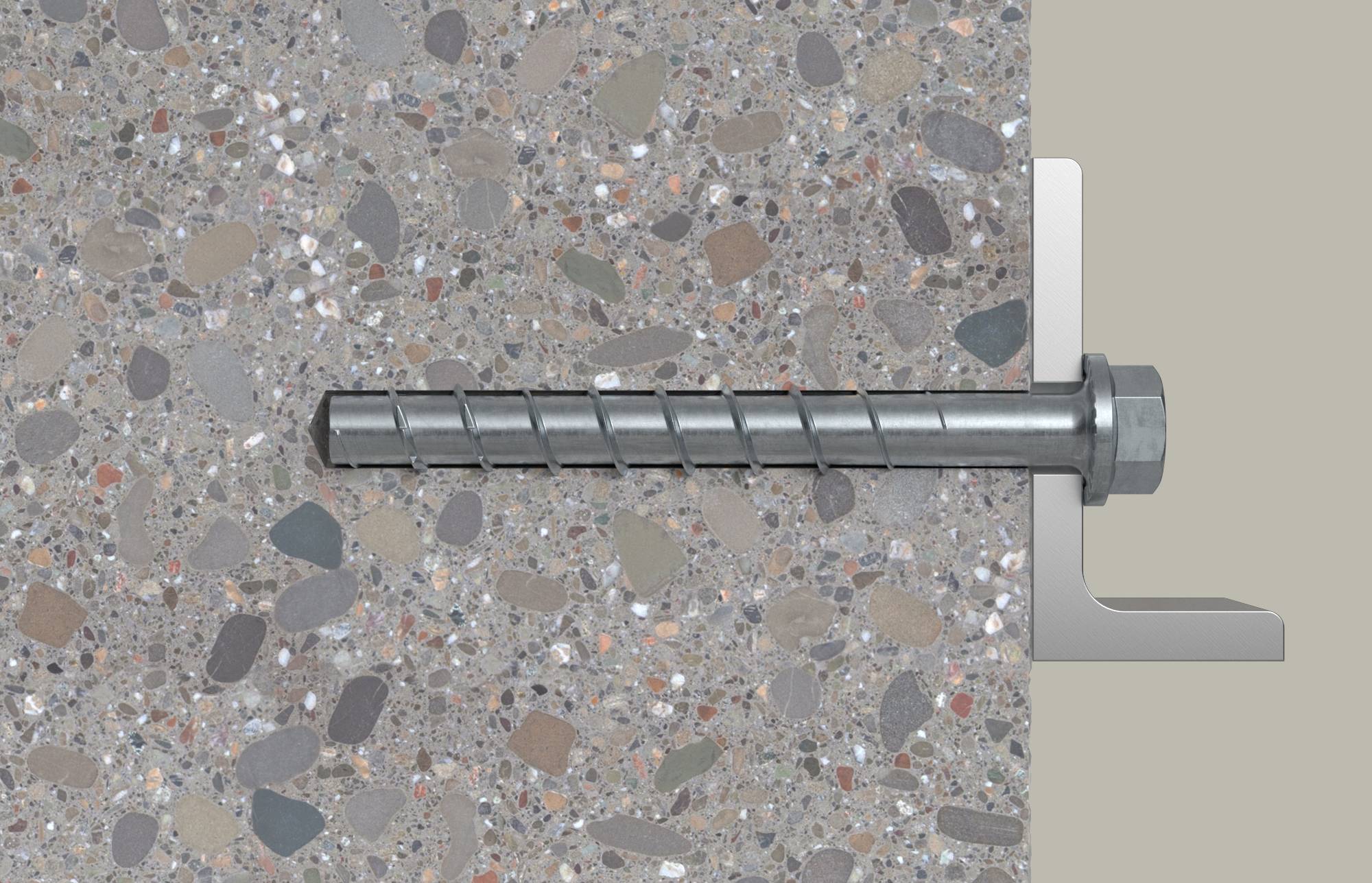

Close-up diagram of a metal anchor bolt embedded in concrete, with a threaded end secured by a washer and nut against a bracket.

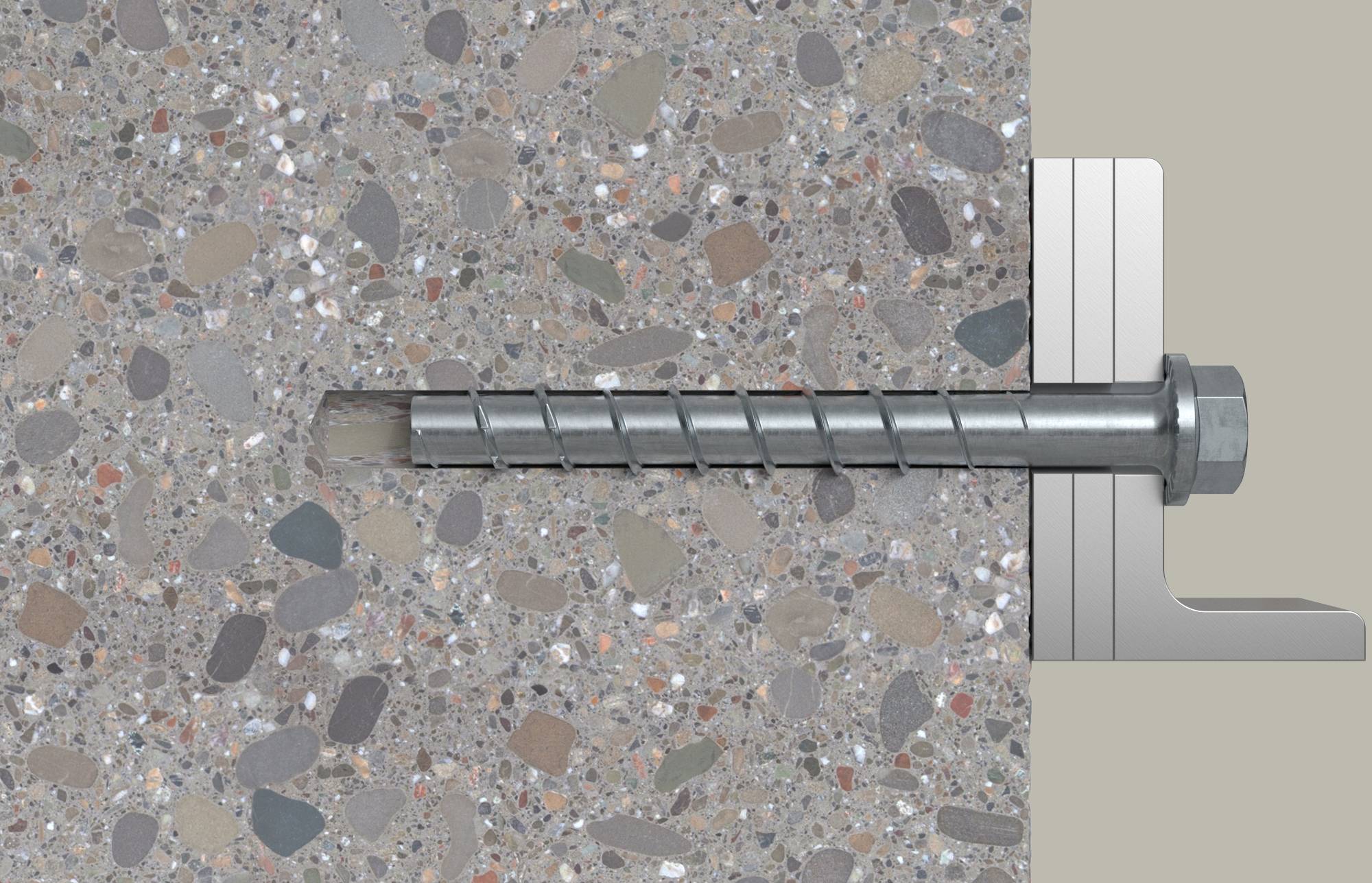

Steel anchor bolt embedded in concrete wall, shown in cross-section with threaded end and washer at the surface.

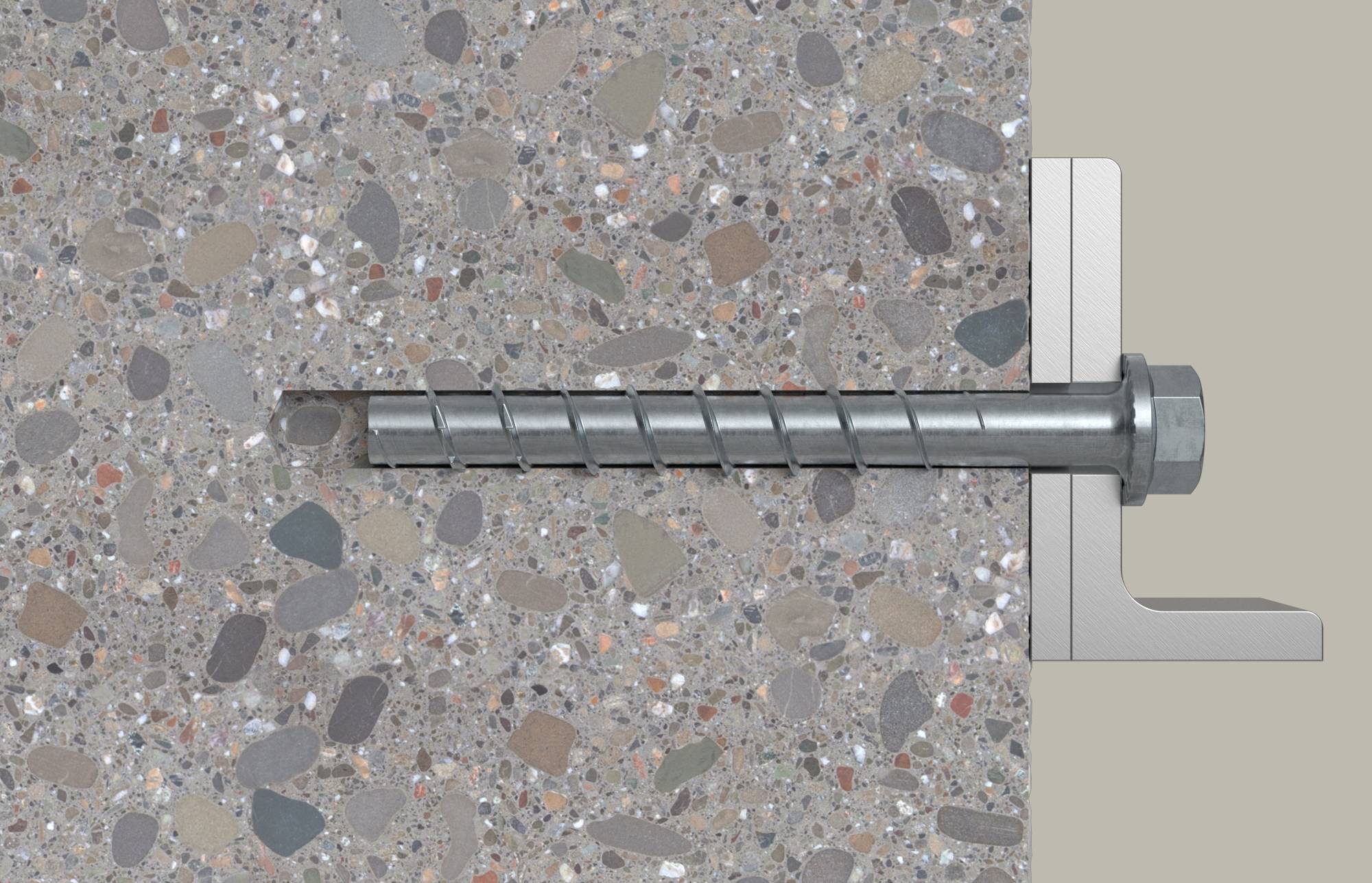

Concrete anchor bolt installed in a drilled hole, with threaded end and hex nut visible at the right edge of the wall.

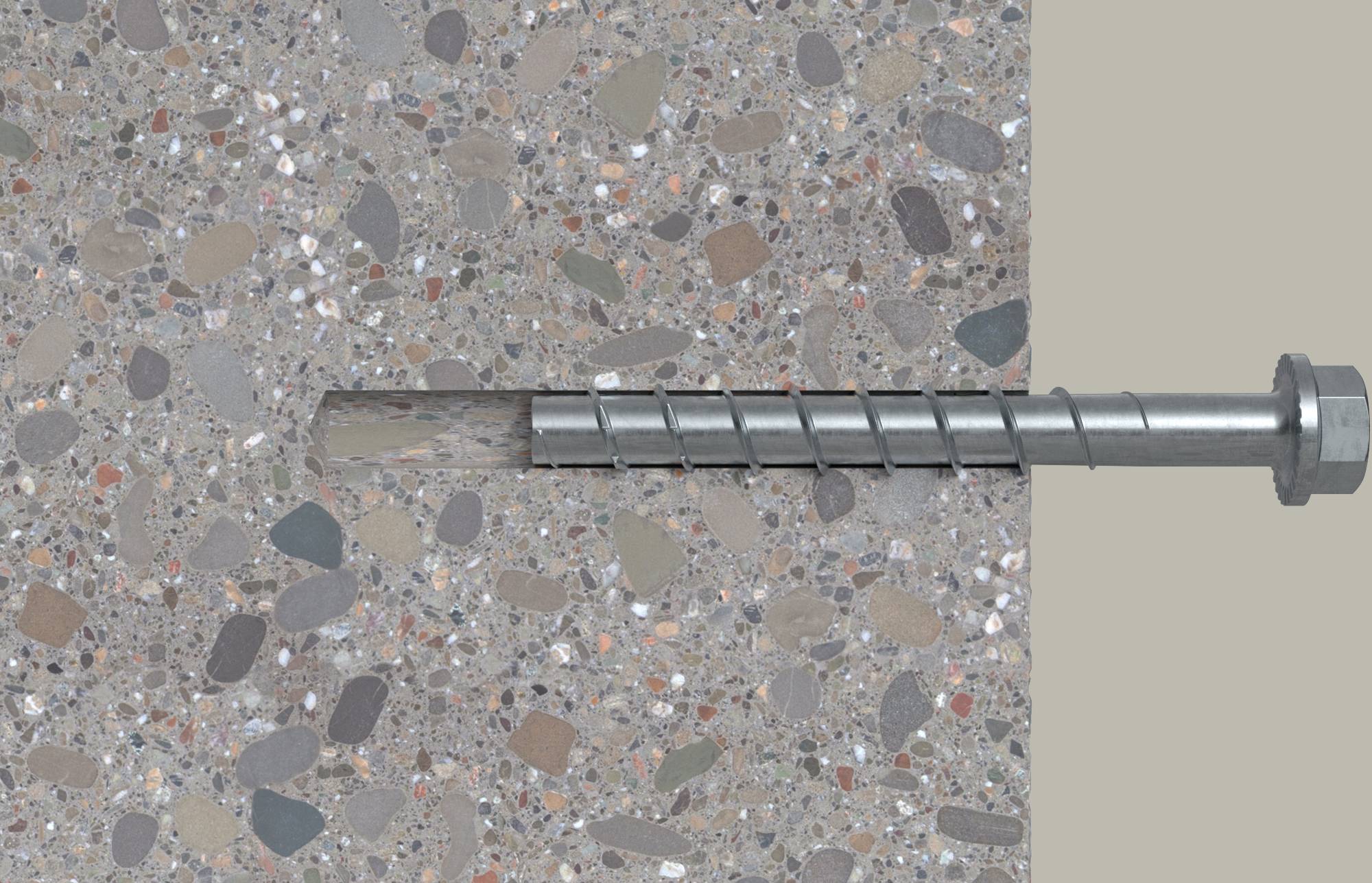

Bolt anchor embedded in concrete, with the threaded metal fastener extending horizontally from the wall surface.

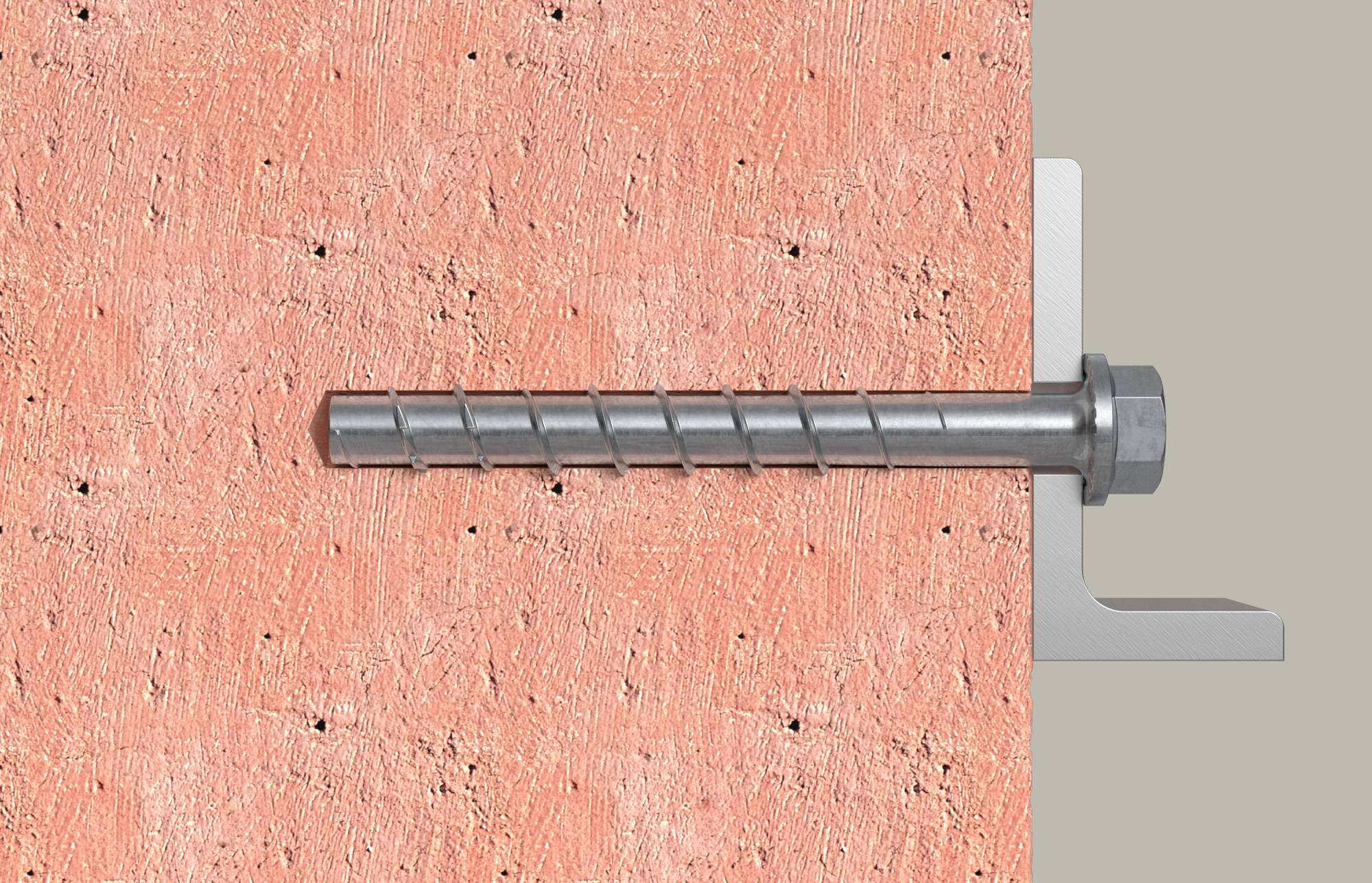

Metal anchor bolt fixed into a concrete wall, showing the expansion sleeve and nut securing a bracket on the right.<br>

1/10

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

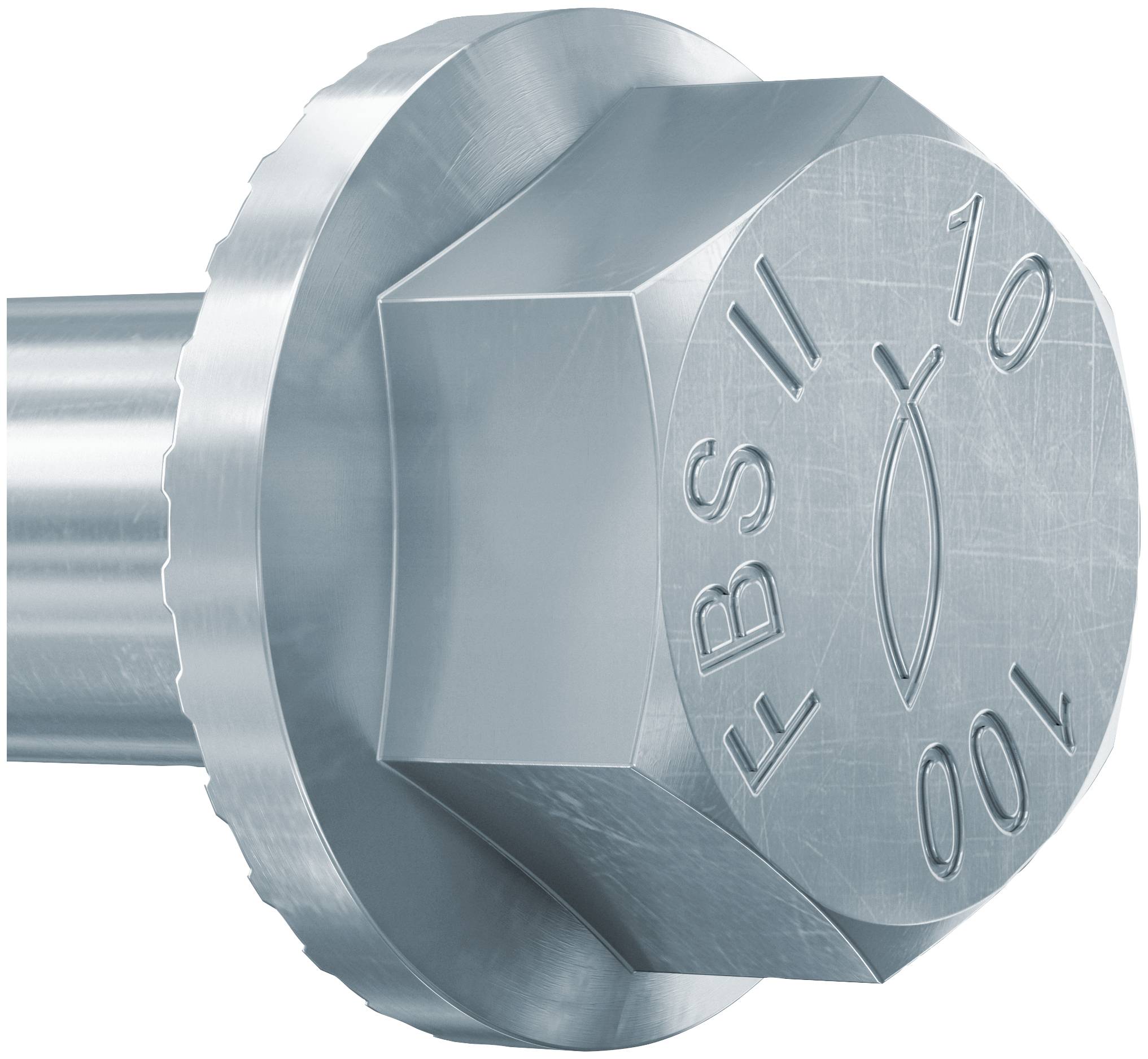

fischer UltraCut FBS II 14 x 240 175/155/125 US hexagonal with washer

Maximum flexibility in load and mounting part thickness thanks to up to three approved screw-in depths
The special saw-tooth geometry allows quick cutting into the concrete
The adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned

Technical specifications

Drive: SW 21
Screw-in depth with mounting part thickness: 65 / 175 mm
Screw-in depth with mounting part thickness 85 / 155 mm
Screw-in depth with mounting part thickness 115 / 125 mm
Min Drill hole depth for through-hole mounting: 250 mm
Working length 125 mm

Product type: Concrete screw

Drive: TX

Content: 10 pc(s)

(Ø): 14 mm

Length: 240 mm

Dim: (Ø x L) 14 mm x 240 mm

Head shape: Hex

Variants(All information is without VAT, plus shipping costs)

Length

(Ø)

Content

Drive

Fischer 558228 FBS II 14x240 175/155/125 US Concrete screw 14 mm 240 mm 10 pc(s)

Item no:2472127

Unavailable

Conrad Electronic

This article

240 mm

14 mm

10 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 554065 FBS II 6x35 M6 I Concrete screw 6 mm 35 mm Steel zinc galvanized 100 pc(s)

Item no:2472199

Unavailable

Conrad Electronic

35 mm

6 mm

100 pc(s)

Hex head

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 554066 FBS II 6x55 M6 Concrete screw 6 mm 55 mm Steel zinc galvanized 100 pc(s)

Item no:2472198

Unavailable

Conrad Electronic

55 mm

6 mm

100 pc(s)

Hex head

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558219 FBS II 8x150 100/85 US TX Concrete screw 8 mm 150 mm TX 50 pc(s)

Item no:2472136

Unavailable

Conrad Electronic

150 mm

8 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558220 FBS II 8x170 120/105 US TX Concrete screw 8 mm 170 mm TX 50 pc(s)

Item no:2472135

Unavailable

Conrad Electronic

170 mm

8 mm

50 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558221 FBS II 8x190 140/125 US TX Concrete screw 8 mm 190 mm TX 20 pc(s)

Item no:2472134

Unavailable

Conrad Electronic

190 mm

8 mm

20 pc(s)

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558222 FBS II 10x280 225/215/195 US Concrete screw 10 mm 280 mm 20 pc(s)

Item no:2472133

Unavailable

Conrad Electronic

280 mm

10 mm

20 pc(s)

Hex head

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558223 FBS II 12x170 110/95/70 US Concrete screw 12 mm 170 mm 20 pc(s)

Item no:2472132

Unavailable

Conrad Electronic

170 mm

12 mm

20 pc(s)

Hex head

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558224 FBS II 12x190 130/115/90 US Concrete screw 12 mm 190 mm 20 pc(s)

Item no:2472131

Unavailable

Conrad Electronic

190 mm

12 mm

20 pc(s)

Hex head

Piece(s)

Minimum order quantity: 1

Multiple: 1

Fischer 558225 FBS II 12x210 150/135/110 US Concrete screw 12 mm 210 mm 20 pc(s)

Item no:2472130

Unavailable

Conrad Electronic

210 mm

12 mm

20 pc(s)

Hex head

Piece(s)

Minimum order quantity: 1

Multiple: 1

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2472127 Fischer 558228 FBS II 14x240 175/155/125 US Concrete screw 14 mm 240 mm 10 pc(s)

Description

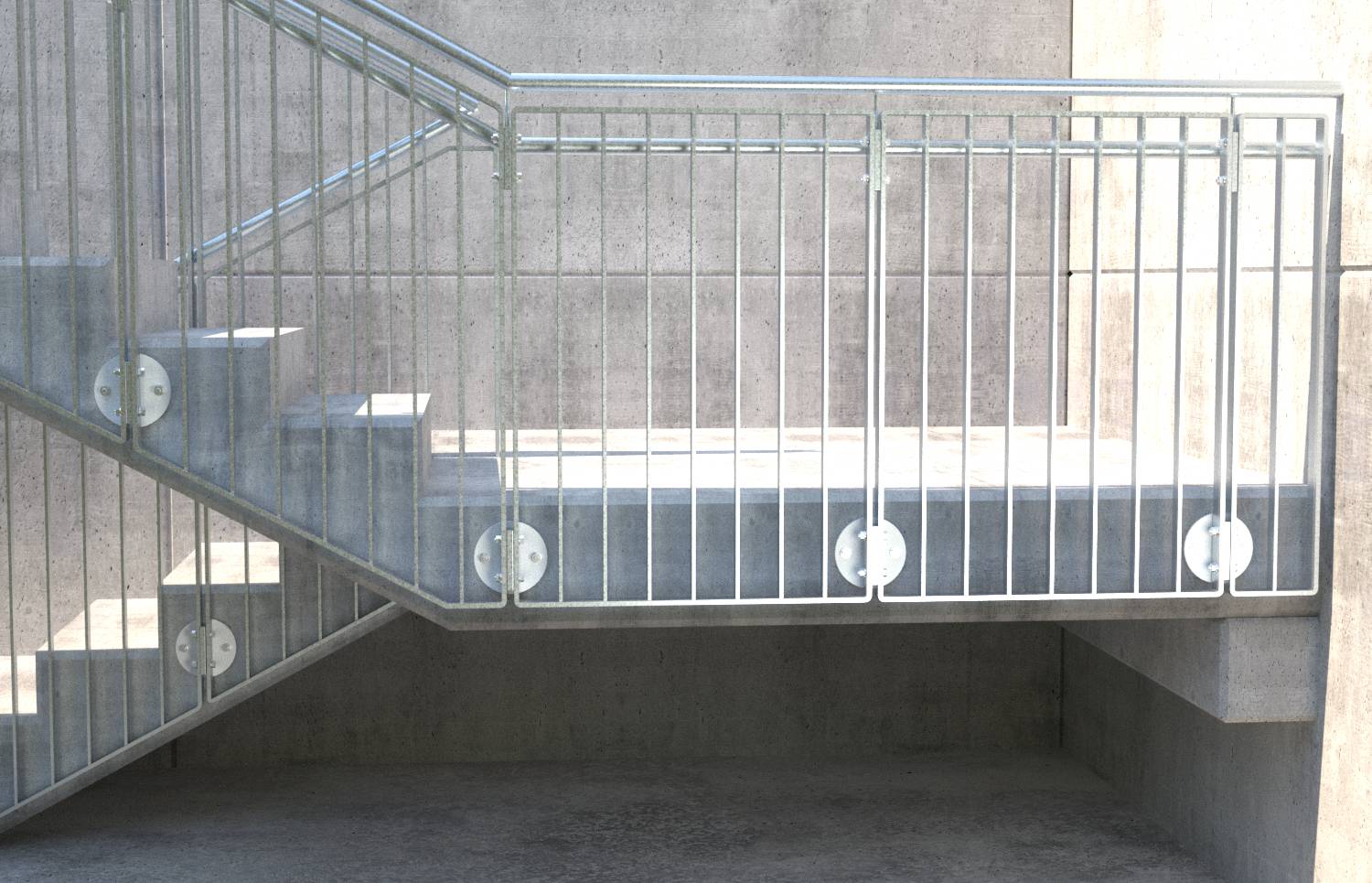

the fischer UltraCut FBS II is the concrete screw for maximum assembly comfort. The special saw-tooth geometry allows quick cutting into the concrete. No drill hole cleaning is necessary for mounting in ceiling or floor. Thanks to national approval, multiple use with temporary anchoring is regulated, for example in formwork construction. A tangential impact driver with impact wrench suitable nut or a special TX bit is recommended for mounting the wall screw. ideal is the concrete screw for fixing railings, impact protection, consoles or formwork supports.

This text is machine translated.

Features

Maximum flexibility in load and mounting part thickness thanks to up to three approved screw-in depths
the special saw tooth geometry allows quick cutting into the concrete
For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not required for drilling holes in the floor, 3x drill diameter must be drilled deeper
The non-spreading anchoring (undercut) ensures the smallest edge and axle distances
ETA evaluation covers the use in cracked concrete, as well as the seismic performance categories C1 and C2
the adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned
the national approval regulates the multiple use of temporary anchoring (e.g. Formwork)

Description

Features

Maximum flexibility in load and mounting part thickness thanks to up to three approved screw-in depths
the special saw tooth geometry allows quick cutting into the concrete
For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not required for drilling holes in the floor, 3x drill diameter must be drilled deeper
The non-spreading anchoring (undercut) ensures the smallest edge and axle distances
ETA evaluation covers the use in cracked concrete, as well as the seismic performance categories C1 and C2
the adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned
the national approval regulates the multiple use of temporary anchoring (e.g. Formwork)
