Fischer 558244 FBS II 10x160 105/95/75 US R Concrete screw 10 mm 160 mm 50 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

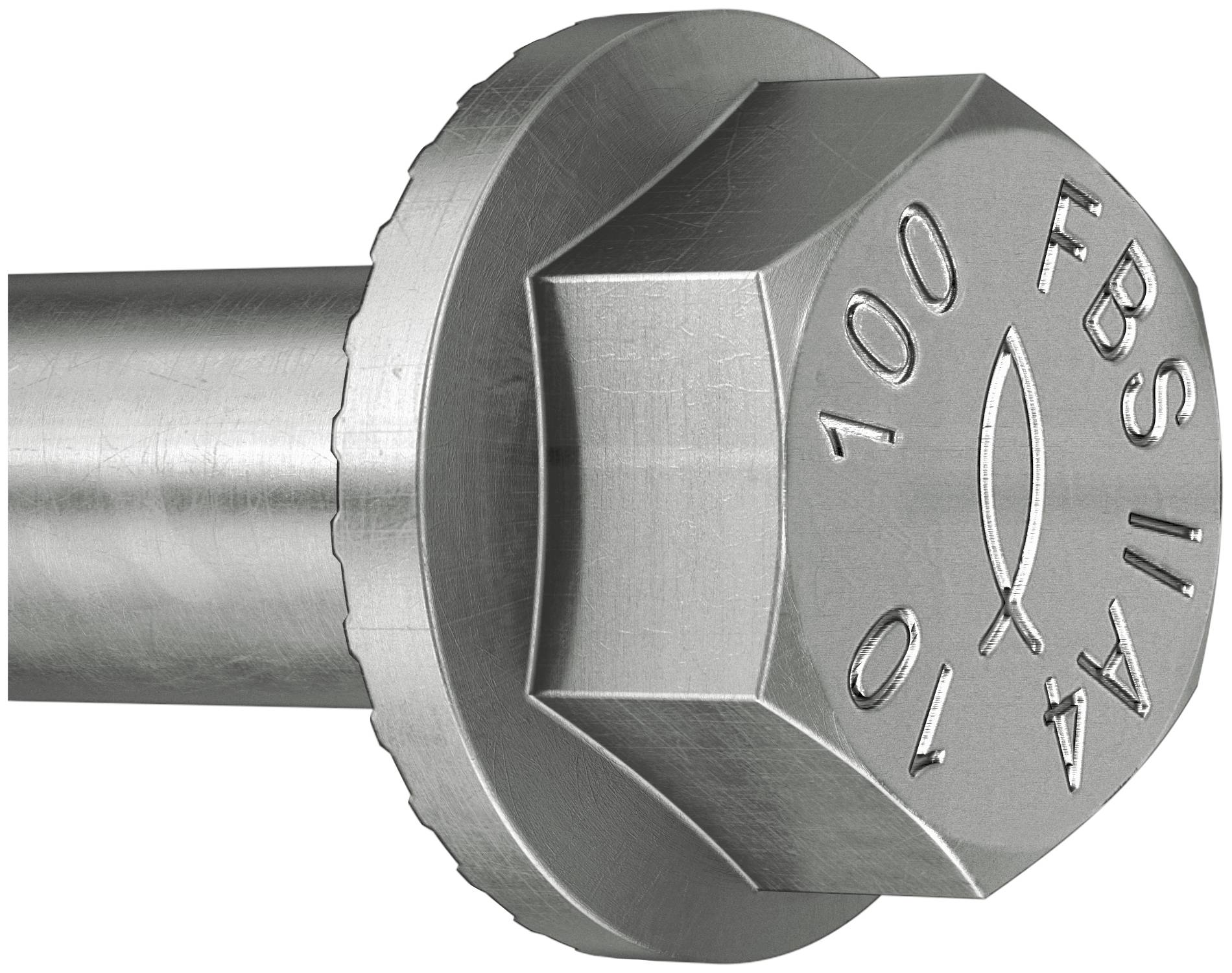

fischer UltraCut FBS II 10 x 160 105/95/75 US R hexagon with washer

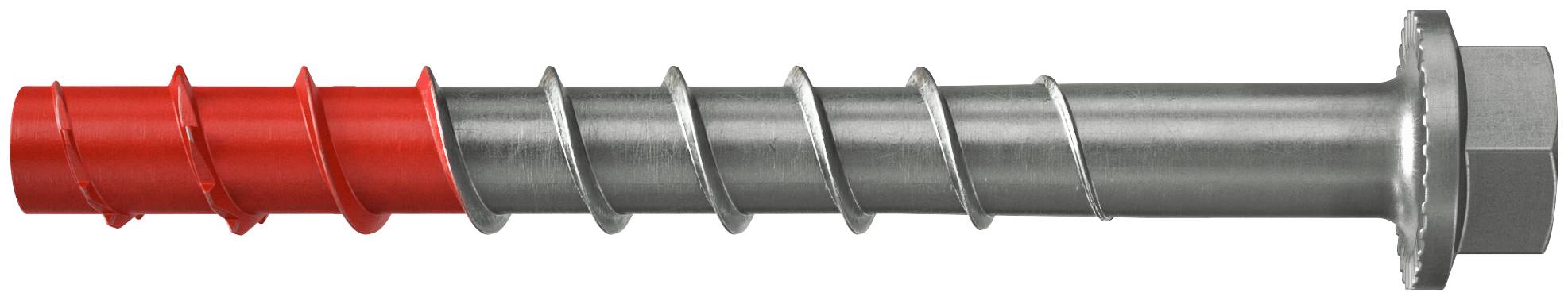

- The specially hardened red tip ensures noticeably faster and secure mounting
- The construction of the concrete screw in stainless steel ensures a very high corrosion protection and thus enables an application in damp rooms and in the outdoor area
- The adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned
Technical specifications
- Drive: SW 15
- Screw-in depth with mounting part thickness: 55 / 105 mm
- Screw-in depth with mounting part thickness: 65 / 95 mm
- Screw-in depth with mounting part thickness 85 / 75 mm
- Min Drill hole depth for through-hole mounting: 170 mm
- Usable length 75 mm
- Product type
Concrete screw
- Drive
Hex head
- Material
Stainless steel
- Thread size
10 mm
- Content
50 pc(s)
- (Ø)
10 mm
- Length
160 mm
- Dim
(Ø x L) 10 mm x 160 mm
- Material properties
tempered
- Head shape
Hex
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2472111 Fischer 558244 FBS II 10x160 105/95/75 US R Concrete screw 10 mm 160 mm 50 pc(s)
Description

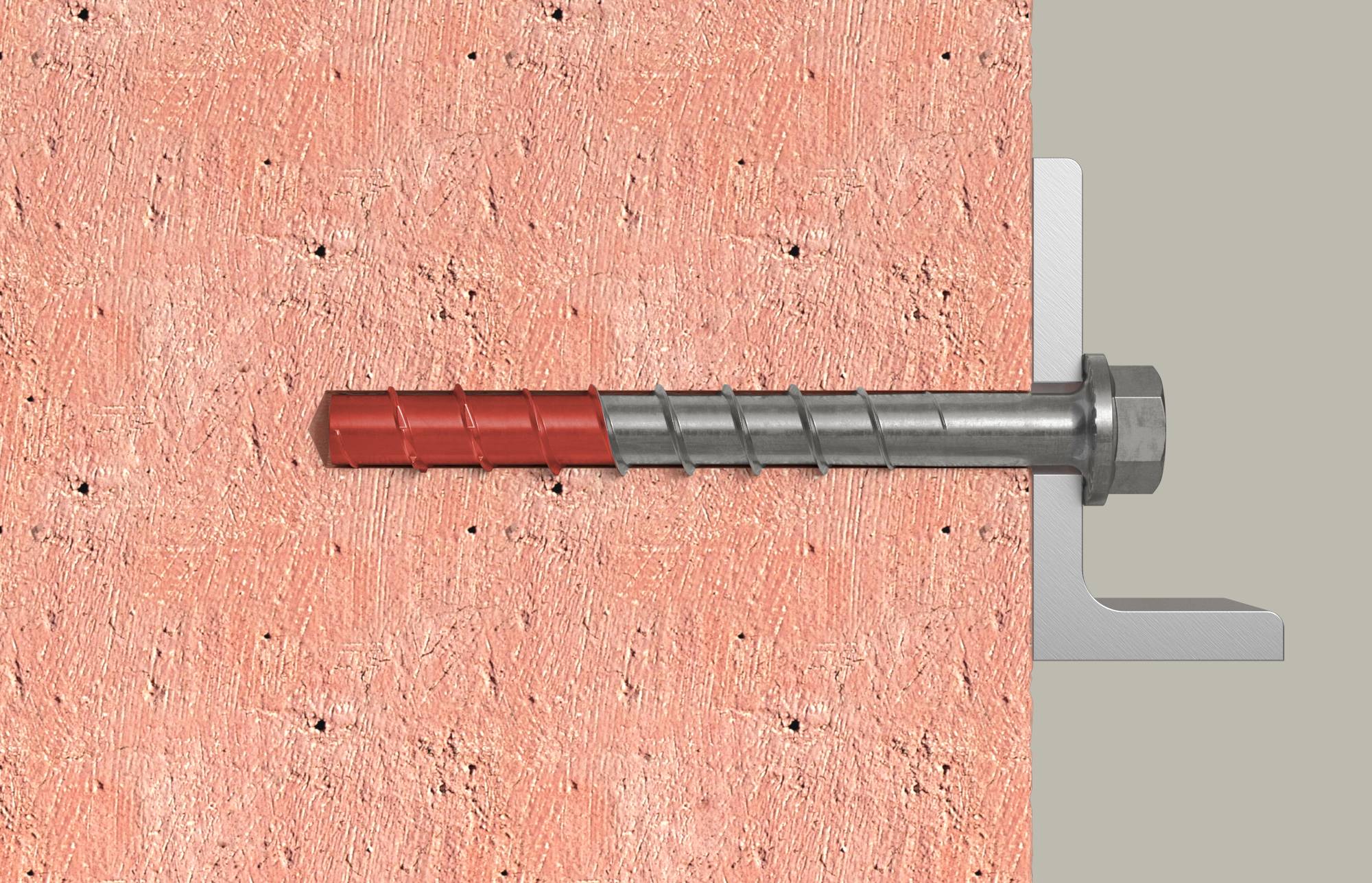

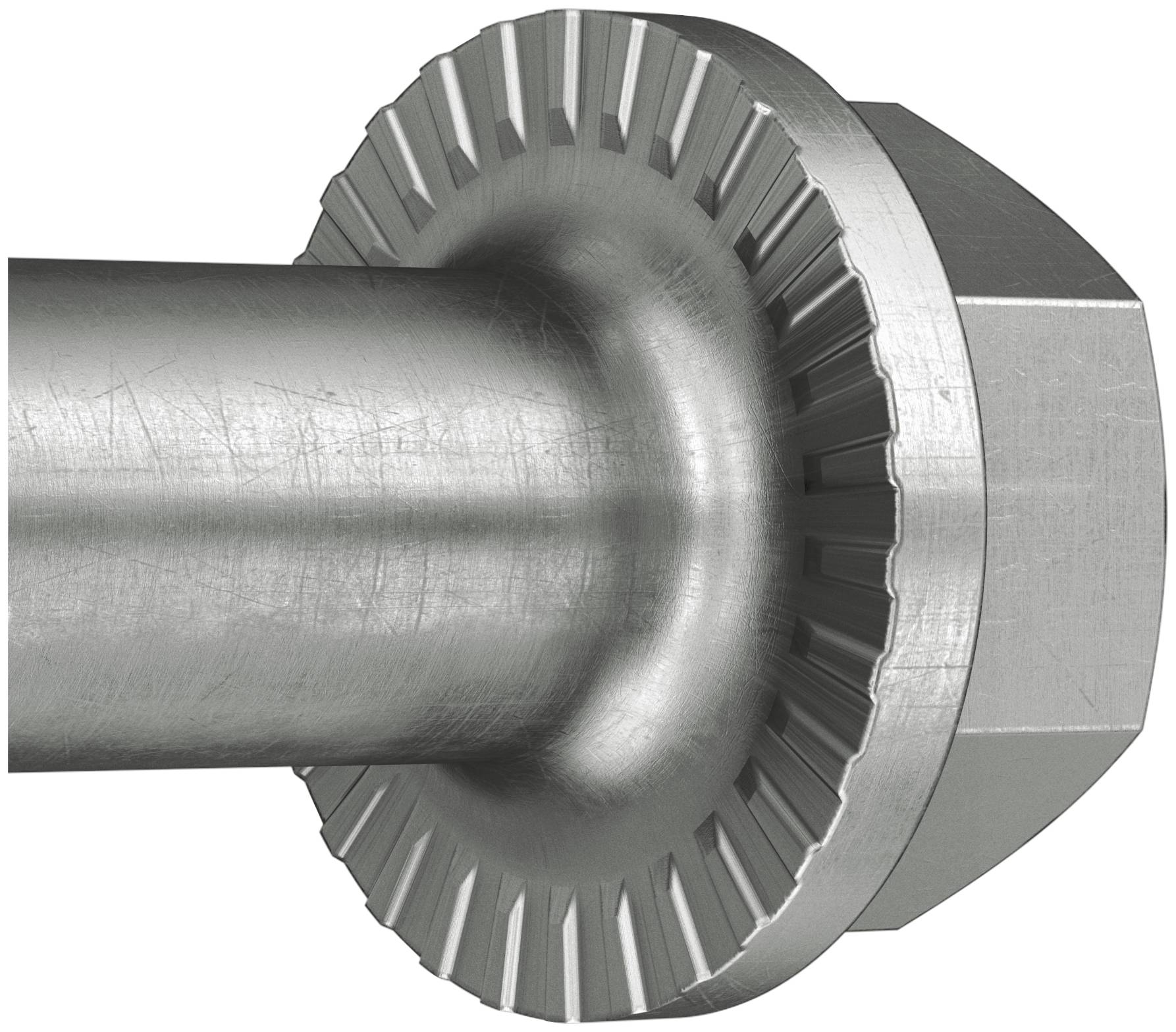

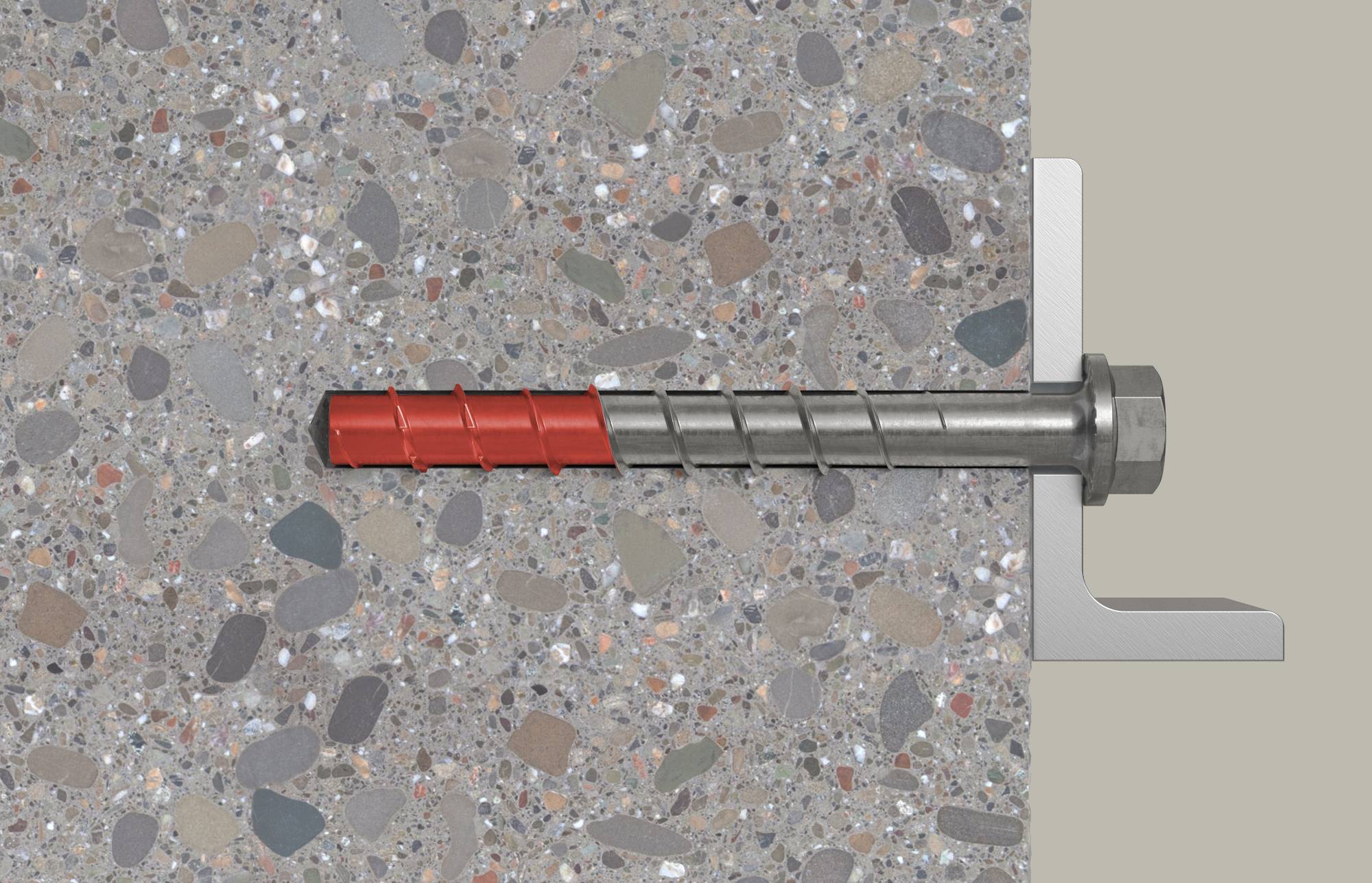

the fischer UltraCut FBS II US R concrete screw with its specially hardened red tip is a powerful anchoring solution for quick assembly. The concrete screw with the pressed-on washer is ideal for applications in outdoor areas or in damp rooms. The European Technical Assessment for cracked and uncracked concrete as well as for seismic loads and the fire suitability for the R 120 fire resistance class guarantee an additional increase in safety. The saw tooth geometry enables a fast and force-saving assembly. No drill hole cleaning is required when mounting in ceilings and floors. The non-expanding anchoring allows for minimum edge and axle distances.
This text is machine translated.
This text is machine translated.
Features
- The specially hardened red tip ensures noticeably faster and secure mounting
- The construction of the concrete screw in stainless steel guarantees a very high corrosion protection and thus enables an application in damp rooms and in the outdoor area
- the special saw tooth geometry allows quick cutting into the concrete
- For vertical mounting (in ceilings and floors) and the use of hollow drill bits, drill hole cleaning is not required for drilling holes in the floor, 3x drill diameter must be drilled deeper
- ETA evaluation covers the use in cracked concrete, as well as the seismic performance categories C1 and C2
- the adjustment in accordance with the approval allows the concrete screw 2x to be loosened, the attachment part to be placed under and/or aligned
- Three approved screw-in depths enable the application for a wide range of applications and thus provide a high degree of flexibility
- the short design with reduced screw-in depth enables a low drill hole depth, fast mounting and less reinforcement buffers
